SPECIFICATIONS

APP Control: Tuya Smart/ Smart Life

Brand Name: EZAIOT

Certification: CE,RoHS

Choice: yes

Hign-concerned Chemical: None

Model Number: RF433 Wireless Thermostat for Gas Boiler

Origin: Mainland China

Radio Frequency: RF433MHz

Receiver power supply: AC100~240V; 50/60Hz

Temperature Setting Range: 5~95℃

Thermostat power supply: Type-C cable / 3 alkaline batteries

Voice Control: Alexa / Google Home / Yandex Alice

Wattage: 1.5W Max

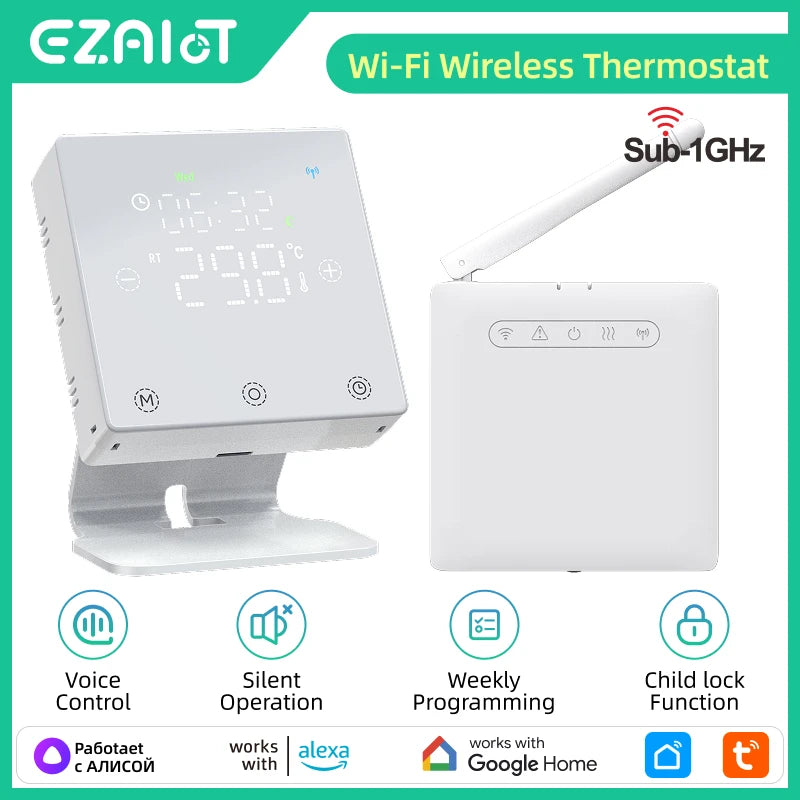

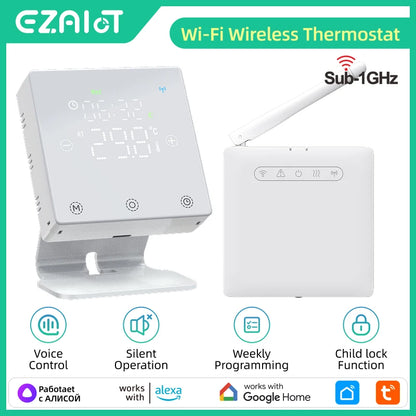

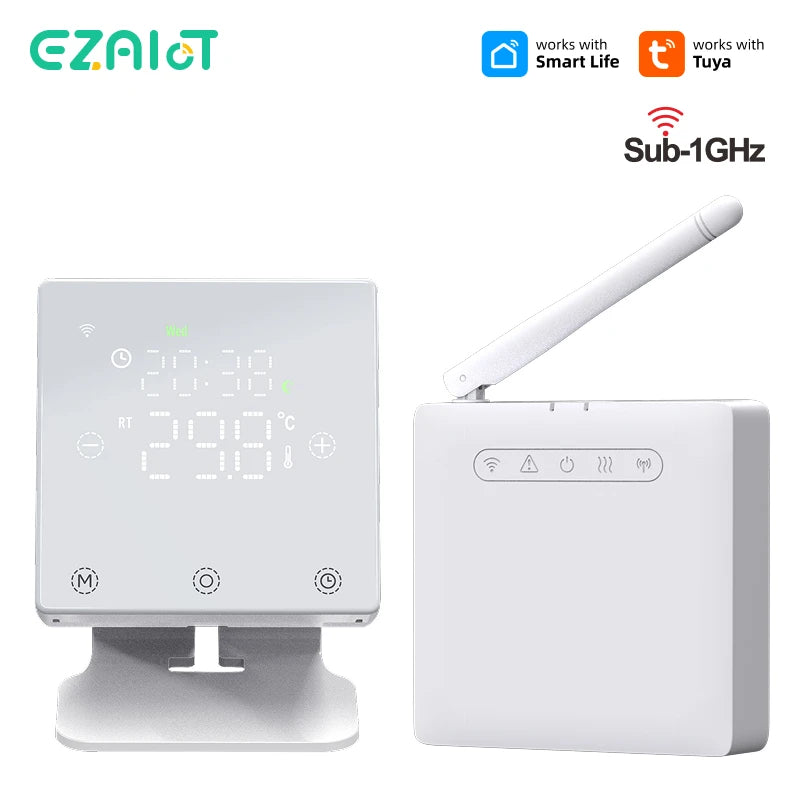

This is an RF433 wireless + Wi-Fi thermostat system. The thermostat requires no wiring and is powered directly by batteries or USB. It controls your boiler via a connected receiver unit within a range of up to 200 meters. Compared to traditional thermostats, it is more energy-efficient and intelligent, provides more accurate temperature readings, and enhances comfort and convenience.

✦ KEY FEATURES ✦

WiFi Wireless Thermostat

• RF433 wireless connection design, no cables required.

• Suitable for Water & Gas Boiler.

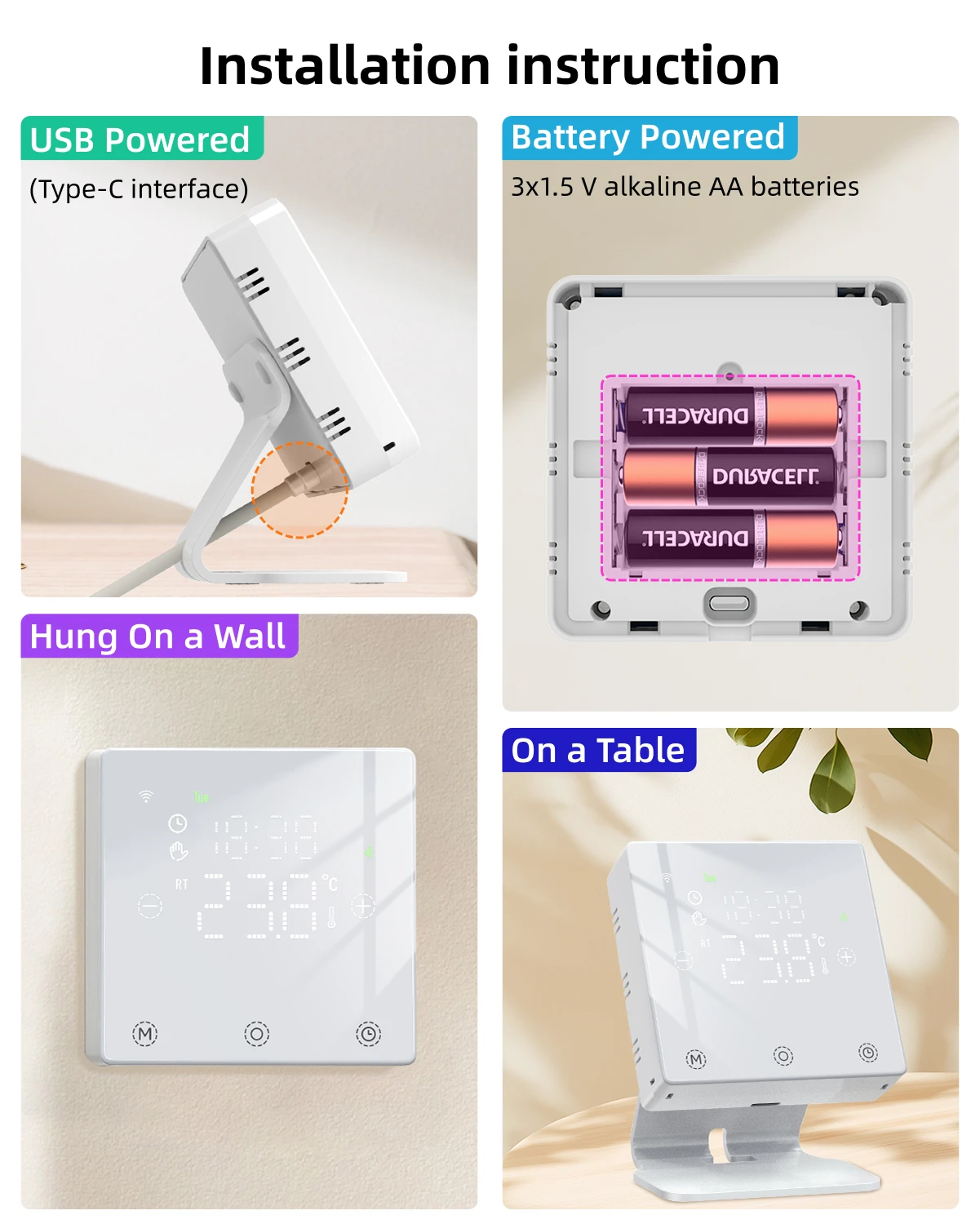

Installation Instruction

• Thermostat is powered by a Type-C cable or 3xAA batteries.

• Thermostat can be wall-mounted or placed on the desktop.

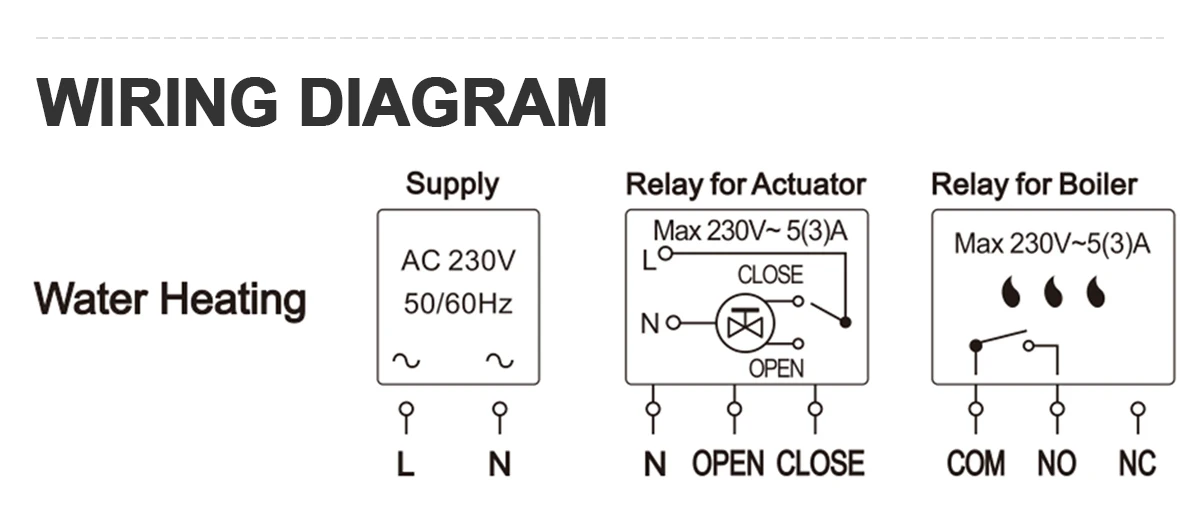

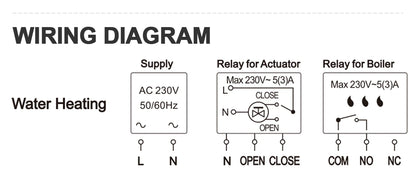

• Receiver can be wired directly to the boiler or actuator.

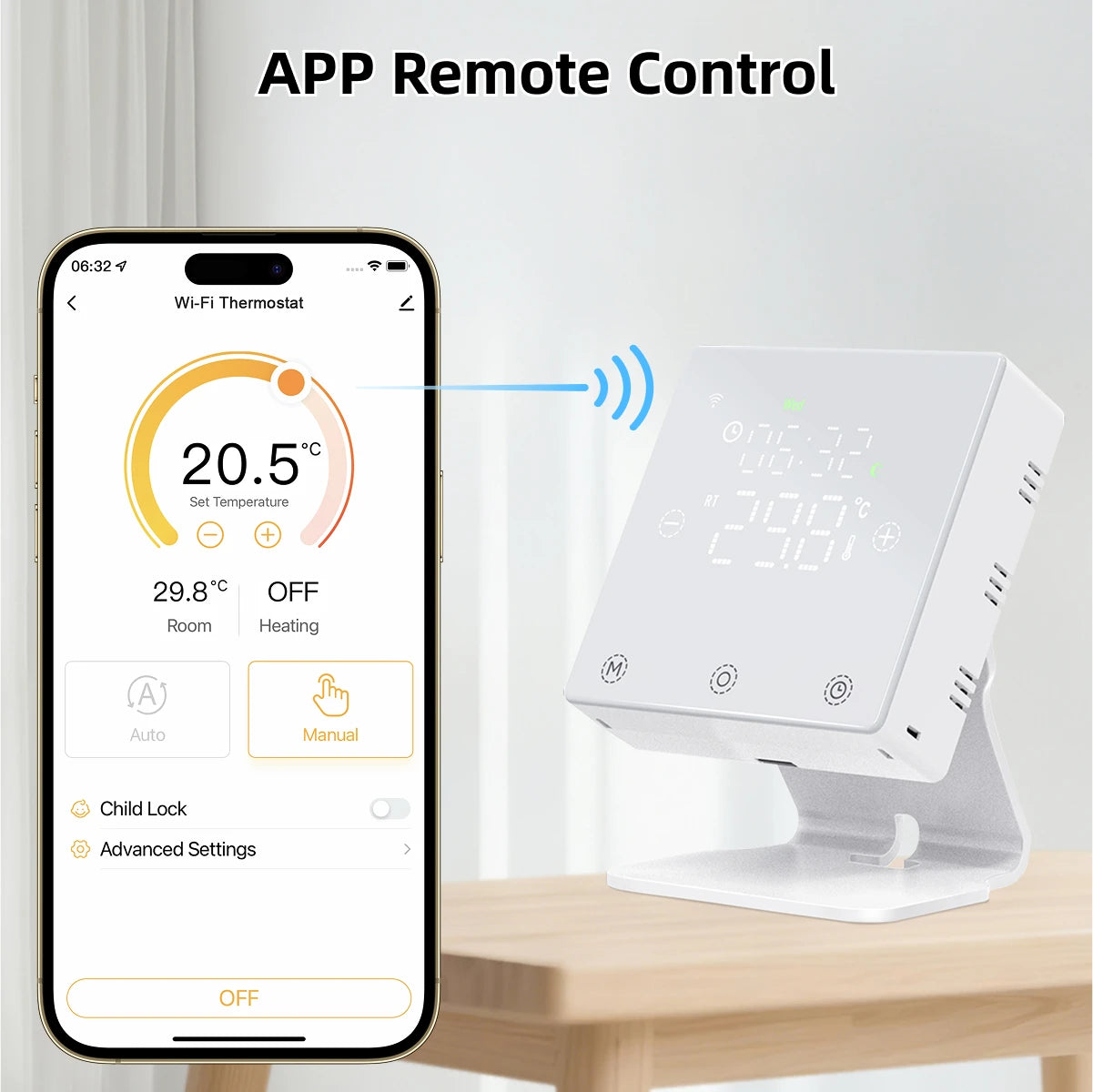

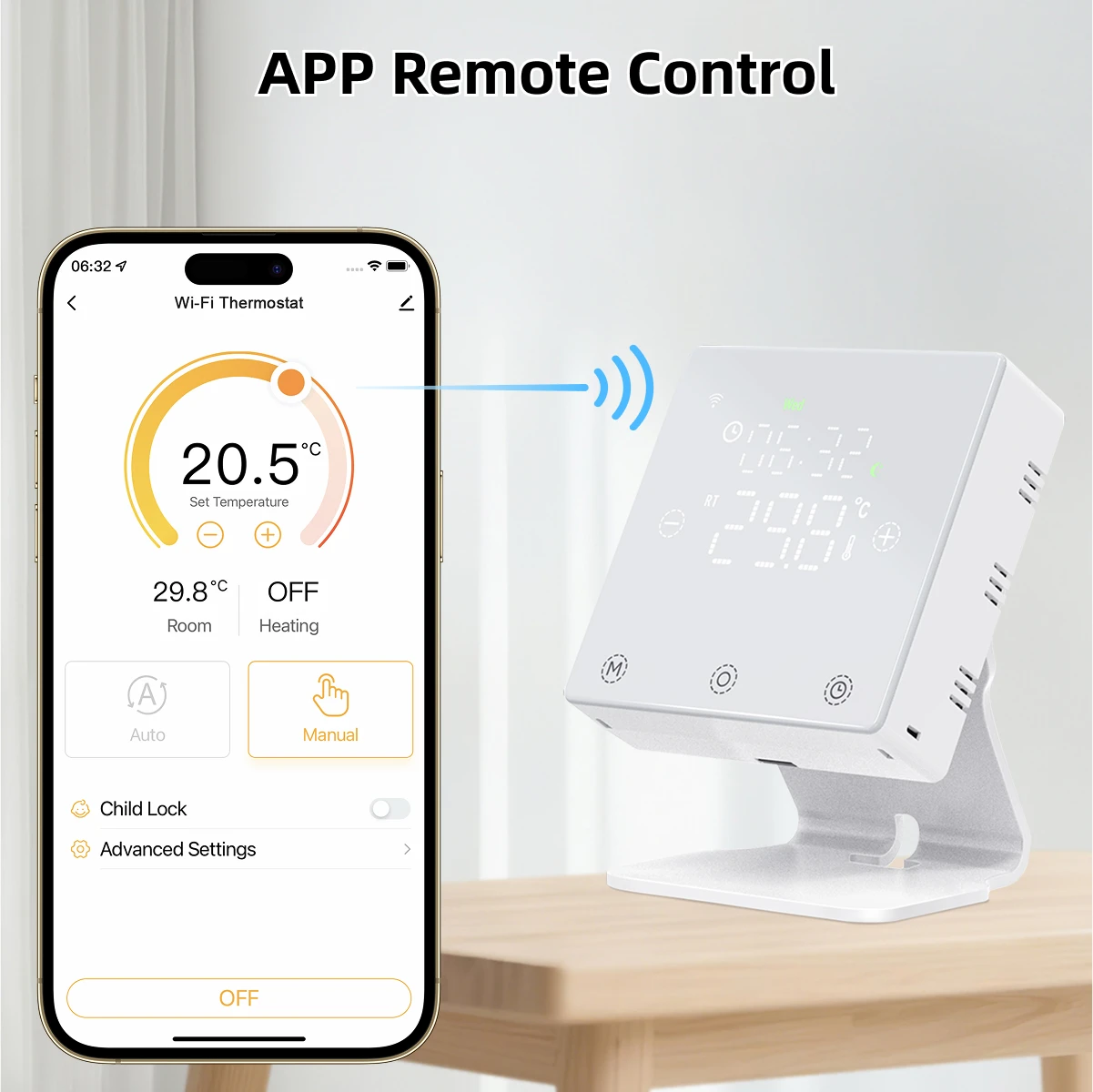

Smart APP Remote Control

• Manage temperature anytime via Smart Life/Tuya Smart APP

Voice Control

• Works with Amazon Alexa, Google Home and Yandex Alice.

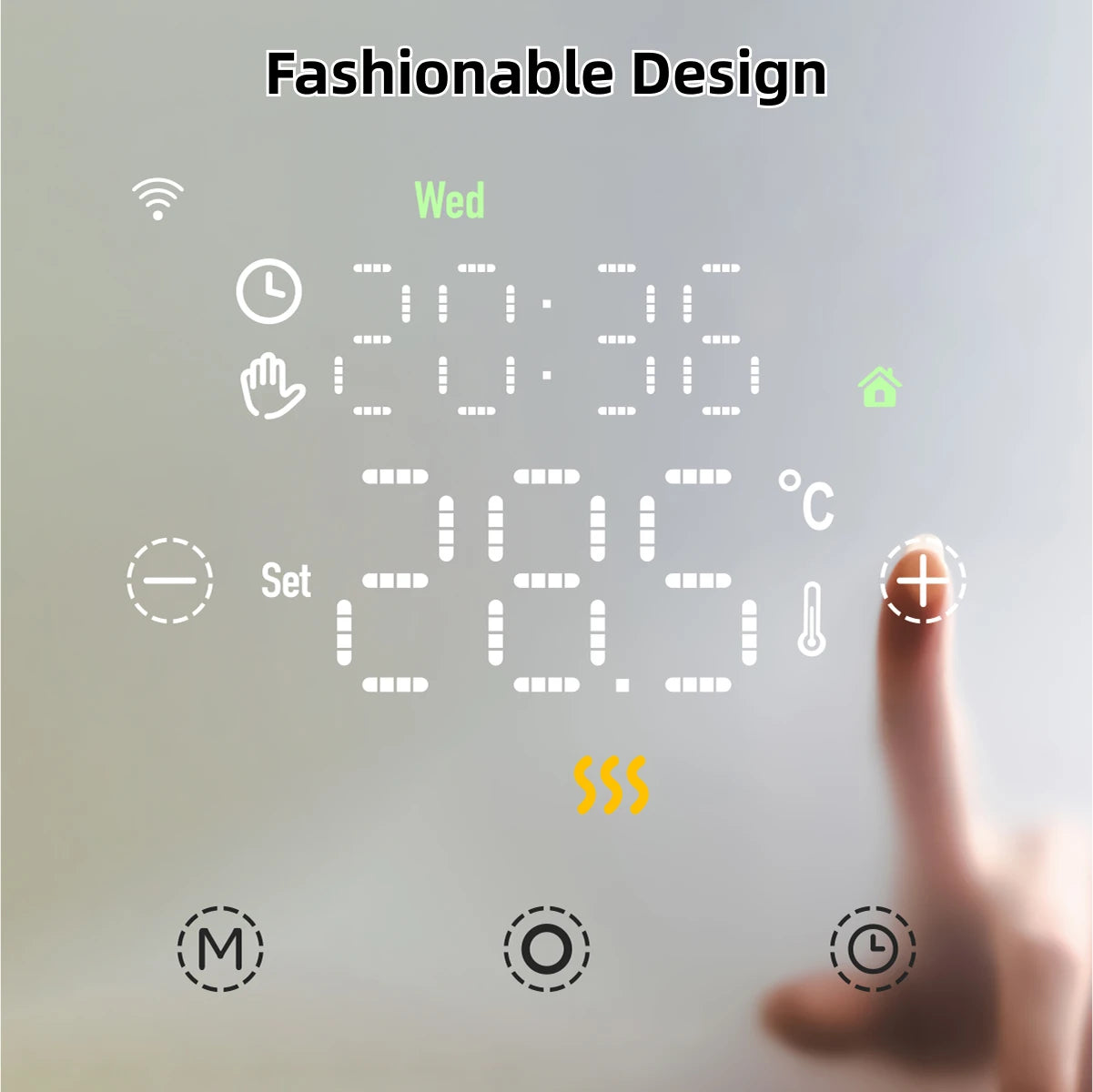

Fashionable Design

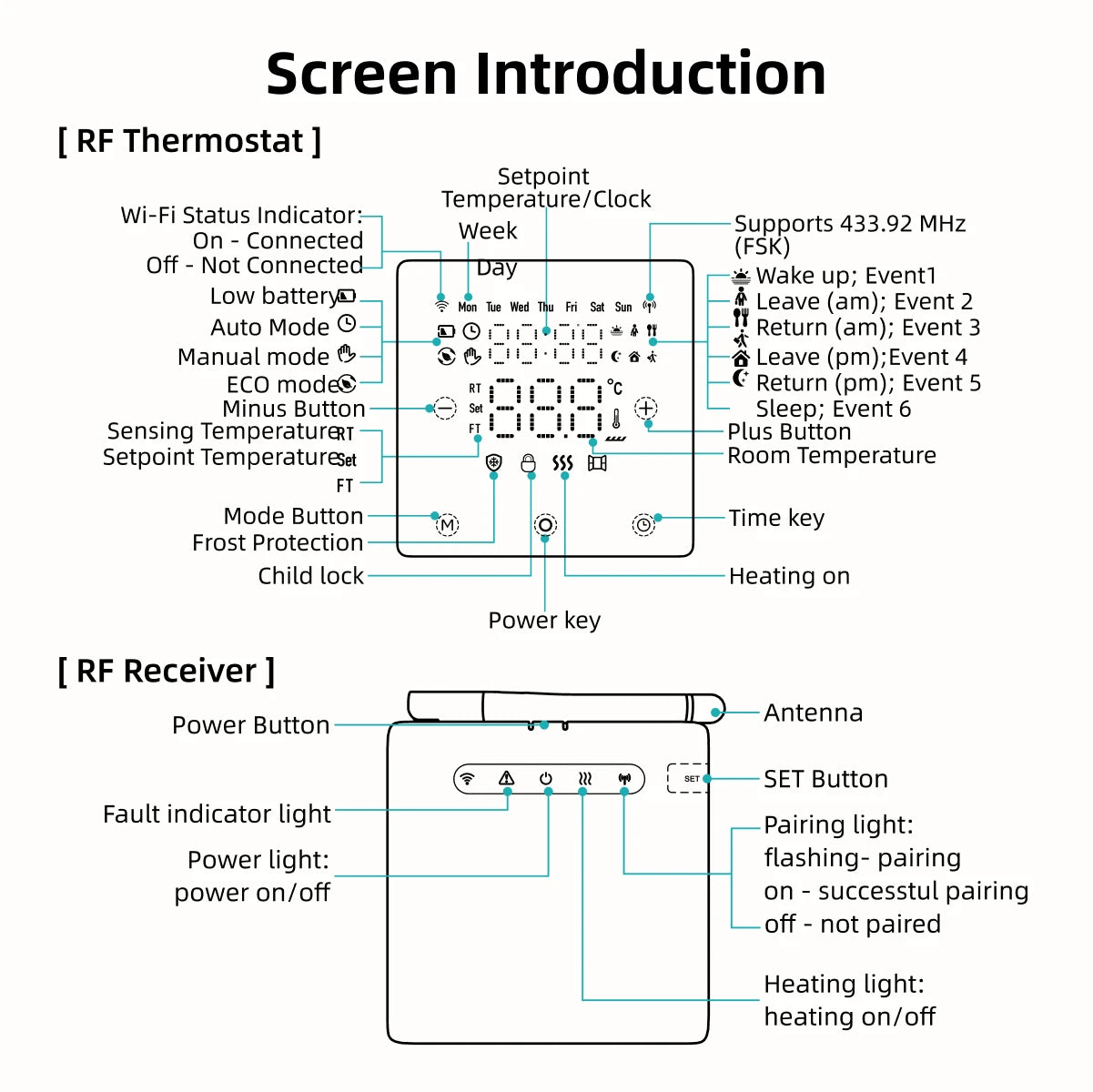

• Large LED display screen + capacitive touch buttons, stylish and intuitive.

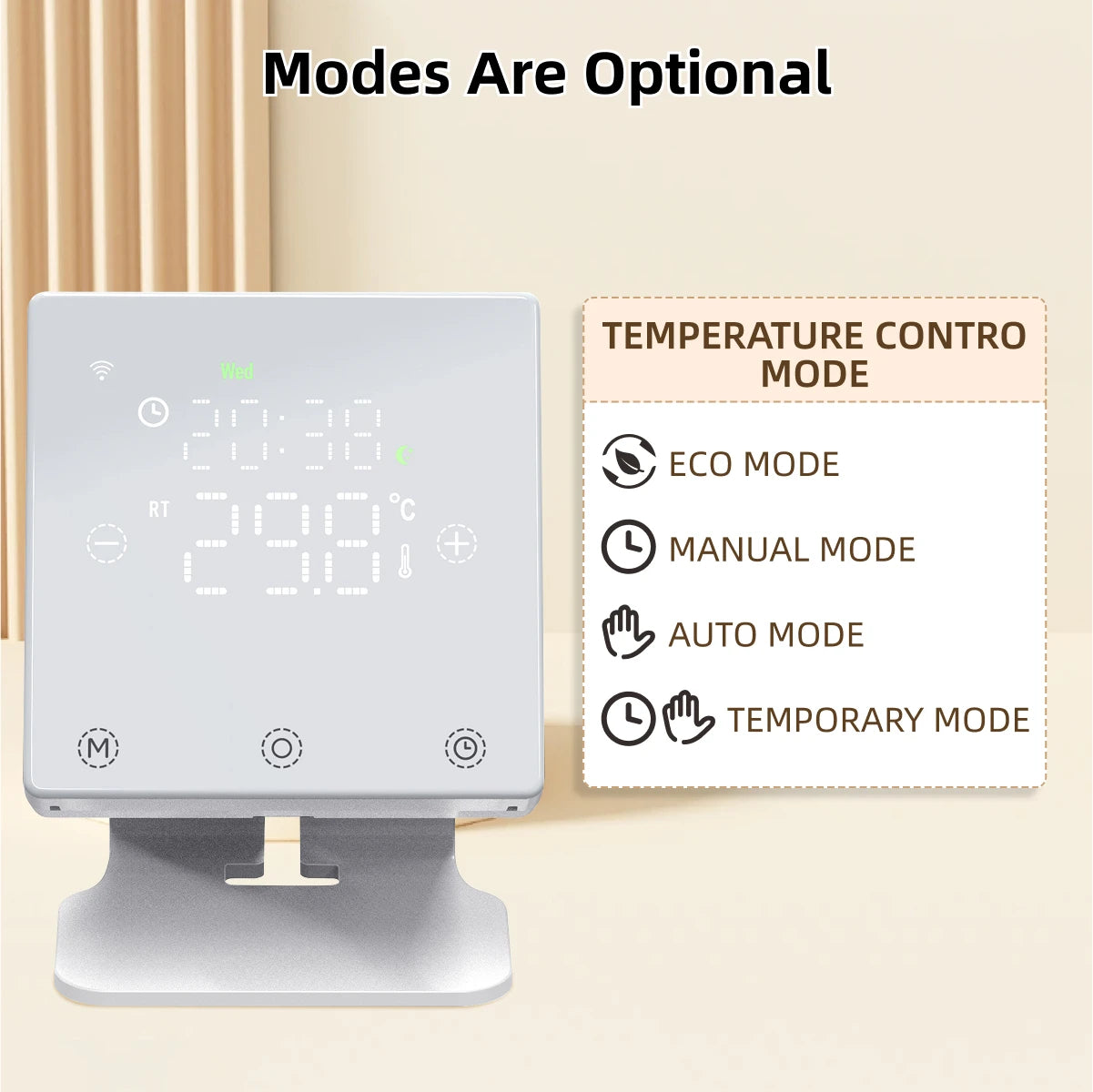

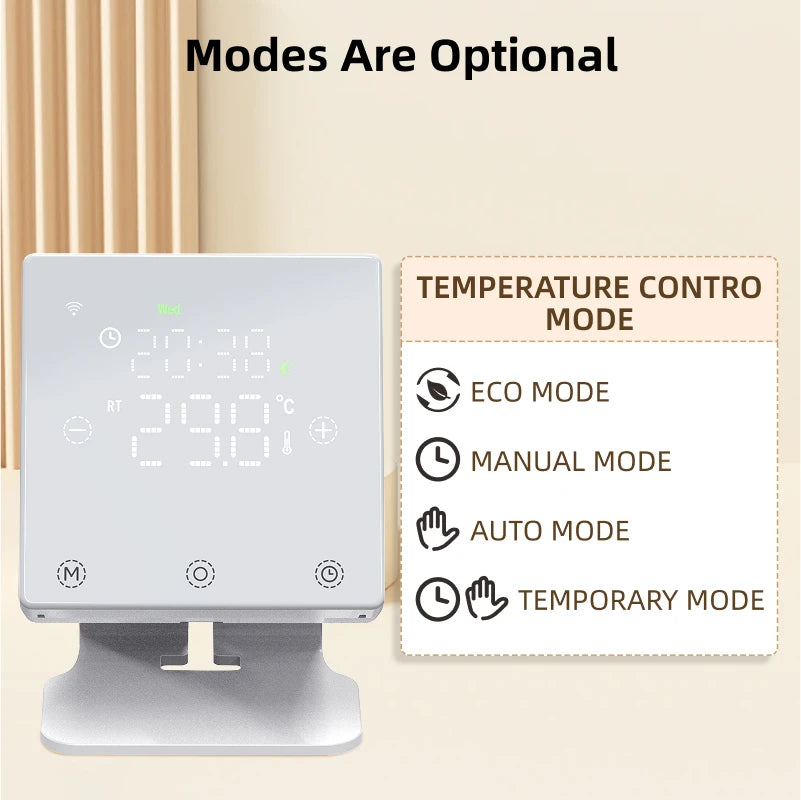

Three Modes Available

• Manual mode / Auto mode/Temporary mode

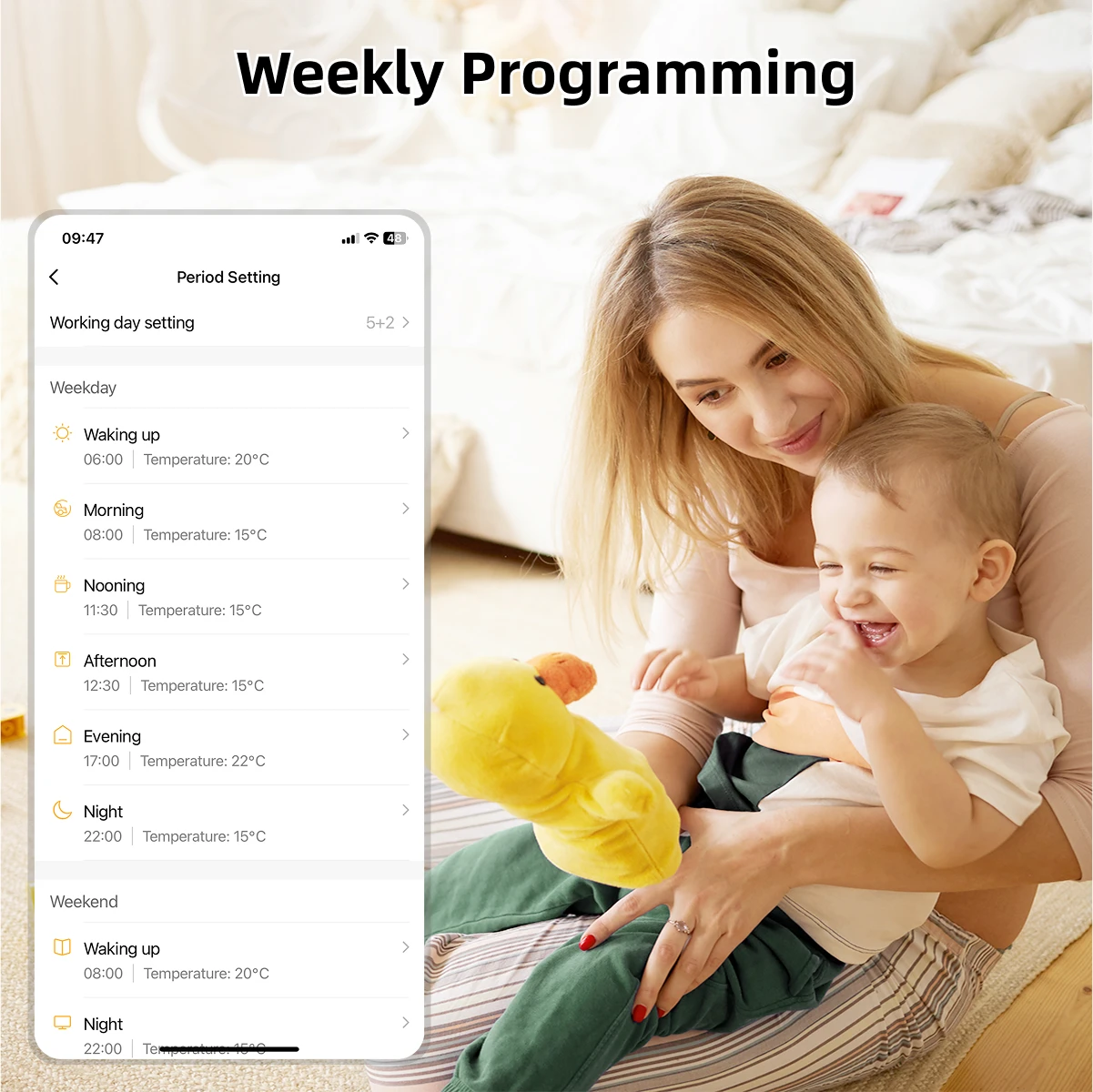

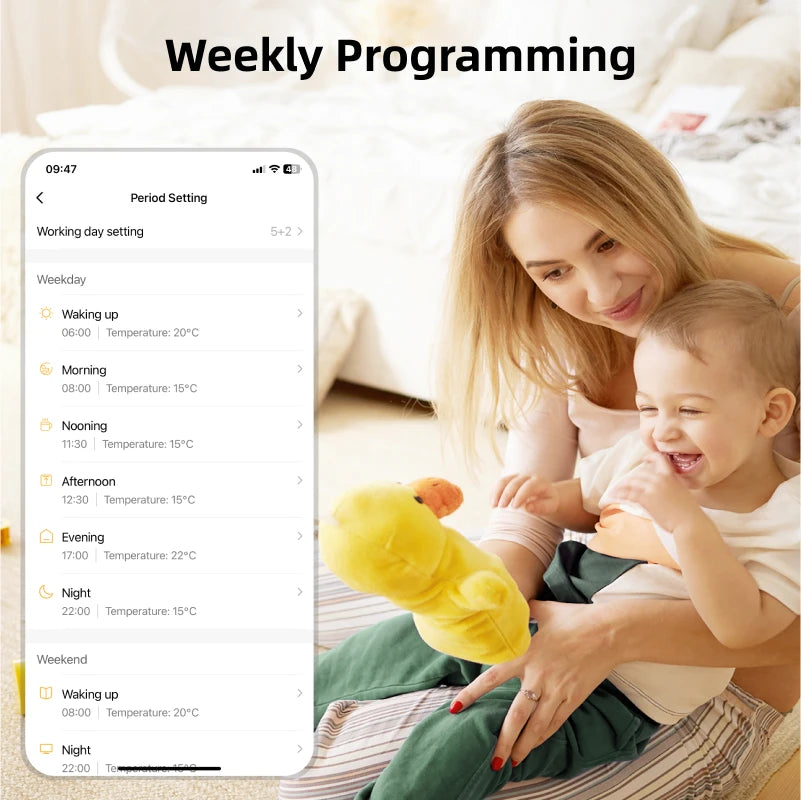

Weekly Programming

• Supports 5+2/6+1/7-day scheduling, Up to 6 time periods per day with independent temperature settings.

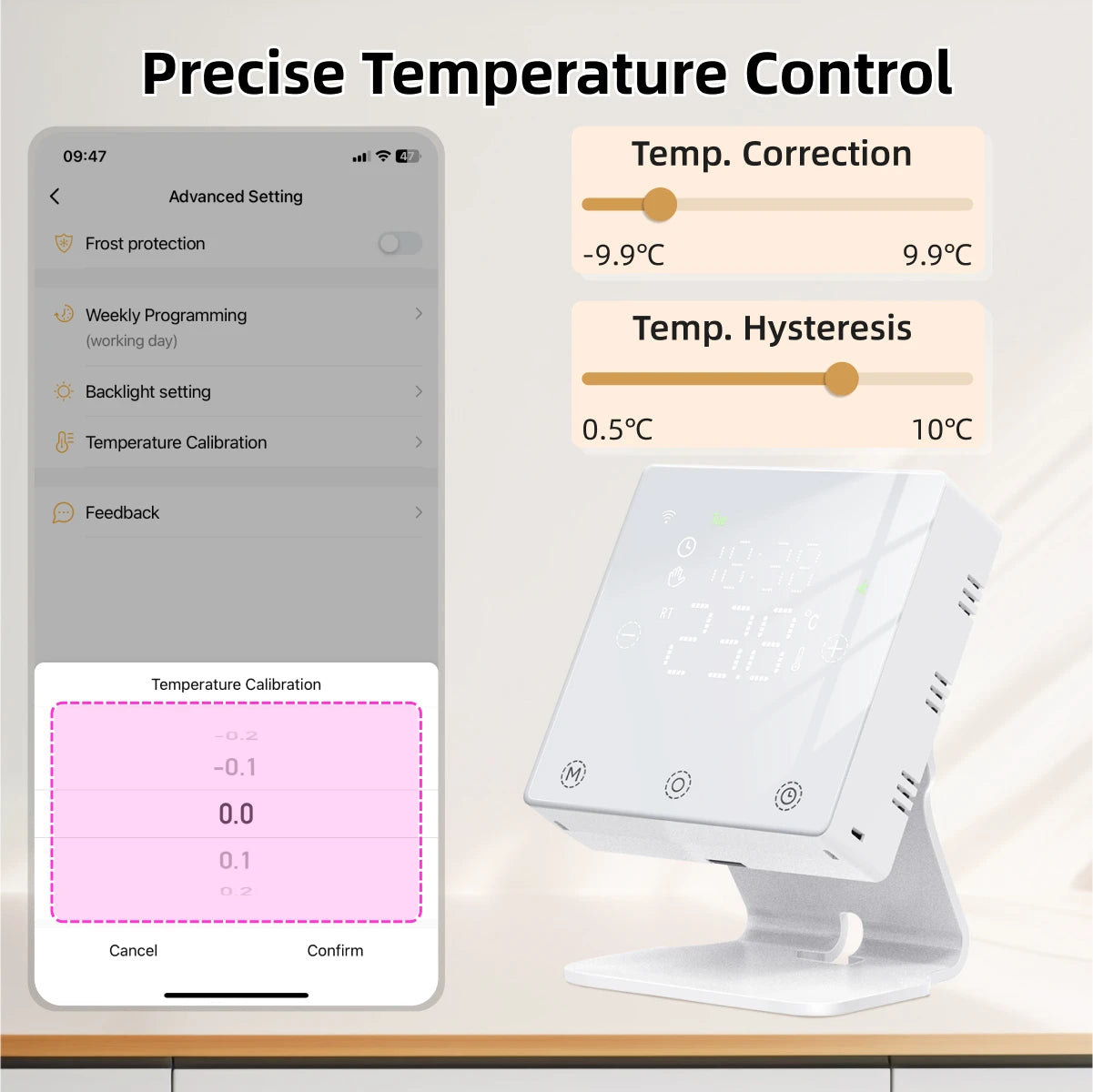

Precise Temperature Control

• Switch deviation ±0.5°C, temperature measurement accuracy 0.1°C.

• When the temperature is different due to the installation environment, the temperature can be calibrated (-9.9~9.9°C)

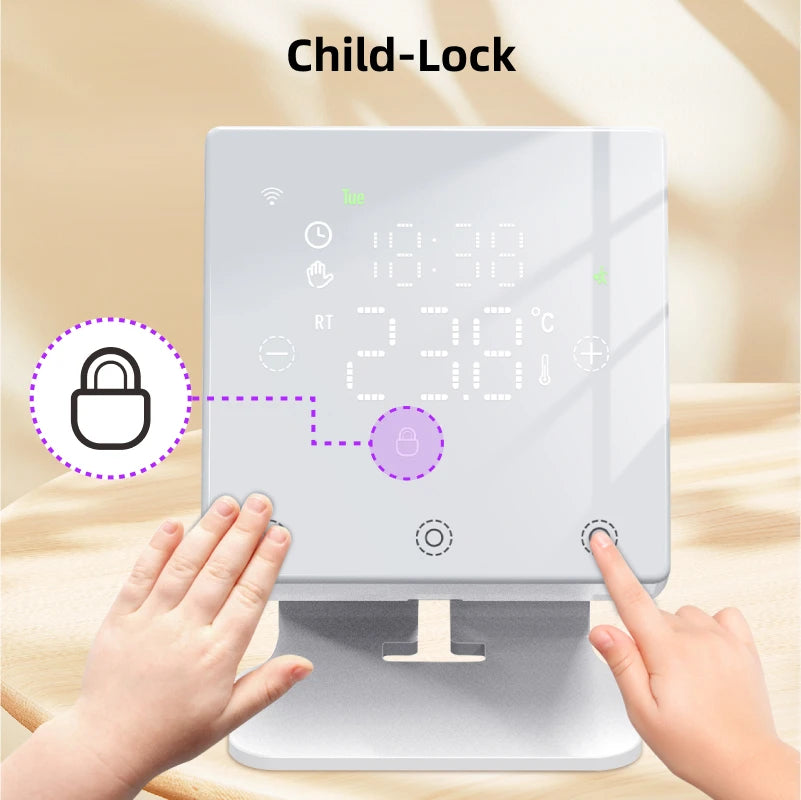

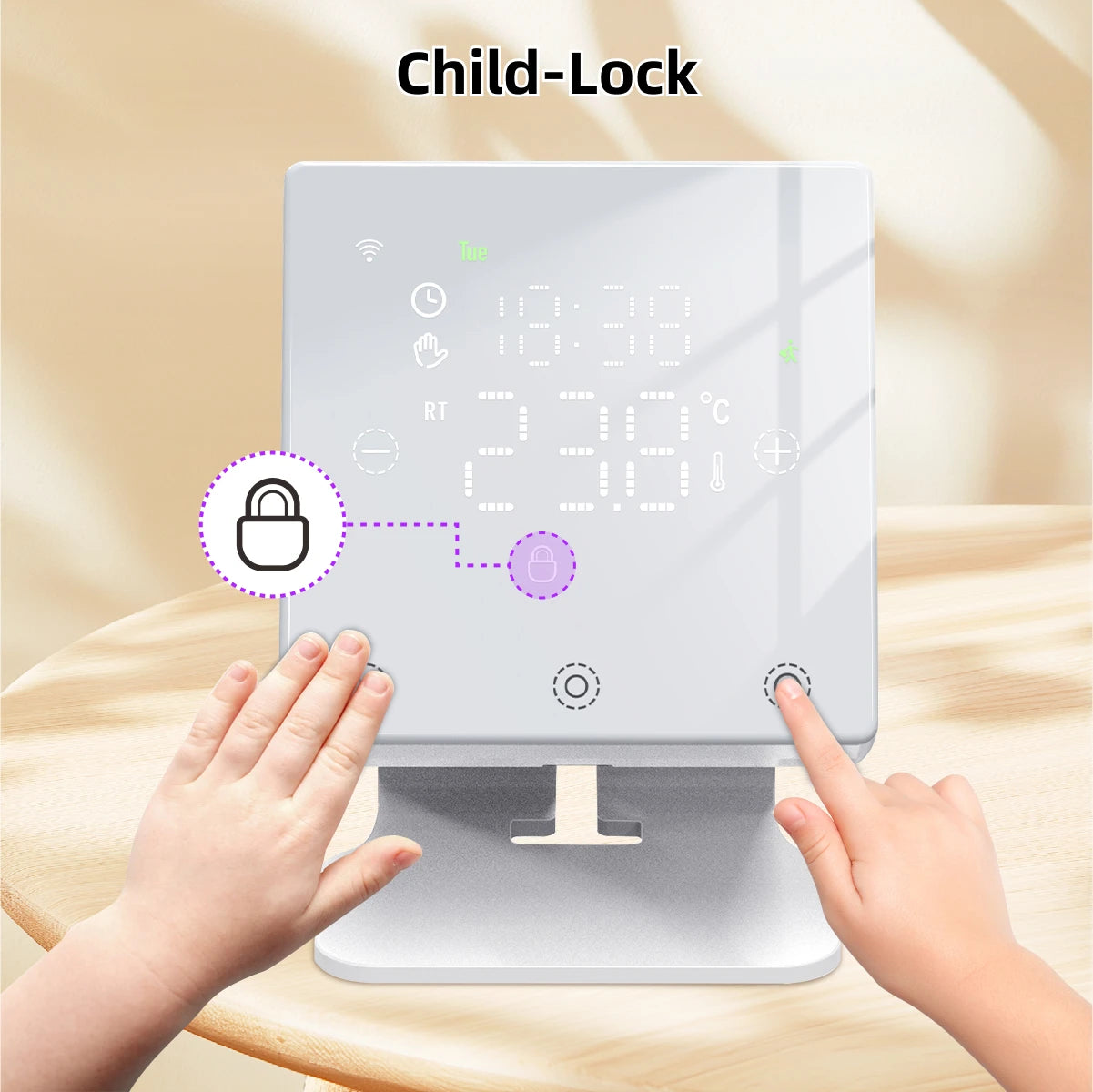

Child-Lock

• Prevents accidental operation by children, baby or pets.

Power Outage Memory

• Don't worry even if the power goes out suddenly, settings and power status can also be saved.

Family Share Function

• Share device control with family members for a smarter home.

Specifications

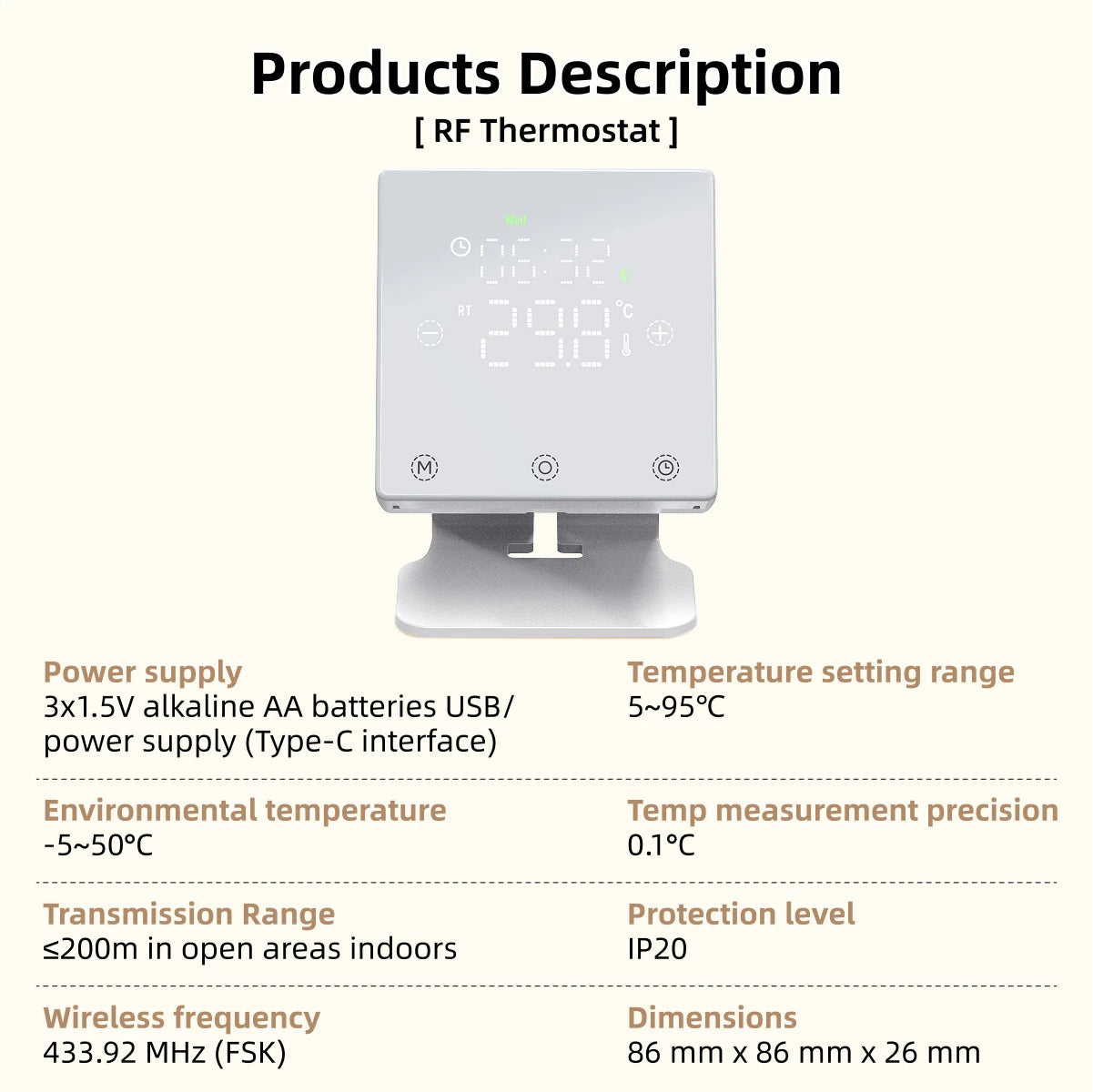

RF Thermostat

Power supply:3x1.5V alkaline AA batteries / USB power supply (Type-C interface)

Temperature setting range:5~95℃

Temp measurement precision:0.1℃

Protection level:IP20

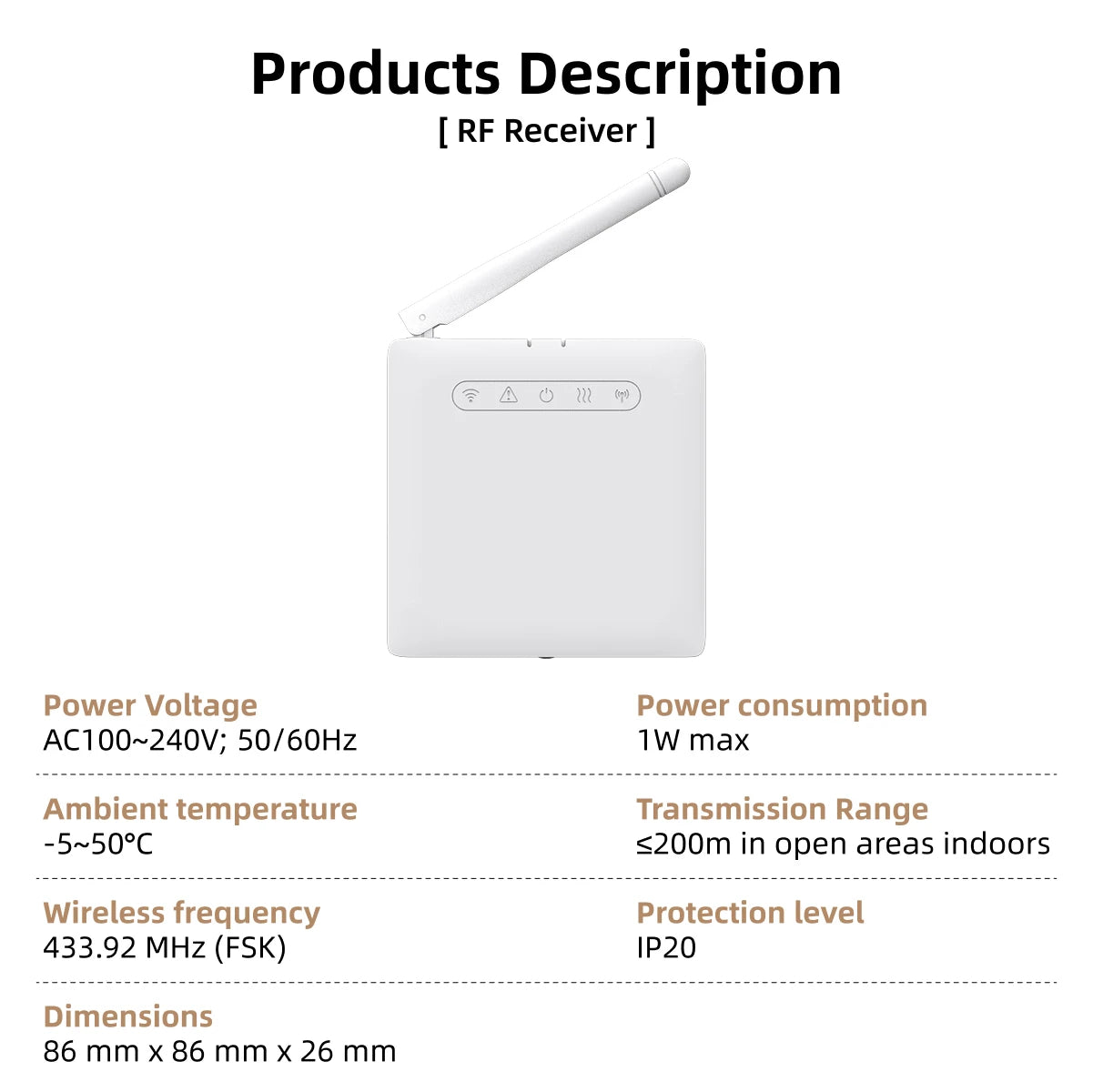

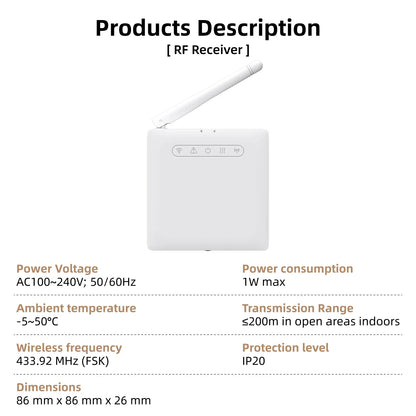

RF Receiver

Power voltage:AC100~240V; 50/60Hz

Power consumption:1W Max

Same Specifications

Ambient temperature:-5~50℃

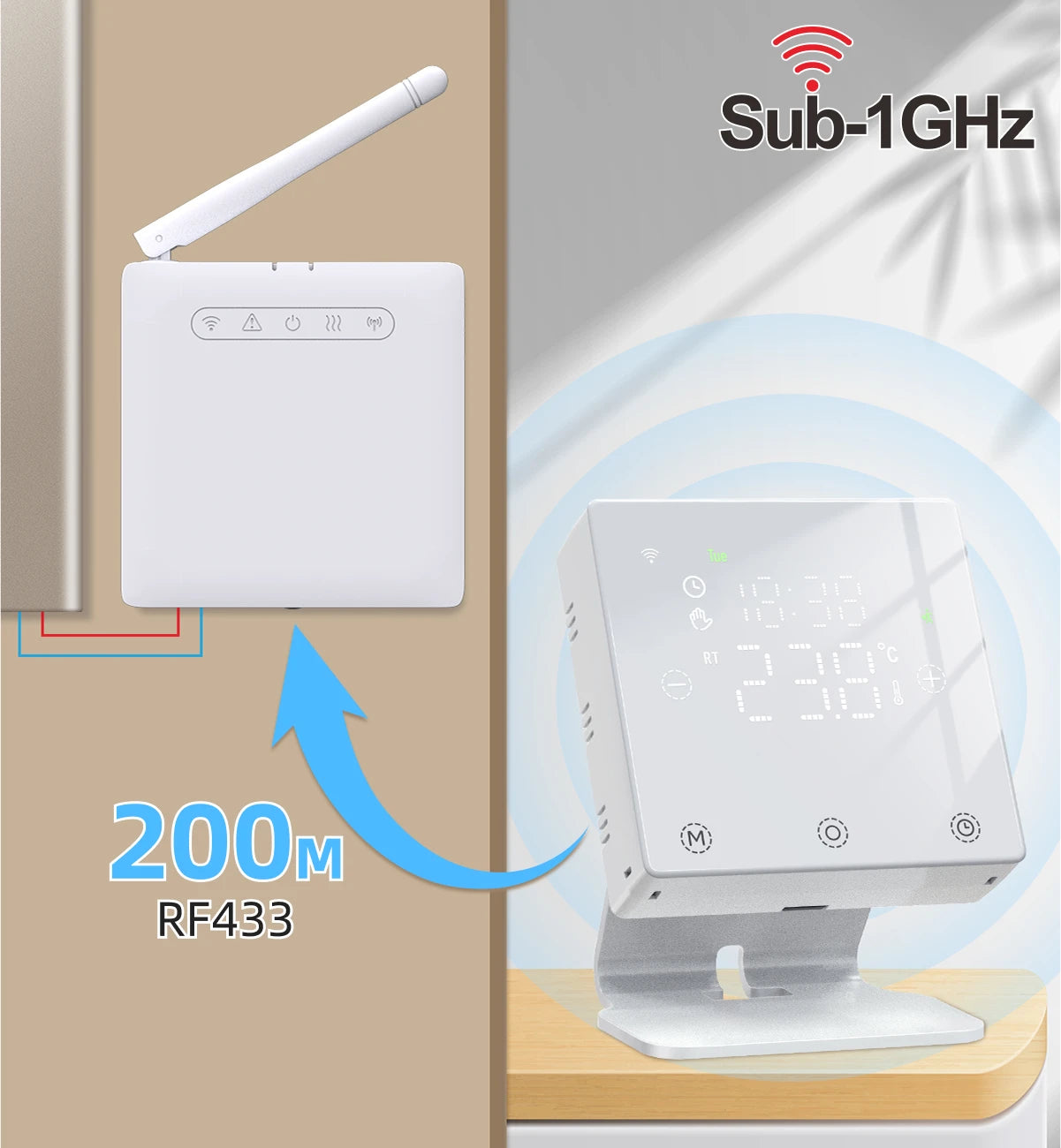

Transmission range:≤200m in open areas indoors

Wireless frequency:433.92MHz(FSK)

Package List

1pcs Thermostat

1pcs Receiver

1pcs Bracket

1pcs Type-C cable

2pcs Screw

1pcs Manual
