SPECIFICATIONS

APP: Support Smart Life APP and Tuya APP

Brand Name: AVATTO

Certification: CE

Choice: yes

Fan speed: High, Medium, Low,Auto

Features: Remote control

Hign-concerned Chemical: None

Model Number: WT300-P

Name: WiFi Air Conditioning Thermostat

Origin: Mainland China,CN(Origin)

Pipeline support: 2Pipe and 4Pipe

Support service: Dropship

Type: Touch On/Off Switch

Type 1: APP Control

Type 2: Temperature Controller

Type 3: Fan coil thermostat

Type 4: Timing program

Type 5: 5 ~ 95 % RH (Non Condensing)

Voice Control: Alexa,Google home,Yandex Alice

Wattage: 110-220V

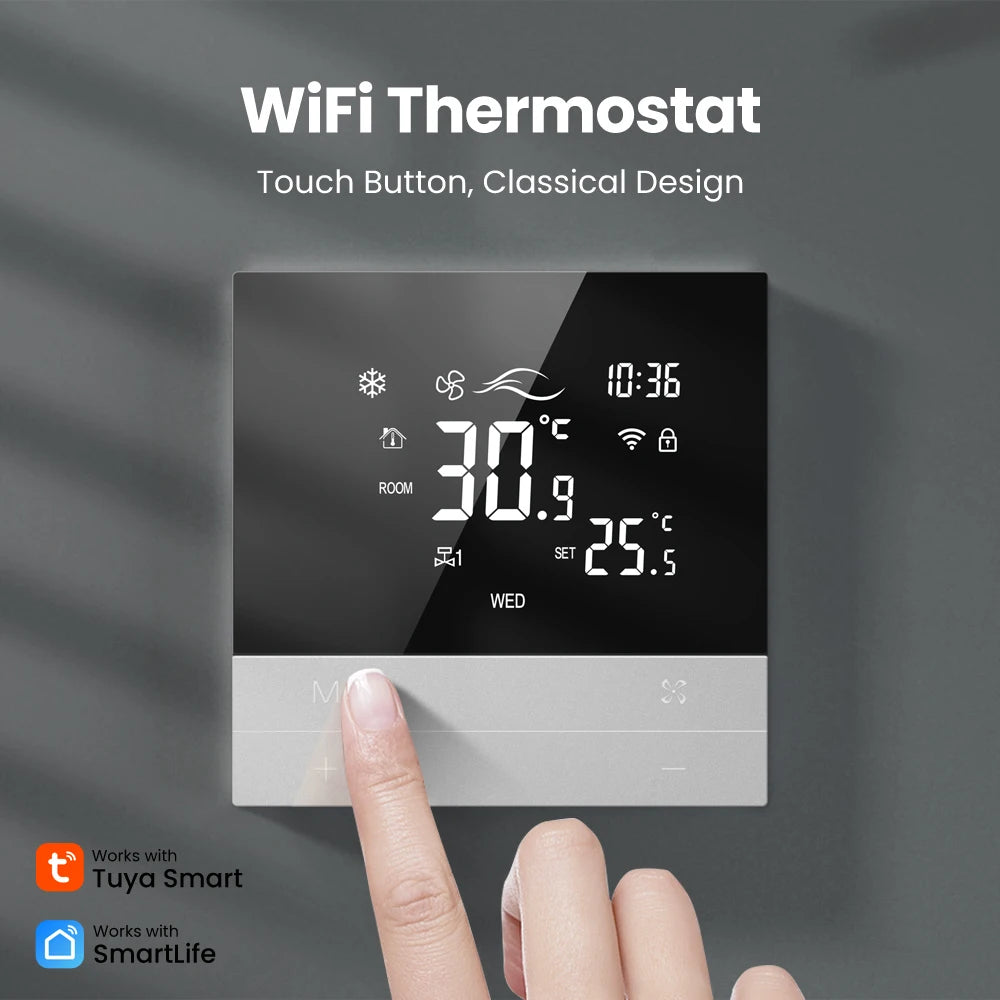

AVATTO Tuya WiFi Smart Central Air Conditioning Thermostat，Heating And Cooling Function 3 Speed Fan Coil For Alexa Google Home

HIGHLIGHT

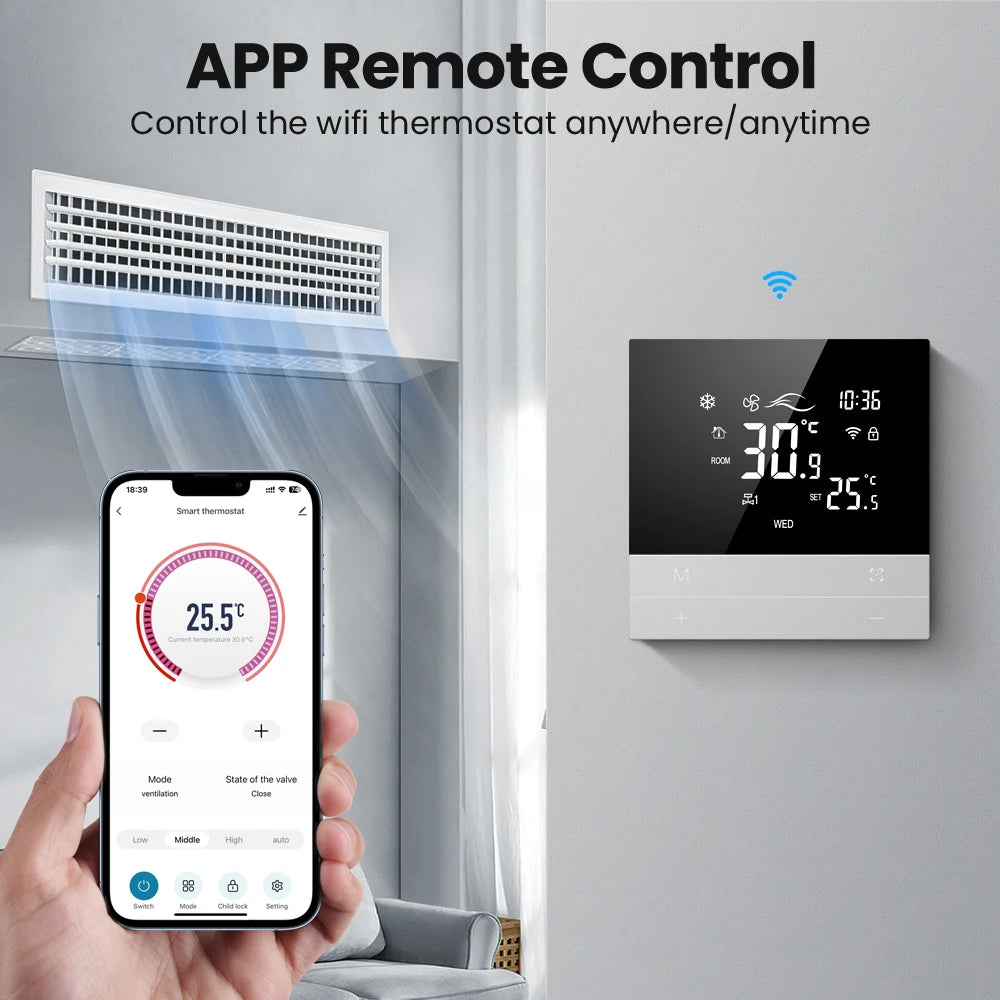

[APP Remote Control] ---- Download Smart Life/Tuya Smart APP on your phone&Tablet to control the thermostat anywhere/anytime

[Hand Free Voice Control] ---- Compatible with Amazon Alexa,Google home,Yandex Alice ect ,a simply command to voice control the thermostat

[Screen Backlight Brightness Adjustable]--- 3 level screen backlight brightness adjustable,also backlight can be turned off,offer a nice sleeping environment for you

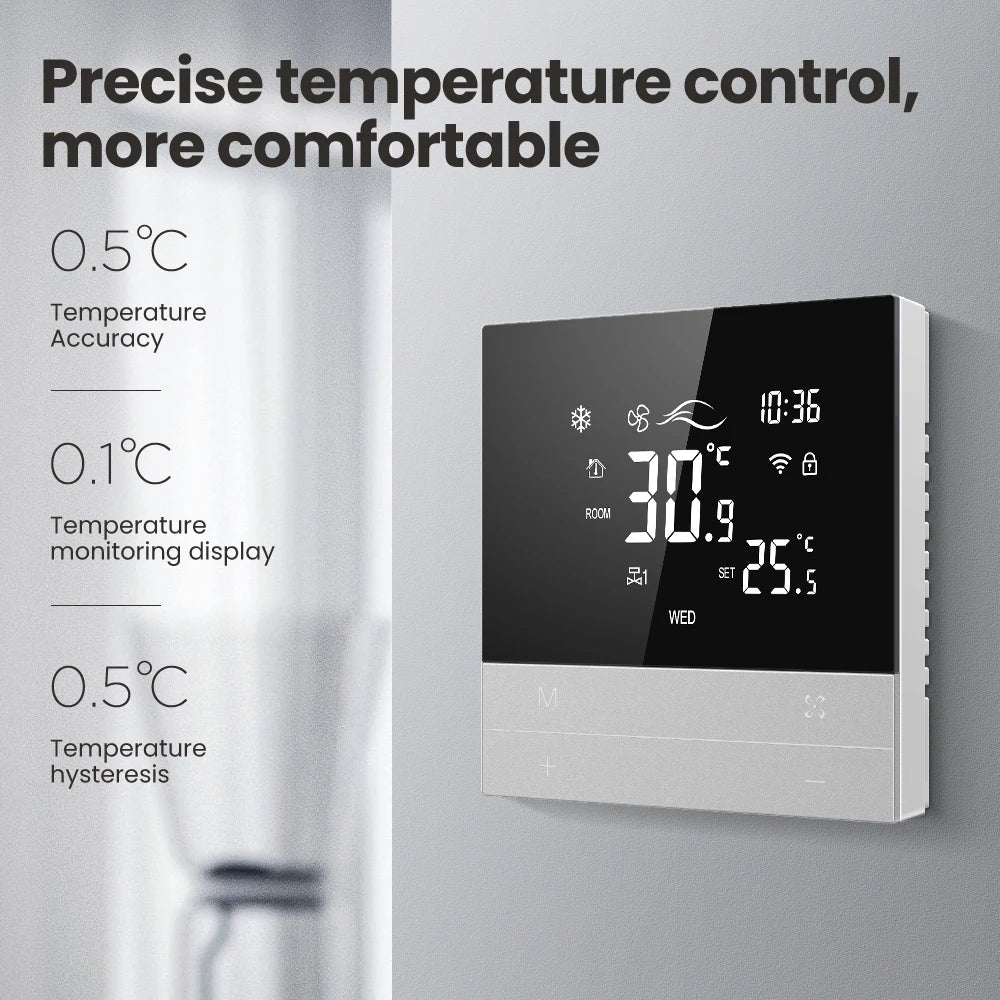

[Accurate Temperature Adjustment,Detection Display and Hysteresis ]---The accuracy have reached 0.5℃，0.1℃ and 0.5℃,accurately control your room temperature

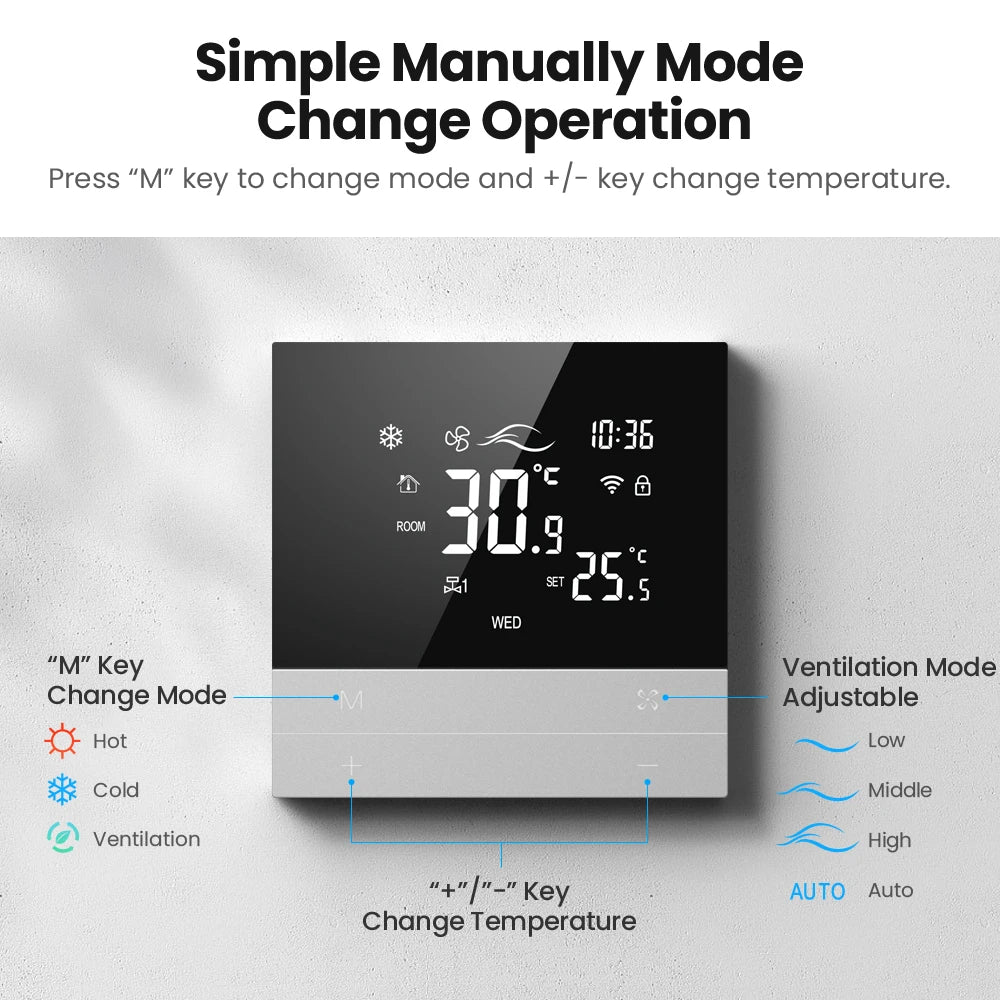

[Simple Manually Mode Change Operation ]---Press“M”key to change mode between Cooling,heating and ventilation

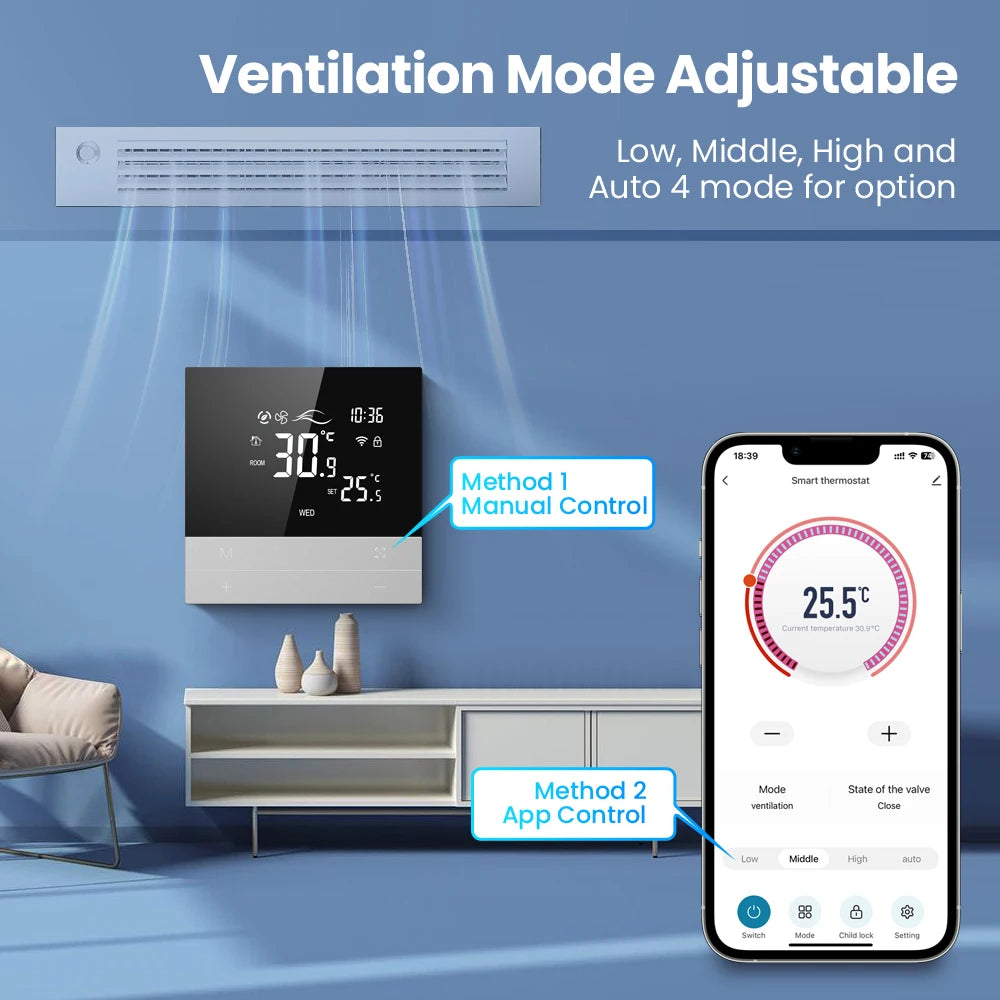

[Ventilation Mode Adjustable]-Low,Middle,High and Auto 4 mode for option

[Family Share Function] --- You can share the thermostat to your family with the limited right,create a smart home together with your family member

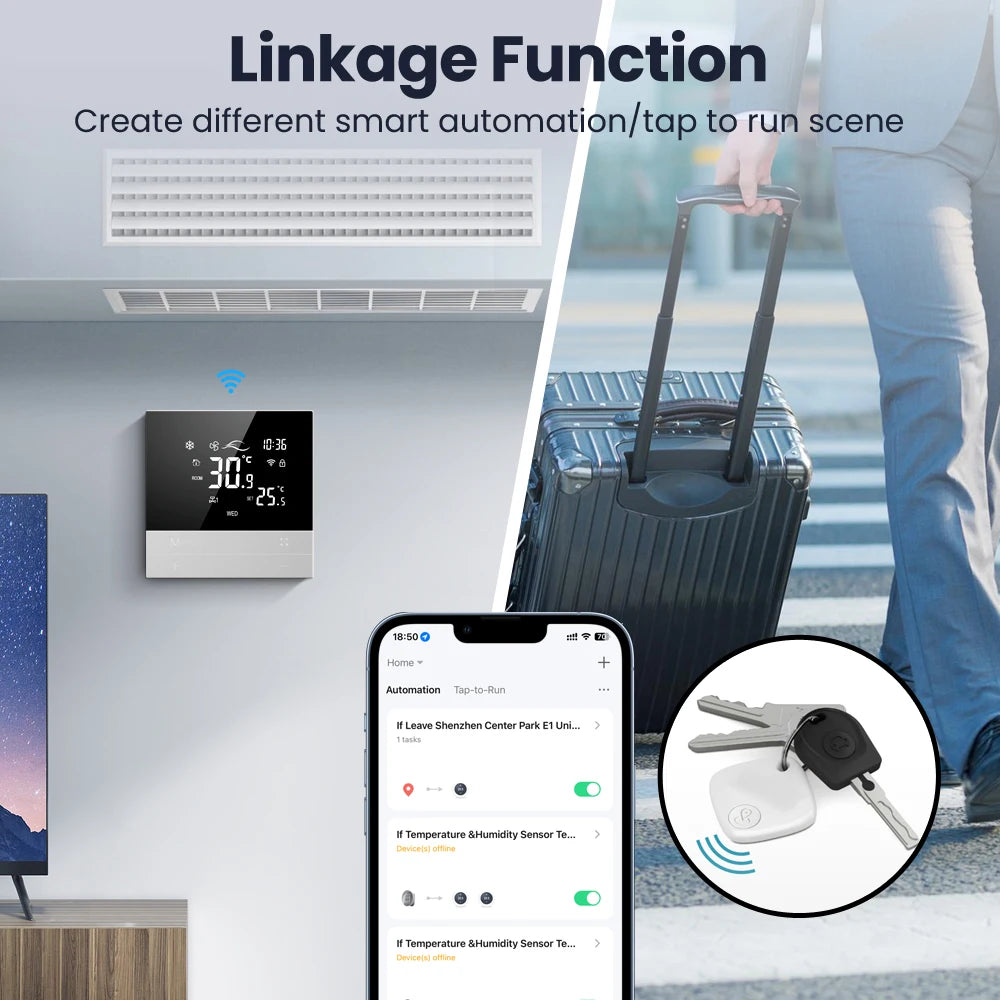

[Linkage Function] --- It can linkage with other smart appliance in your home to create smart theme like leave home mode,back home mode,dinner mode,sleeping mode ect

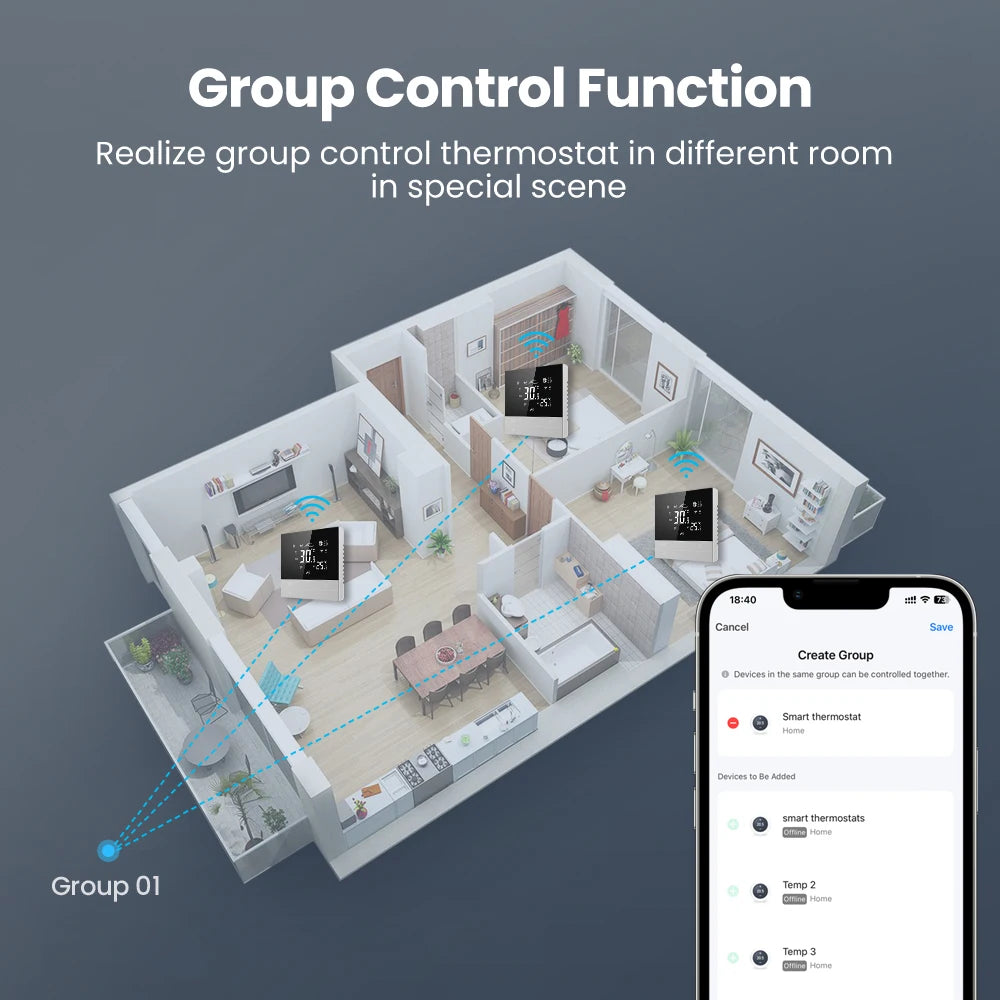

[Group-Control Function] --- the thermostat can be set in group with other thermostat in different room, realize group control function in special scene

[Child Lock Function]--- Child Lock function avoid kid`s operation on it. Make sure your home in smart and safe status

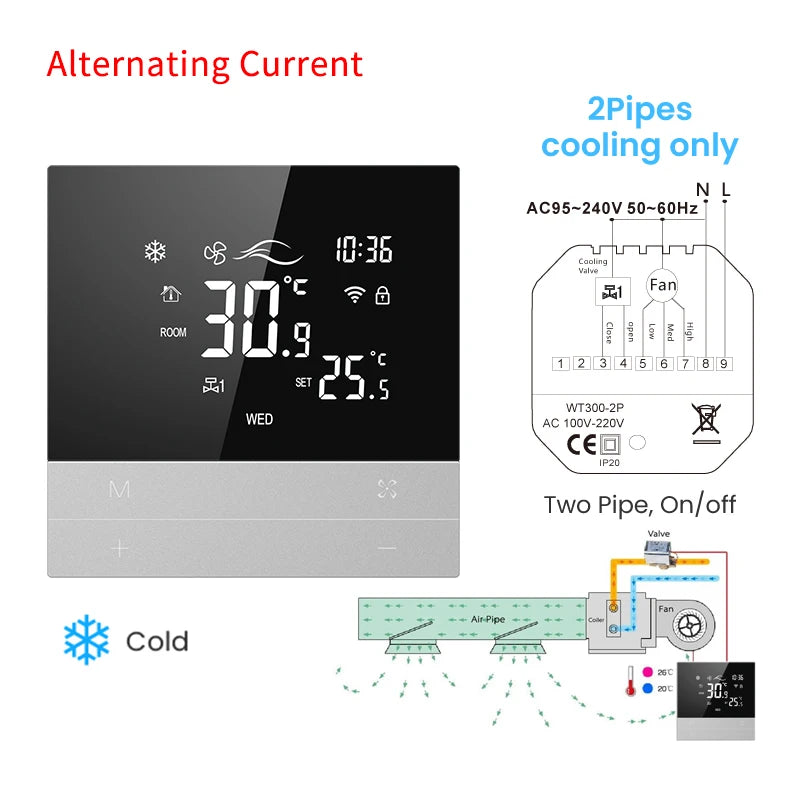

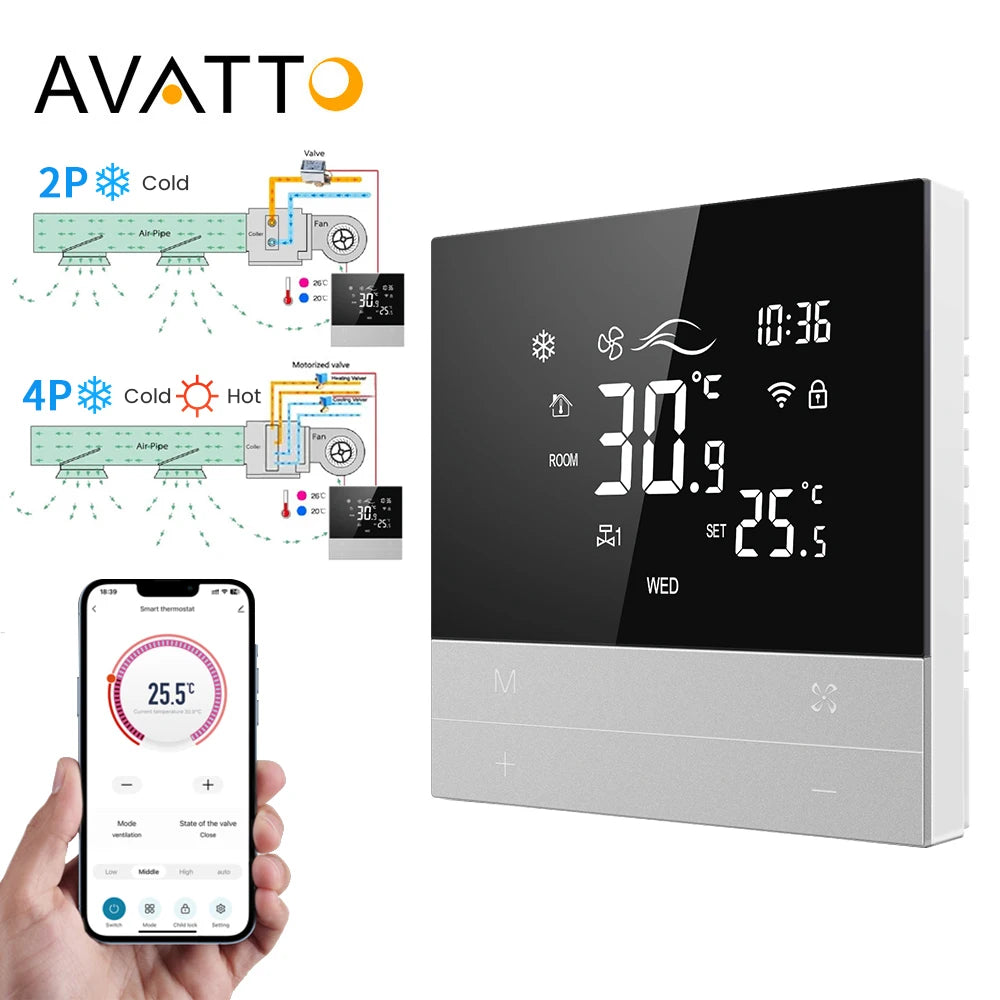

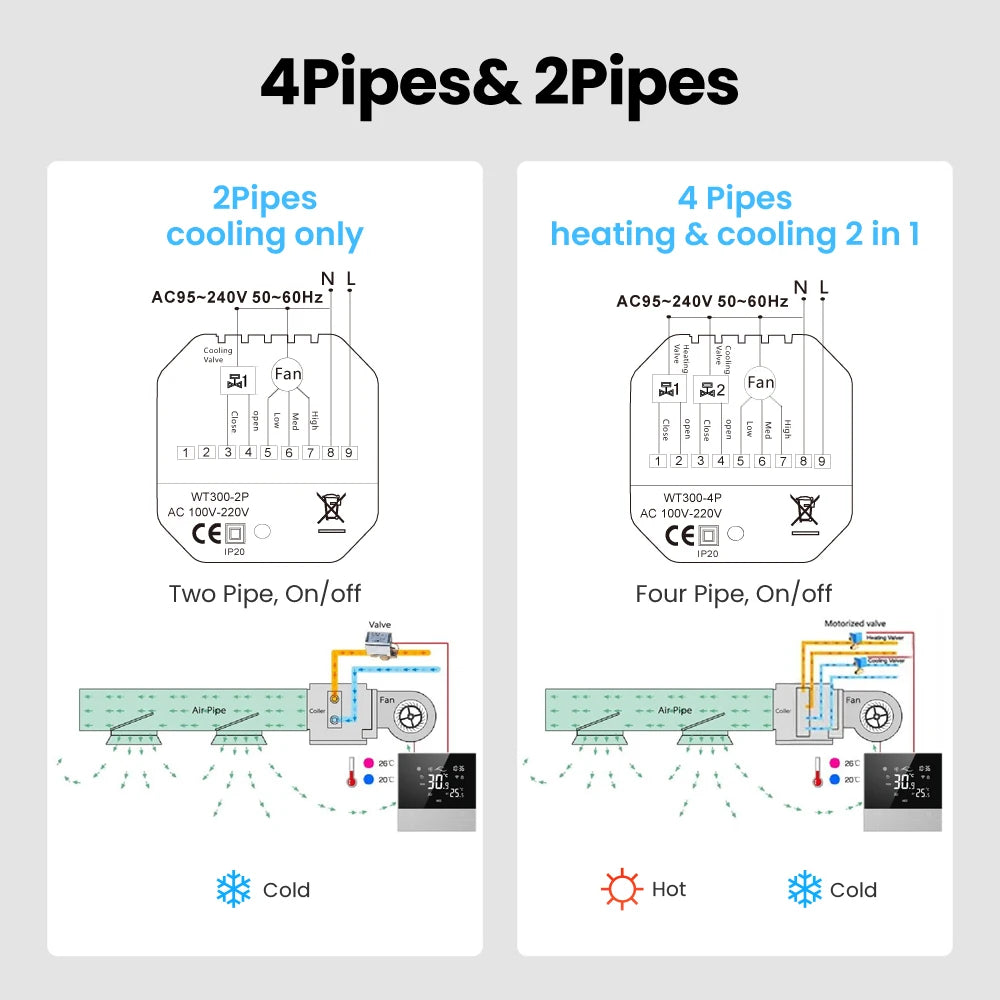

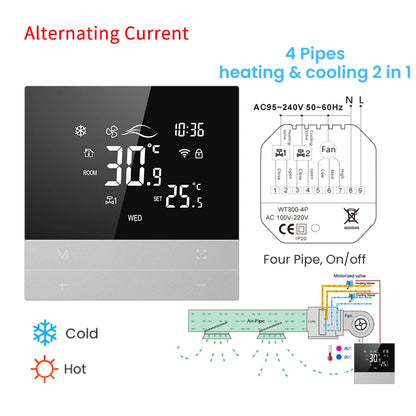

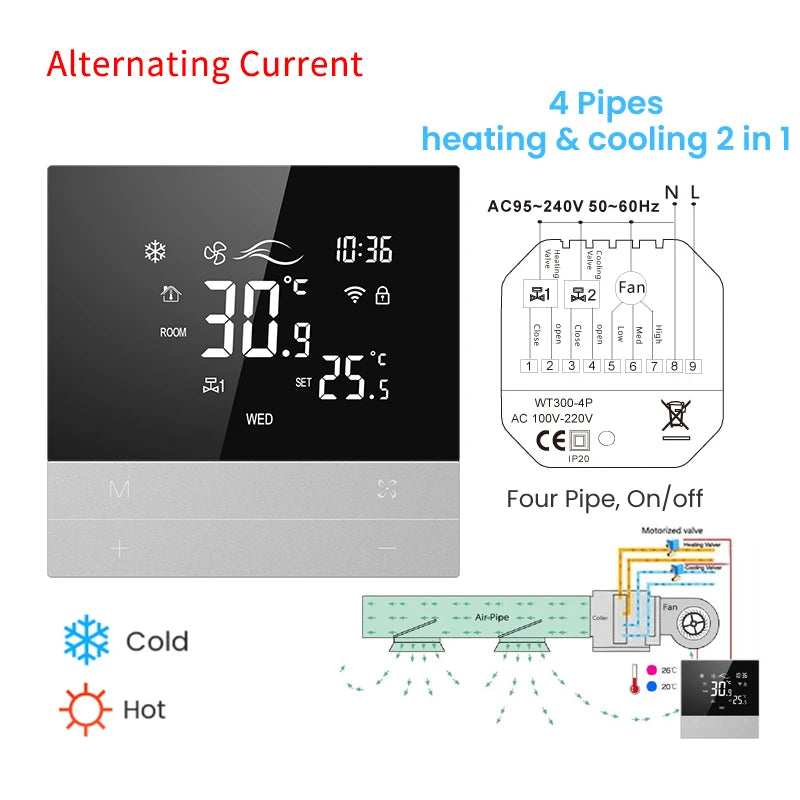

[4Pipes&2Pipes]--- 2Pipes cooling only,4 pipes heating&cooling 2 in 1

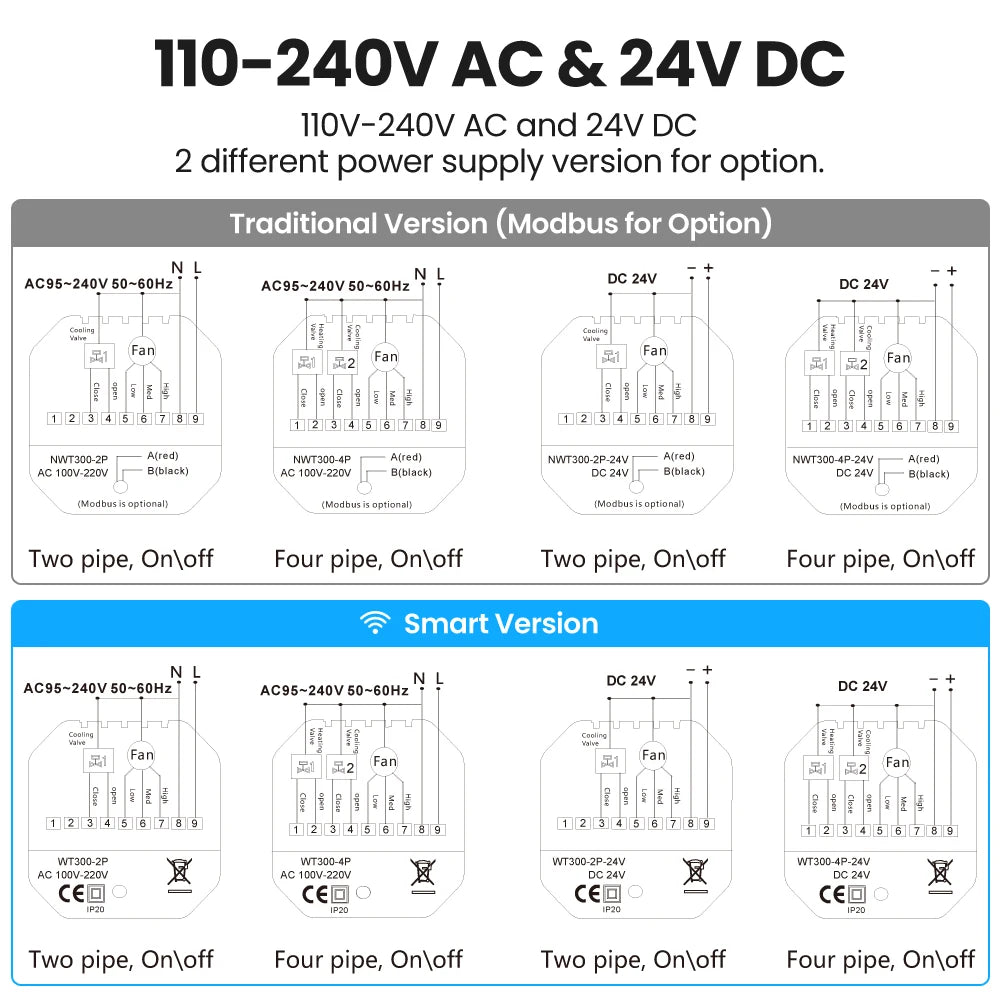

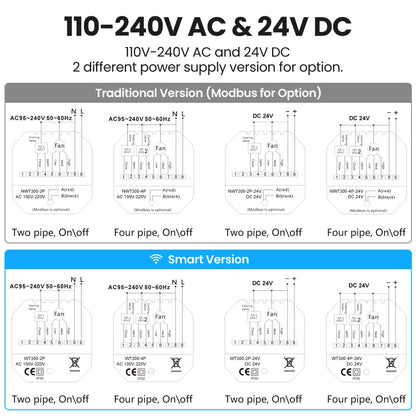

[110-240V AC&24V DC]--- 110V-240V AC and 24V DC 2 different power supply version for option

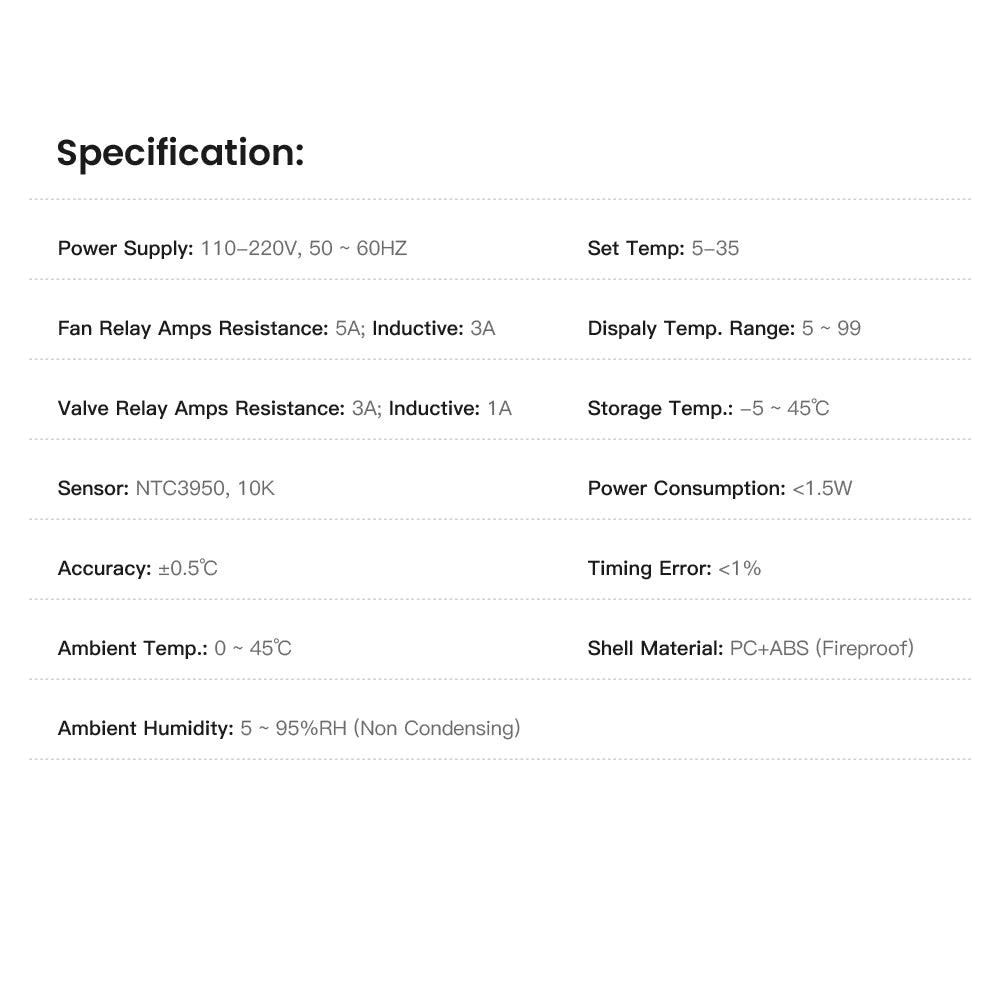

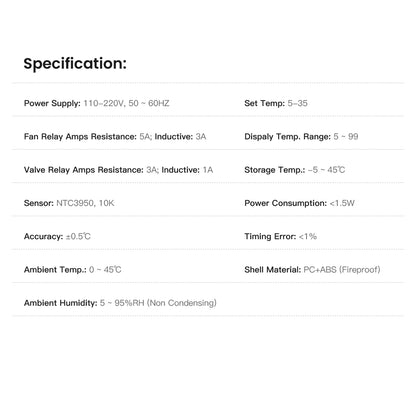

SPECIFICATION

Power Supply: 110-220V , 50 ~ 60HZ

Fan Relay Amps Resistance:5A;Inductive:3A

Valve Relay Amps Resistance:3A;Inductive:1A

Sensor: NTC3950, 10K

Accuracy: ±0.5℃

Set Temp. Range: 5 -35

Dispaly Temp. Range: 5 ~ 99

Ambient Temp.: 0 ~ 45 ℃

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.: -5 ~ 45 ℃

Power Consumption:<1.5W

Timing Error:<1%

Shell Material:PC+ABS(Fireproof)
