A29 Outdoor Misting Cooling System 12V Water Pump Kit Fog Nozzle For Greenhouse Garden Patio 8M -18M Timer Smart Irrigation Kits

A29 Outdoor Misting Cooling System 12V Water Pump Kit Fog Nozzle For Greenhouse Garden Patio 8M -18M Timer Smart Irrigation Kits

$91.36 USD
$102.86 USD $91.36 USD
Распродажа Продано
Стоимость доставки рассчитывается при оформлении заказа.

SPECIFICATIONS

Application: Cooling and Humidification

Brand Name: NoEnName_Null

Function: Humidity, Stop dust, Cooling, Landscaping

Hign-concerned Chemical: None

Installation: Easy

Material: Plastic

Model Number: MP

Nozzle Material: Brass

Nozzle Thread: 10/24UNC

Nozzle flowing: 0.03-0.25L/Min

Origin: Mainland China

Plastic Type: PE

Power: 12V 60W

Product Name: 12V water pump misting kit

Productivity: 10000 Pcs/Month

Pump Liter: 5L/min

Sprayer Type: Pump

Type: Sprayers

Working Pressure: 0.8Mpa

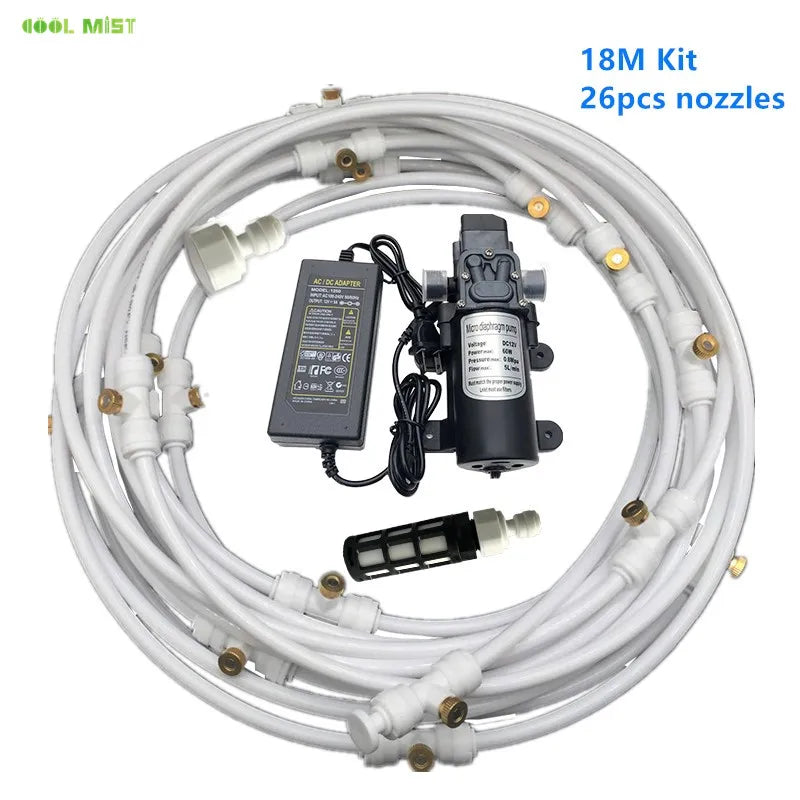

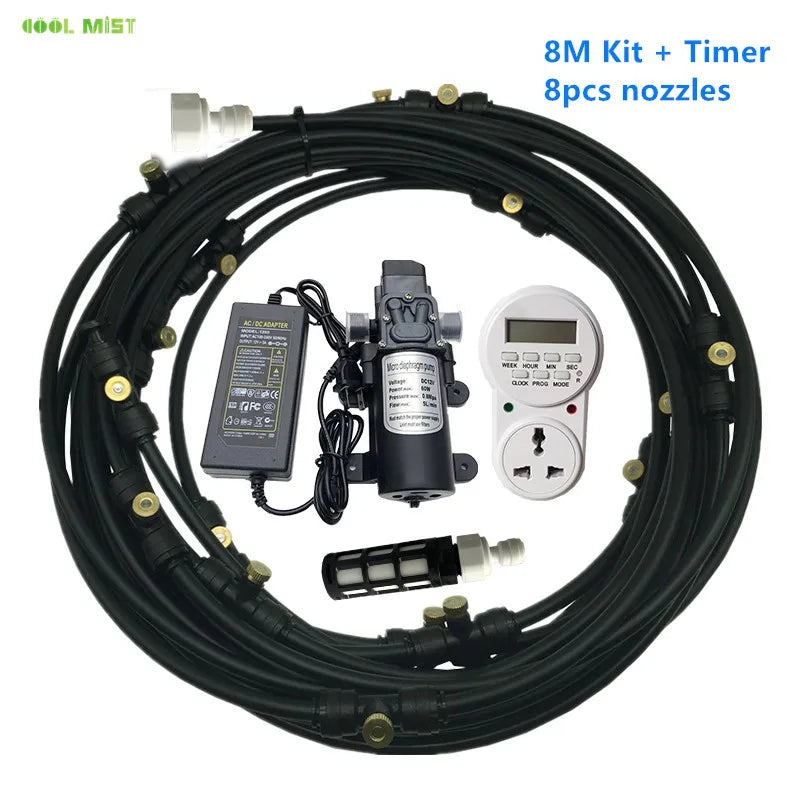

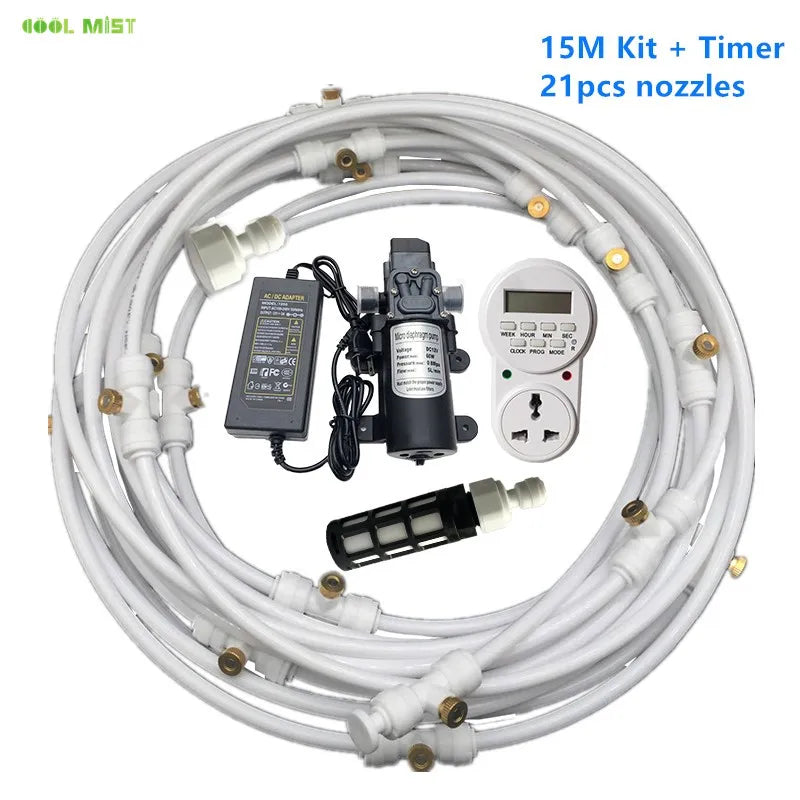

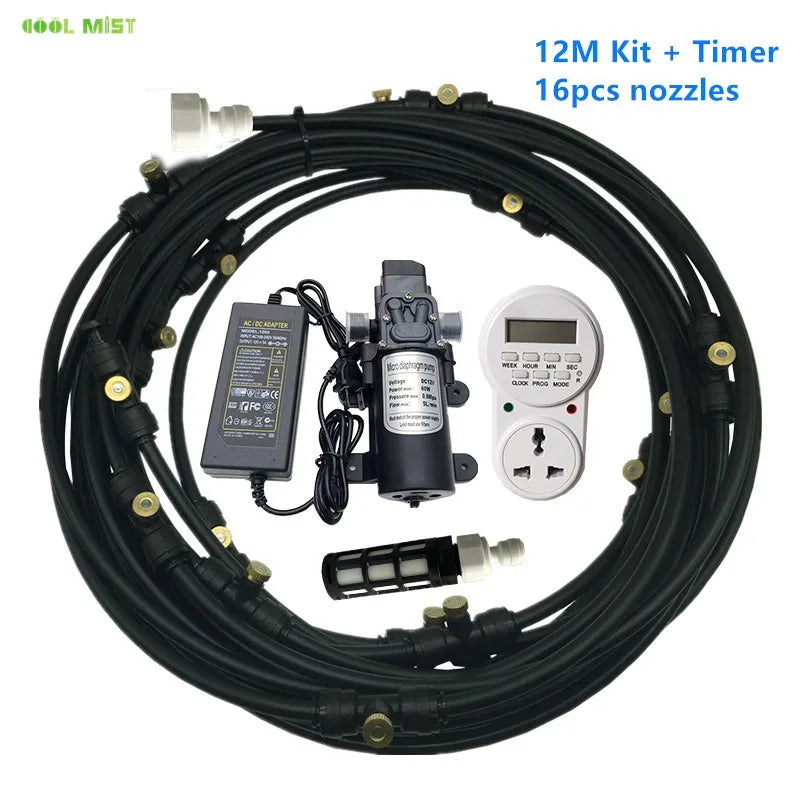

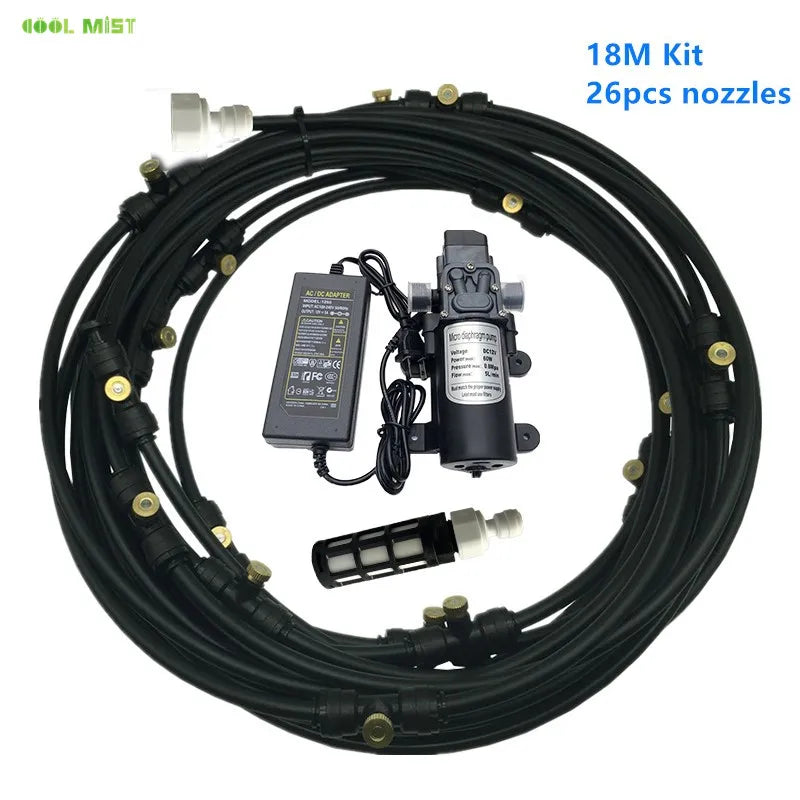

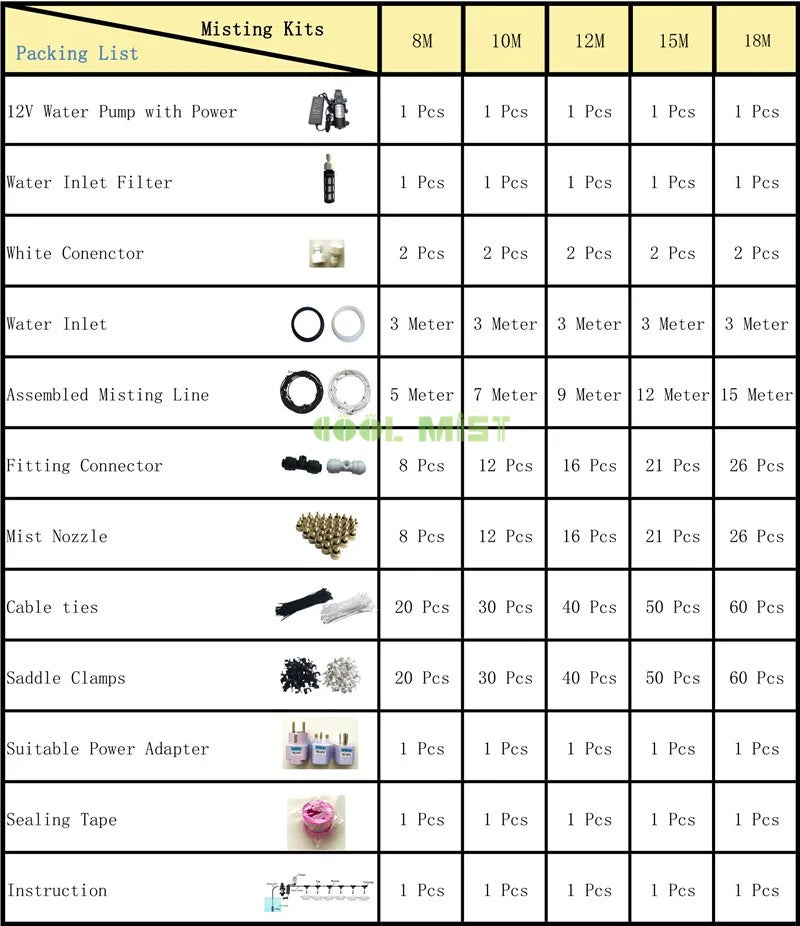

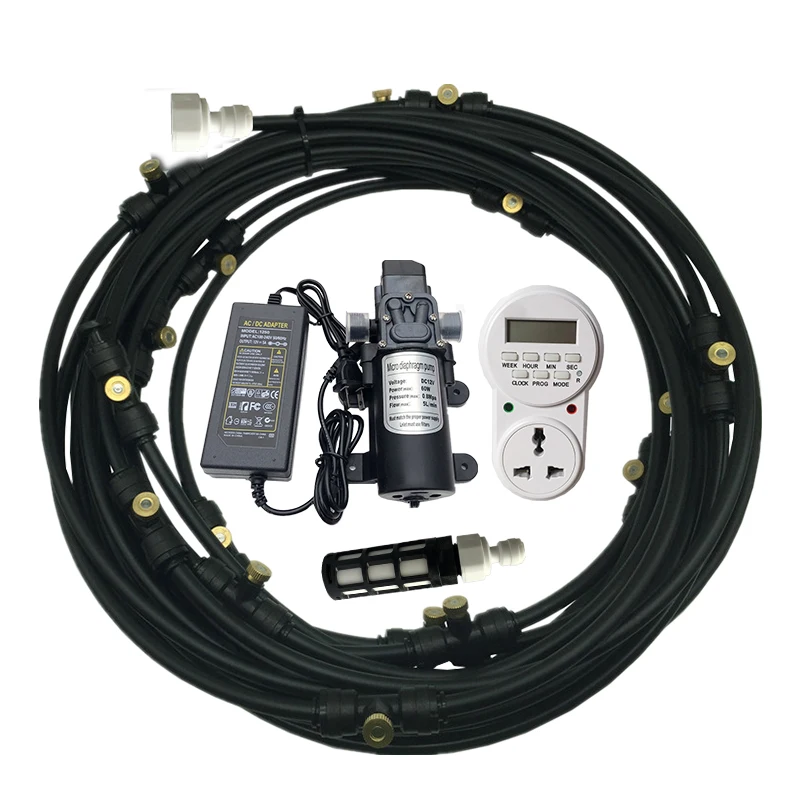

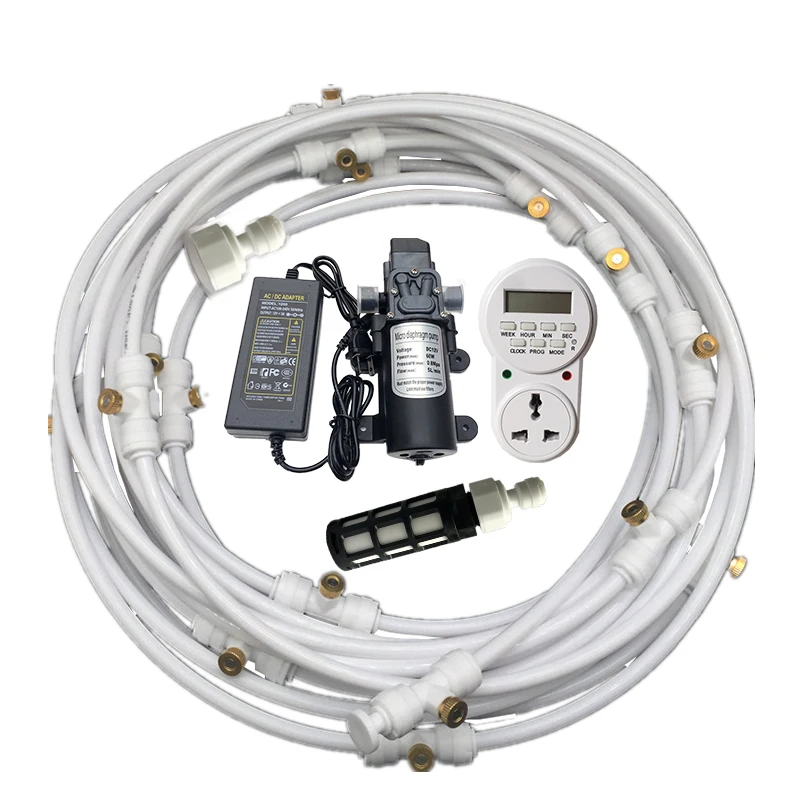

8M-18M option mist cooling kit:
Easy to operate, easy to use, and fast to clean;
Can be used for garden humidification and watering;
Automated irrigation to free your hands；
PE material, high safety factor, more confidence in use;
Description:

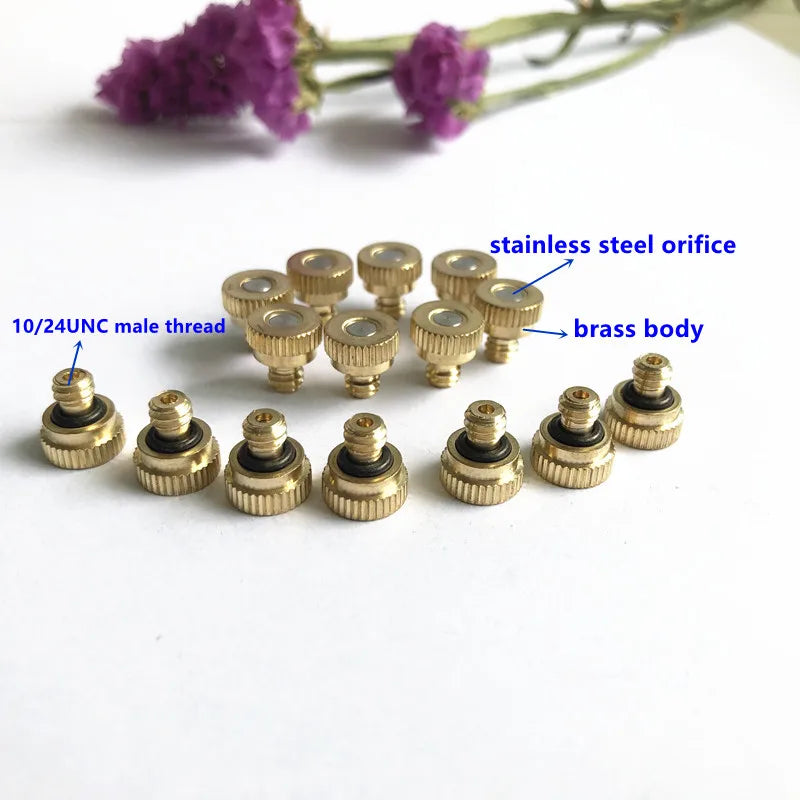

Nozzle Material: Brass body with stainless steel orifice inside.


Nozzle Thread: 3/16''  ( 10/24UNC)

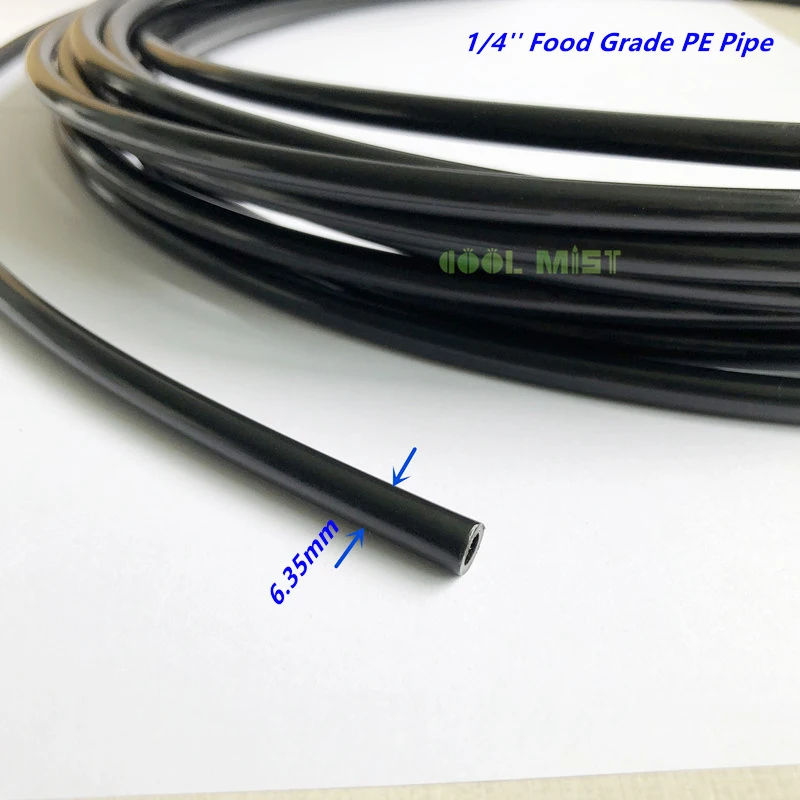

Mist hose: Food grade material, 1/4" size;
Function:  Cooling, Humidification, dedusting and Garden Micro irrigation.
Details

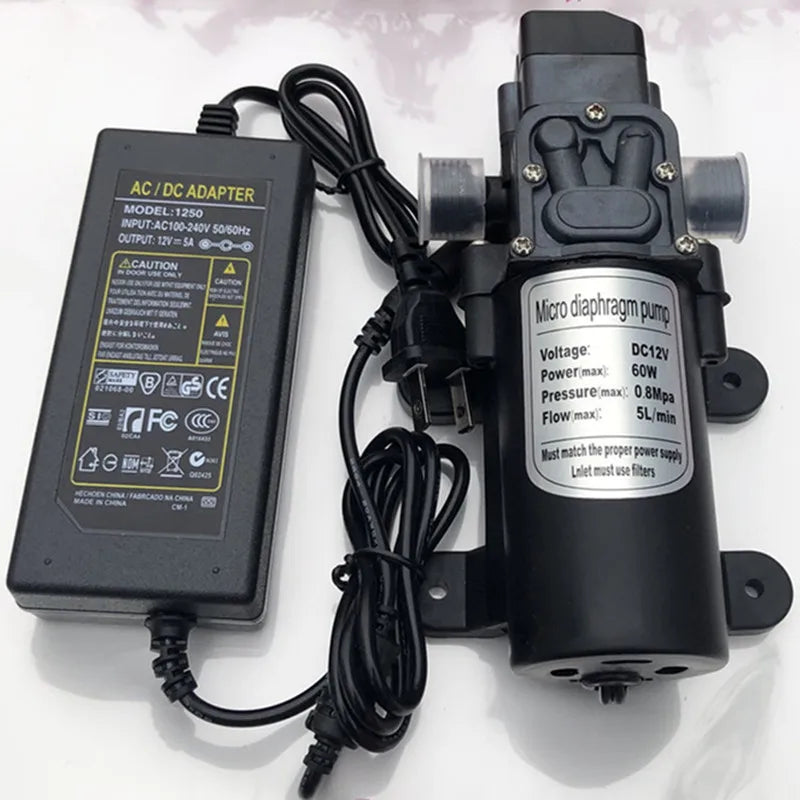

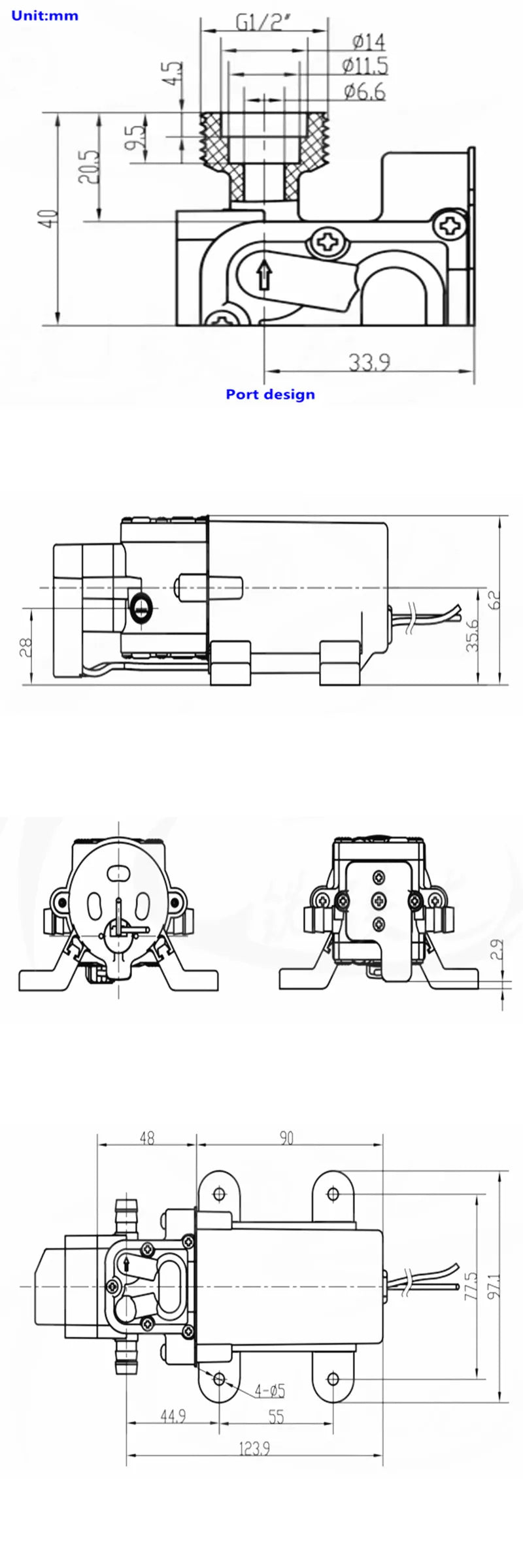

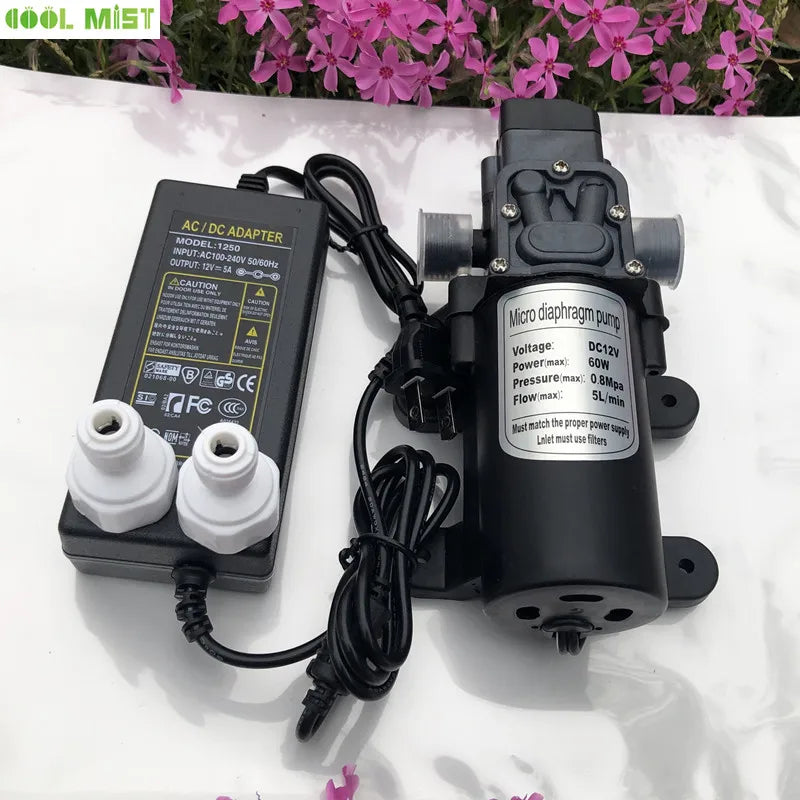

Pump description:
Temperature------------------0-60 degree celsius
Multi-purpose-----------------Home use for garden sprinklers,shower,water taps in the boat,caravan or motor home
Agricultural purposes-------spray for farm chemical pesticid
corrosion resistant
12vDC
Power---------------------------60w
Working pressure------------0.8Mpa
Flow rate------------------------5L/min
Size:------------------------------16.5*10*6cm
Rubber bracket can absorb vibration from the pump when working
Connector size: 1/4'' pipe
Caution:pump should be used in dry condition,cannot submerge into water

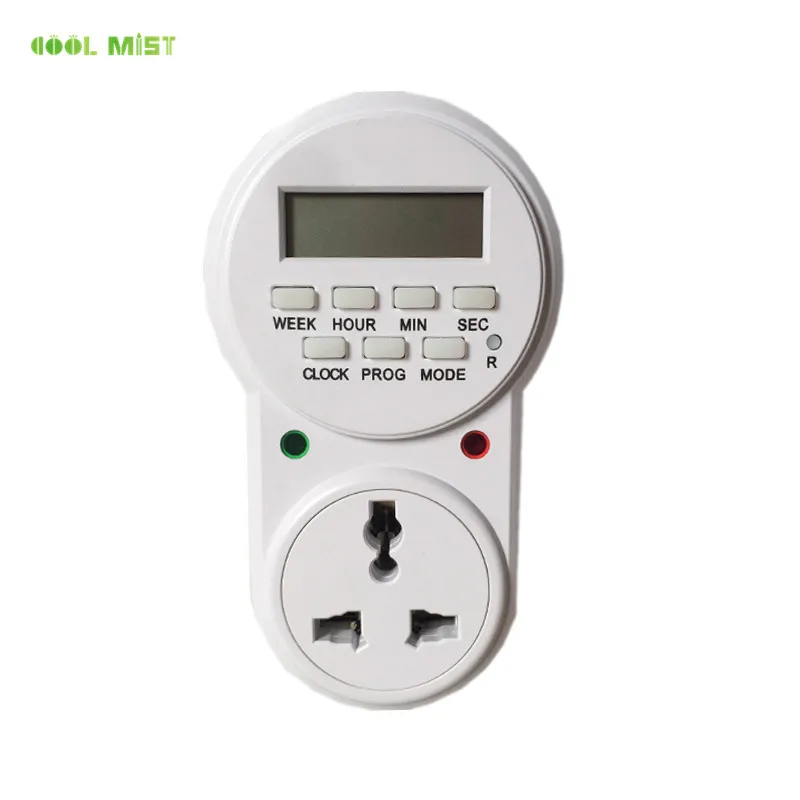

Timer:

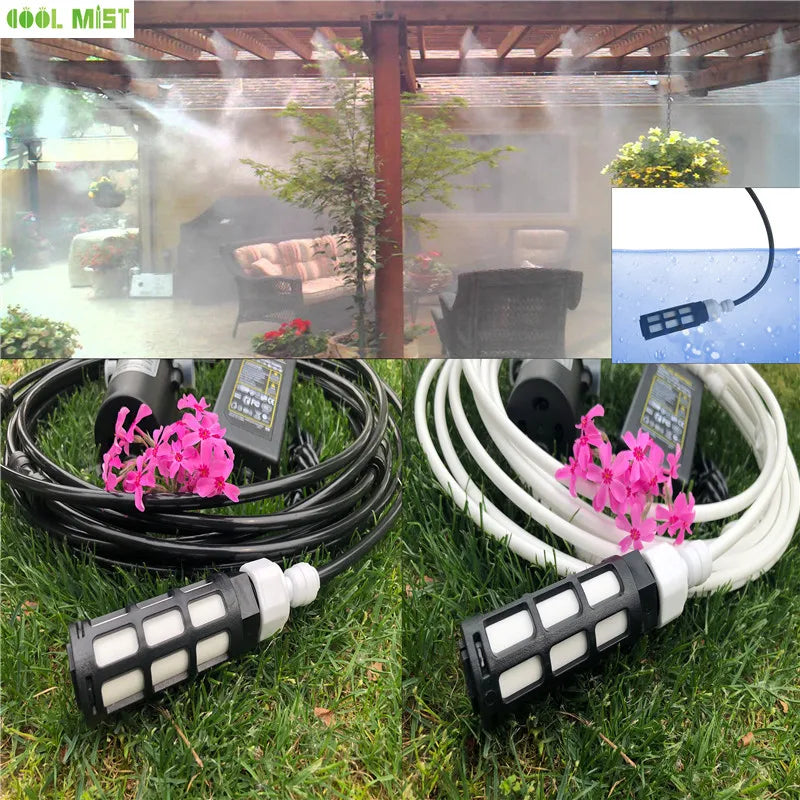

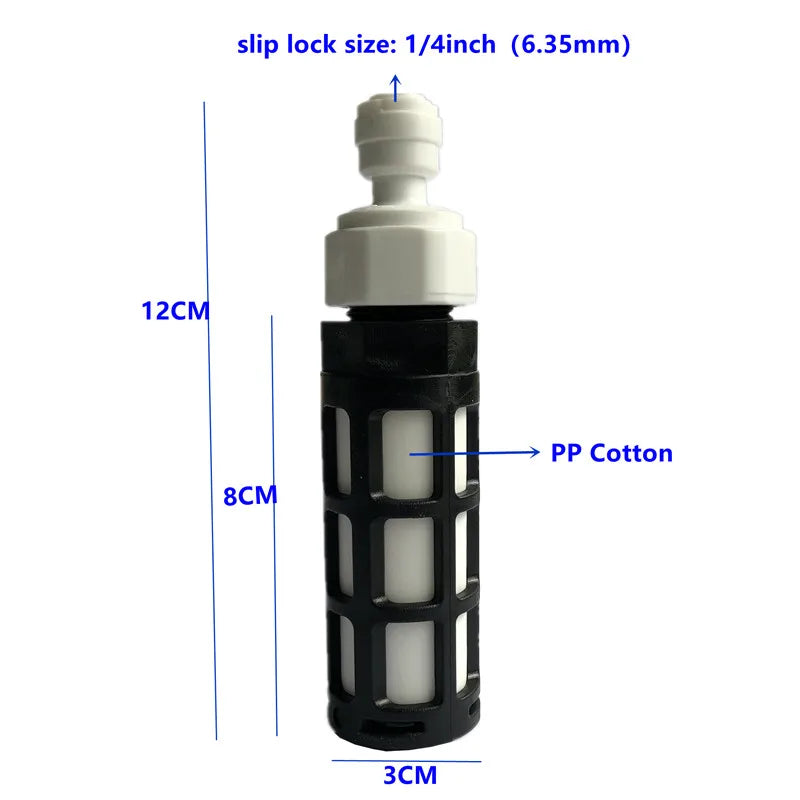

Inlet filter head:

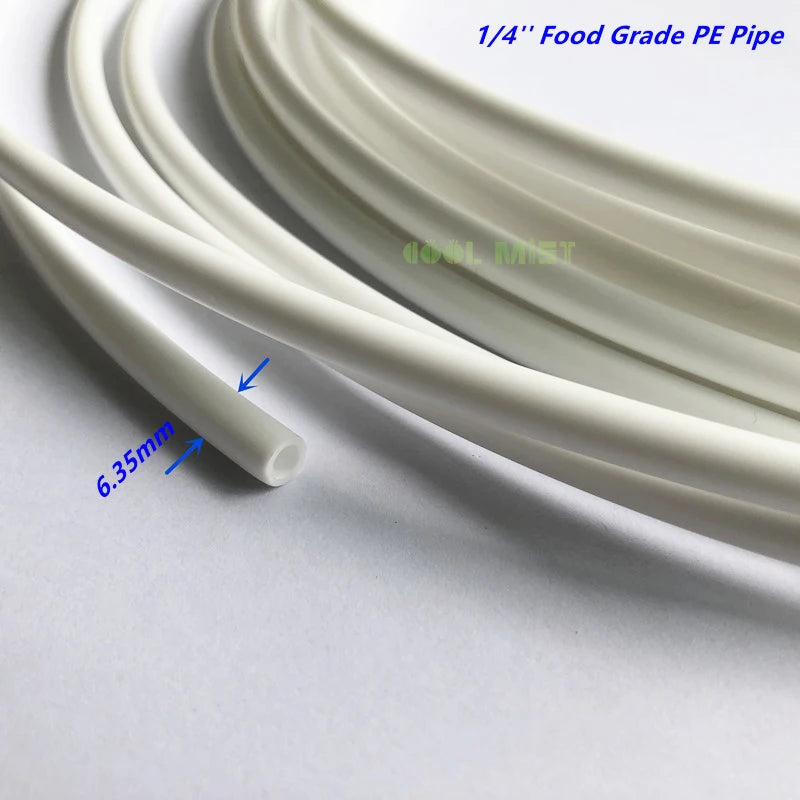

Hose:

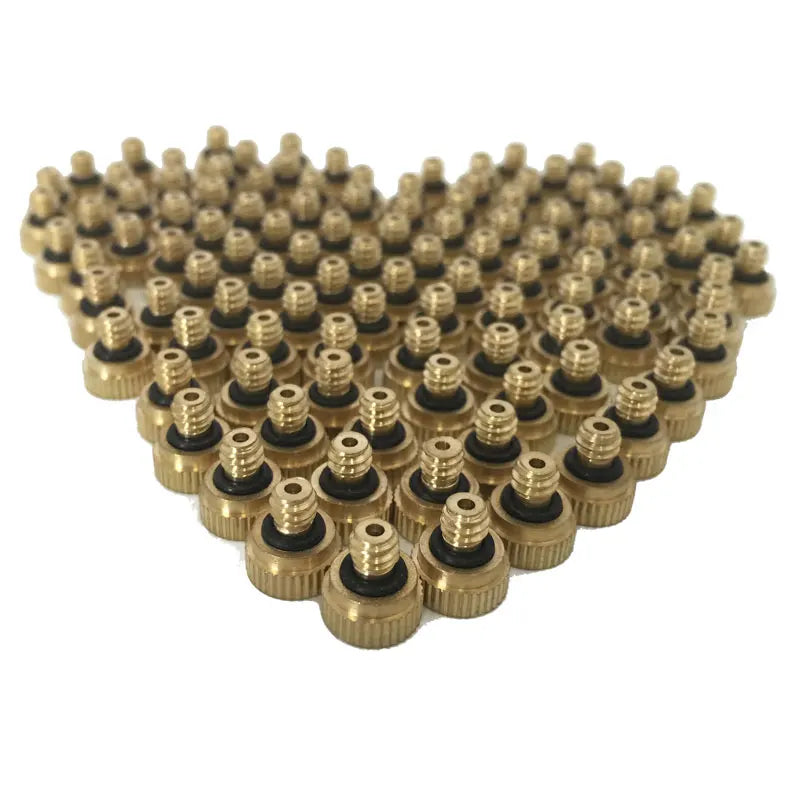

Nozzle:

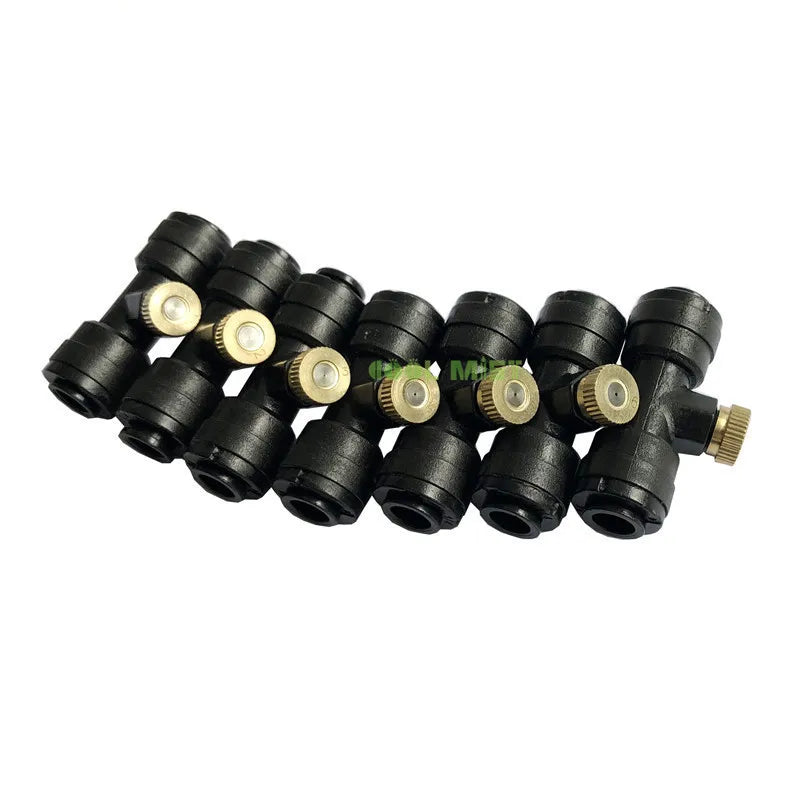

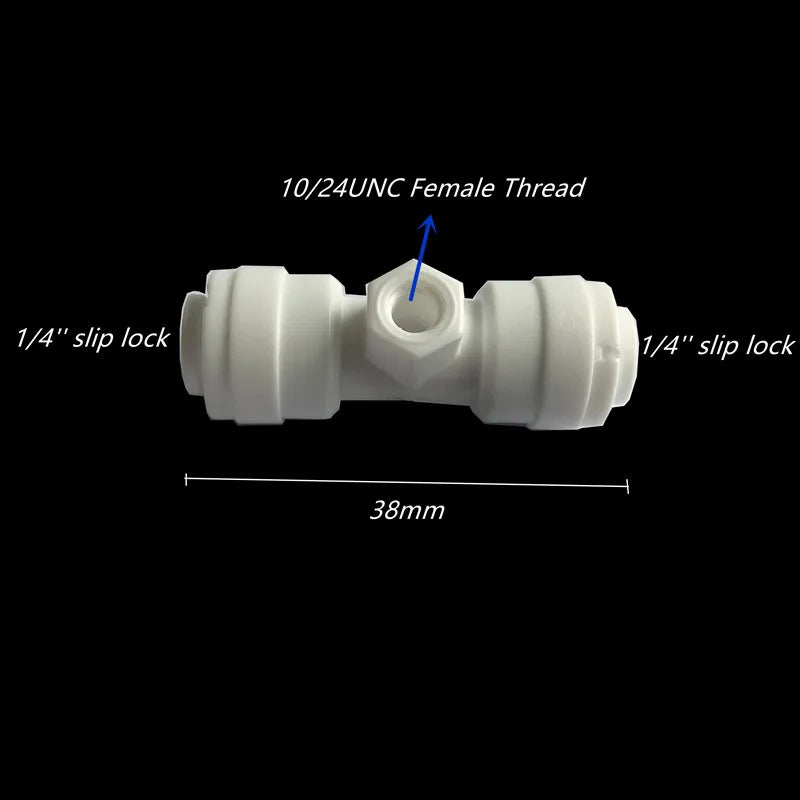

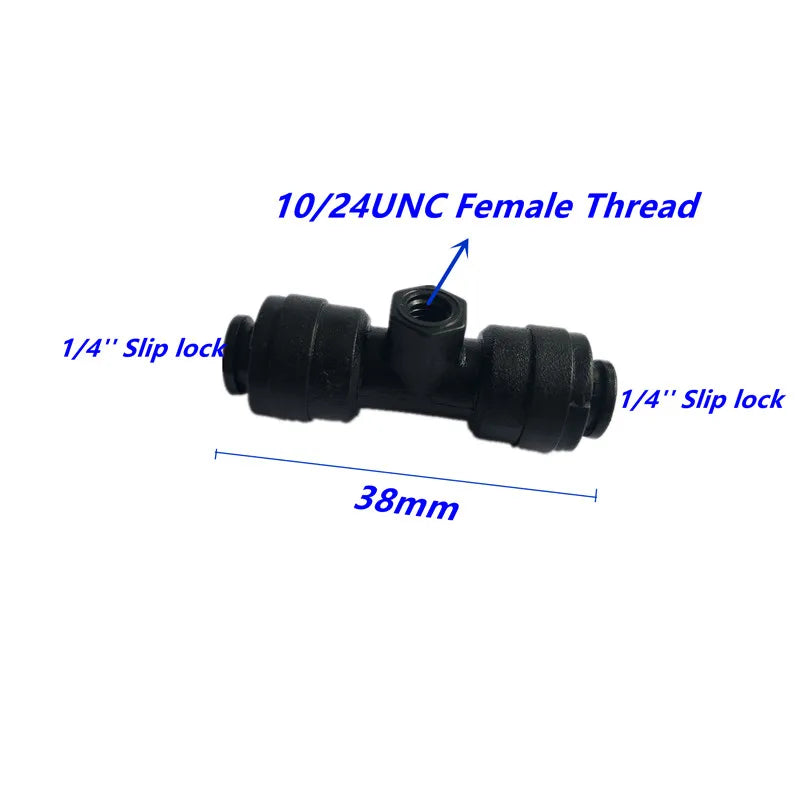

Fitting:

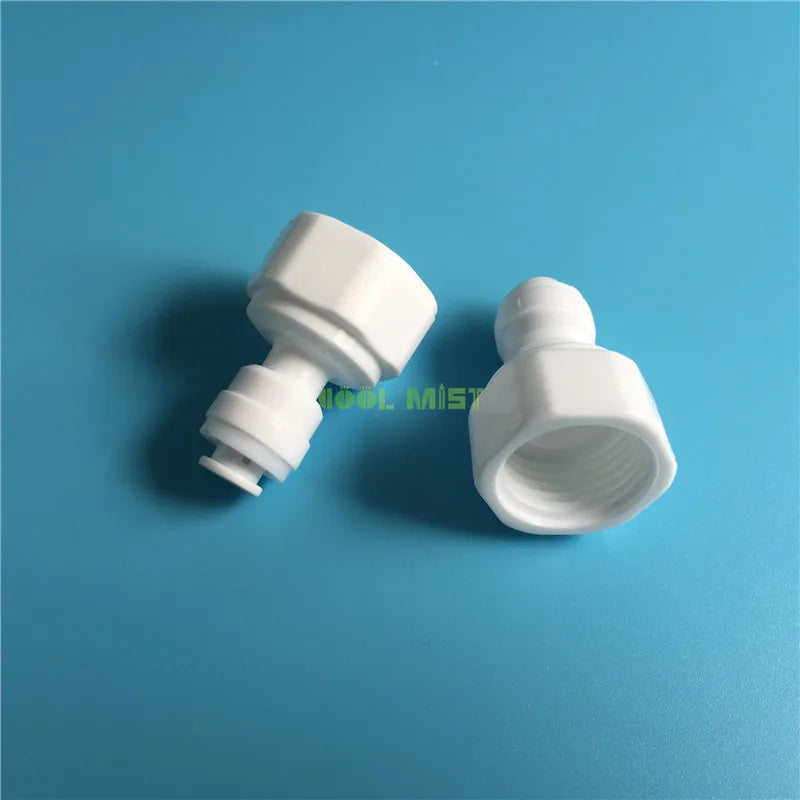

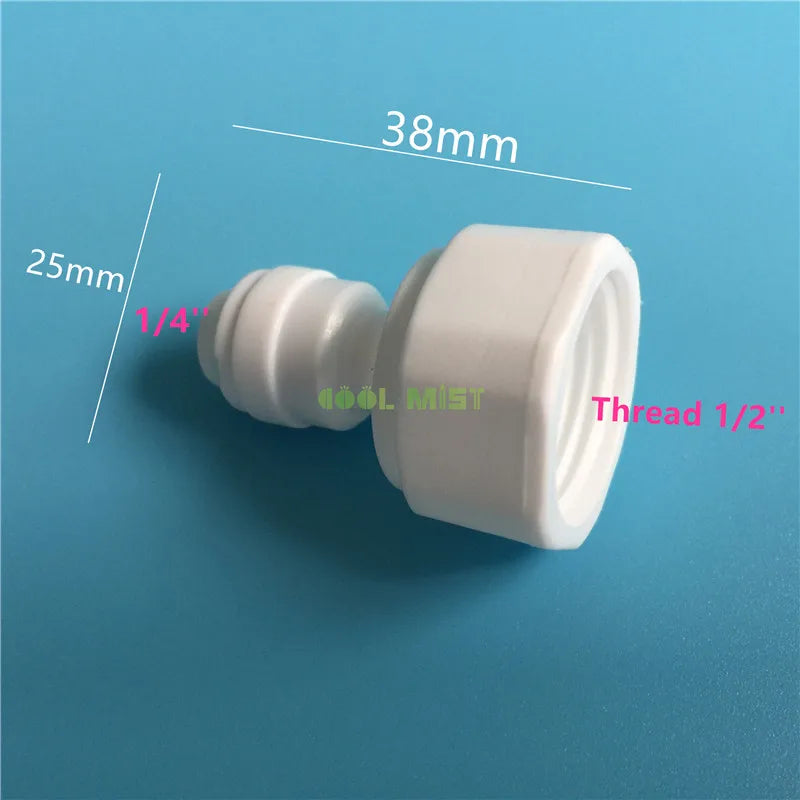

Connector:

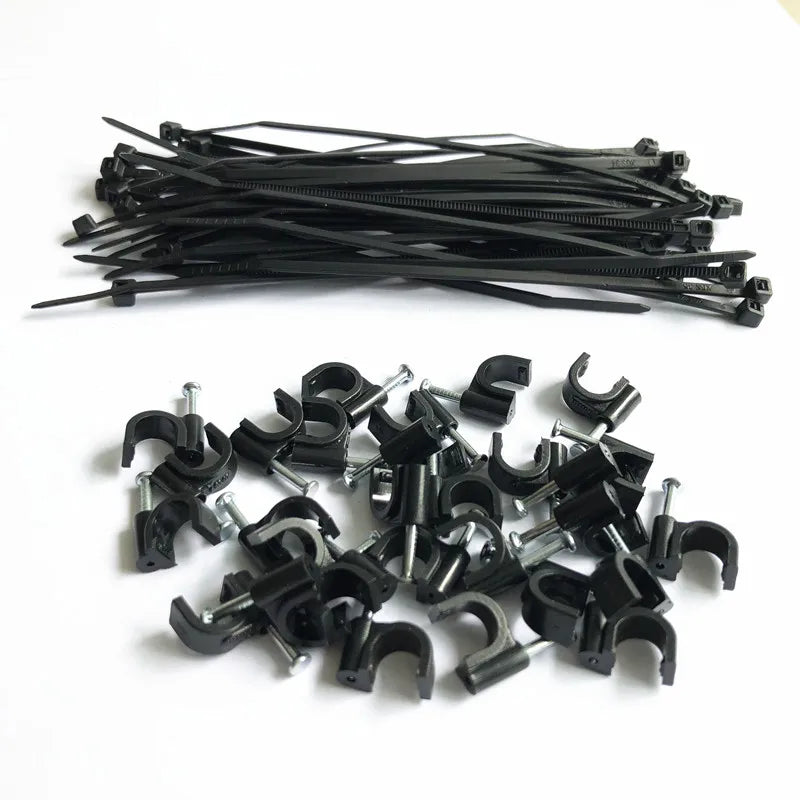

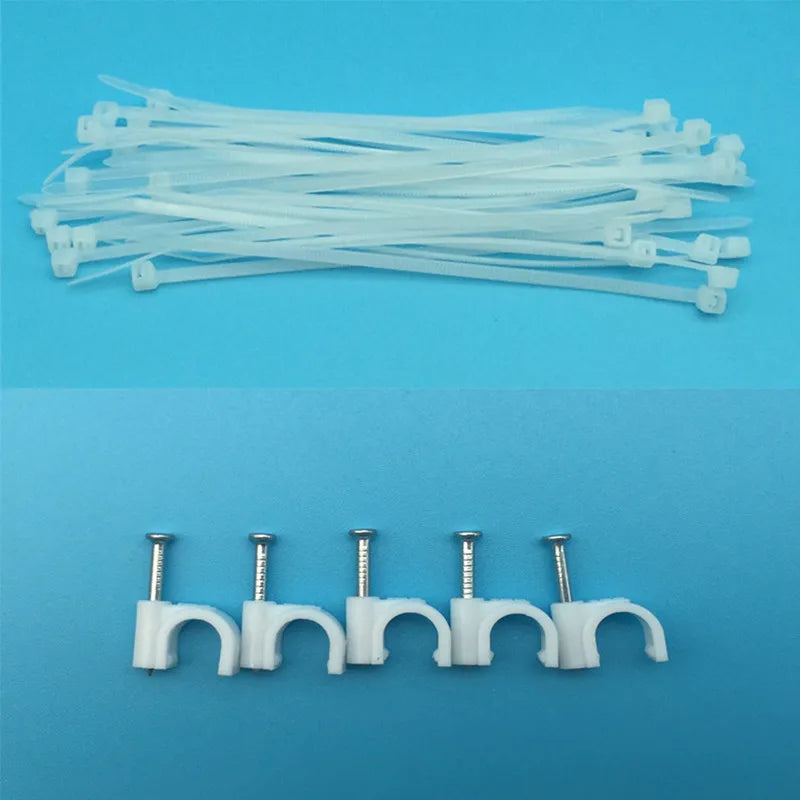

120mm length Cable ties and 7mm Clamps:

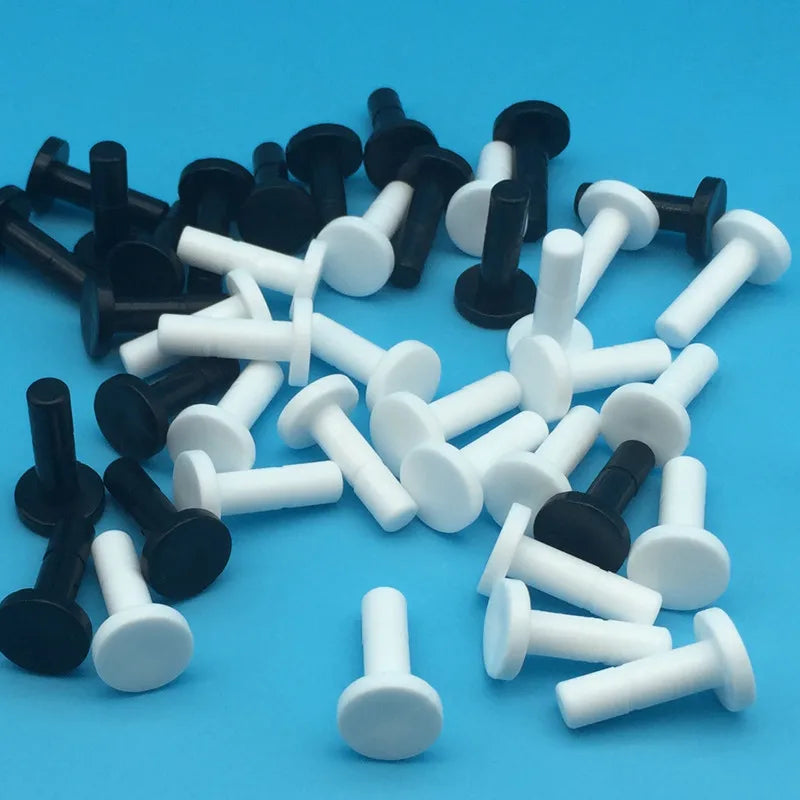

End plug:


Design Features

Water inlet port can absorb water by itself then spray mist from nozzles on water outlet, which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.

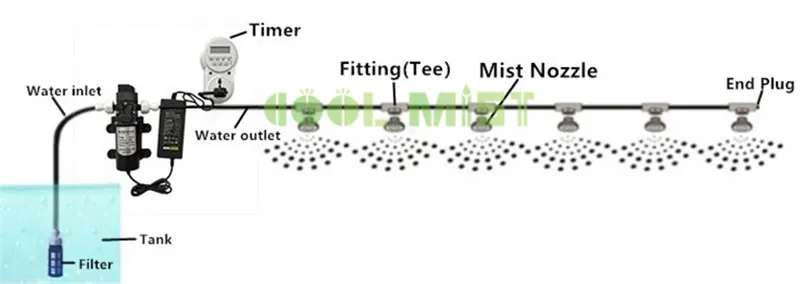

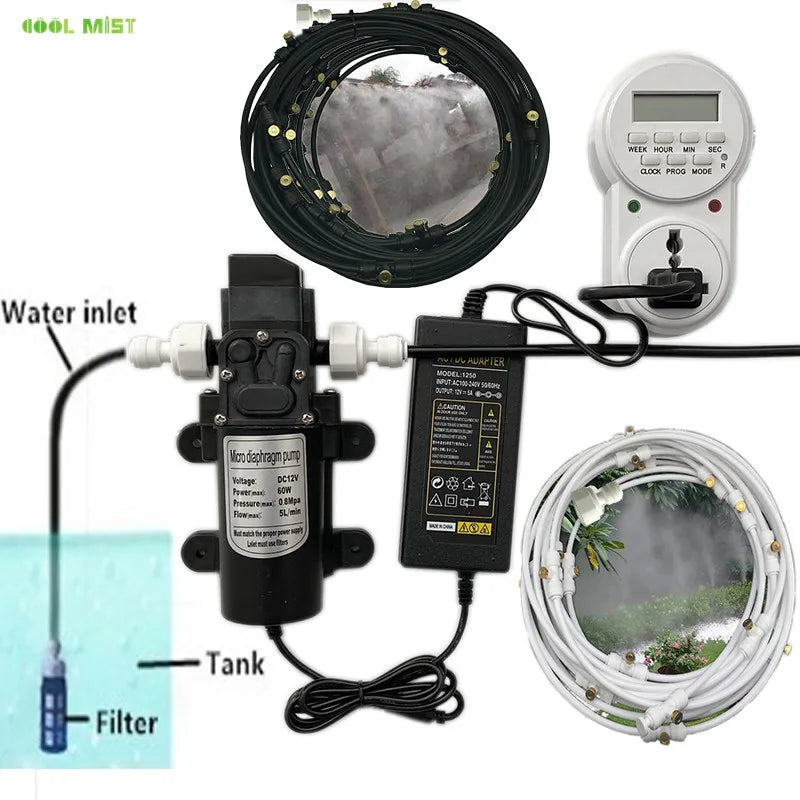

Instruction as below:

  • Installation Steps:

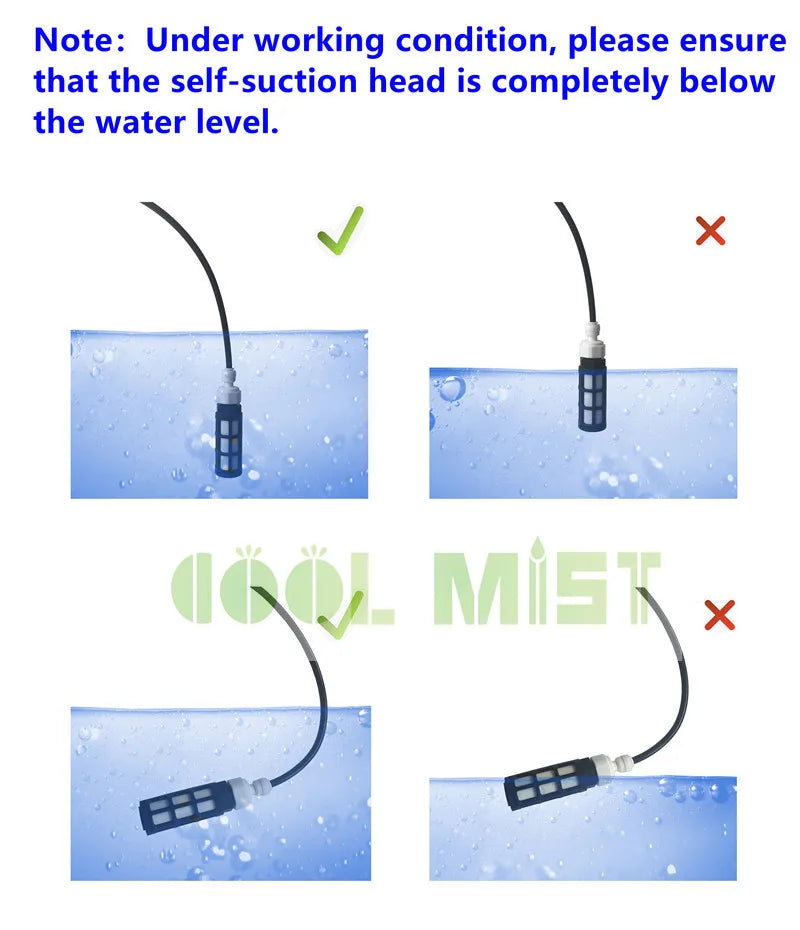

  • 1. Keep the 3M water inlet totally immersed into the tank.

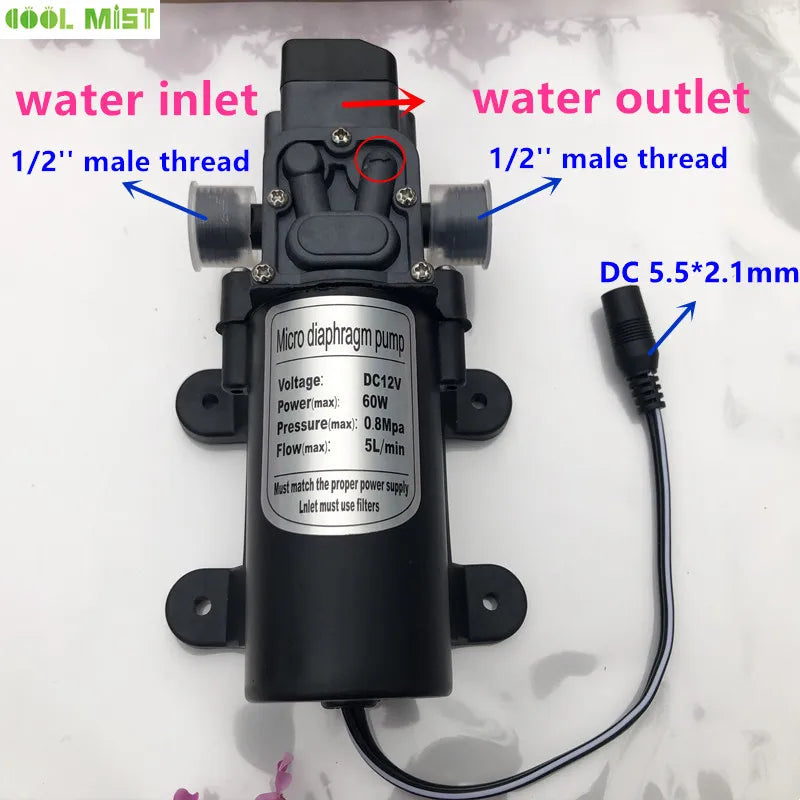

  • 2. Connect hose and pump with 1/2'' white connectors, note the arrow direction of inlet and outlet on the pump.

  • 3. Connect the power supply to wash the system for 1 minute to purge the system and remove any impurities.

  • 4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.

  • 5. Turn on the power to wash the system for 2 minutes to insure that the system is fully purged.

  • 6. Turn off the power and install the last nozzle into the fitting with the end plug.

  • 7. Fix the misting line by the cable ties saddle clamps provided.

  • 8. Turn on power then jets will work, enjoy the cooling misting system.

  • 9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.

Application as below:

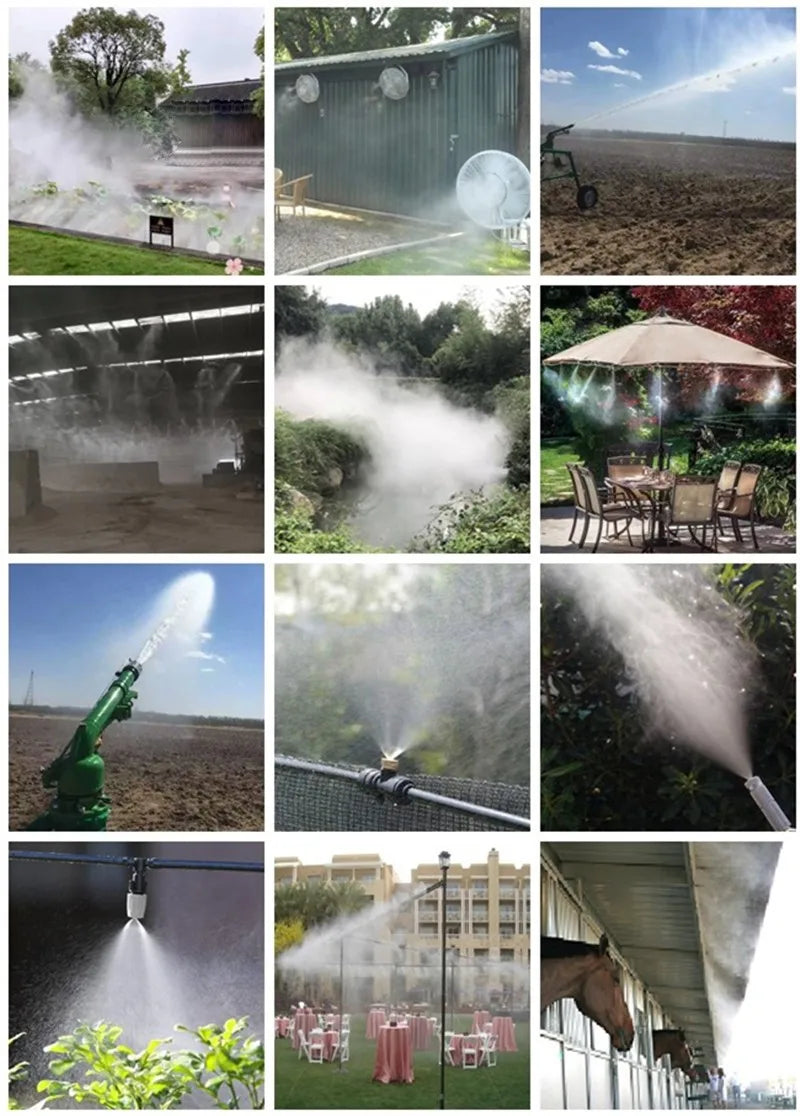

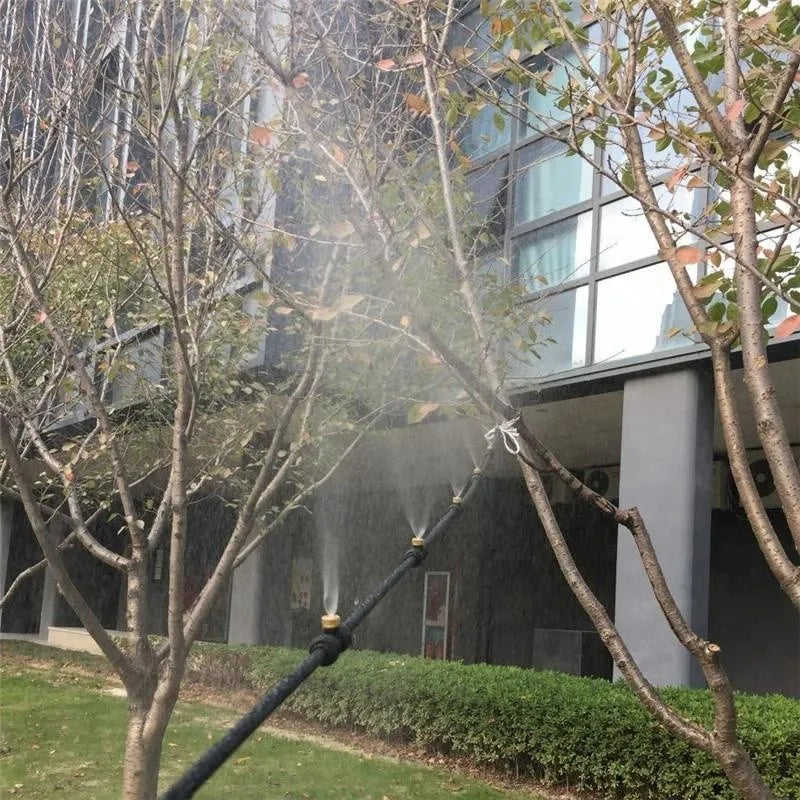

Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc
Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.

We are professional Misting System Product Production & Sales Company, more than 10 years misting irrigation manufacturer. We produce all kinds of irrigation sprinkler system, mist cooling system, drip irrigation system, watering kits, and other garden accessories.

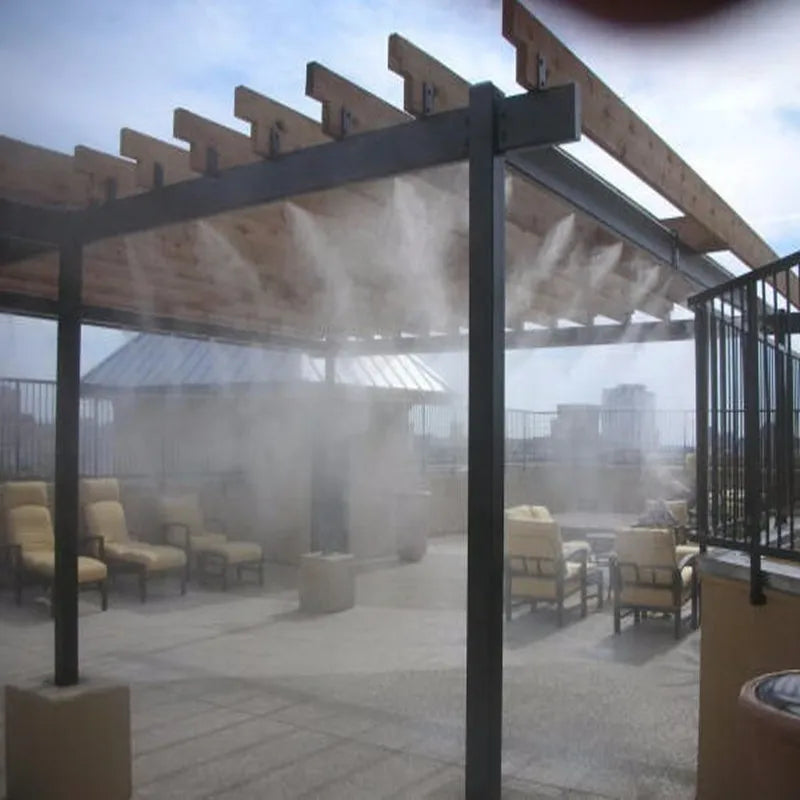

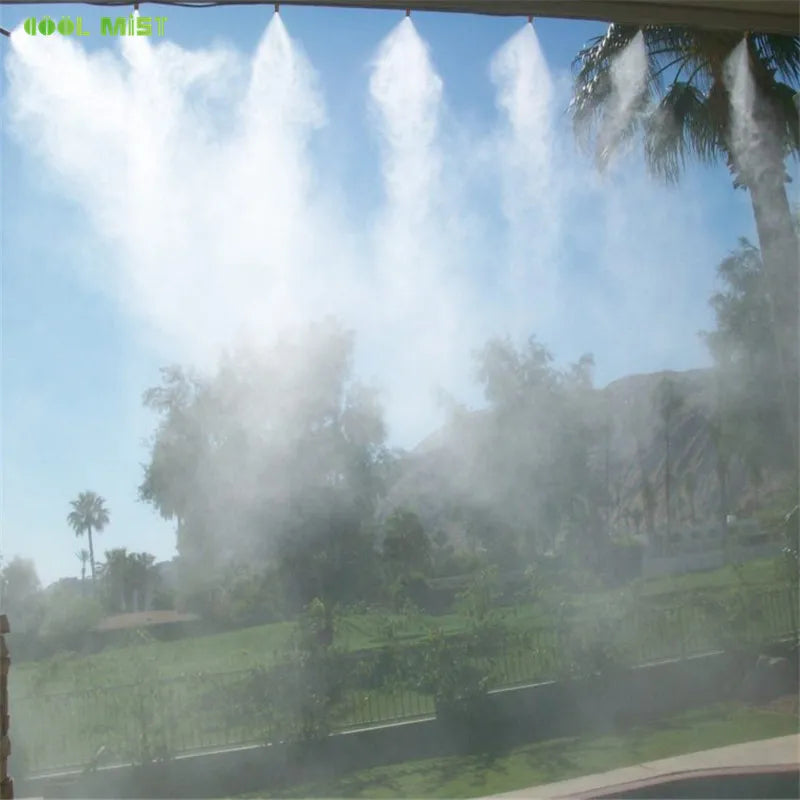

Water Mist Systems can be used in small residential backyards as well as large commercial venues. It means environmental control of temperature, dedusting, Landscaping and humidity is easily achievable.
