SPECIFICATIONS

APP: TUYA

APP2: SMART LIFE

Brand Name: SHOJZJ

Certification: CE,FCC,RoHS

Control item: fan and valve

Current Load: 3A

Display: LCD

Fan speed: High, Medium, Low,Auto

Function: Timing program

Installation Box: 86*86mm

Model Number: TY-8000

Multifunction: City Weather Index

Origin: Mainland China

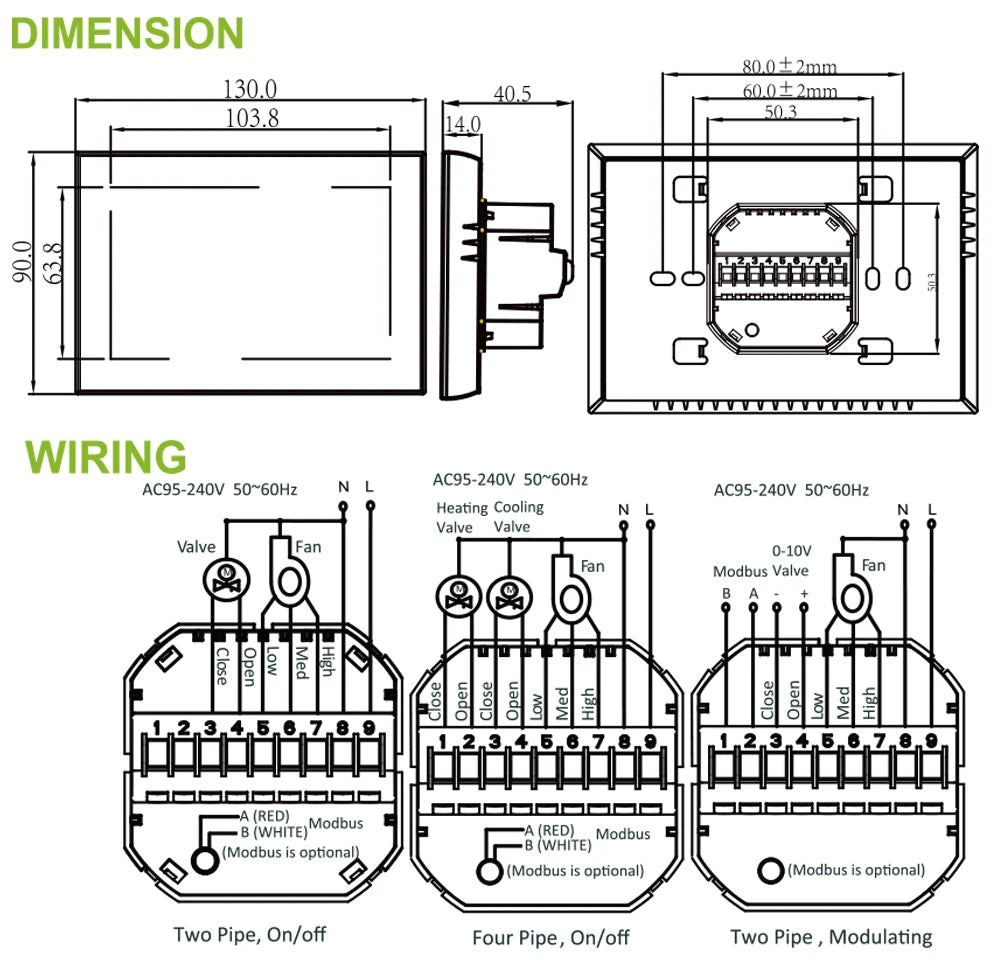

Pipeline support: 2Pipe and 4Pipe

Power Supply: 24VAC,95-240VAC, 50/60HZ

Screen size: 4.8 inch

Sensor: NTC10K

Type: fan coil thermostat

Wattage: 5W

Wifi phone control: City Weather Index

Working with 1: Alexa

Working with 2: Google

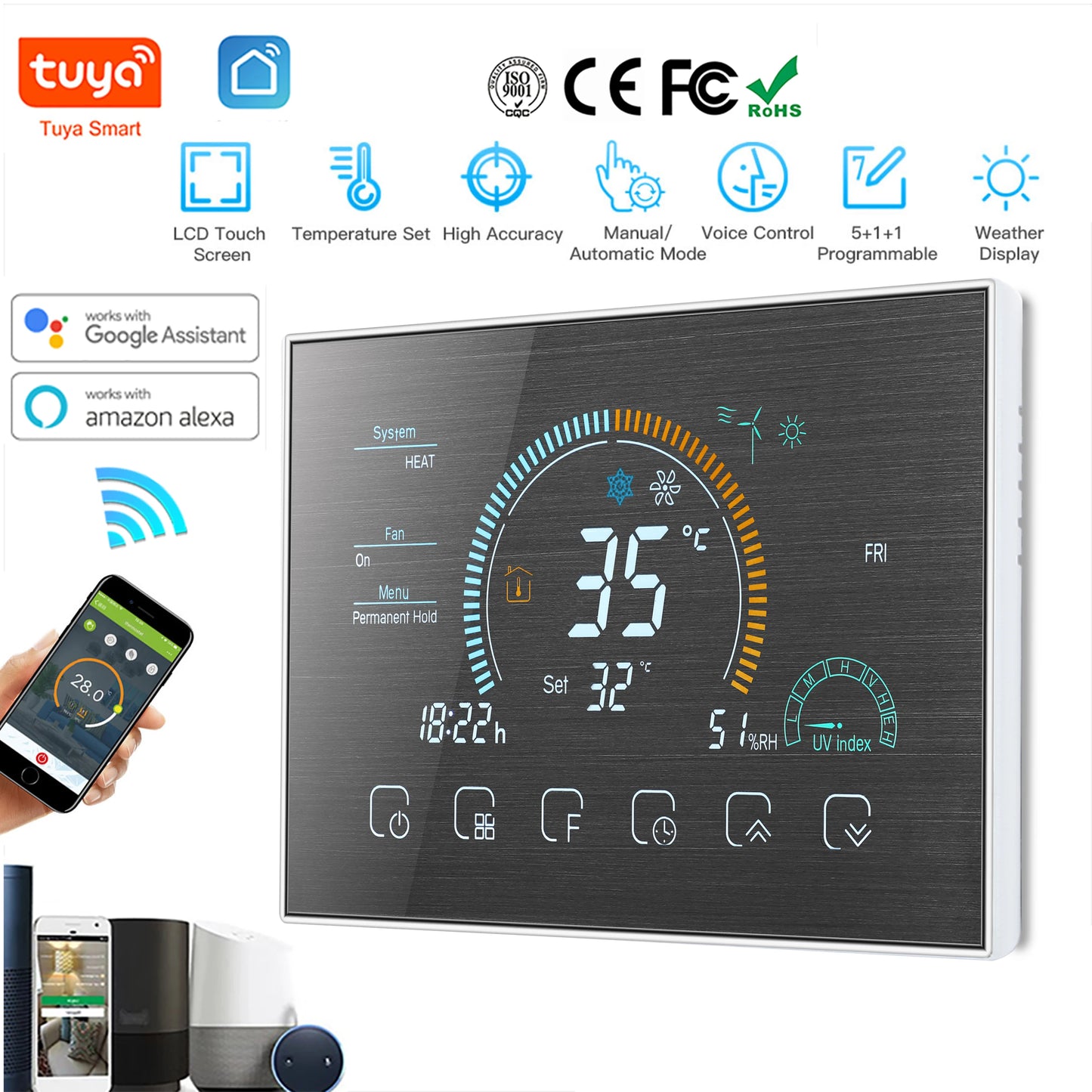

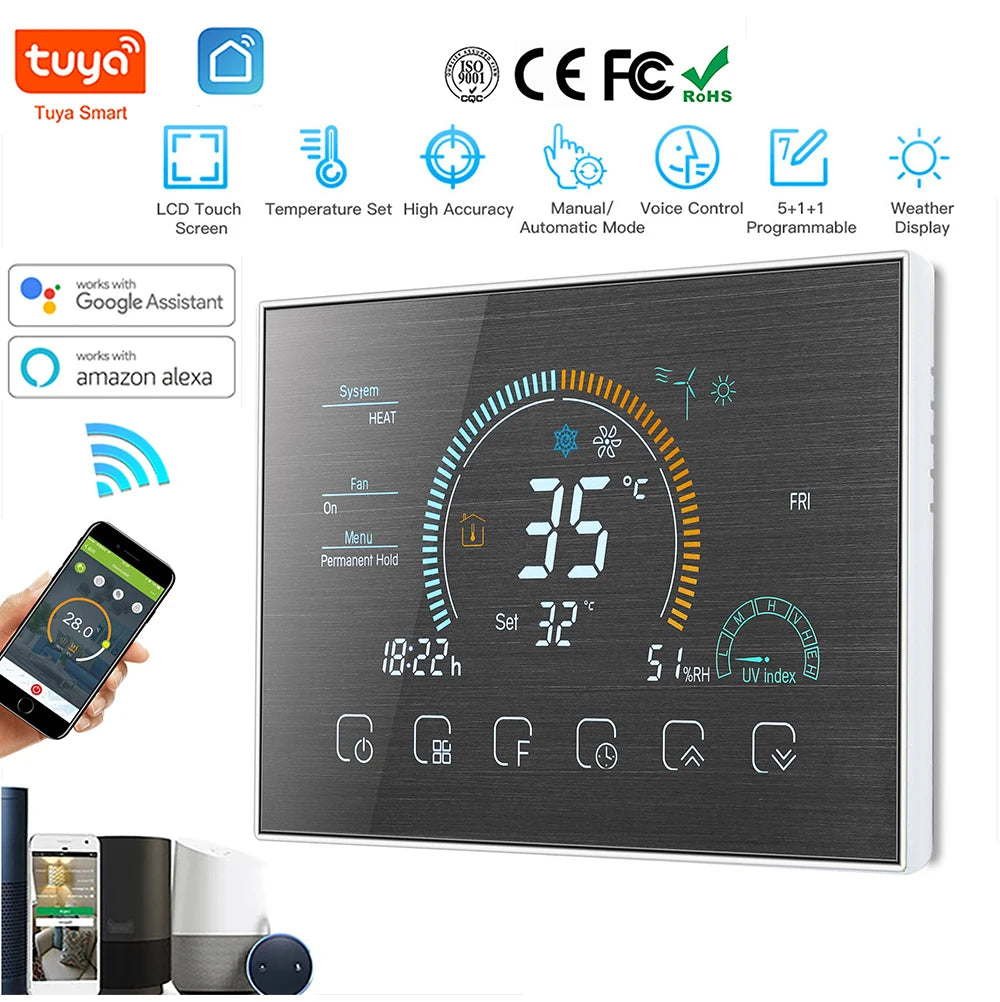

FEATURES

On Appearance:

1. Negative black sceen will bring you to a secret world.

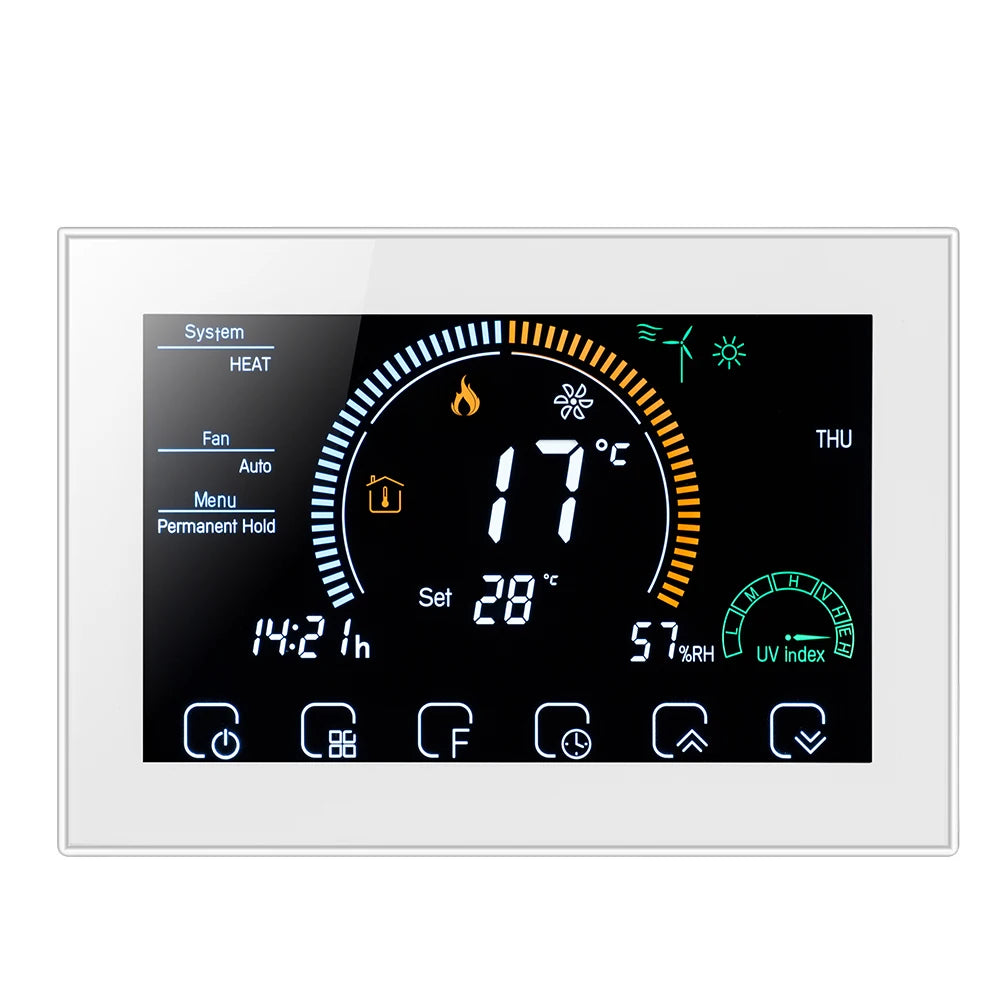

2. 4.8 inch Large colorful screen display area, creates your colorful life.

3. Touch buttons to make simple operation.

4. Amazing Silver Frame opens your modern life.

5. The visiable thickenss above the wall is only 15mm.

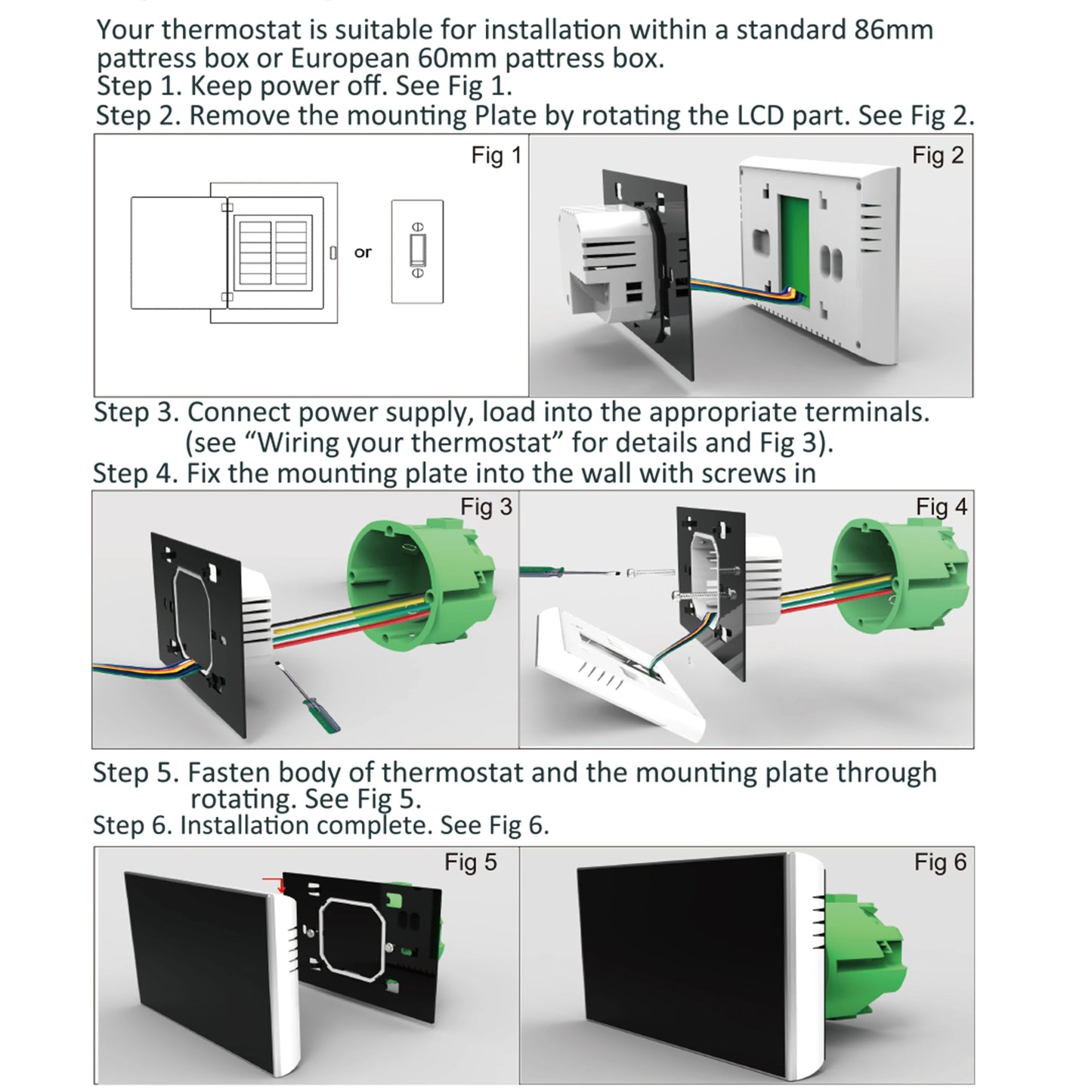

6. The snap connection allows you to easily install.

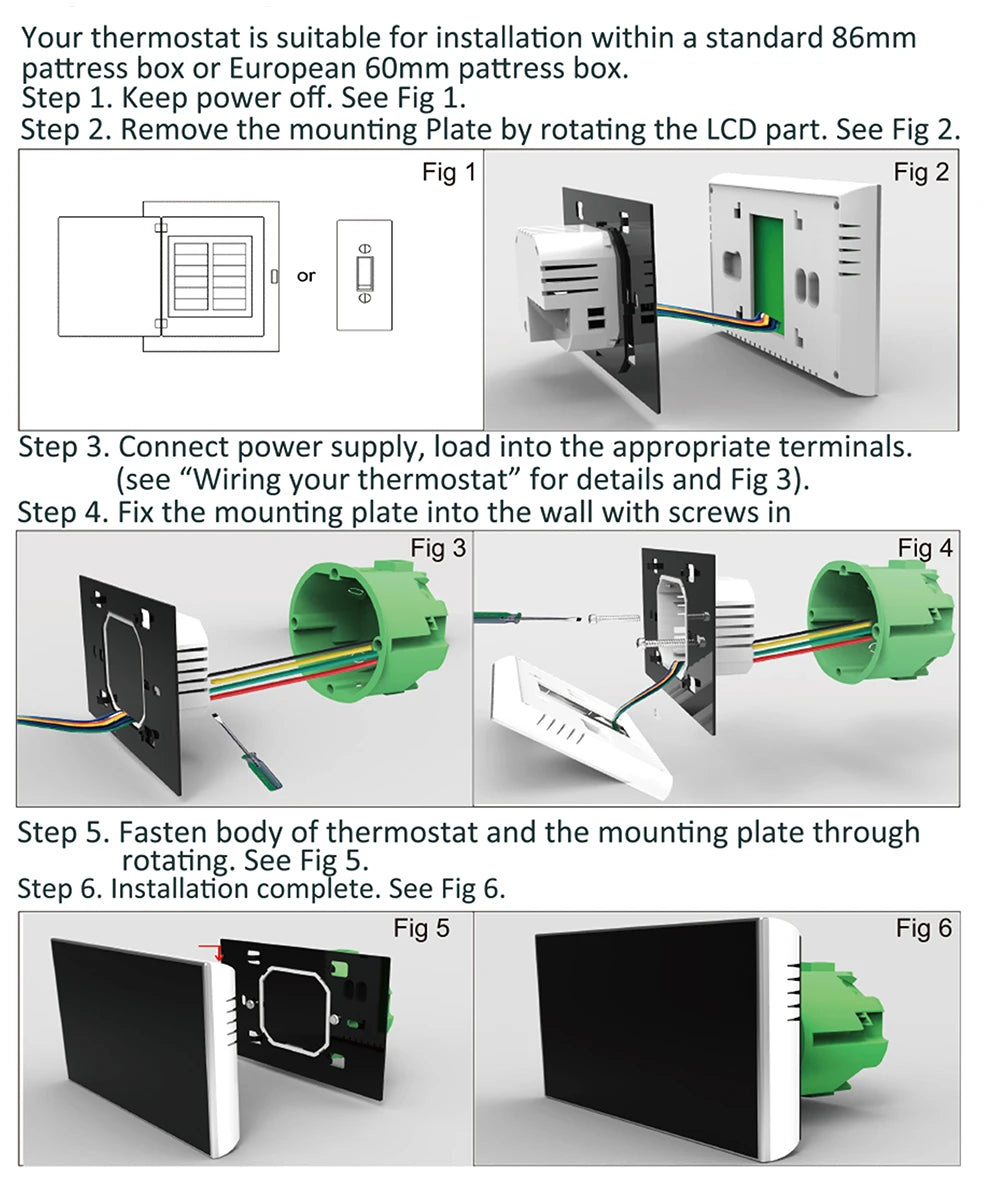

7. 86mm hidden box and European 60mm round box is suitable.

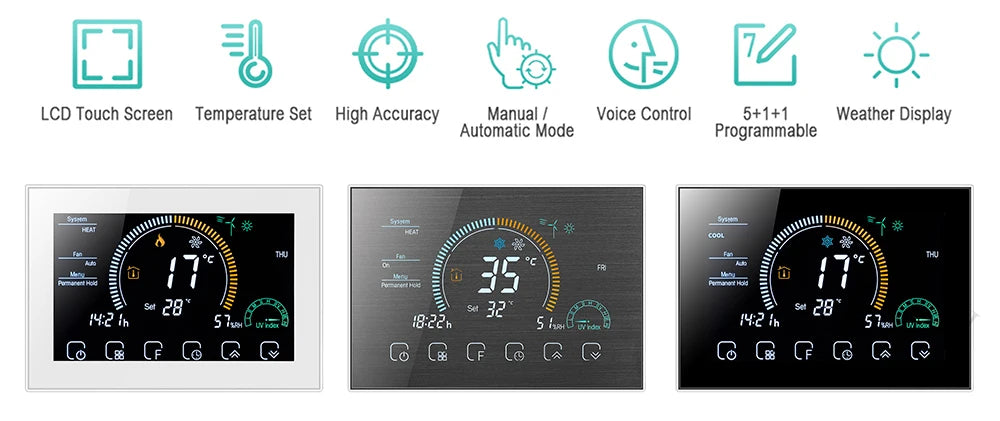

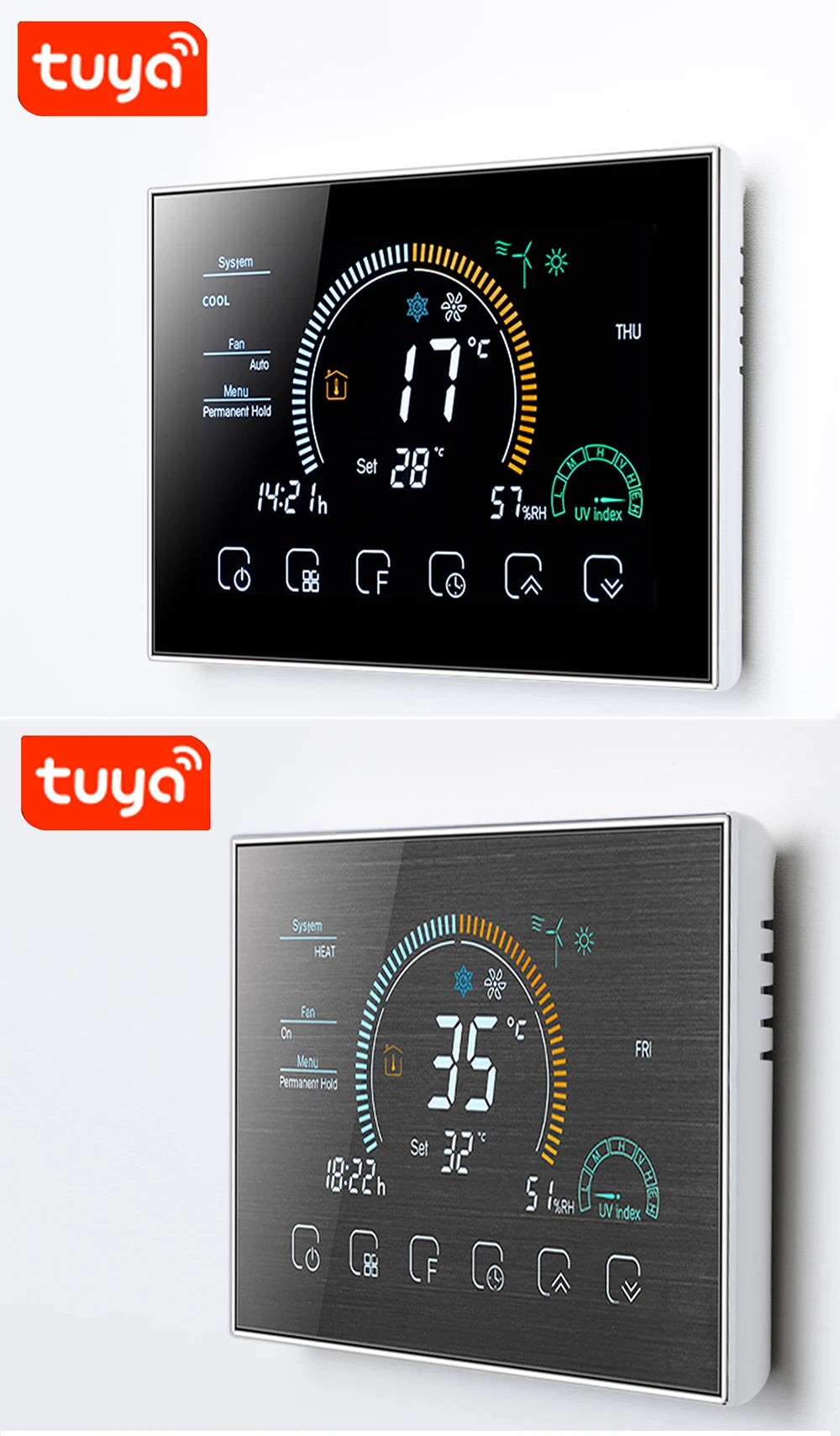

8. White, black for your selection.

9. Wrap-around cooling holes help heat to escape quickly and avoid affecting temperature detection.

TECHNICAL DATA:

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ

Sensor: NTC3950, 10K

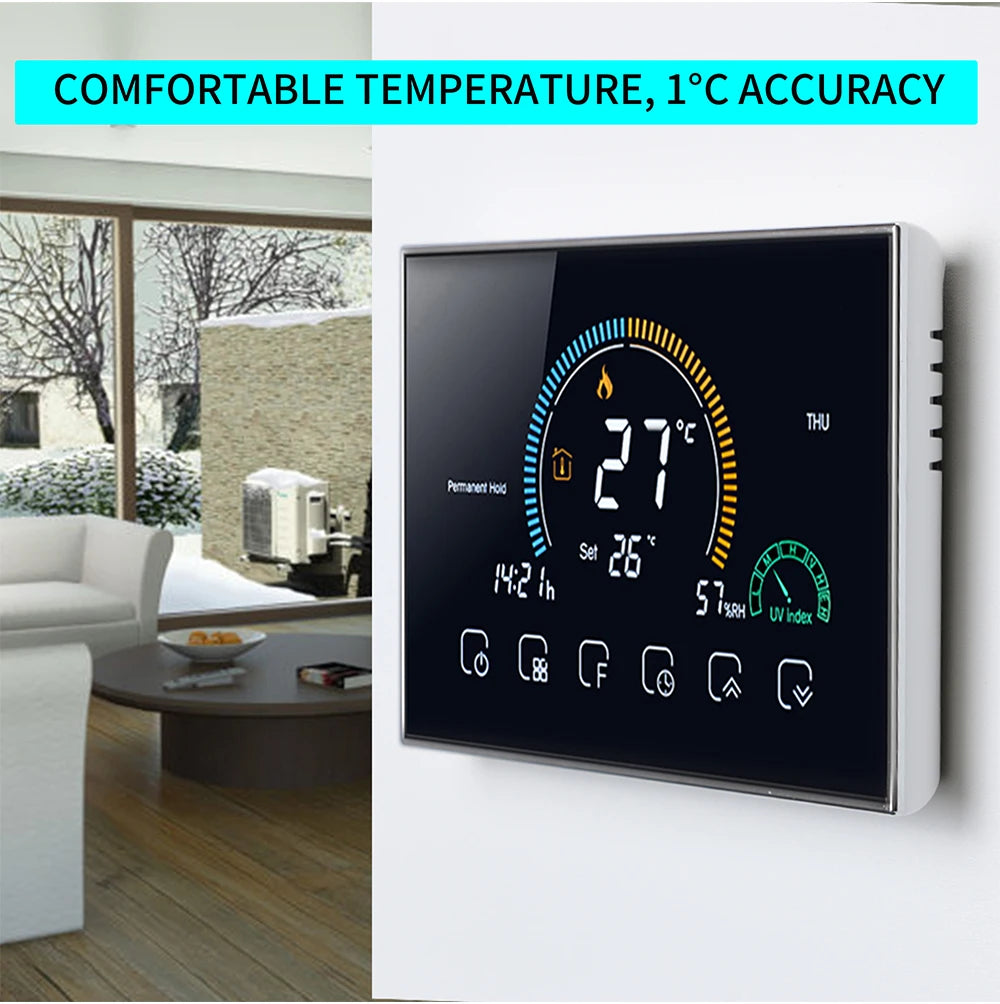

Accuracy: ±1°C or ±1°F

Set Temp. Range: 5 -35°C

Dispaly Temp. Range: 5 ~ 99

Ambient Temp.: 0 ~ 45°C

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.: -5 ~ 45°C

Power Consumption: <1.5W

Timing Error: <1%

Shell Material: PC + ABS (Fireproof)

Installation Box: 86*86mm Square or European 60mm Round Box

Wire Terminals: Wire 2*1.5mm2 or 1*2.5mm2

Protection Class: IP20

Buttons: Capactive Touch ButtonsOn Functionality:

1. Powerful functions are available such as WIFI etc,.

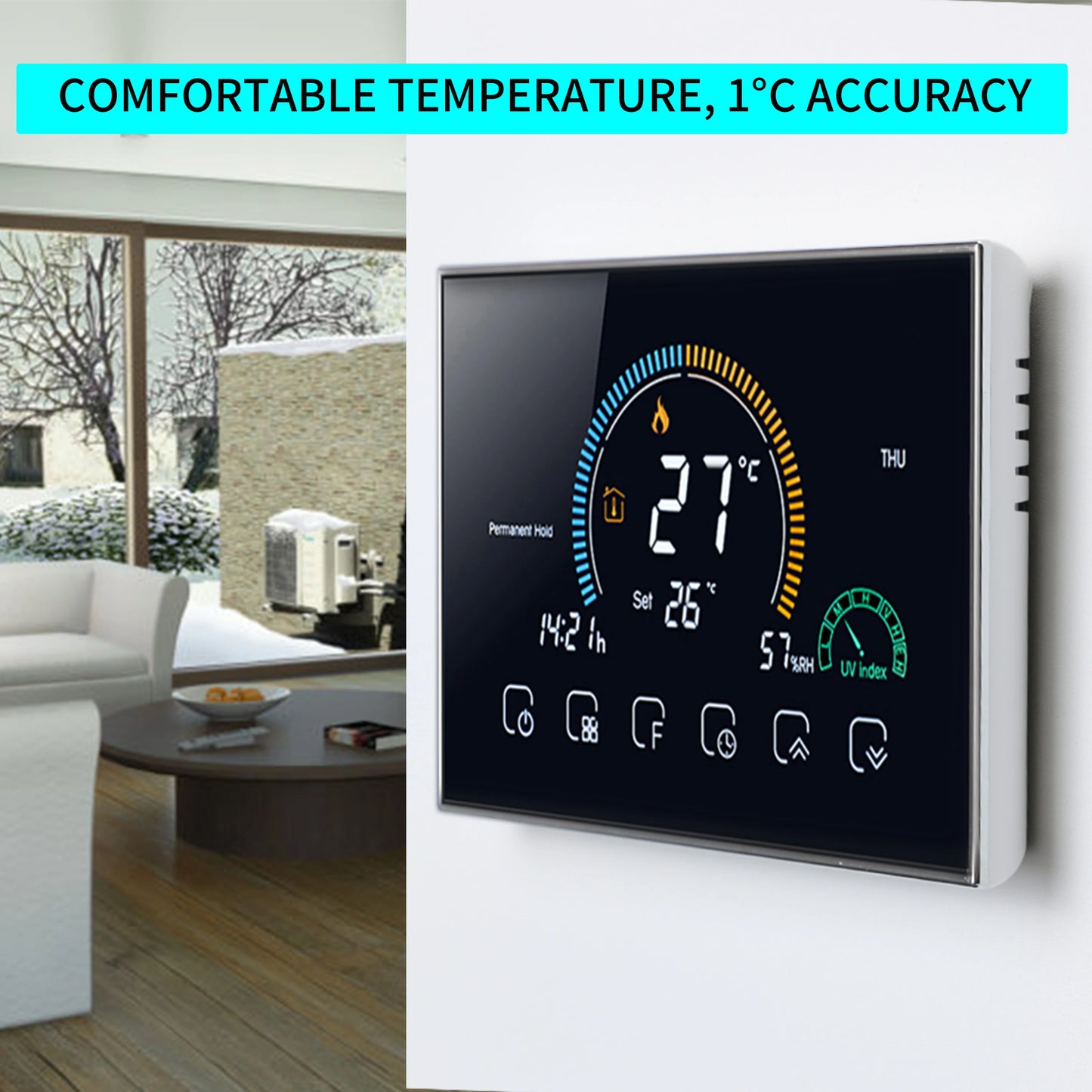

2. 1℃acuracy keeps temperature within the level you set.

3.℃ or ℉,the default factory unit ℃, the unit ℉ can be customized. can be customized.

4. Data memory when power is off.

5. 5+1+1 six periods programmable maximize comfort and economy.

6. Temporary programmable.

7. All setting languages sunchronize your time zone, address and language.

8. No limit to add thermostats in App and support Smart Scene.

9. Creat thermostat group to Centralized control.

10. Integrated with Amazon Echo, Google Home, Tmall Genie.

11. Support device sharing.

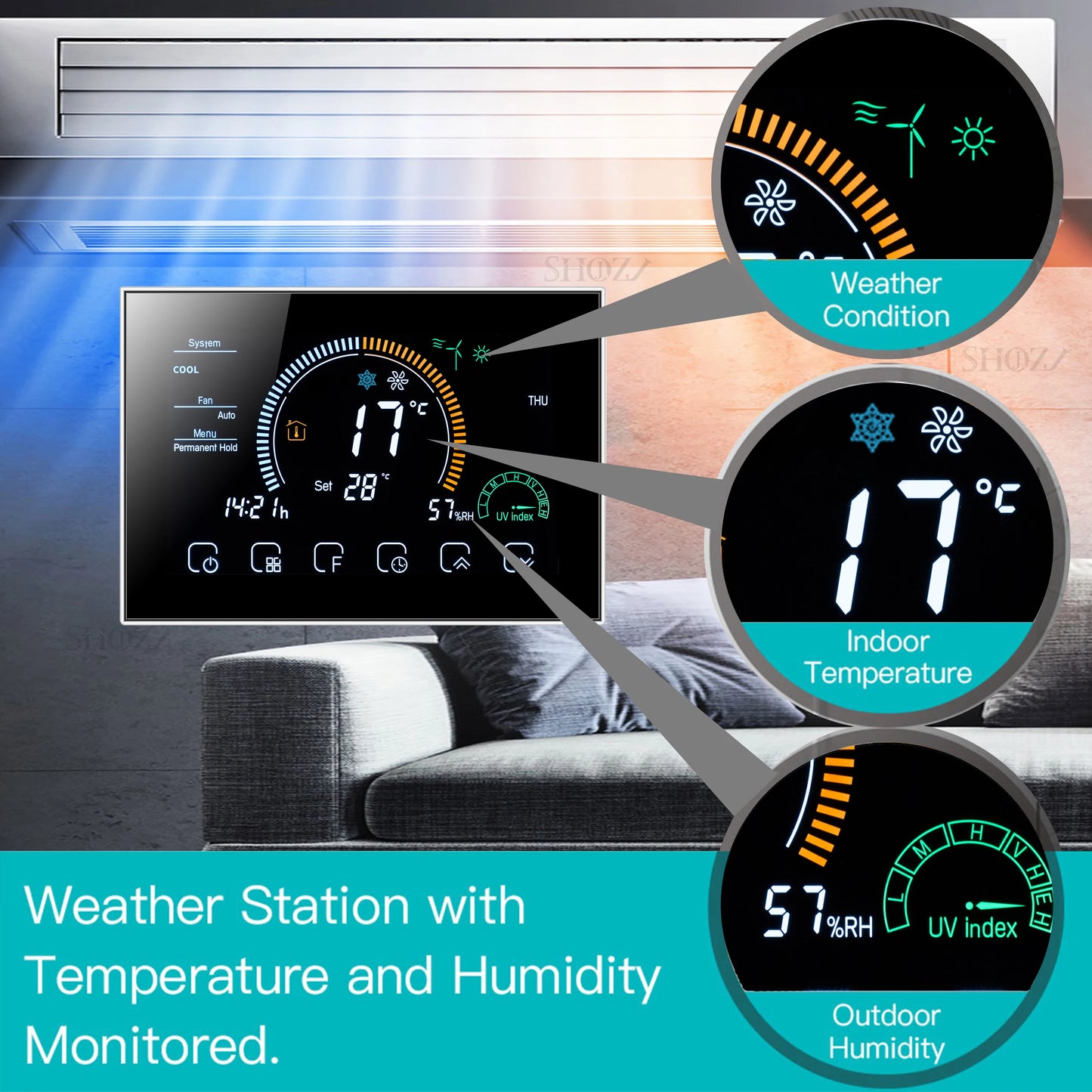

12. Weather, UV index, humidity display help you decide what to wear today.
