SPECIFICATIONS

Brand Name: YKESDL

Certification: CE,FCC,RoHS

Doorknob Funcition: Biometric

Fit Door Thickness: 35~120mm

Handle Direction: Direction Reversible

Hign-concerned Chemical: None

Material: Aluminium Alloy

Model Number: DF14

Origin: Mainland China

Power Supply: Built-in Rechargeable Battery

Protection Level: No Waterproof

Suitable Door Type: Steel Door,Wooden Door,Brass Door,Stainless Stell Door,Other

Suitable for Mortise: 6068

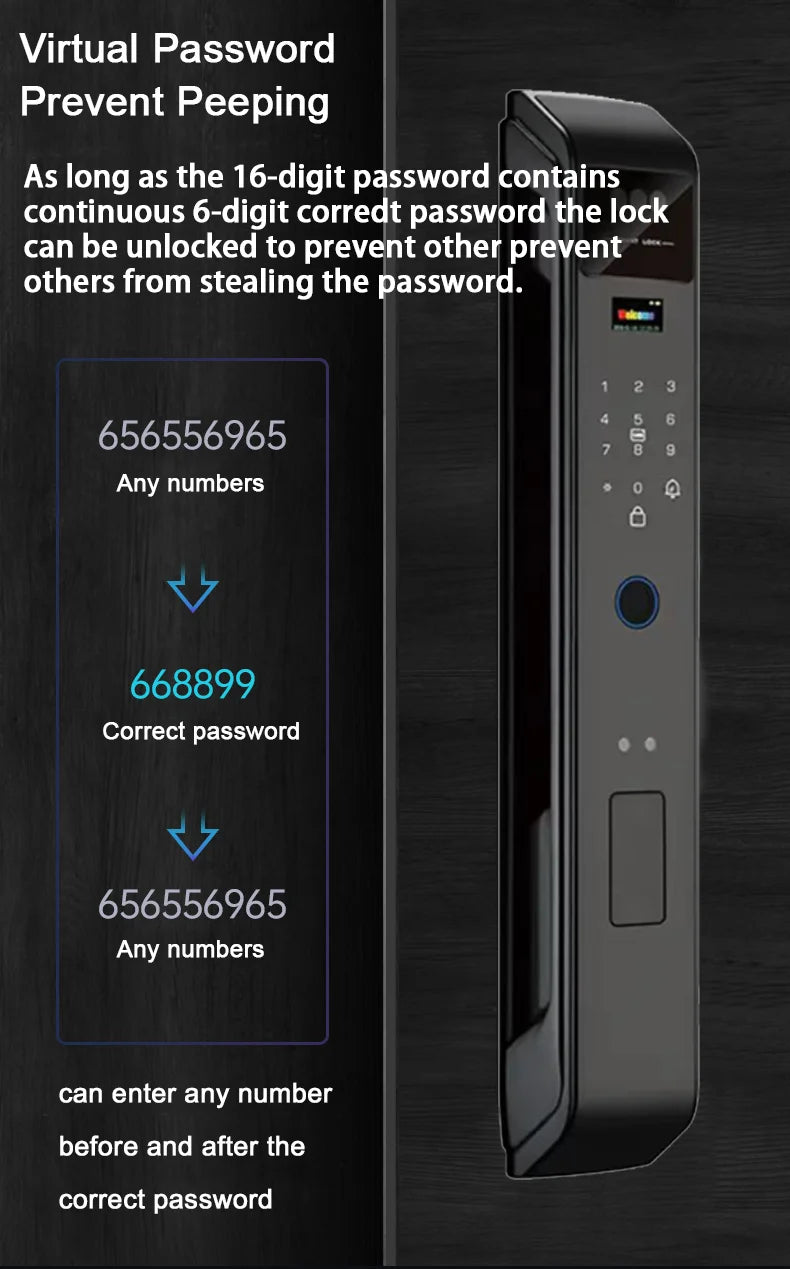

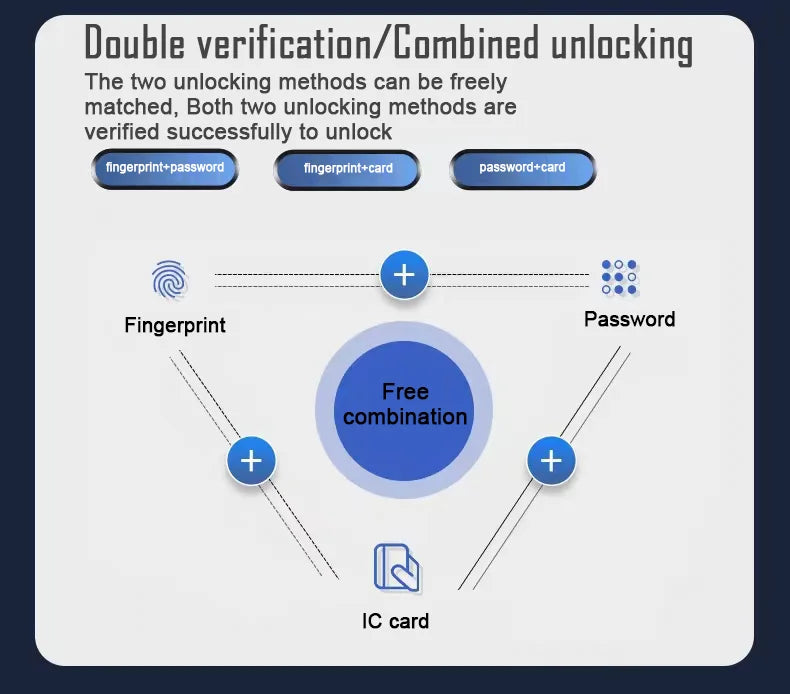

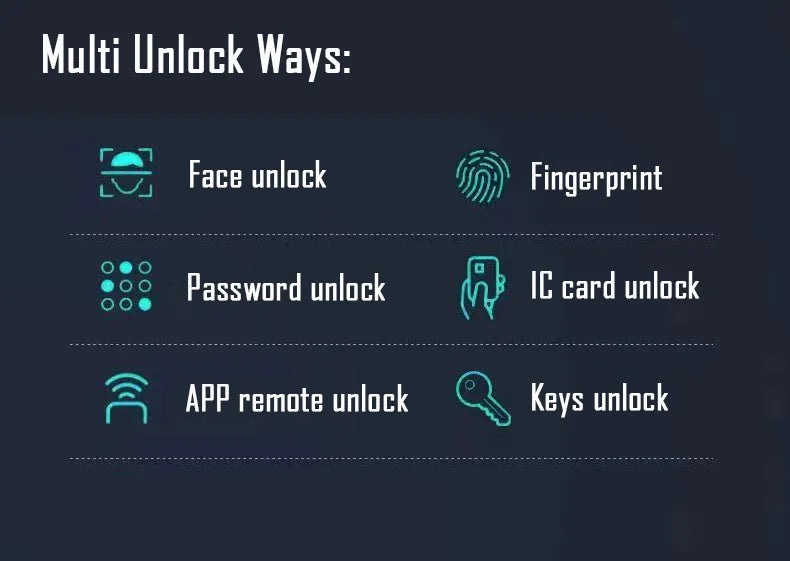

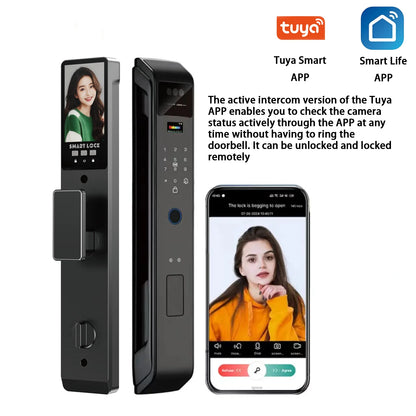

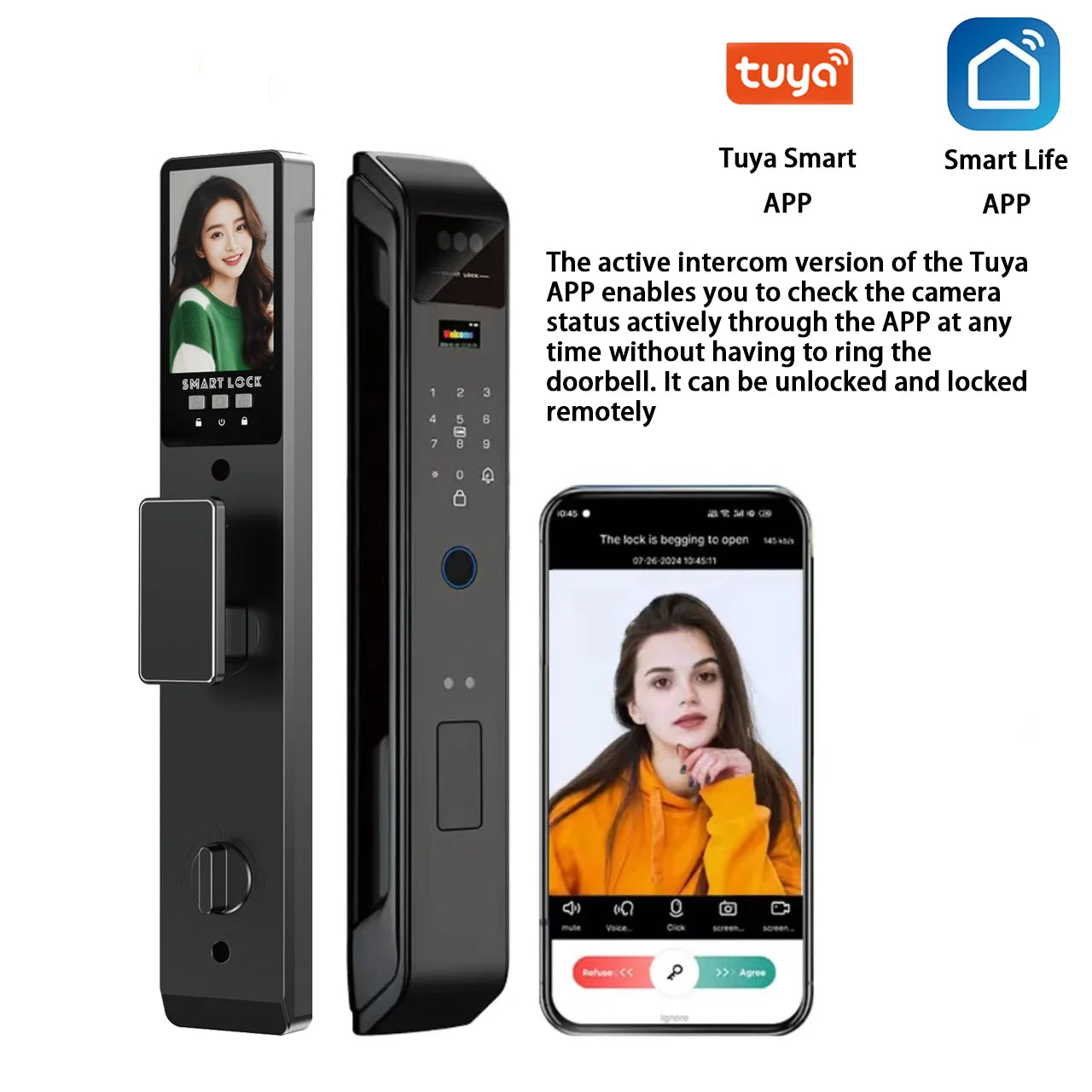

Ways To Unlock: Face Recognition,App,Mechanical Keys,Card,WIFI,Other,Password,FINGERPRINT

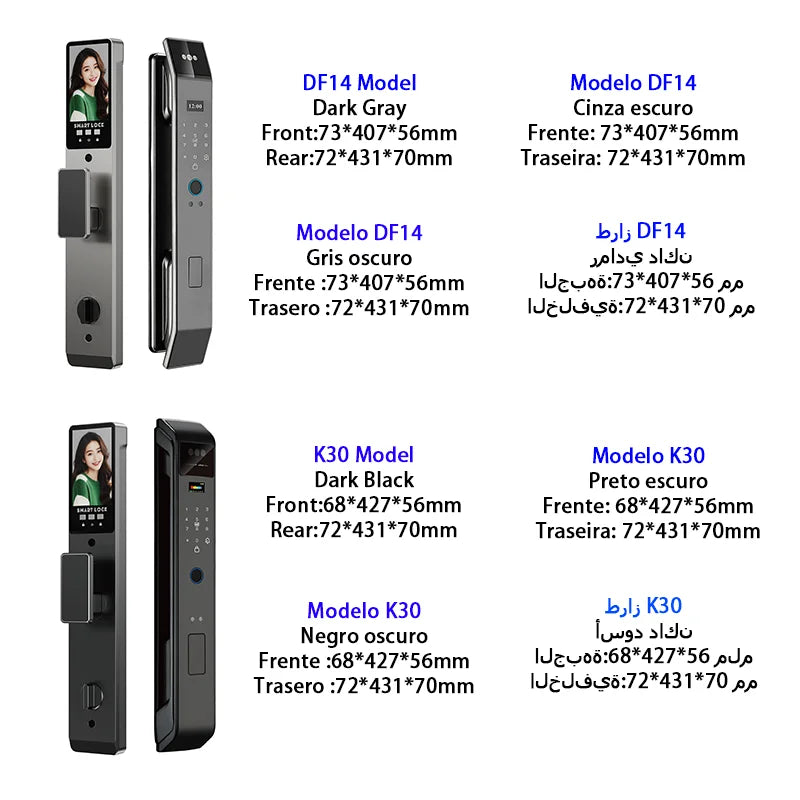

YKESDL Model: DF14

Material：Aluminium alloy

Lock body material:  Stainless steel

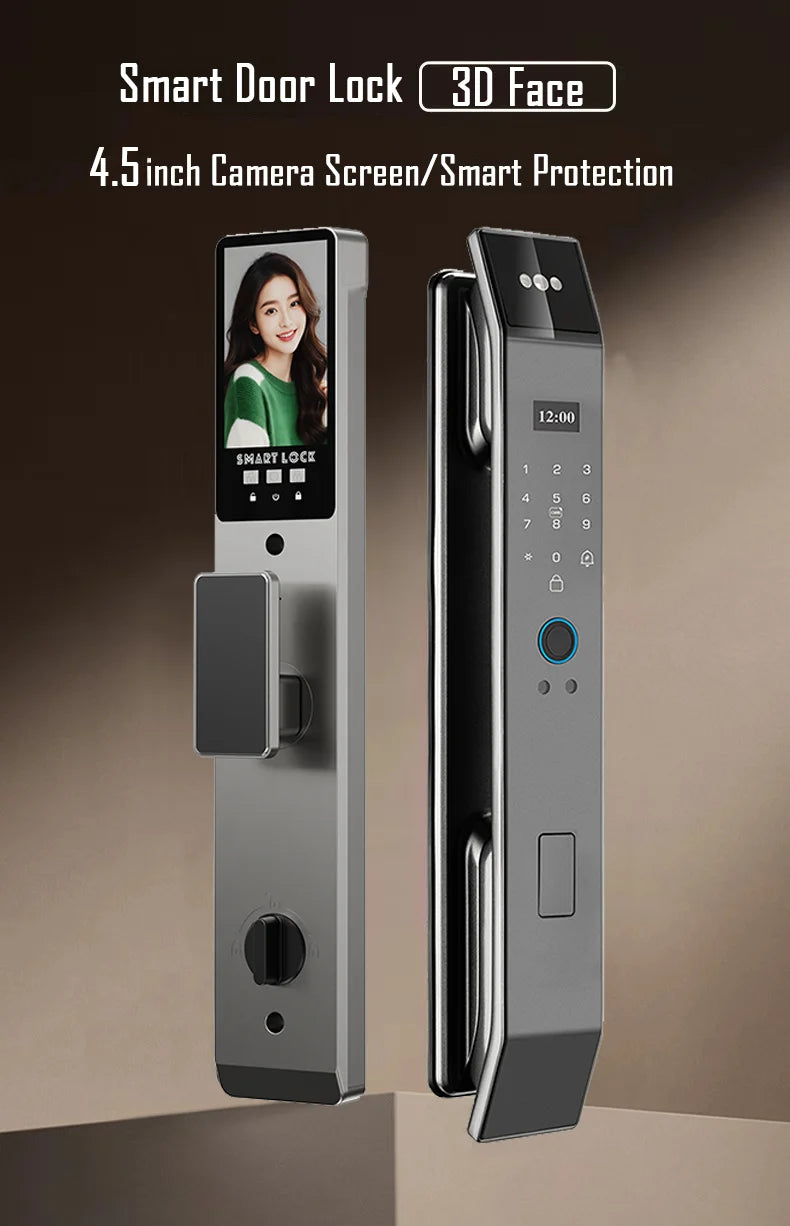

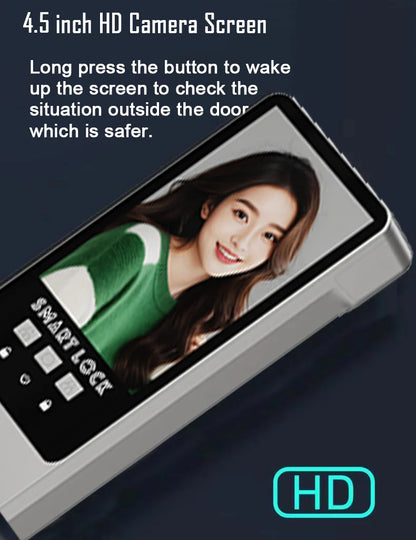

Display screen：HD screen

Face capacity：100pcs

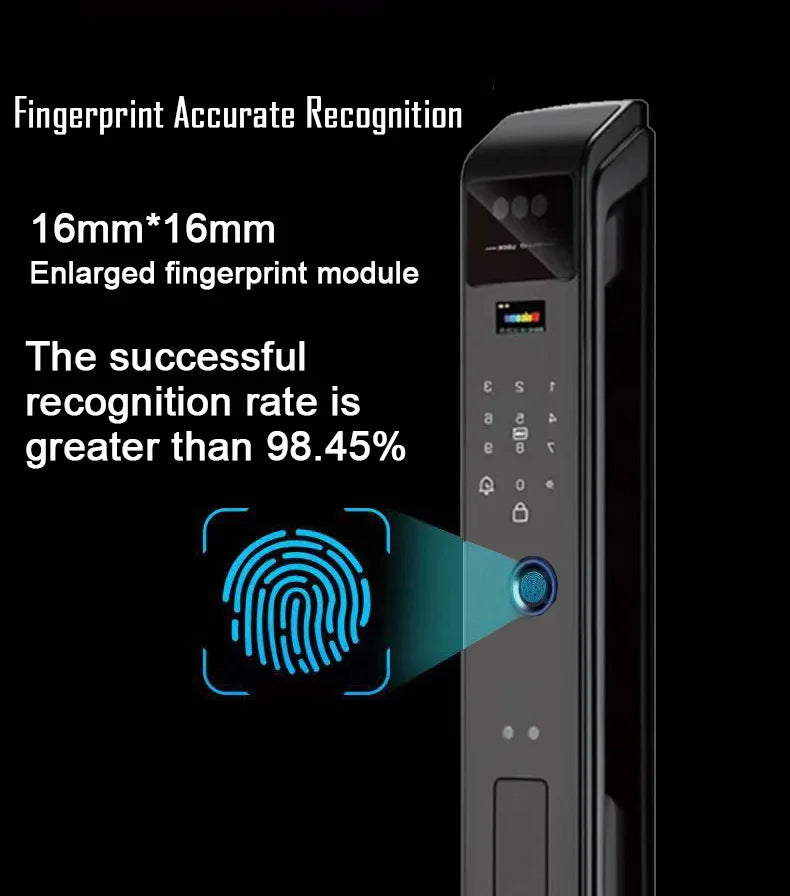

Fingerprint capacity：100pcs

Password capacity：100pcs

Card capacity：100pcs

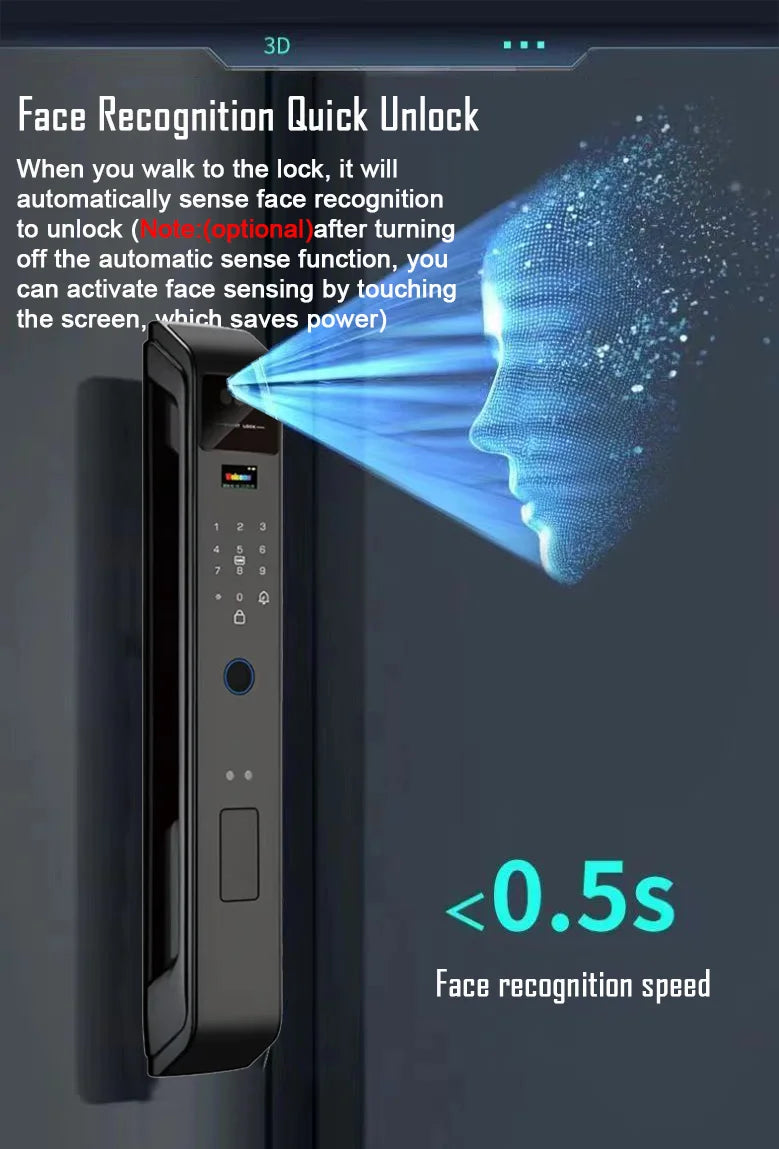

Recognition time：0.5s

Emergency power：5V

Battery：4200mAh

Operating temperature：-20~60℃

Operating humidity：＜93%RH

Suitable for doors：wooden door/metal door/household door

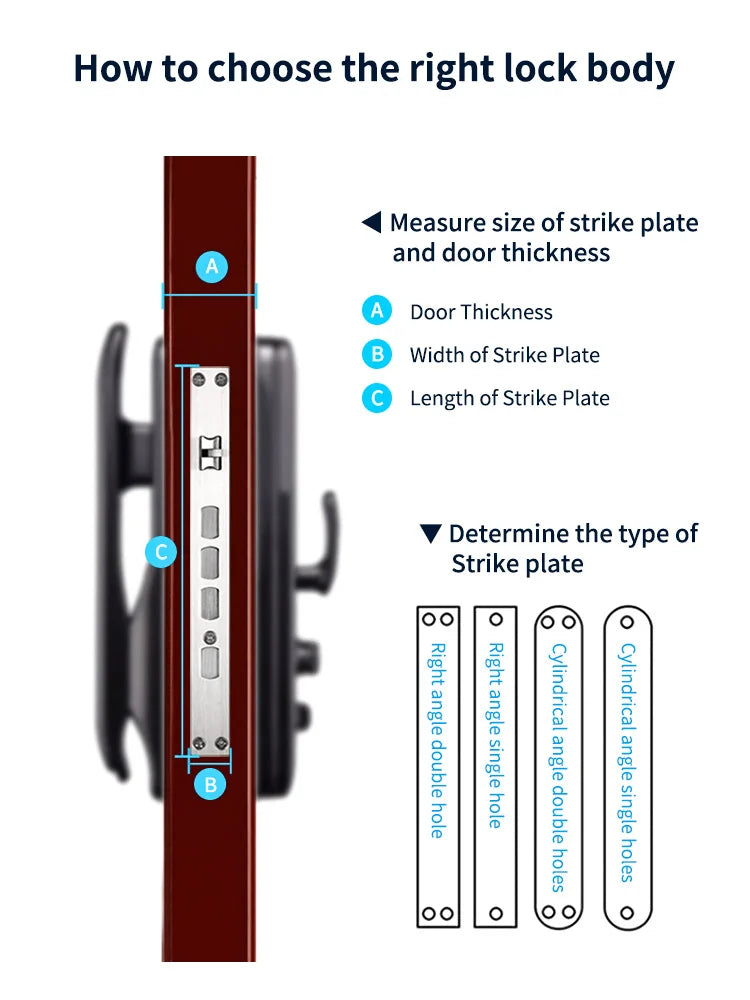

Door thickness: 3.5cm-12cm

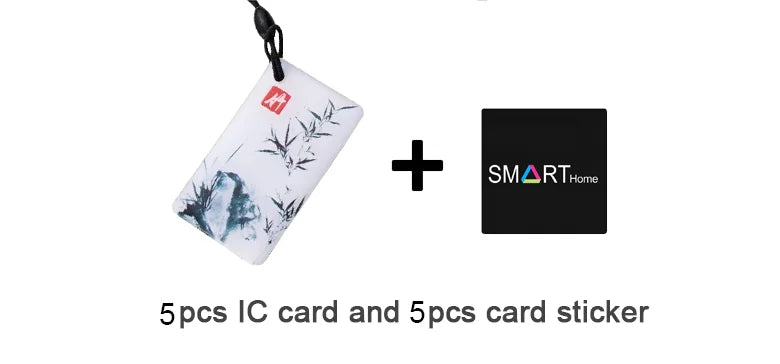

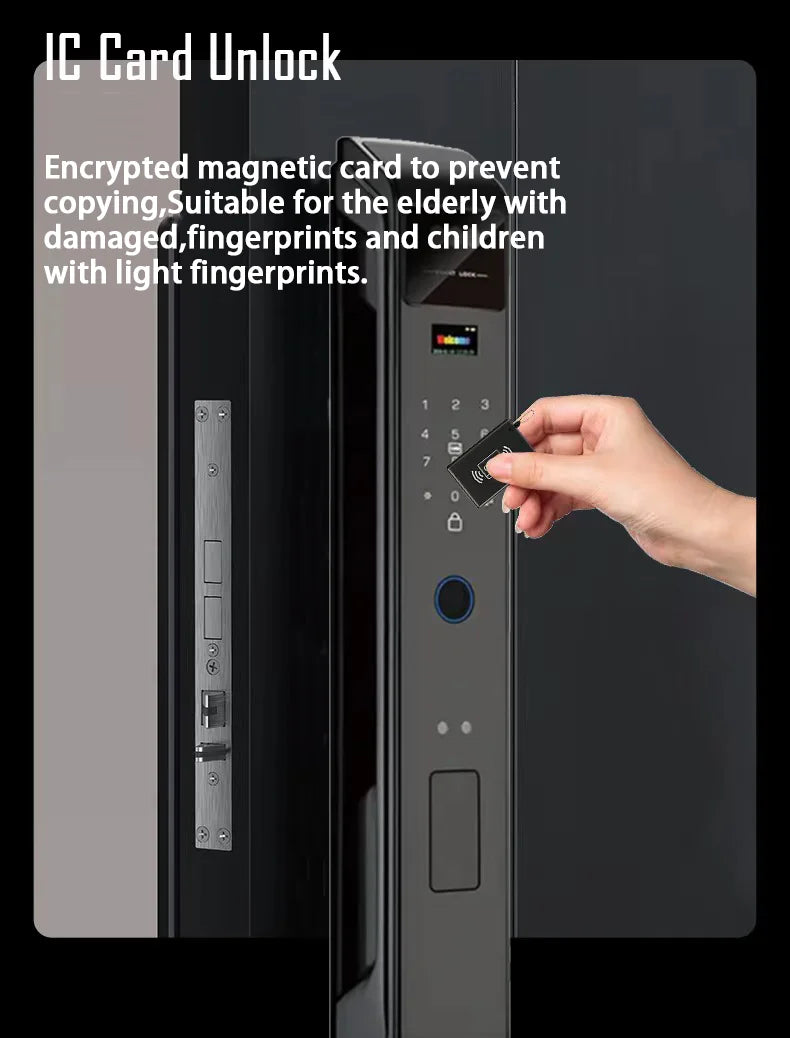

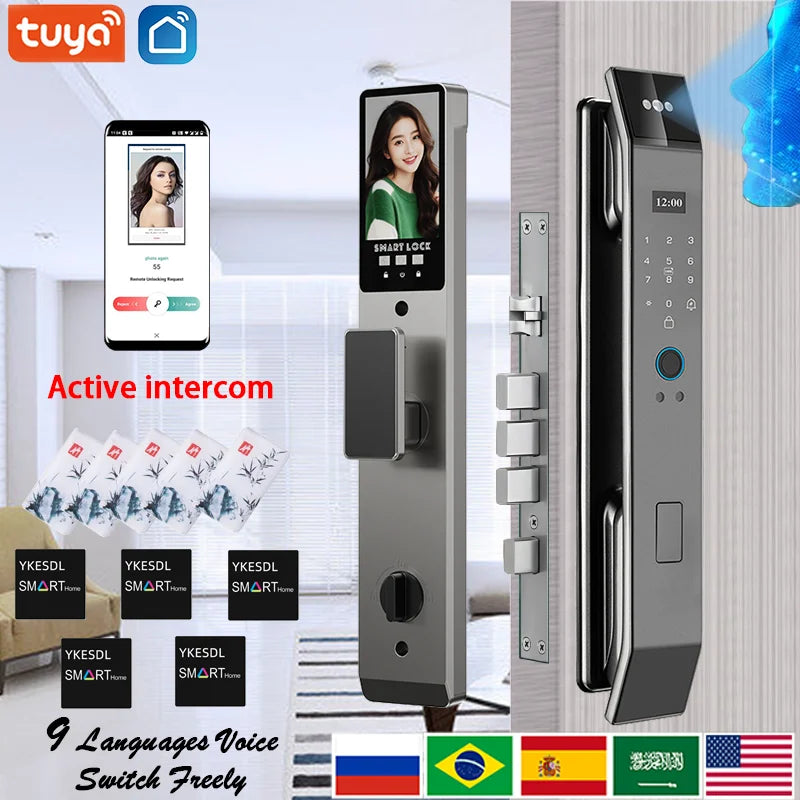

Equipped with 5pcs IC cards and 5pcs IC card stickers,

the stickers have the same function as IC cards,

and can be pasted on mobile phones/wallets and other items to unlock

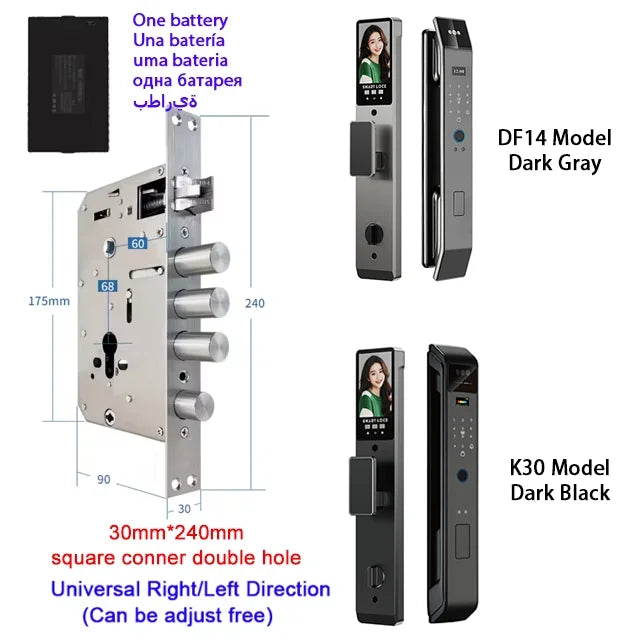

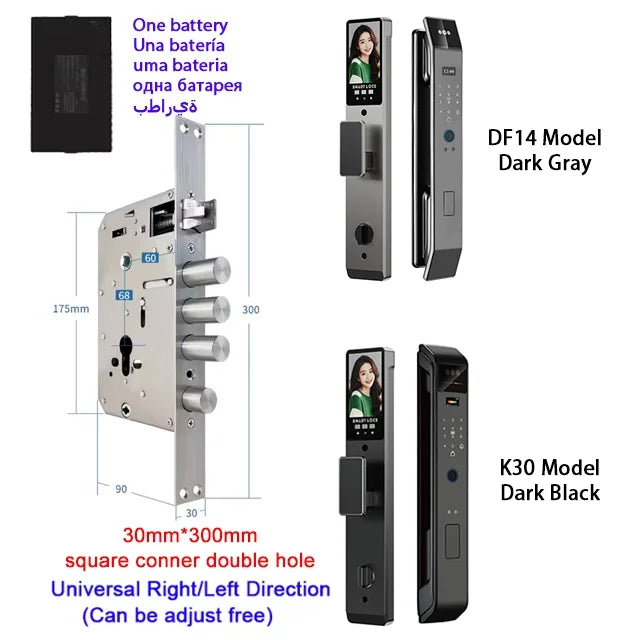

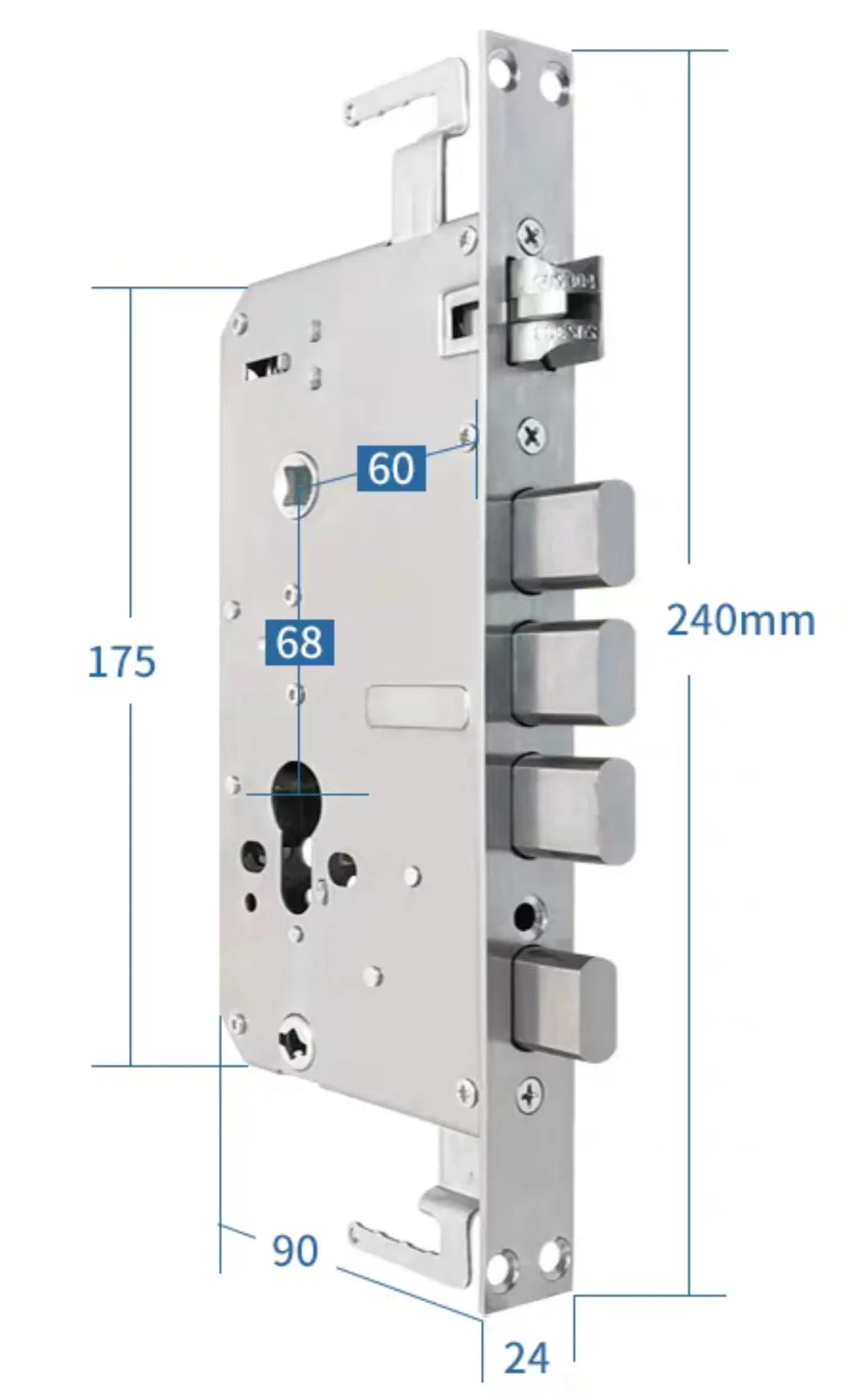

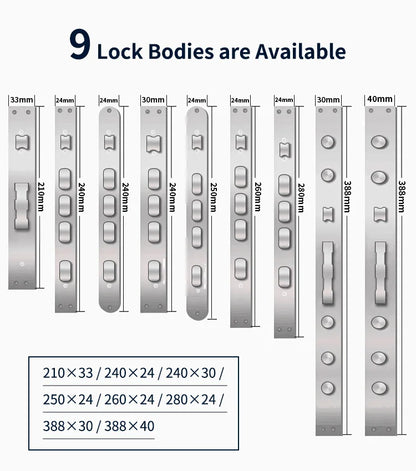

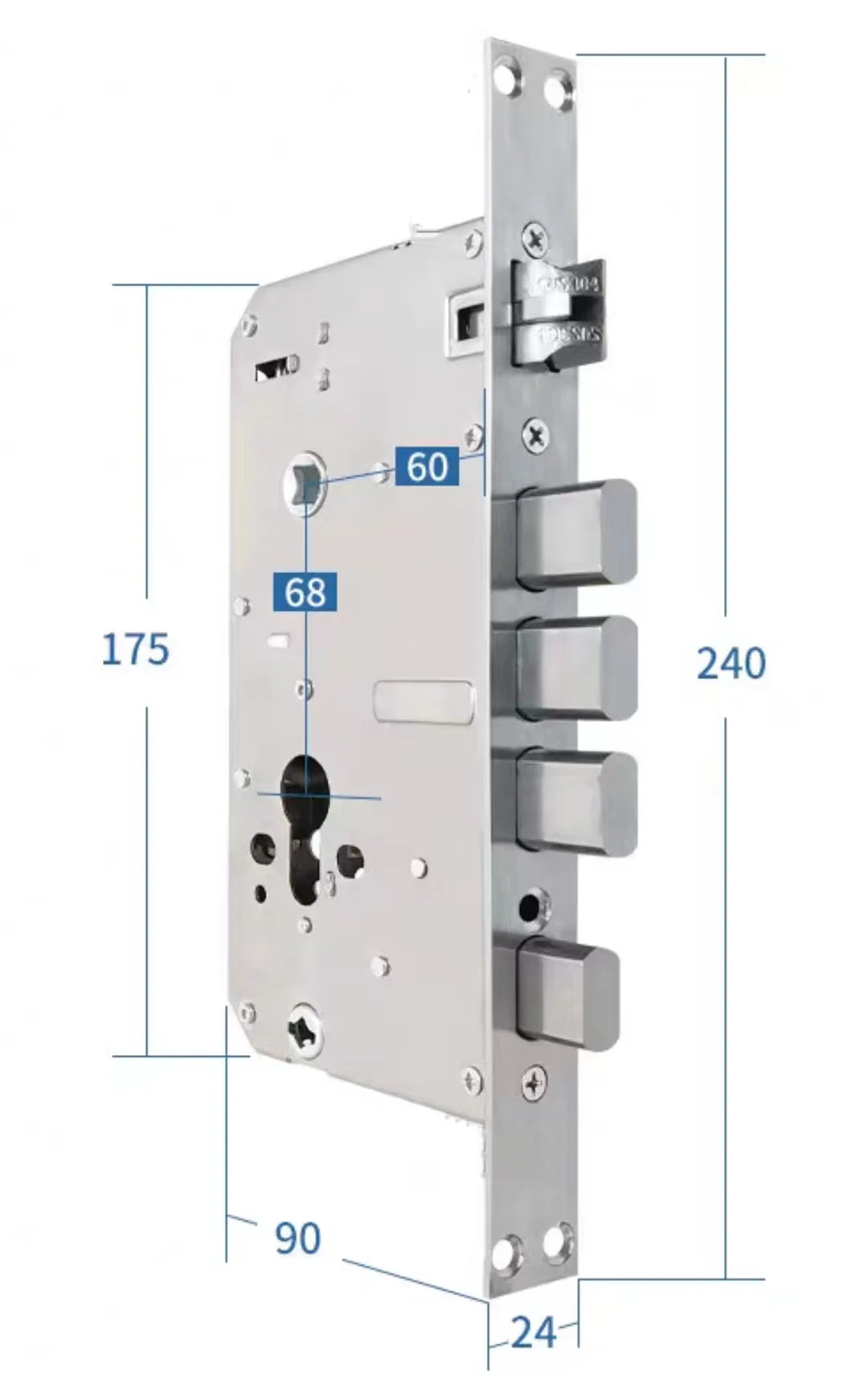

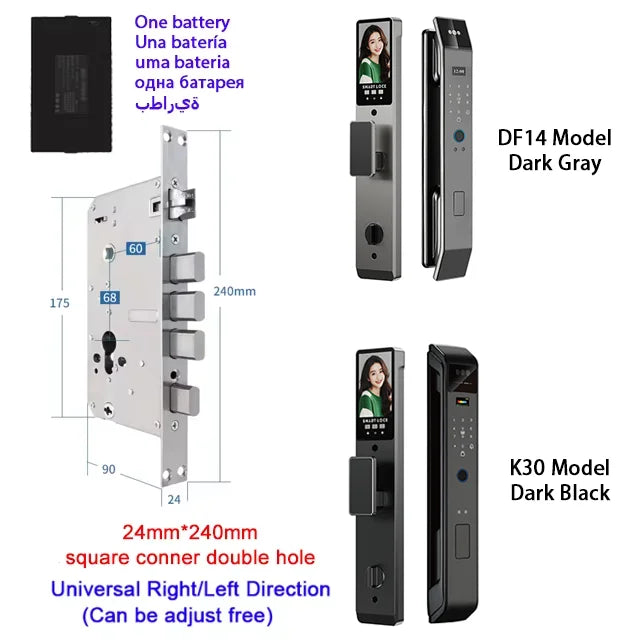

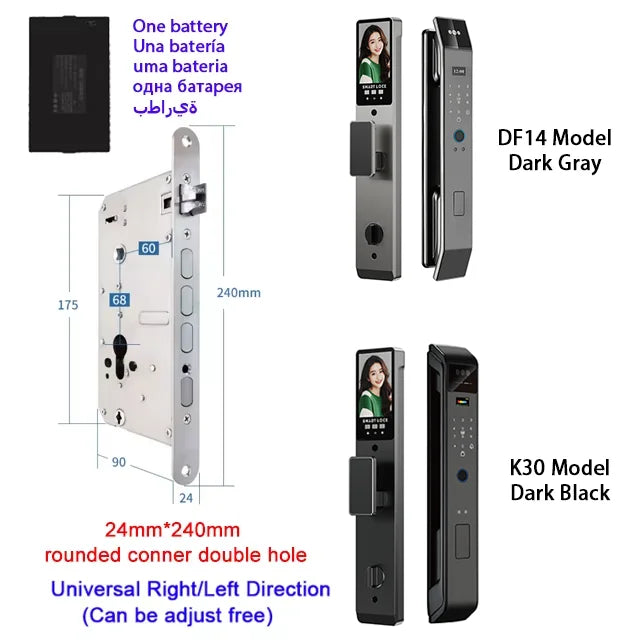

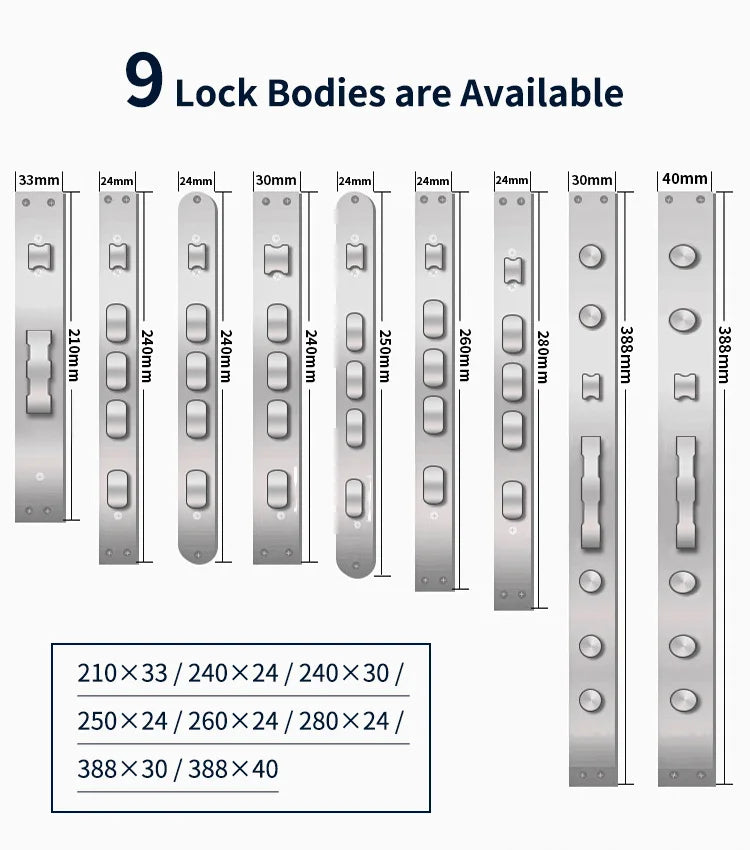

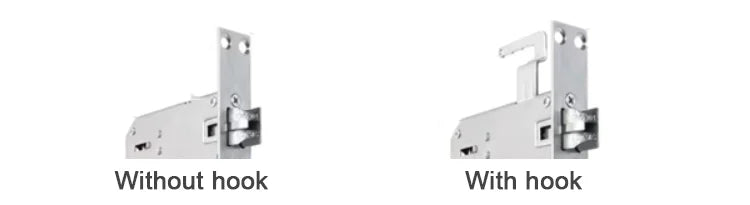

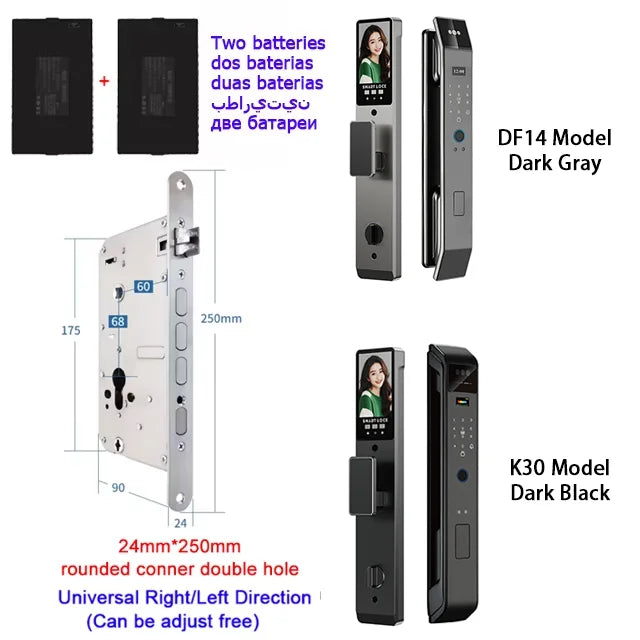

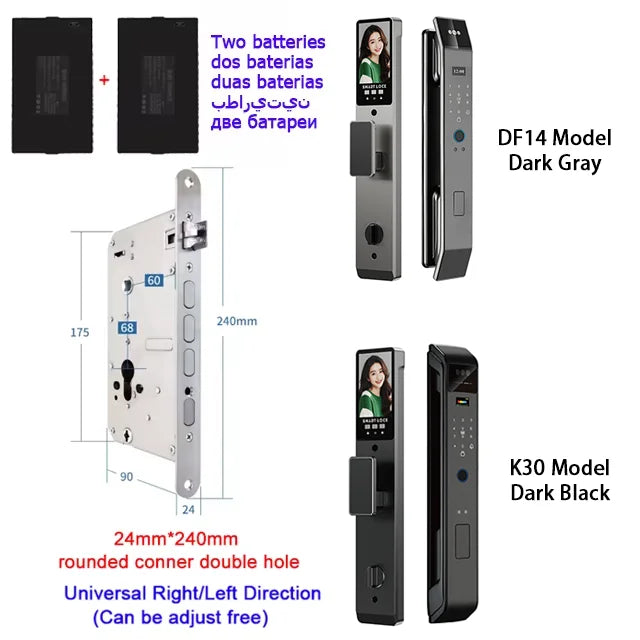

For lock body without hook and with hook, Automatic smart lock can not use the lock body with hooks, automatic smart lock only by motor drive, the use of lock body with hooks will increase the burden of the motor, reduce the service life, not more than a year will be due to lack of power failure, and very easy to get stuck.

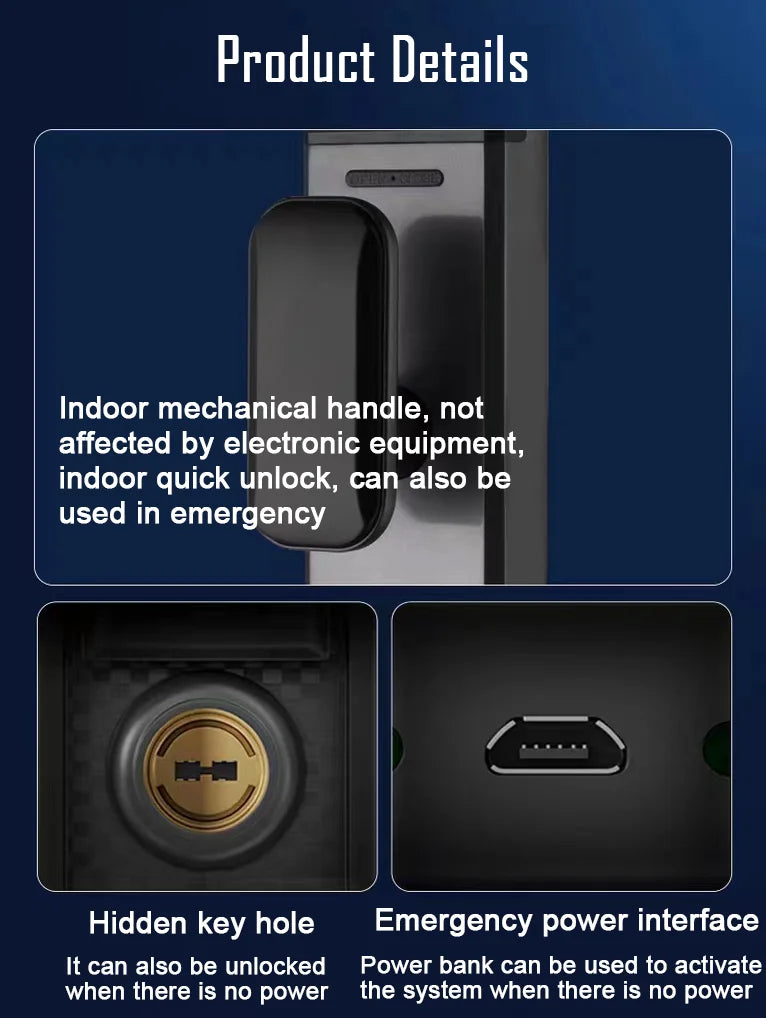

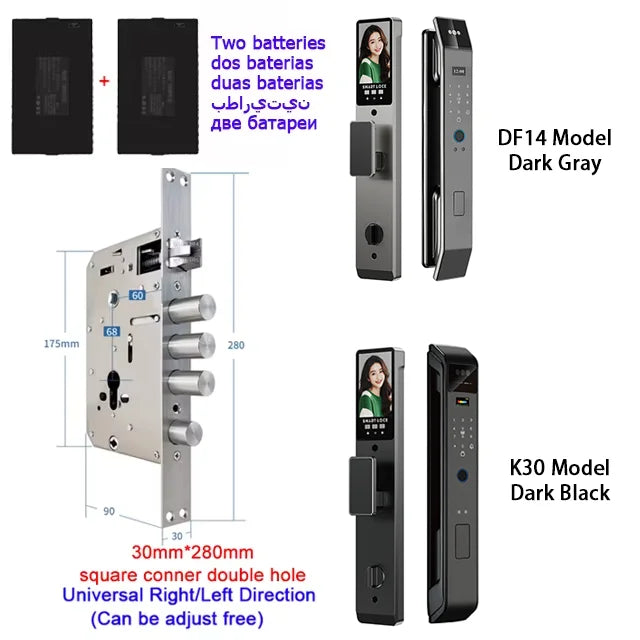

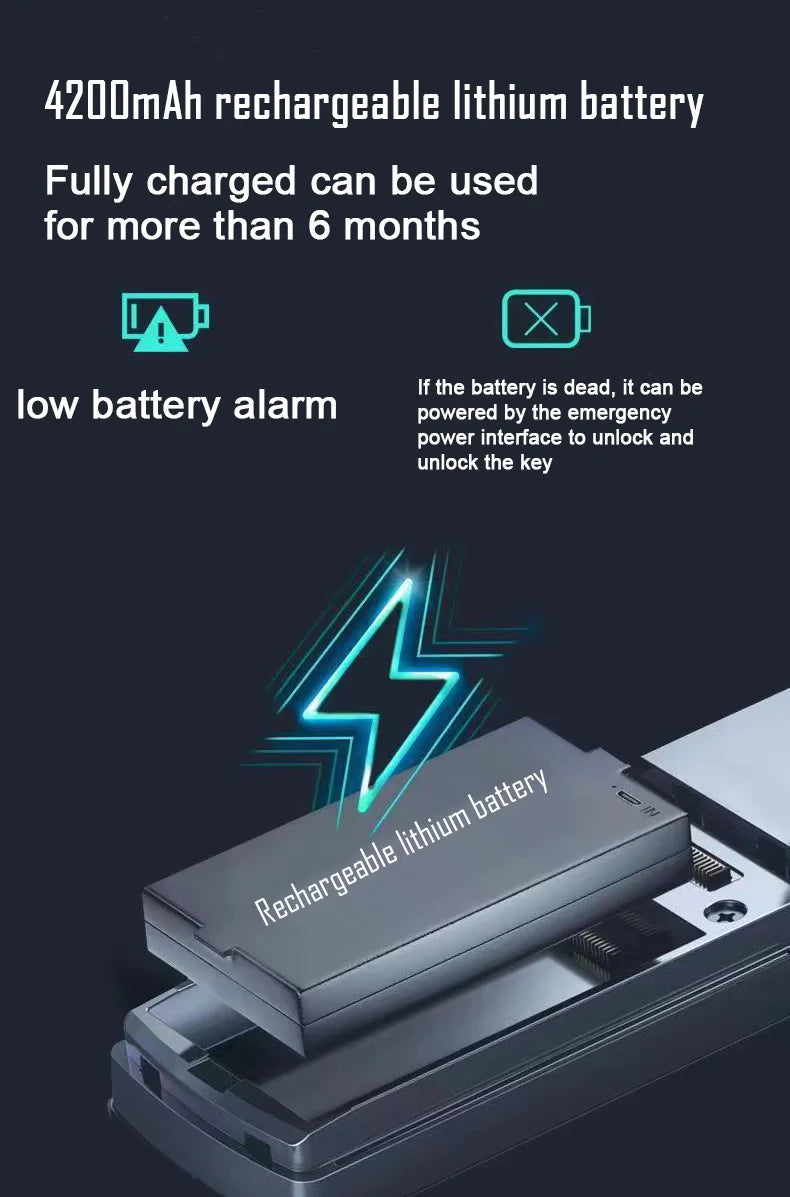

The 4200mah large-capacity rechargeable lithium battery can last about 6 months, and the package is equipped with a charging cable, which takes only about an hour to fully charge. You can also contact us to purchase an extra spare battery.When the battery is below 20%, it will automatically alarm. When the battery is completely gone, it can be unlocked by activating the system through the charging bank, or it can be unlocked with a mechanical key (it is recommended to put a mechanical key outdoors).

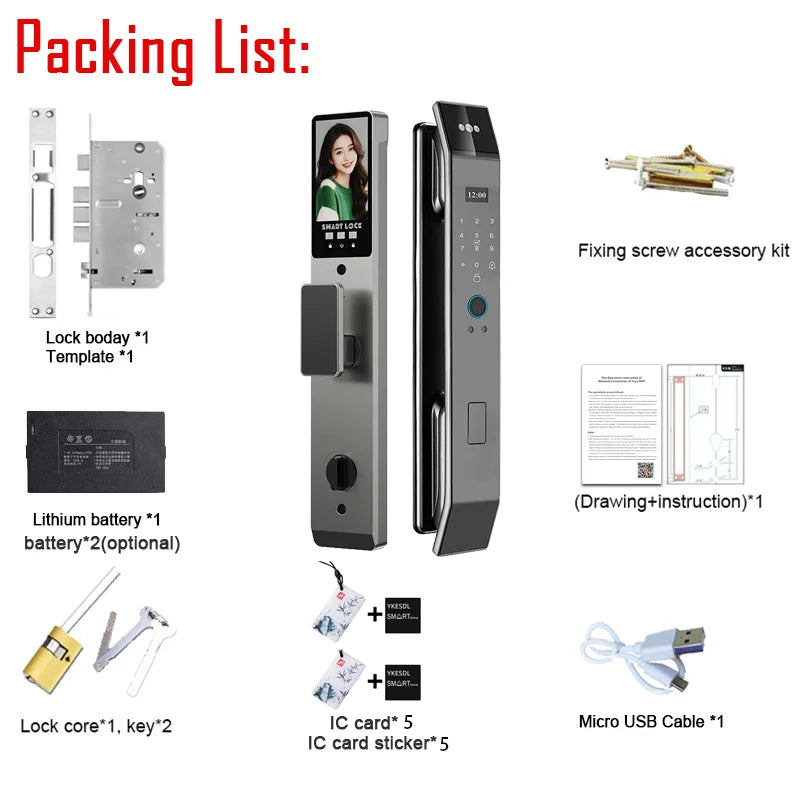

Package List:

Front lock*1
Rear lockl*1
4200mAh lithium battery*1
Hardware accessories package*1

IC Card*5

Card sticker*5

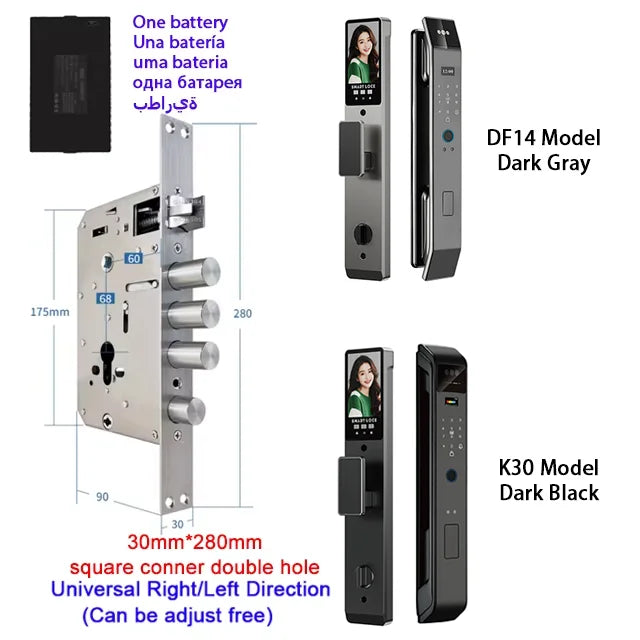

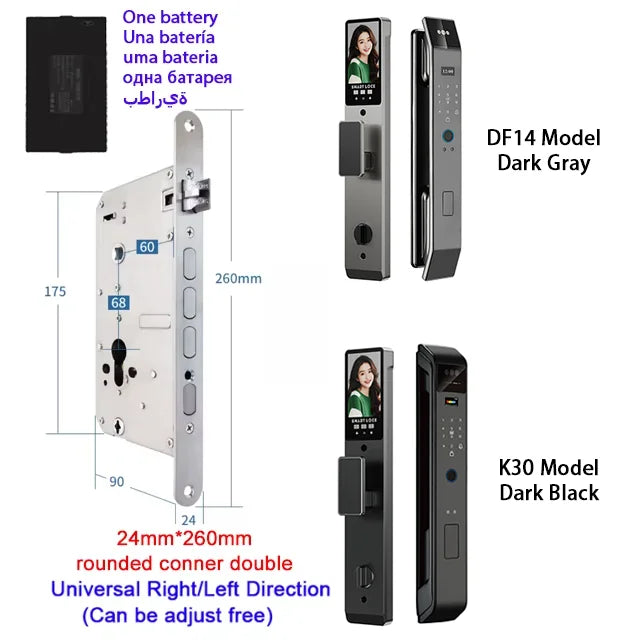

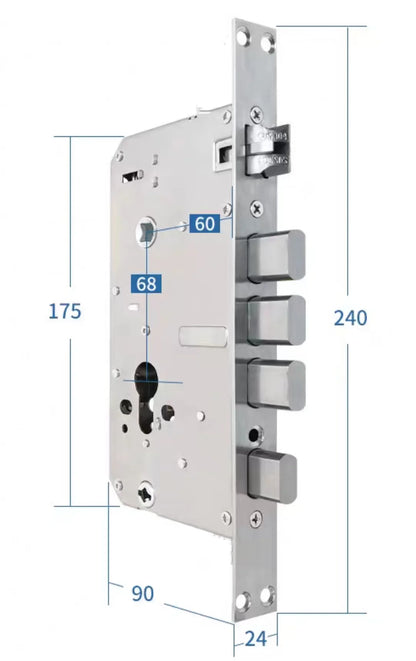

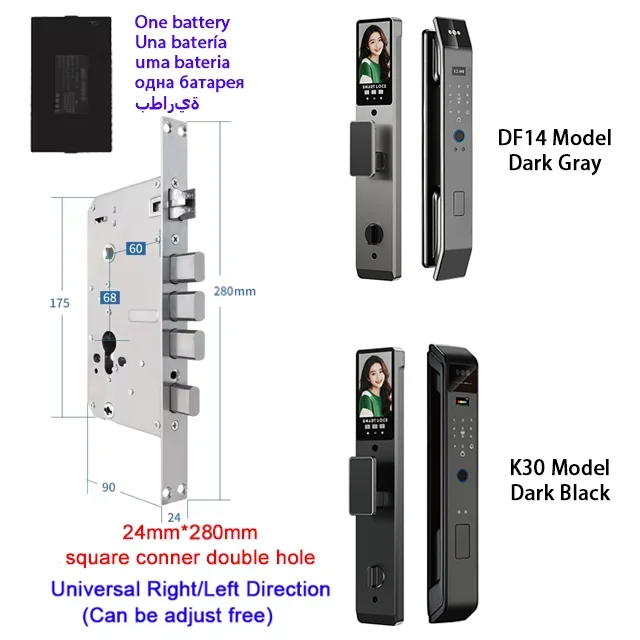

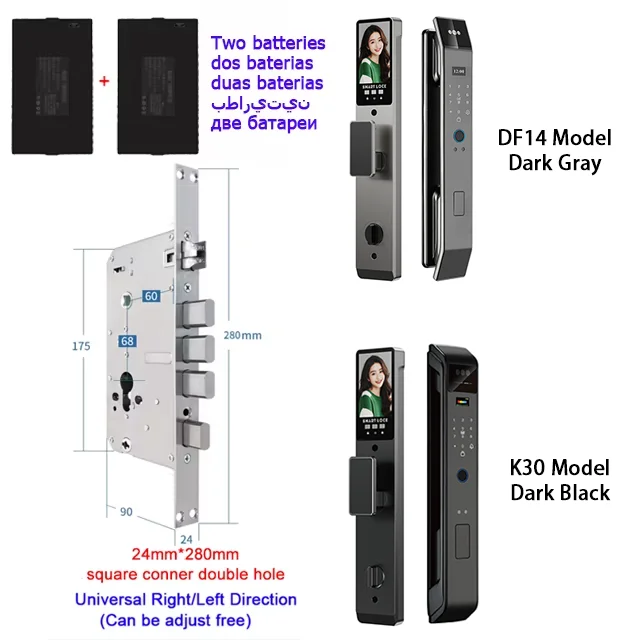

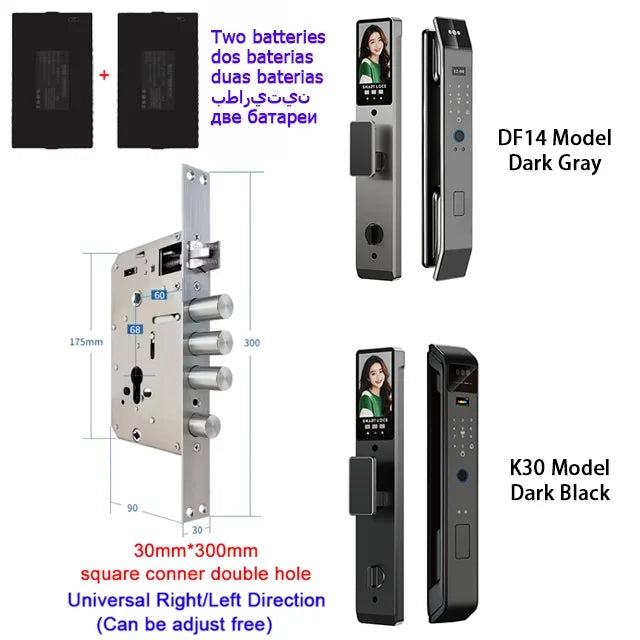

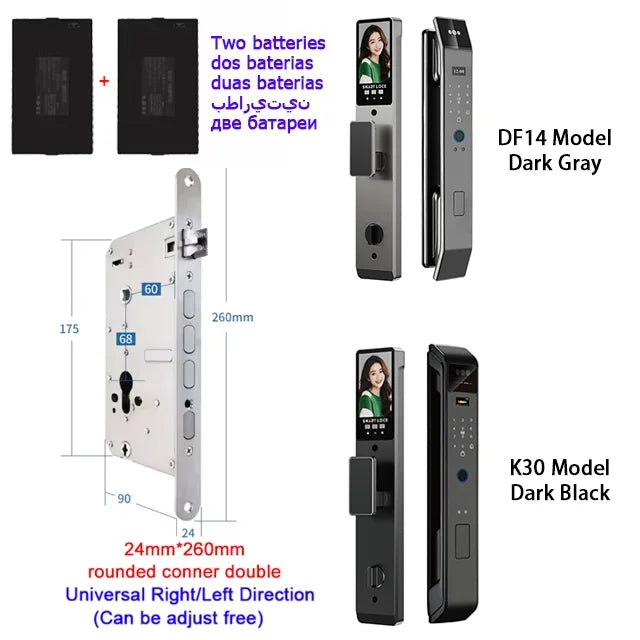

Lock body*1
Door frame edge*1
Lock cylinder*1
Lock cylinder accessories package*1
Mechanical key*2
Data cable*1

Punch template*1
English manual*1 （Please provide your email address and we can provide user manuals and installation instructions in English/Russian/Spanish/Portuguese）

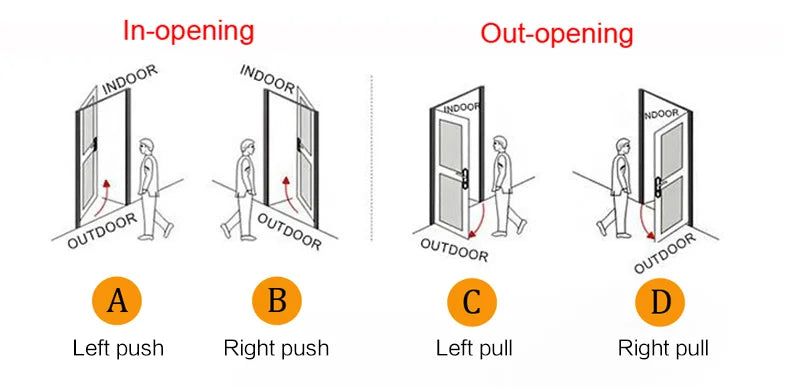

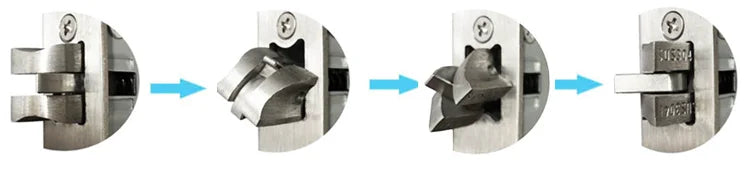

For direction of opening the door: The direction of the lock tongue can be easily adjusted, so the direction of the door is not important, and the direction of the lock tongue and the rotation direction of the motor can be adjusted as needed
