SPECIFICATIONS

Brand Name: RAYKUBE

Choice: yes

Connectivity: Bluetooth

Doorknob Funcition: Biometric,Key & Keypad

Finish Type: Other

Fit Door Thickness: 26-50mm

Handle Direction: Direction Reversible

Hign-concerned Chemical: None

Material: Zinc Alloy

Origin: Mainland China

Power Supply: DRY BATTERY

RAYKUBE Model: k20

Smart home platform: Tuya

Special Features: Support Gateway

Suitable Door Type: Steel Door,Wooden Door,Brass Door,Stainless Stell Door,Other

Ways To Unlock: App,Bluetooth,Mechanical Keys,Card,Password,FINGERPRINT

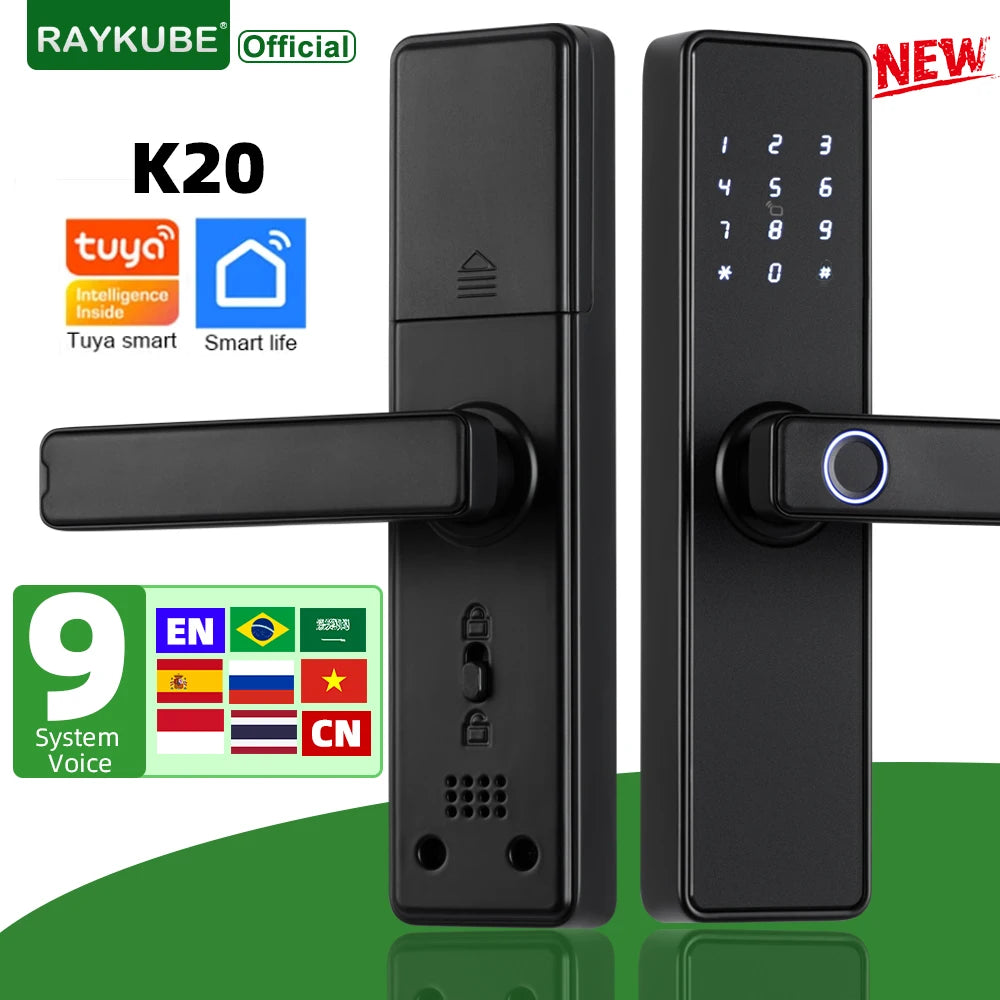

RAYKUBE K20 9-language Biometric Fingerprint Door Lock Electronic Door Lock with Tuya APP/IC Card/Password/ Key Unlock

Overview-K20

K20 is the latest upgrade version of K7 pro+ smart lock. Compared with K7 pro+, in terms of function, Rear panel electronic anti-lock has been added ; In appearance, the front panel is matte frosted design, not easy to be scratched, the screw position of the panel can be flexibly moved, easy installation；

Features

• Front panel is matte frosted design, not easy to be scratched




• The screw position of the panel can be flexibly moved, easy installation

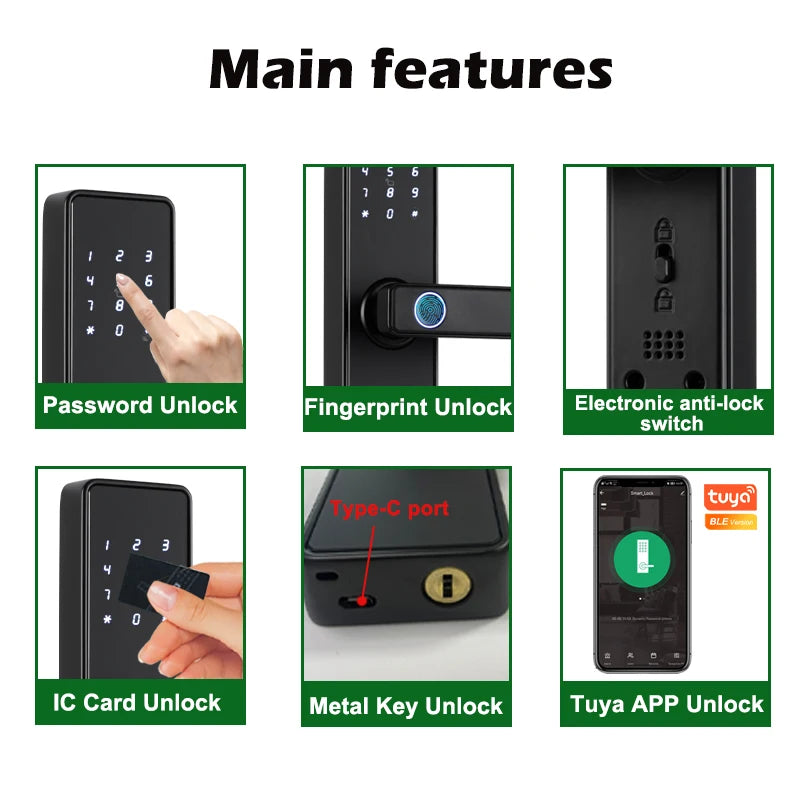

• 5 unlock methods: Tuya APP/ Fingerprint / Password / Smart Card / Key Unlock

• Tuya APP Remote Control,Bluetooth connection, convenient and fast ，Add or delete user fingerprints, passwords, and cards directly on the Tuya APP

• Add USB Bluetooth gateway also can connect to WiFi

• Supports 9-language voice system

• Indoor panel has electronic locking function

• Mechanical keys and emergency power supply (Type-c) can be used when the door lock is out of power.

• Universal for left and right doors, suitable for 26-50 mm door thickness.

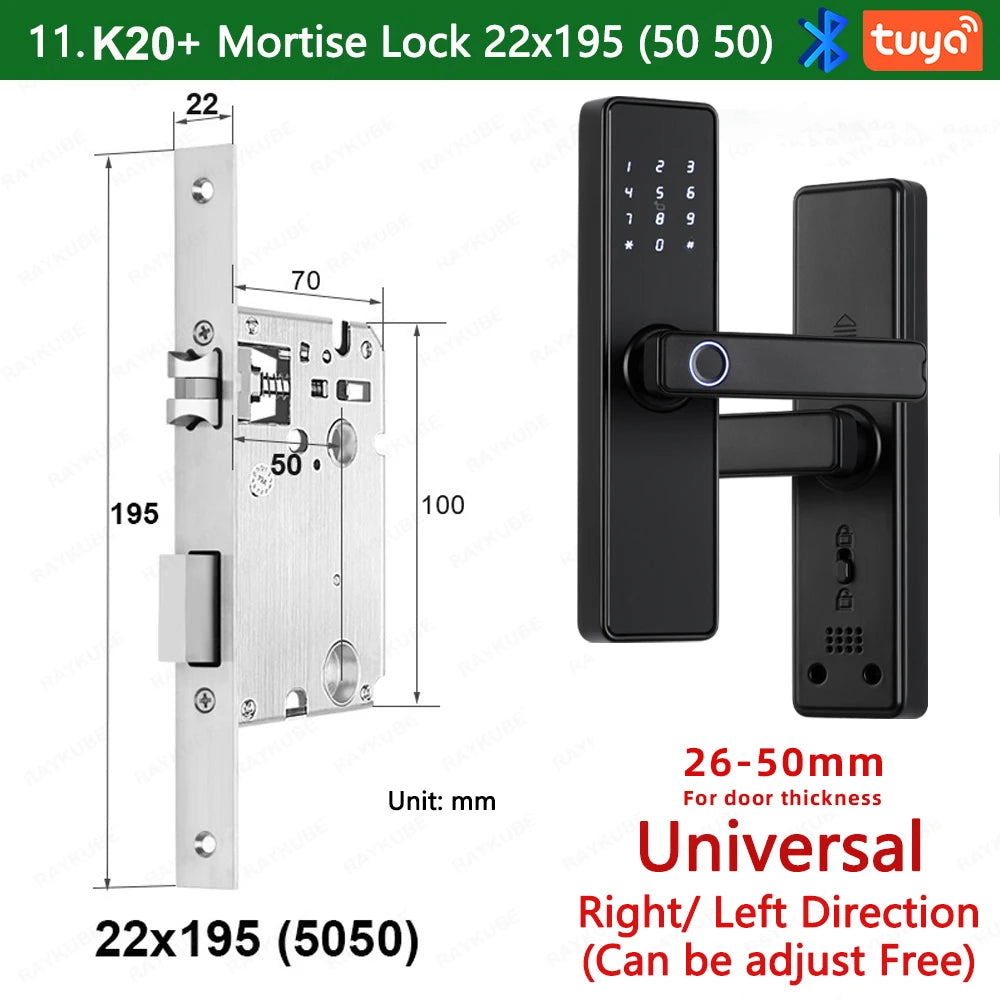

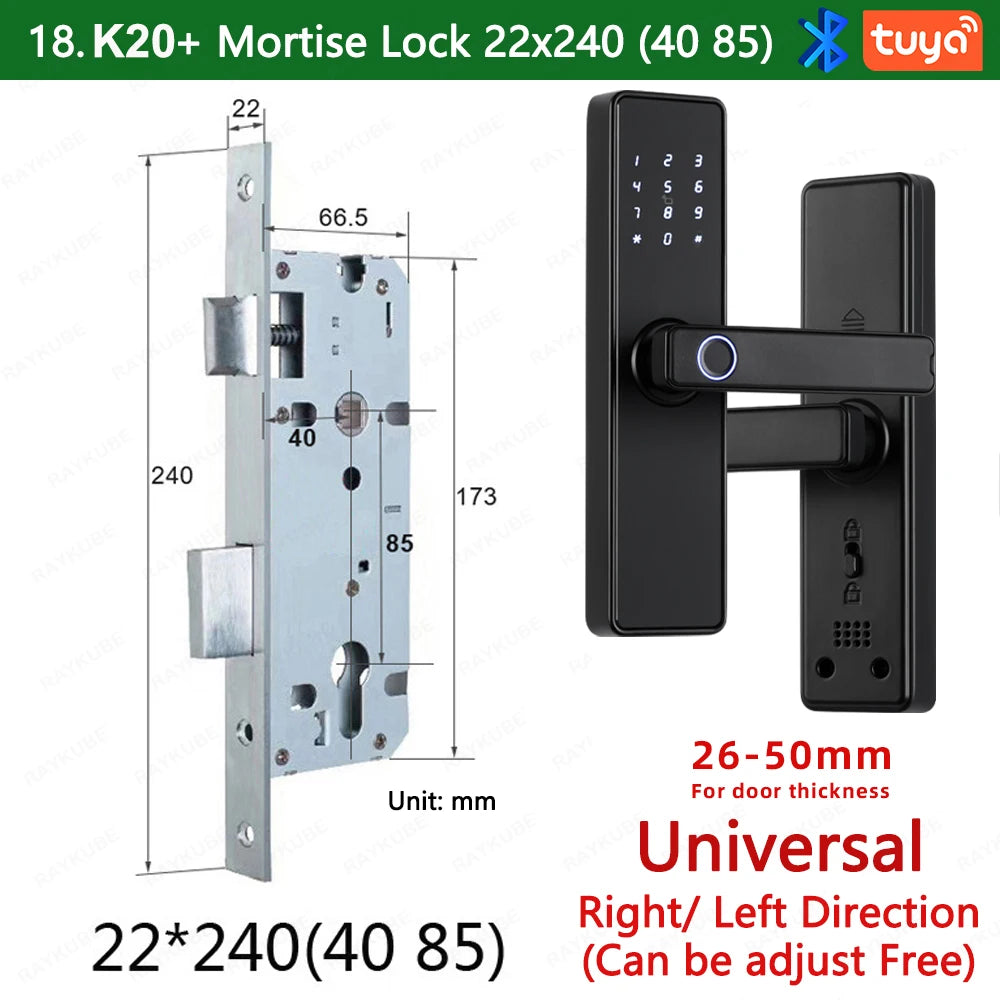

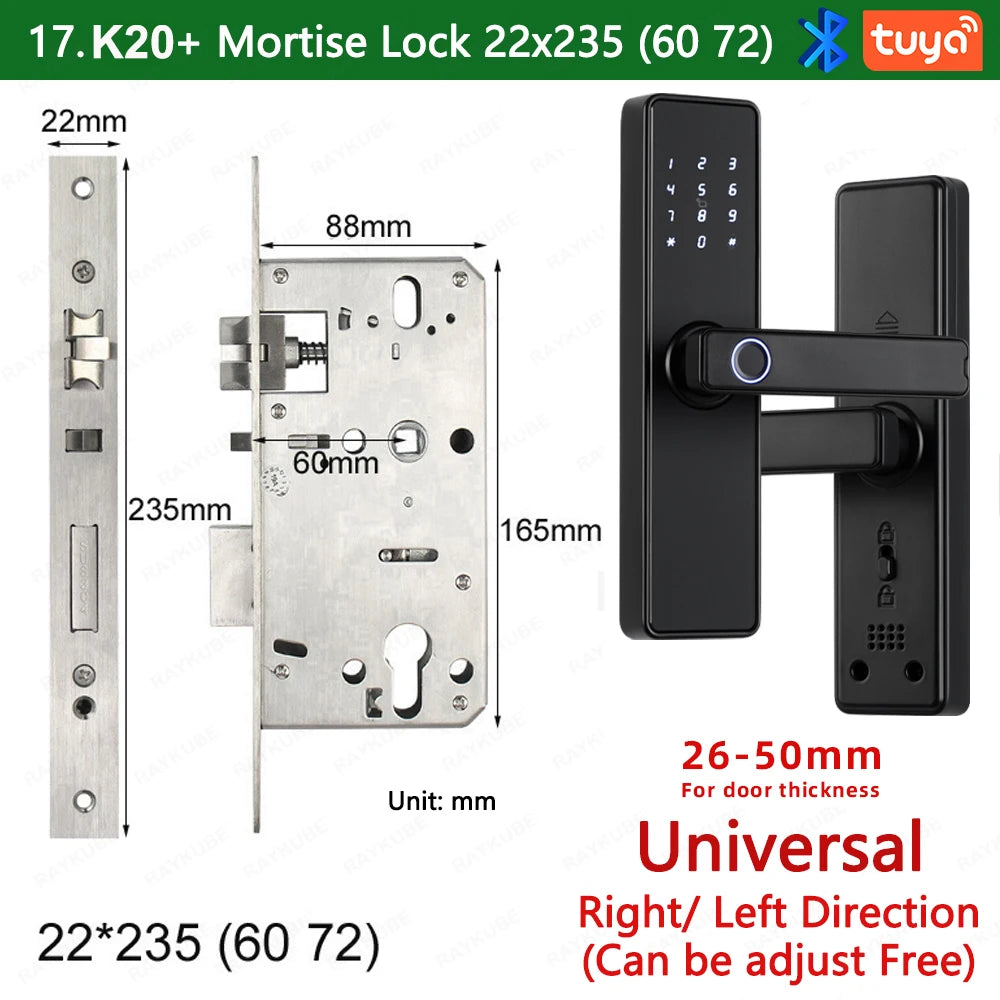

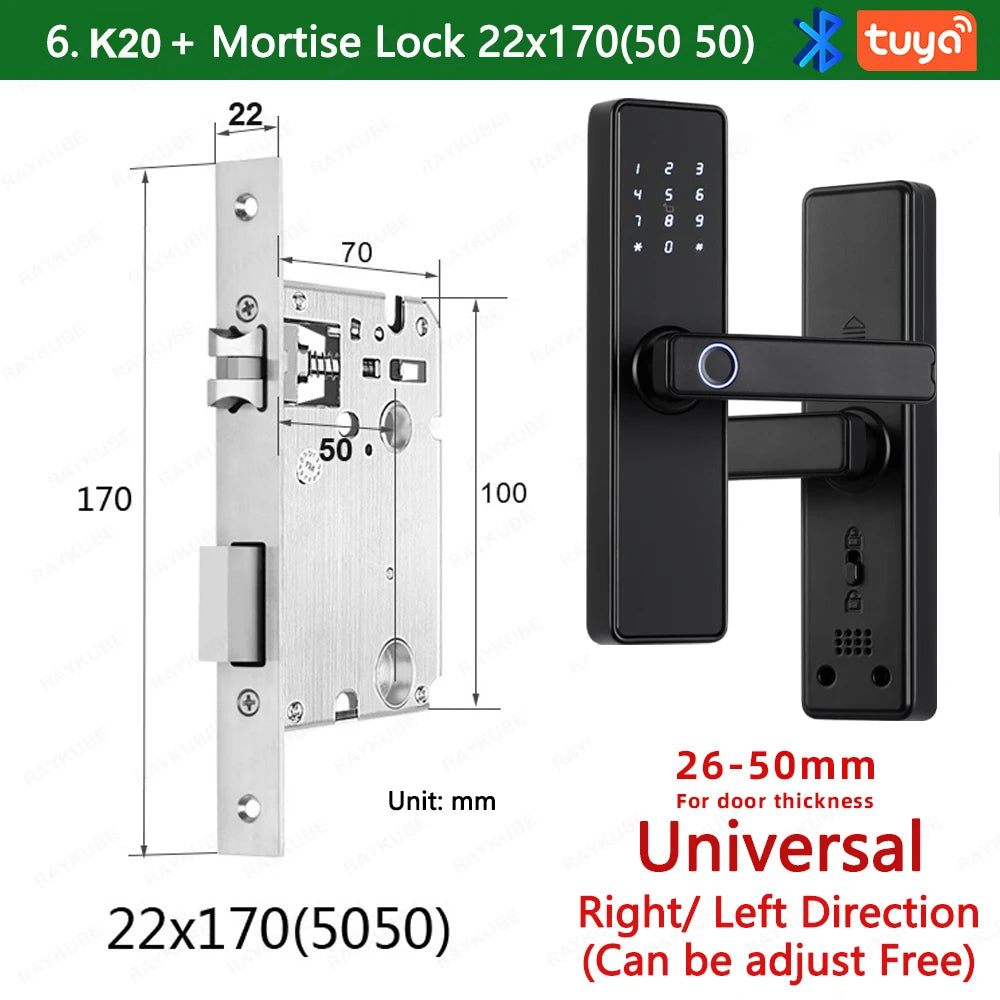

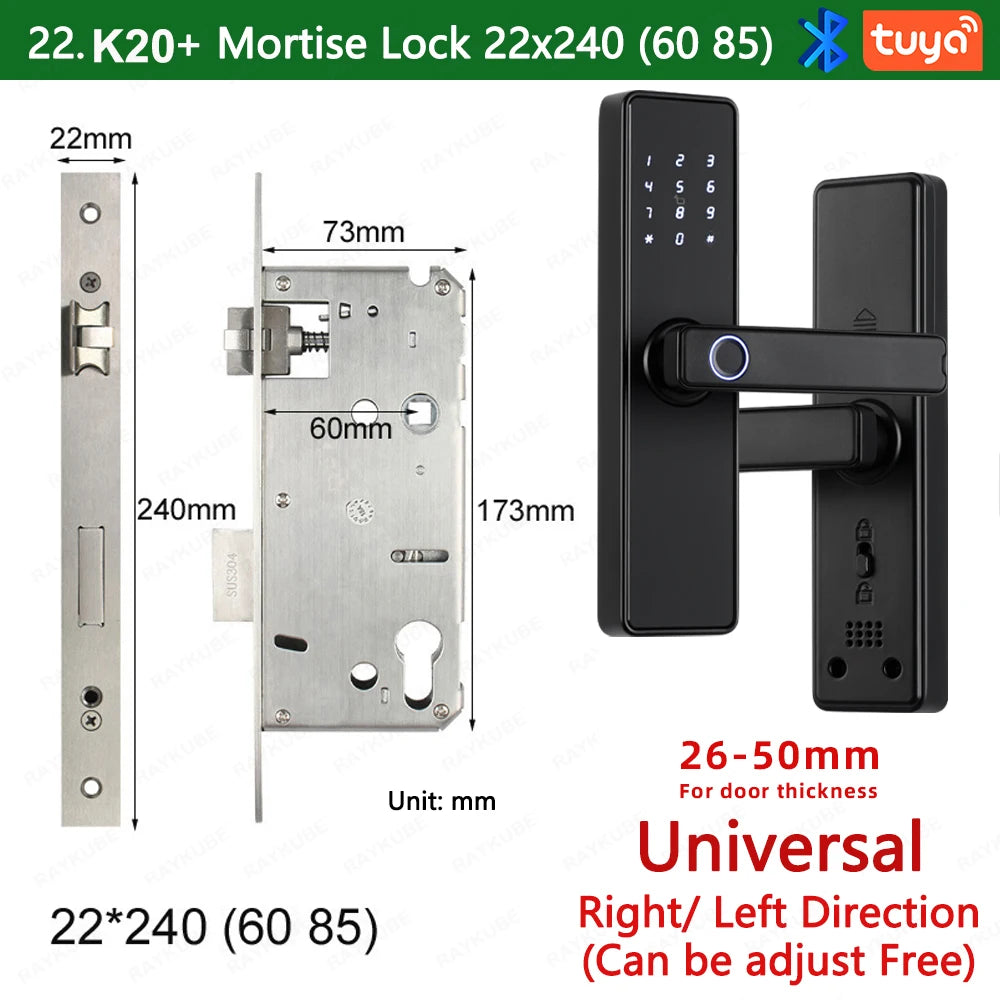

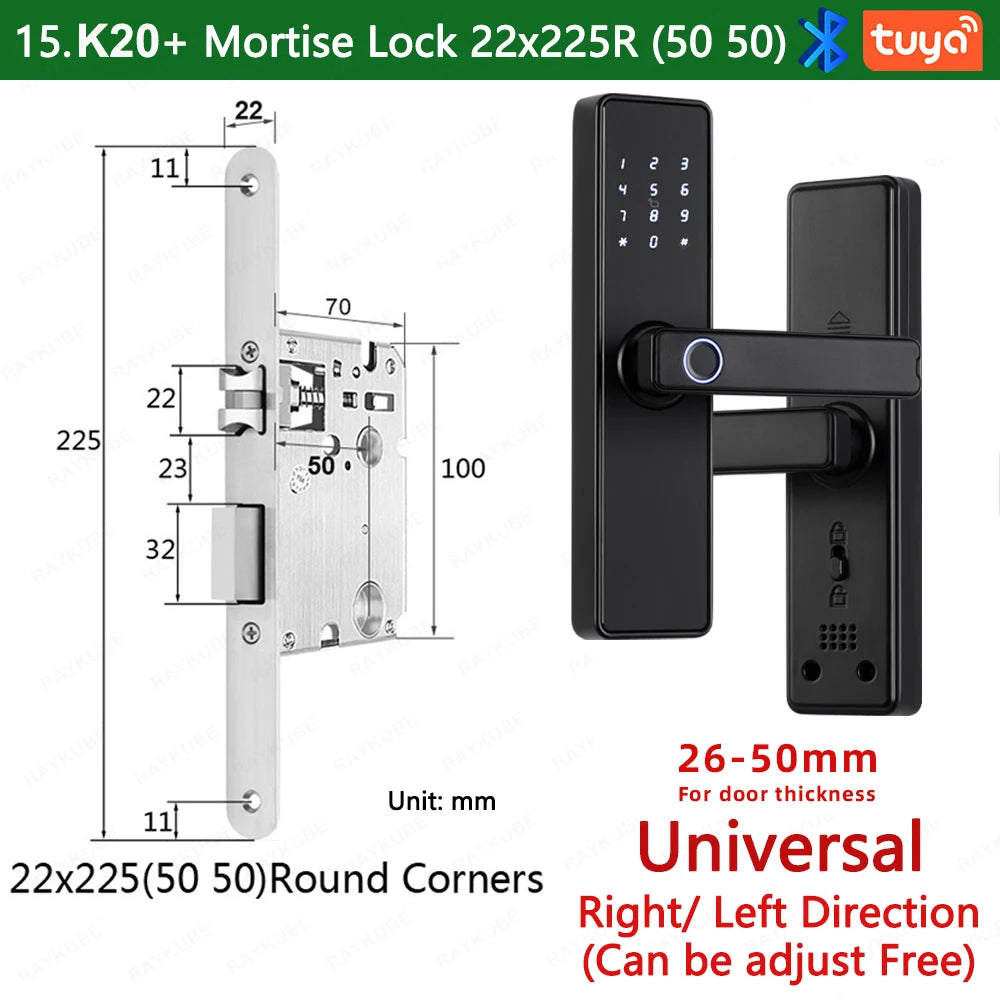

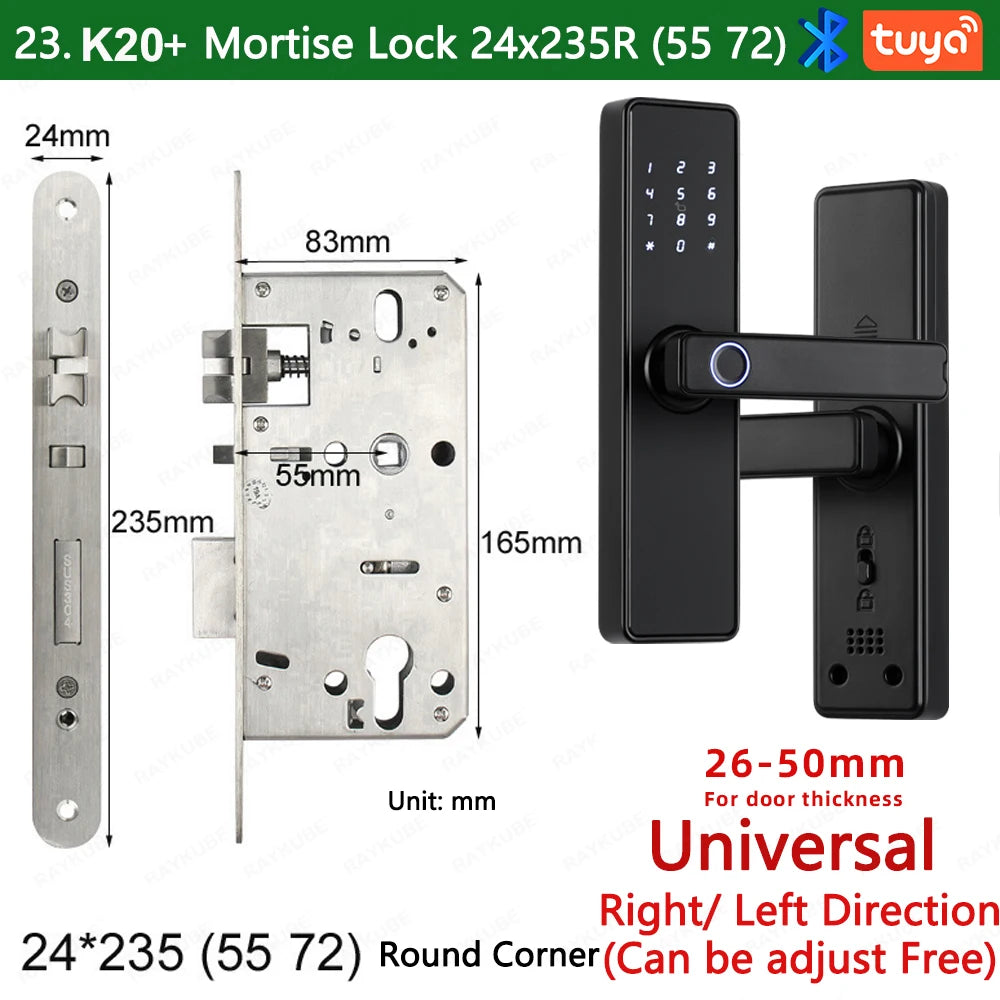

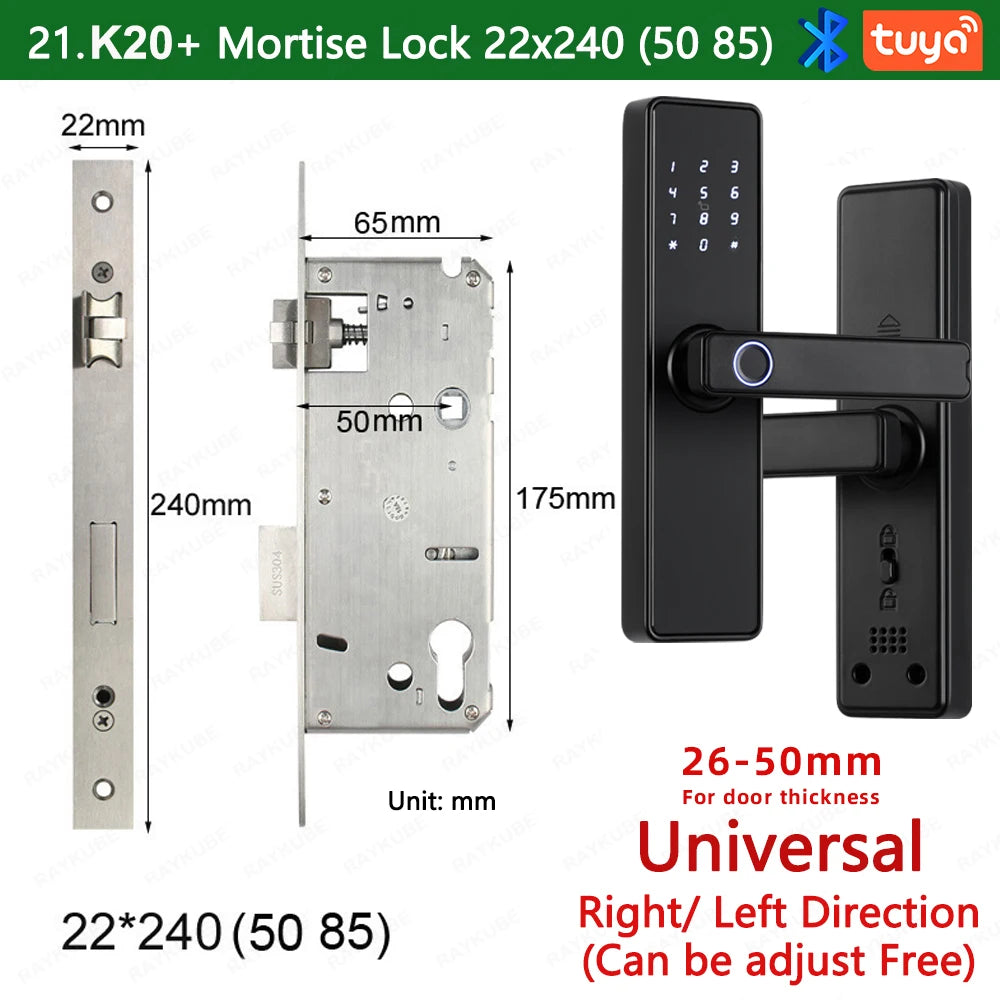

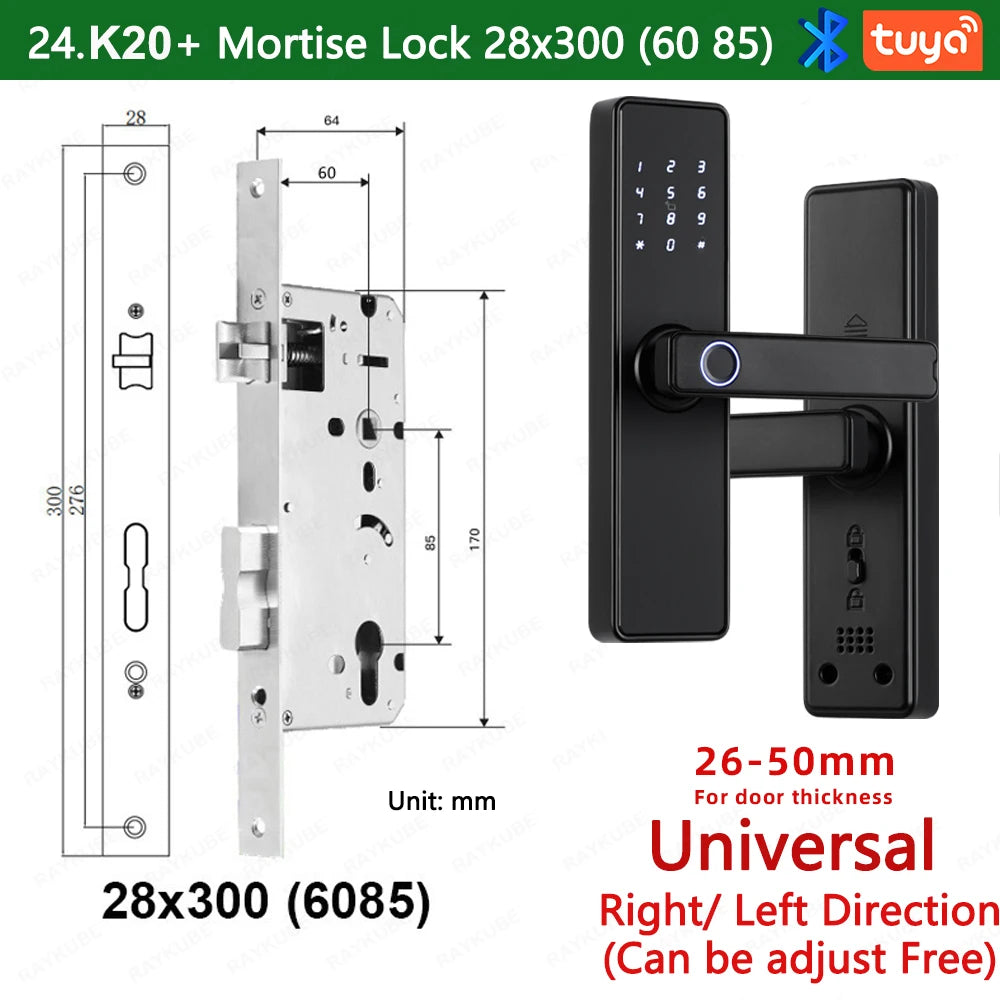

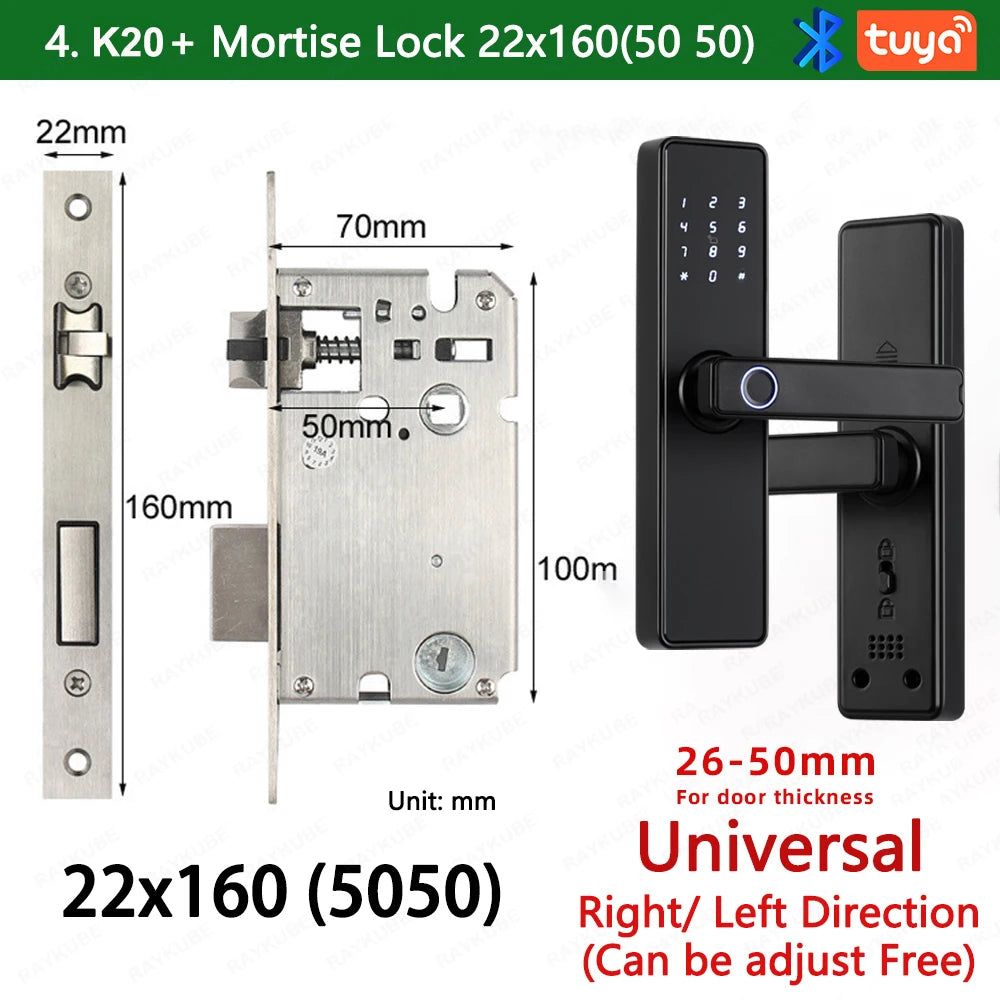

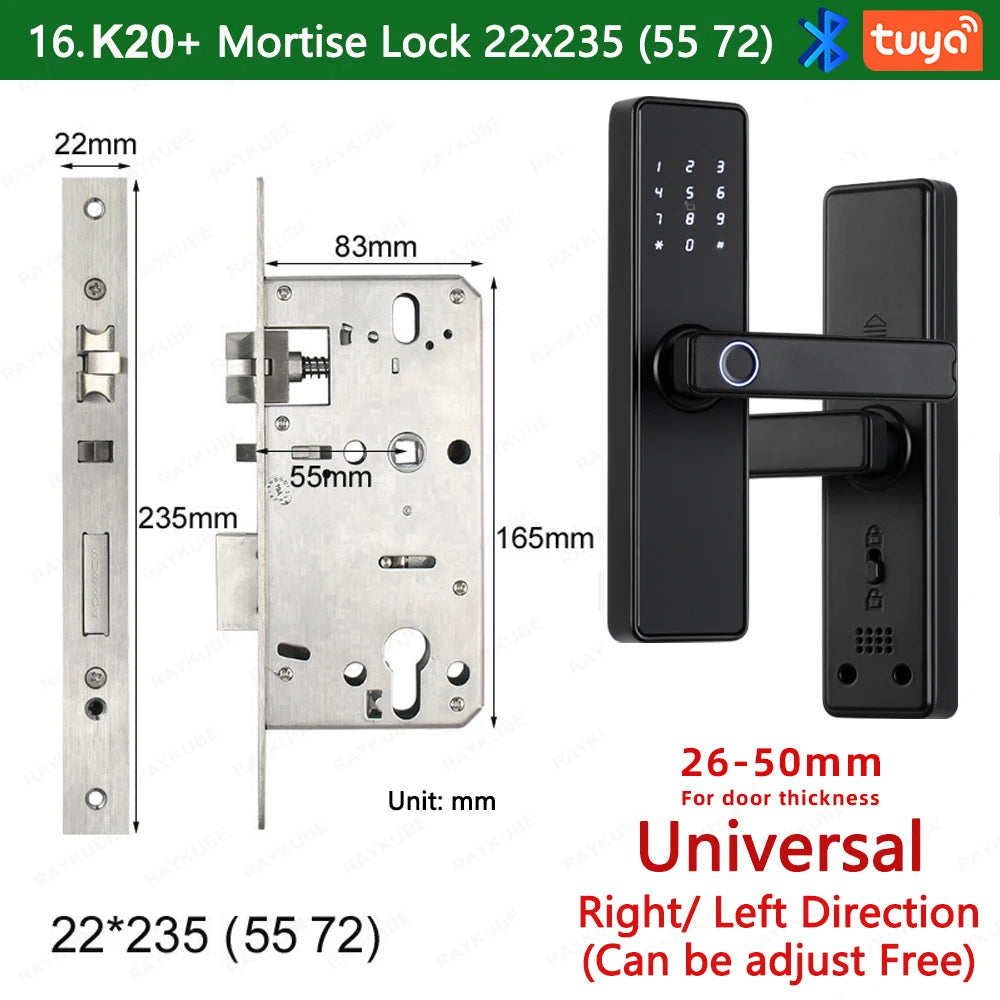

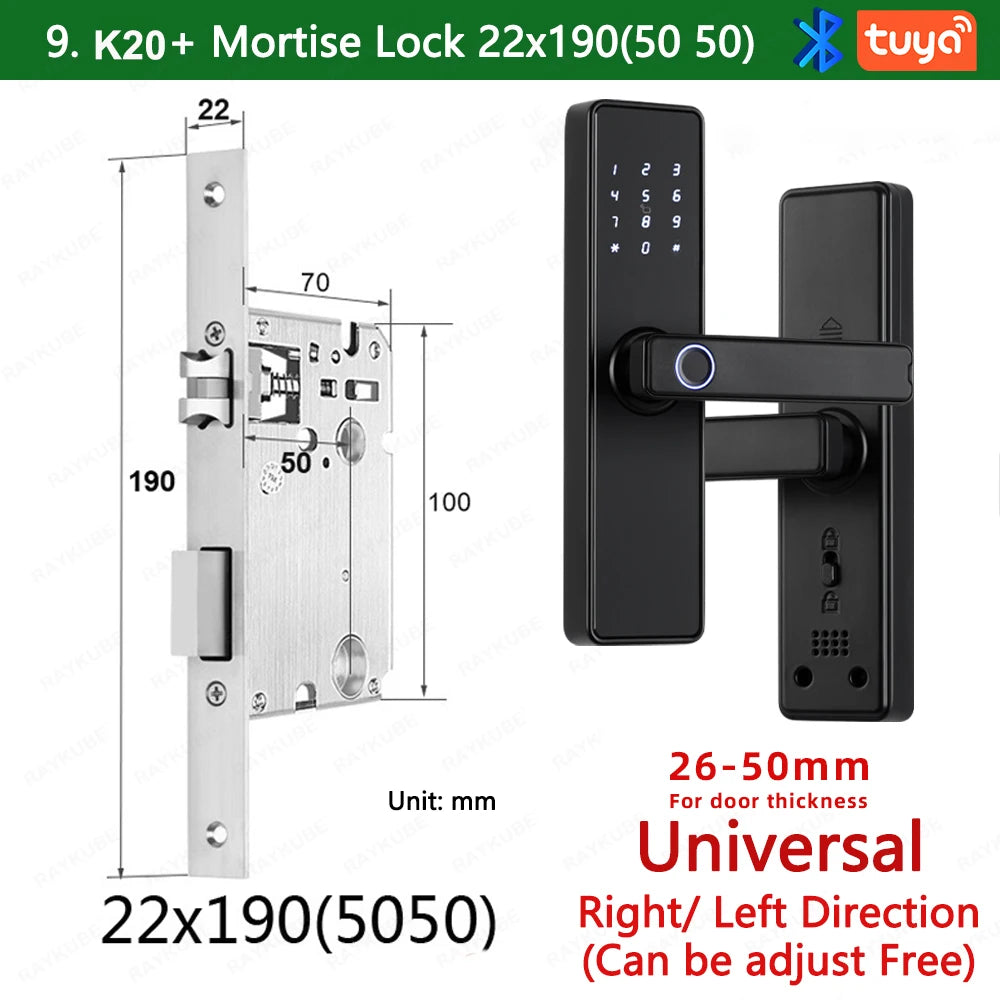

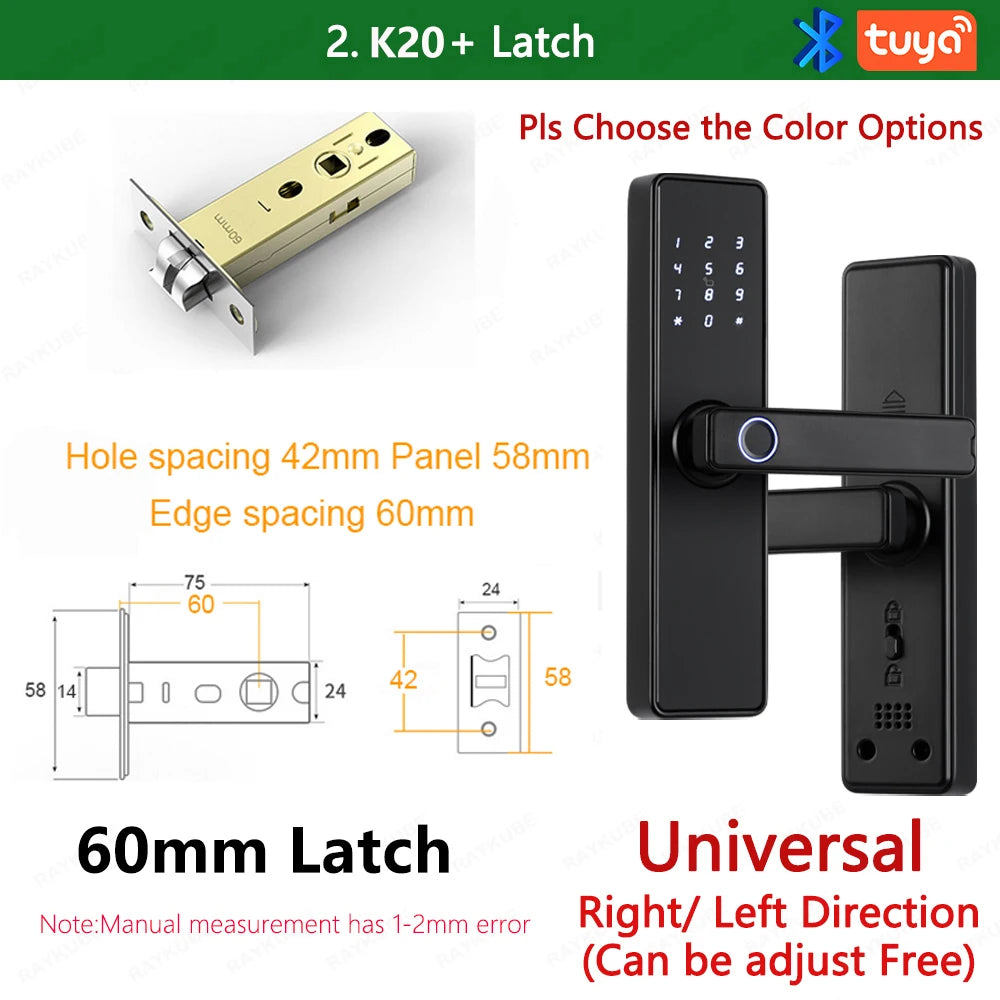

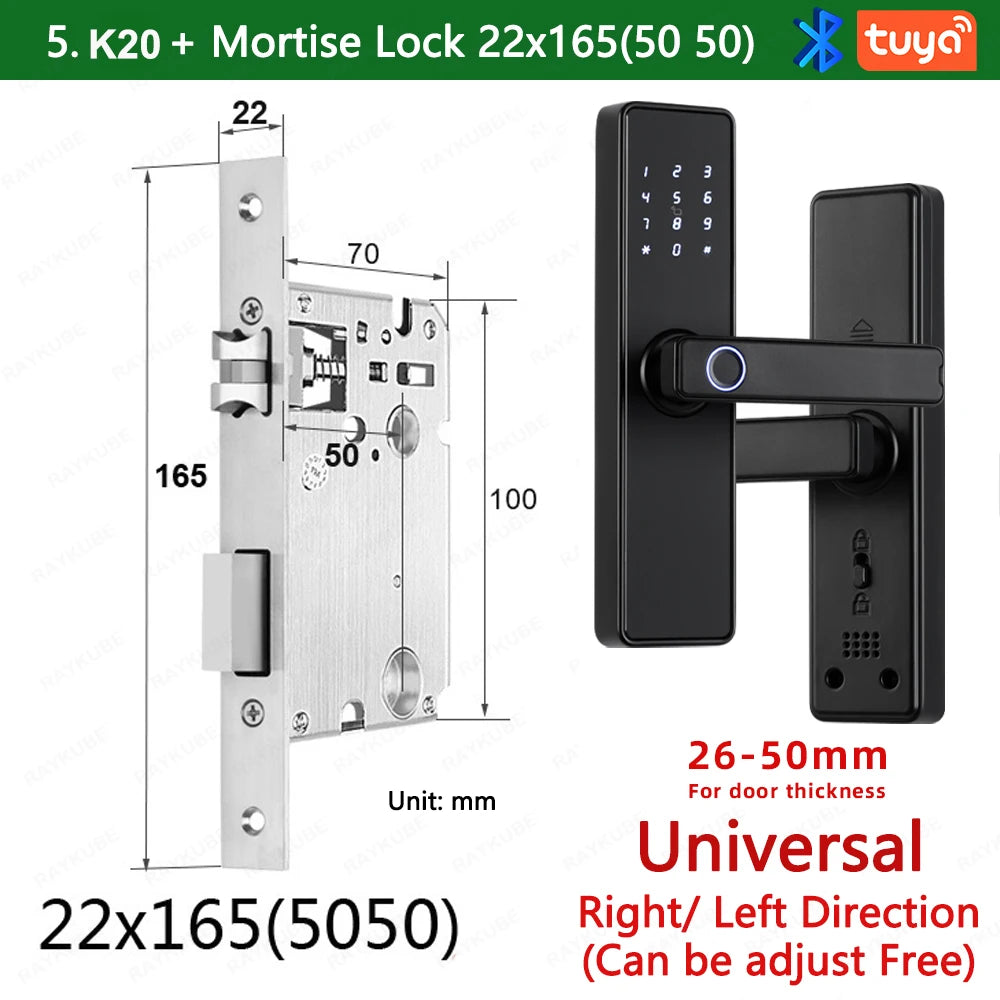

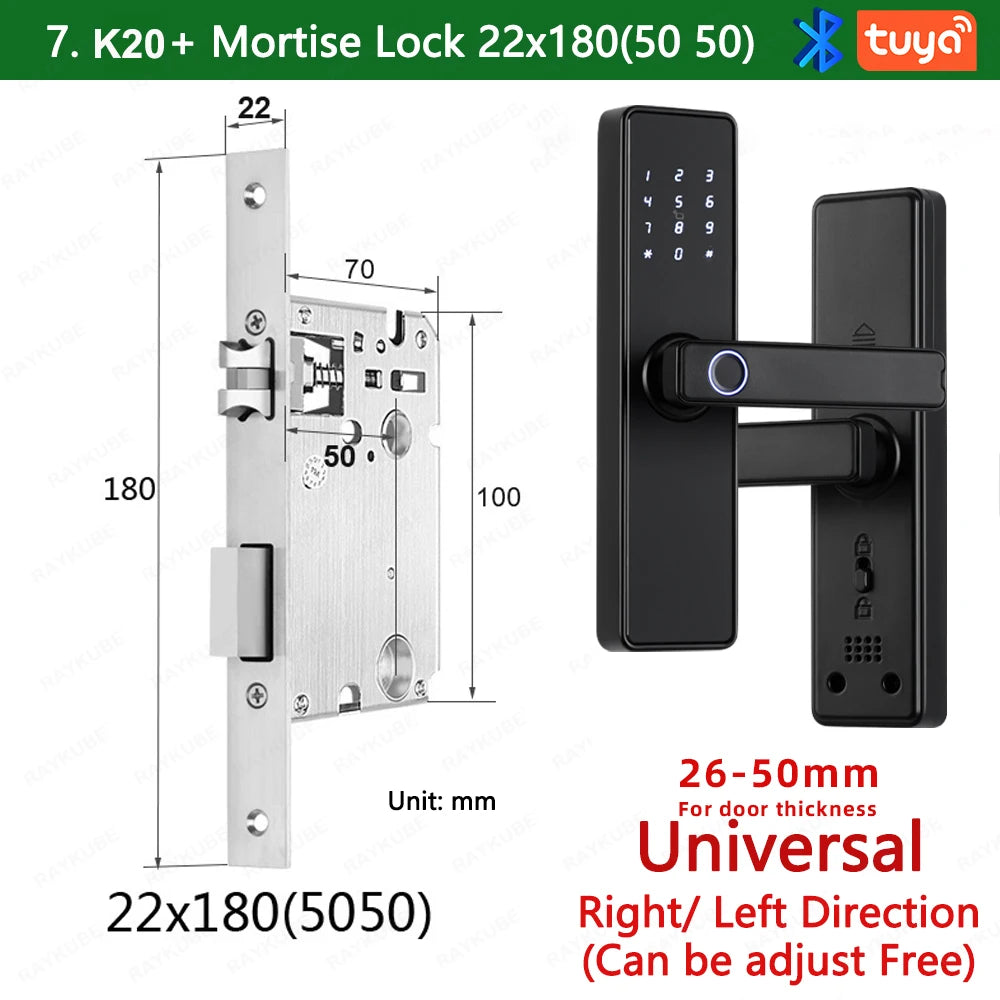

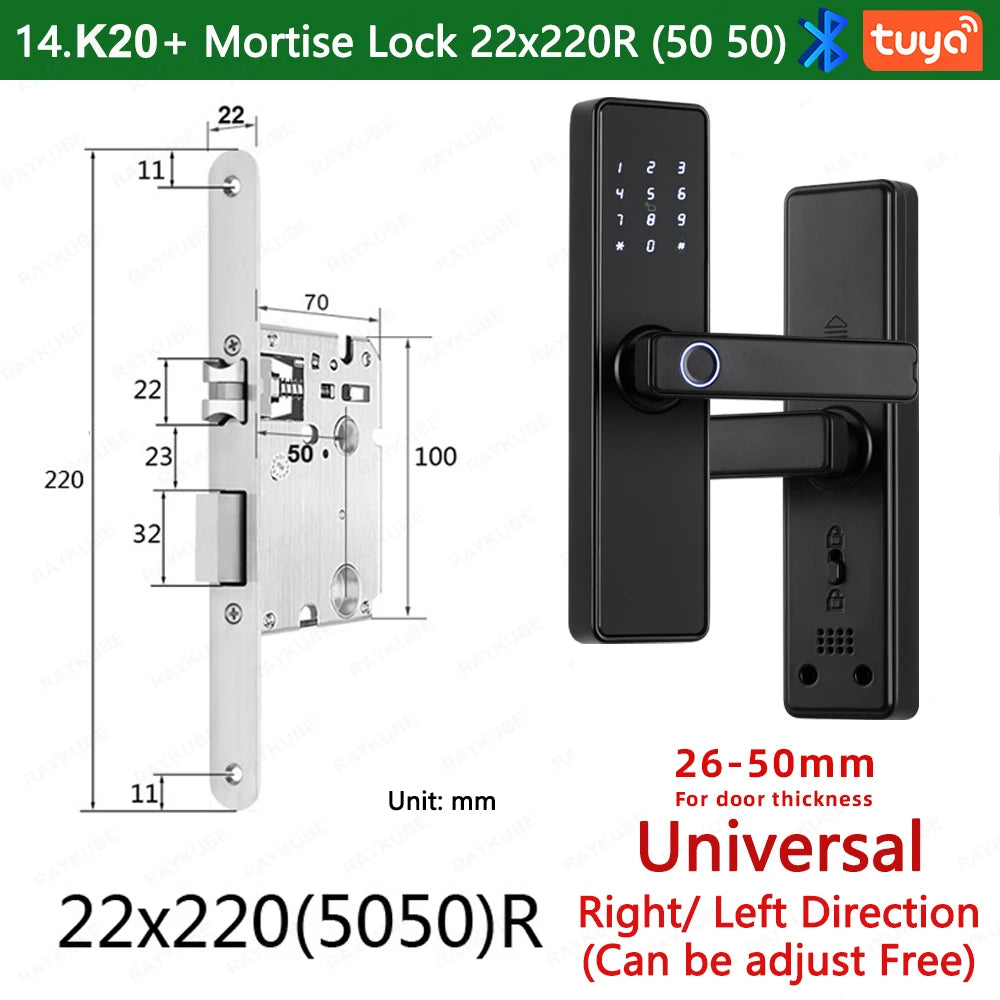

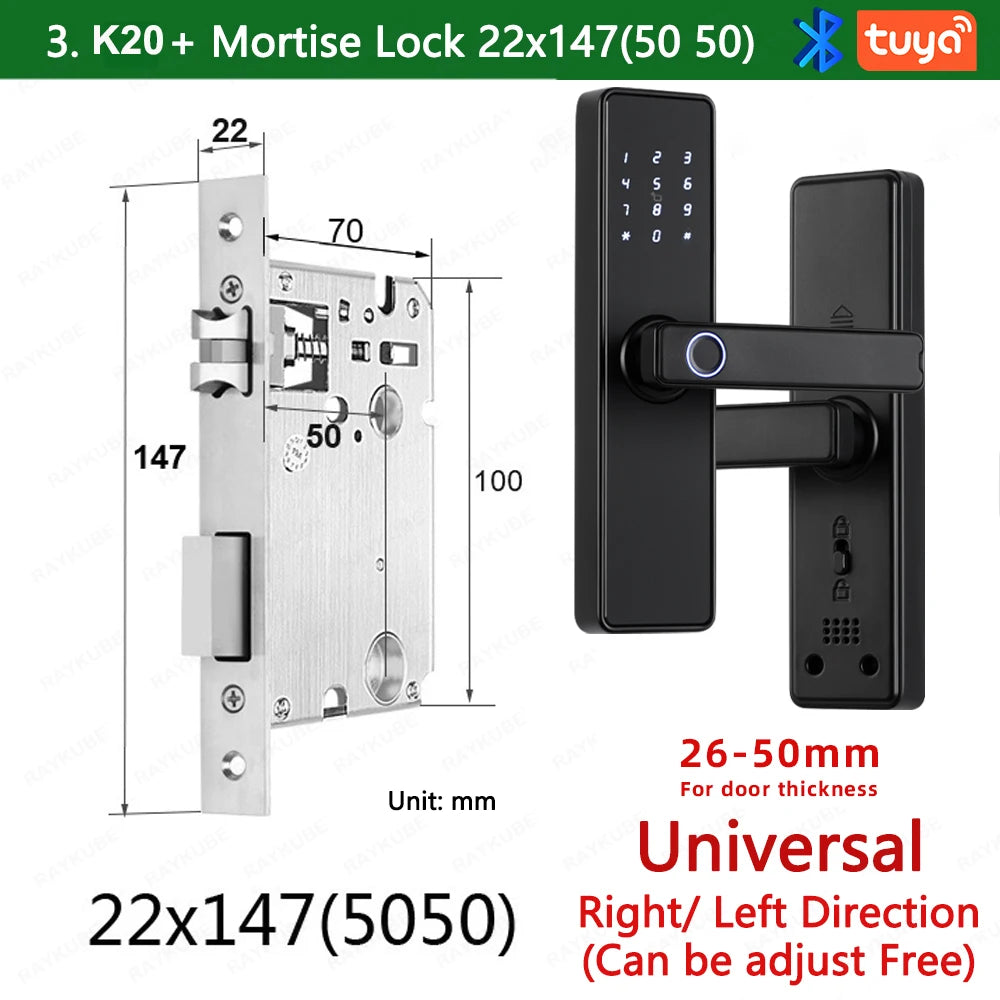

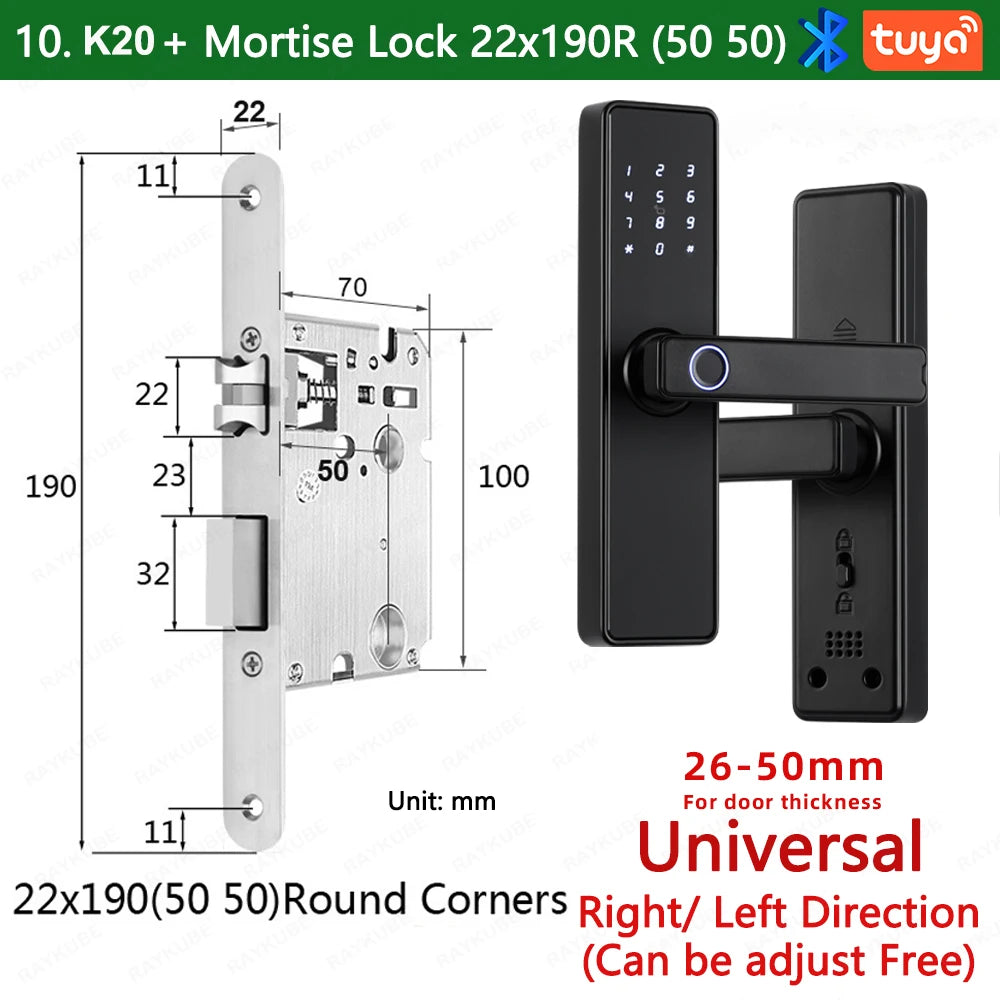

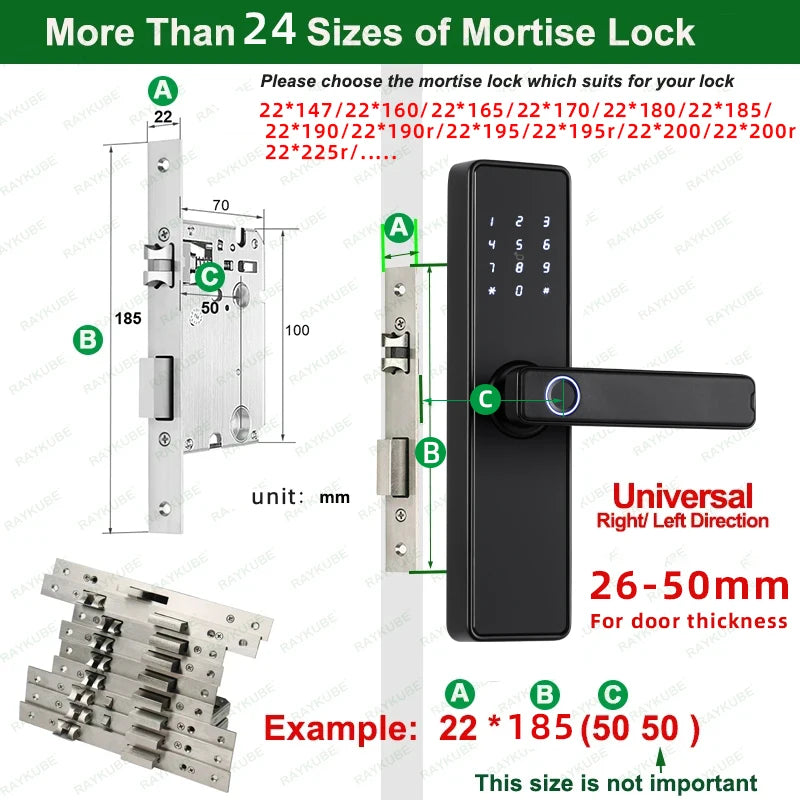

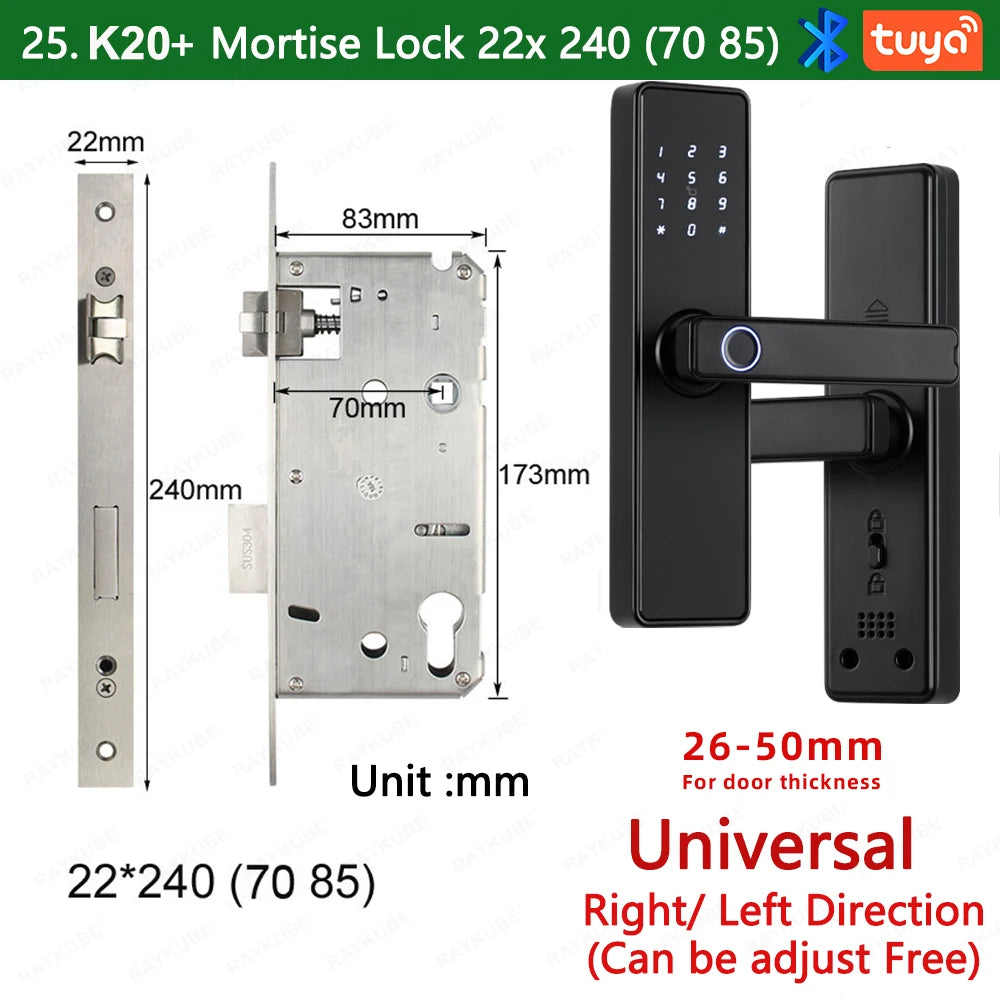

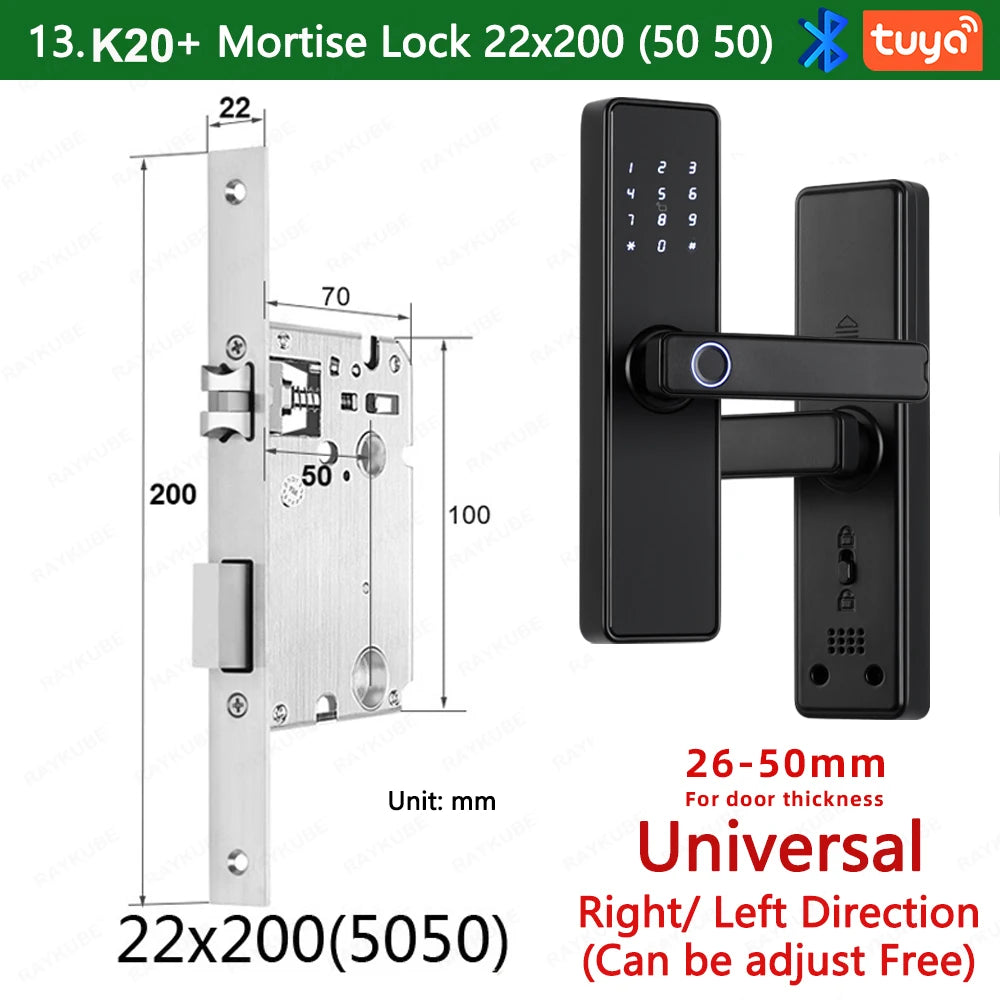

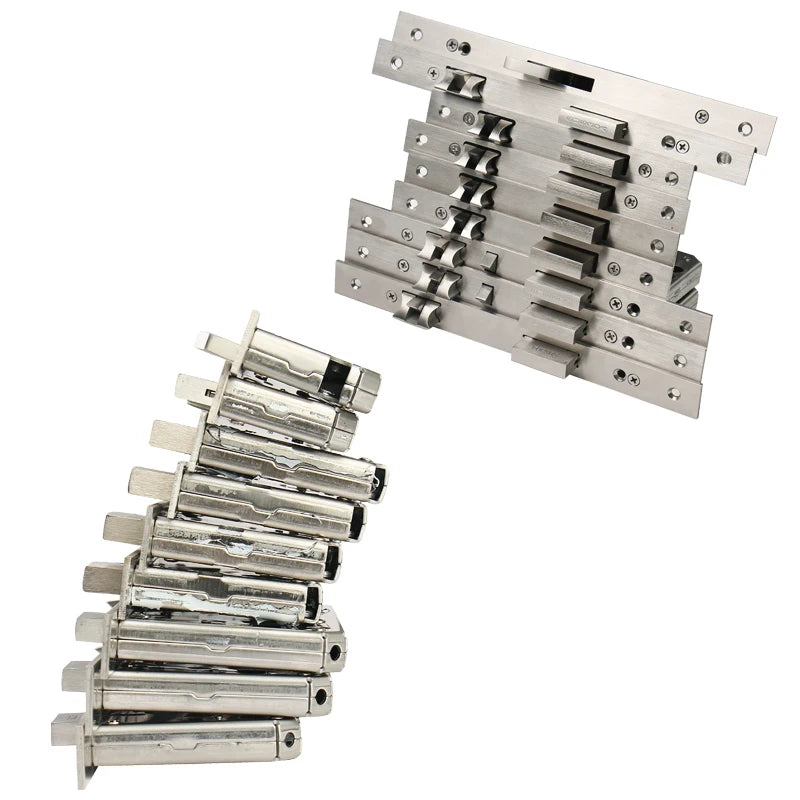

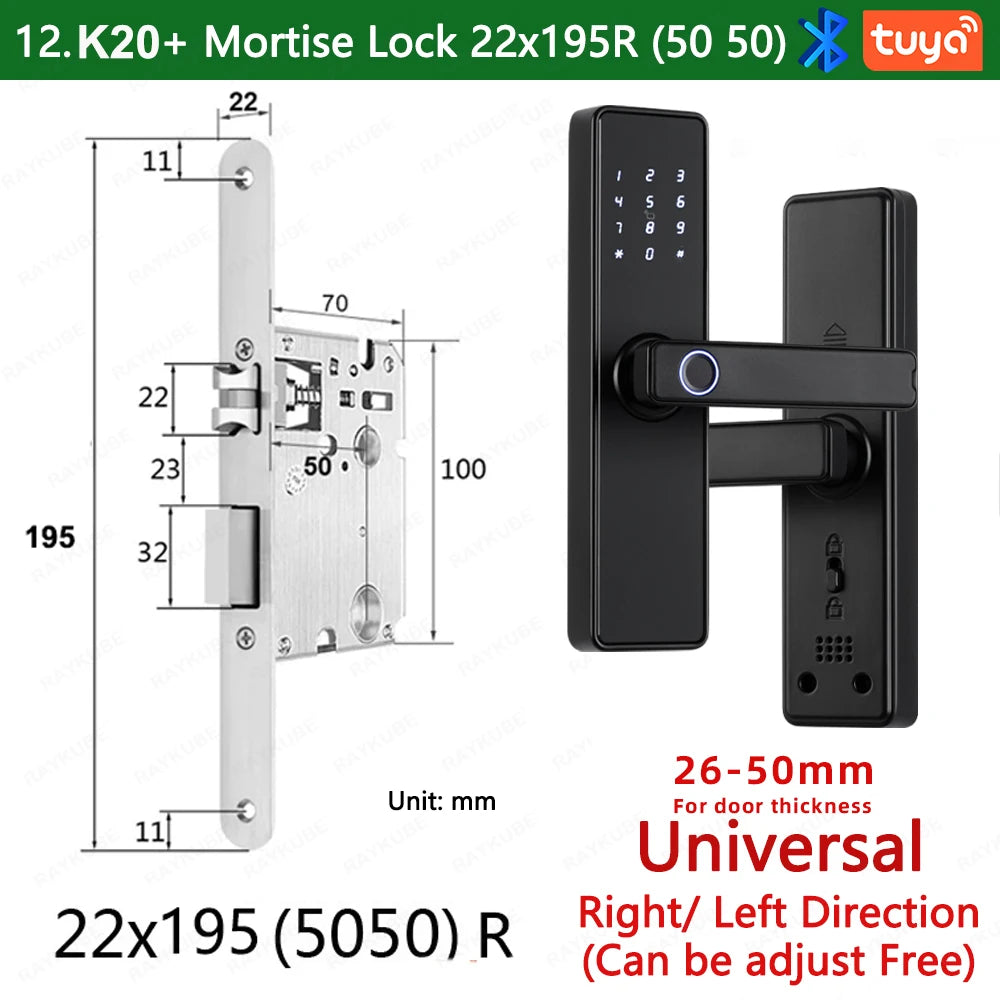

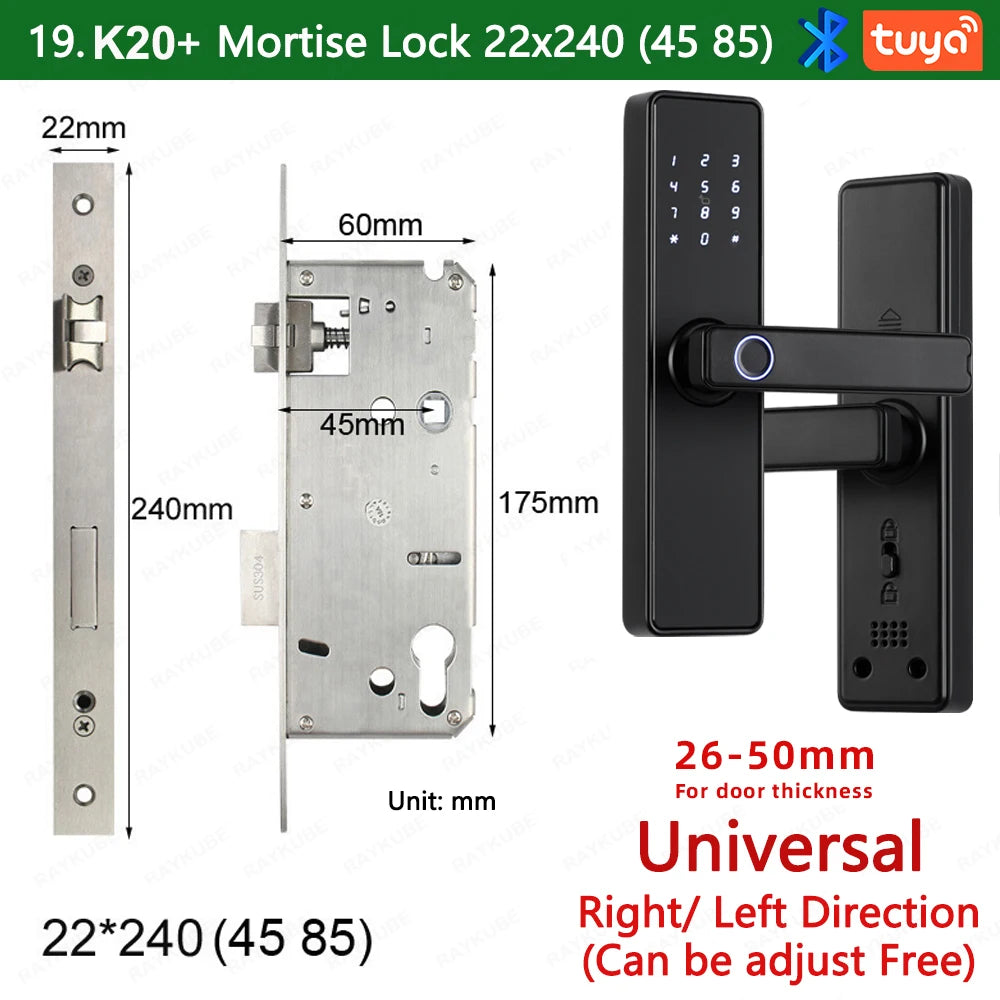

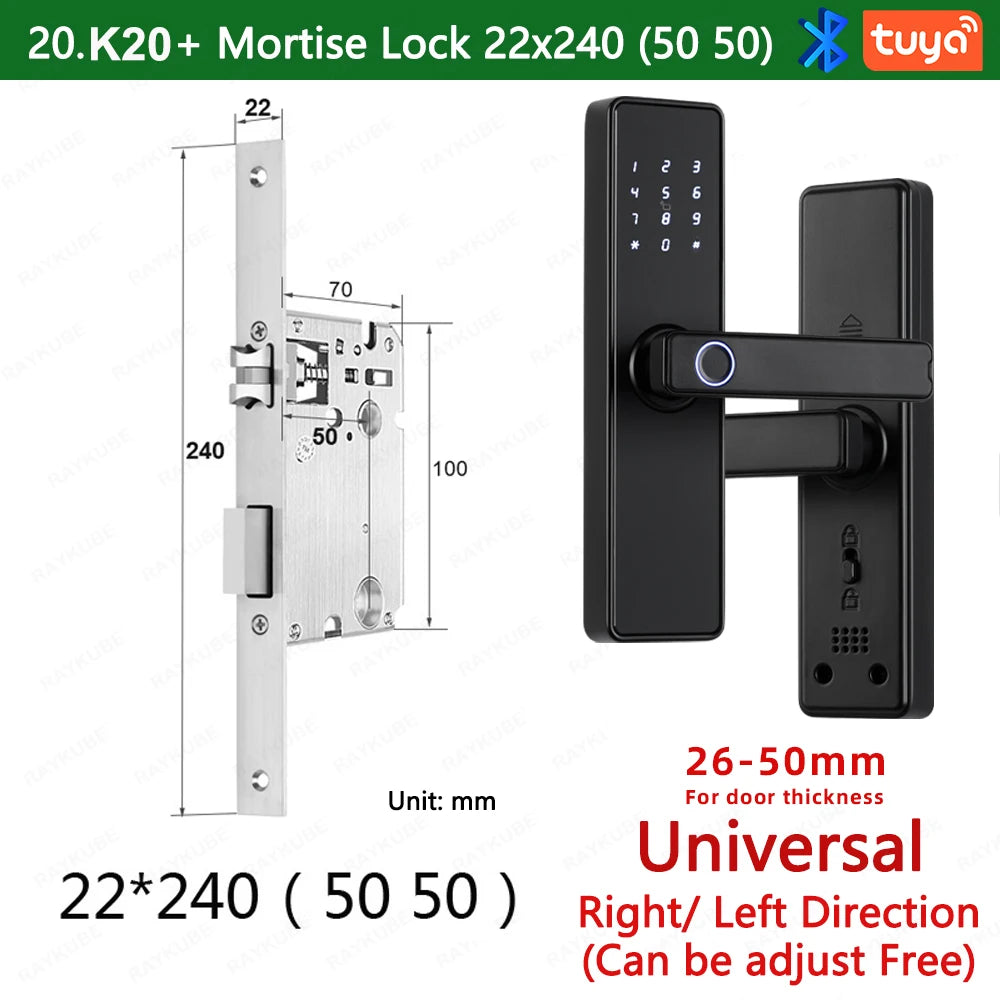

• 24+ Sizes of Mortise Lock available

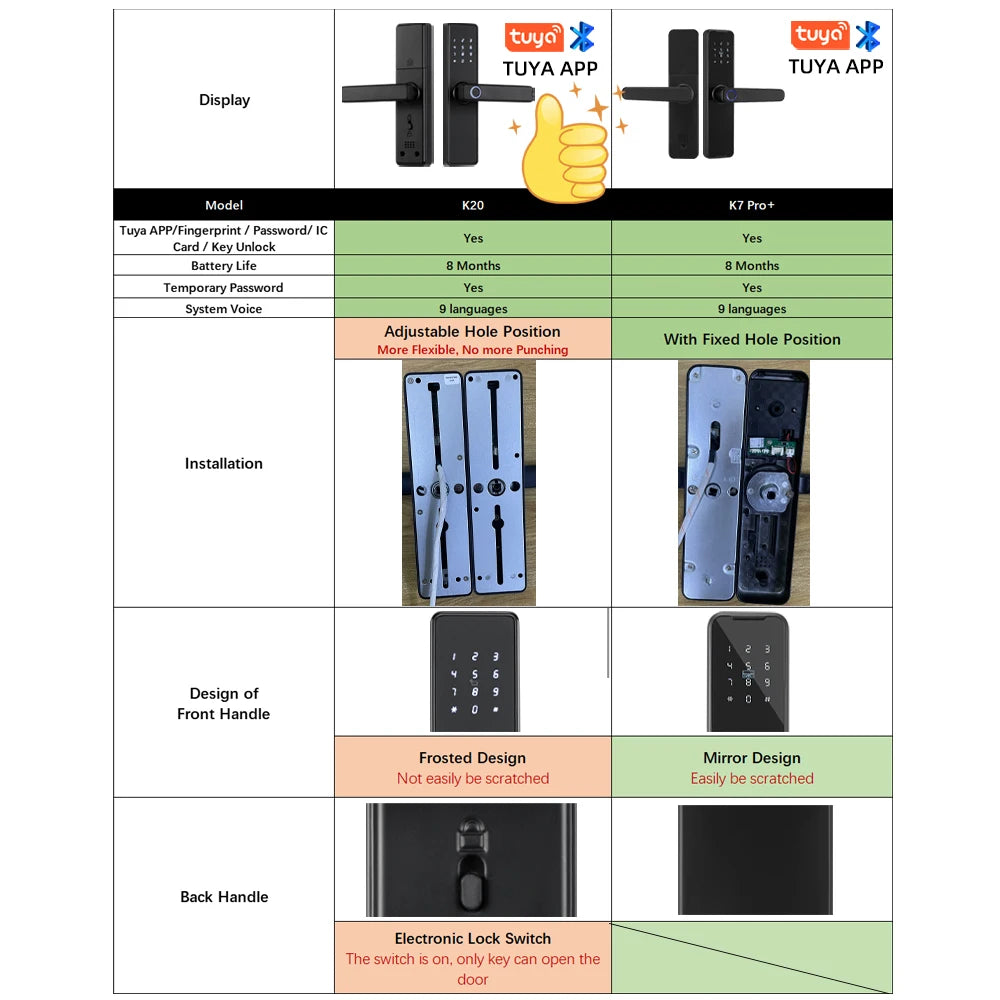

Difference between K20 and other version

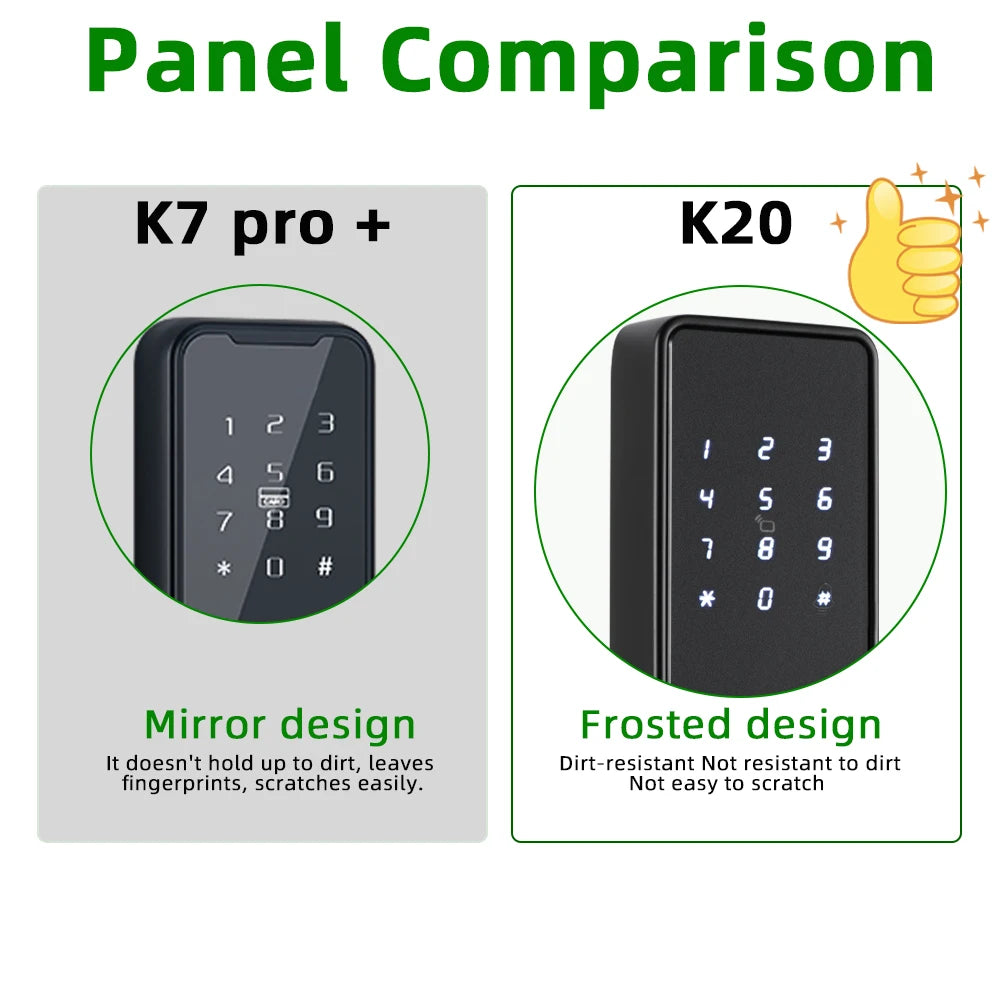

• Matte Frosted Design Panel




  The front panel has been upgraded with a matte brushed design, and each front panel has been coated with a protective film to make it less susceptible to scratches

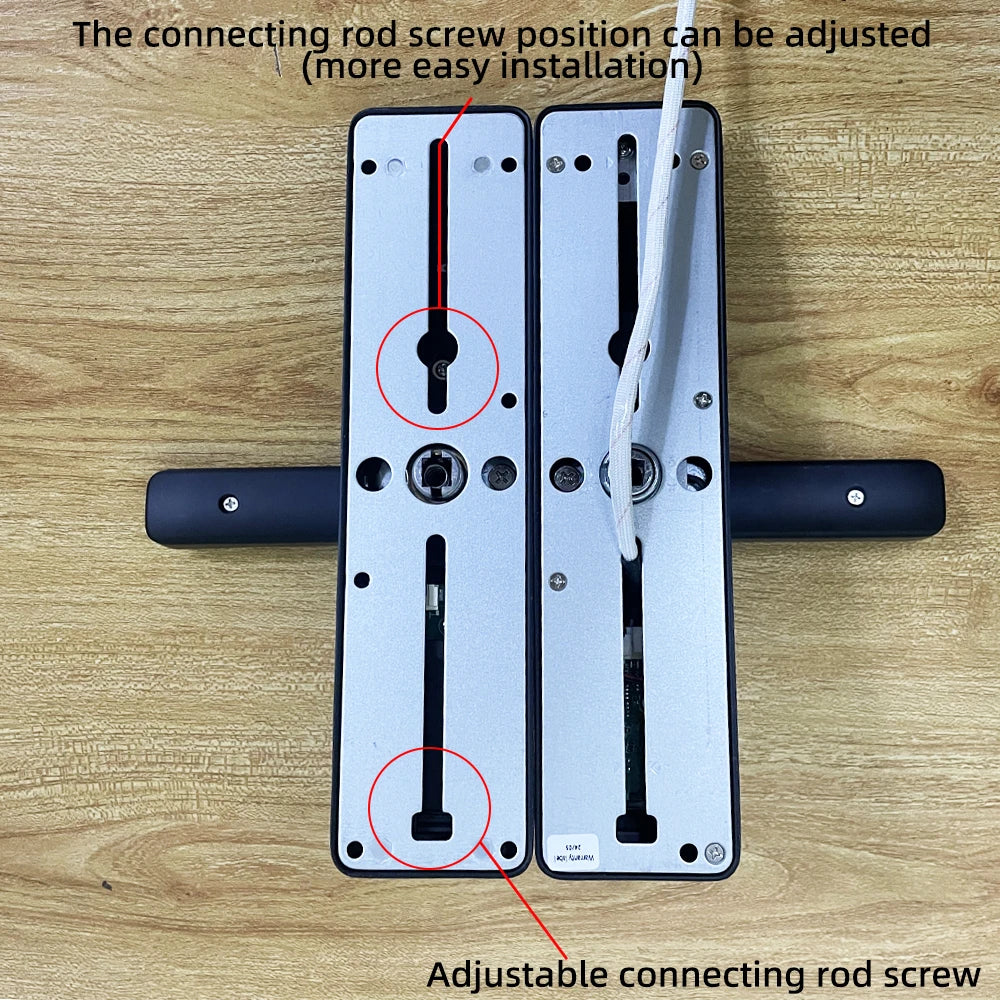

• The screw position of the panel can be flexibly moved, easy installationNo need to dig additional holes

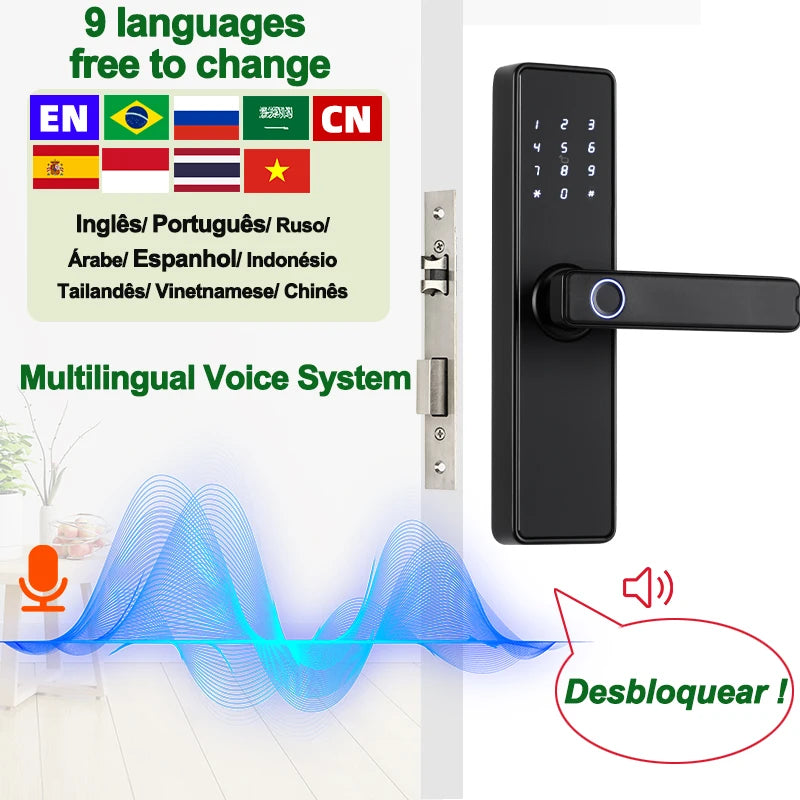

Multilingual Voice System

• 5 unlock methods: Tuya APP/ Fingerprint / Password / Smart Card / Key Unlock

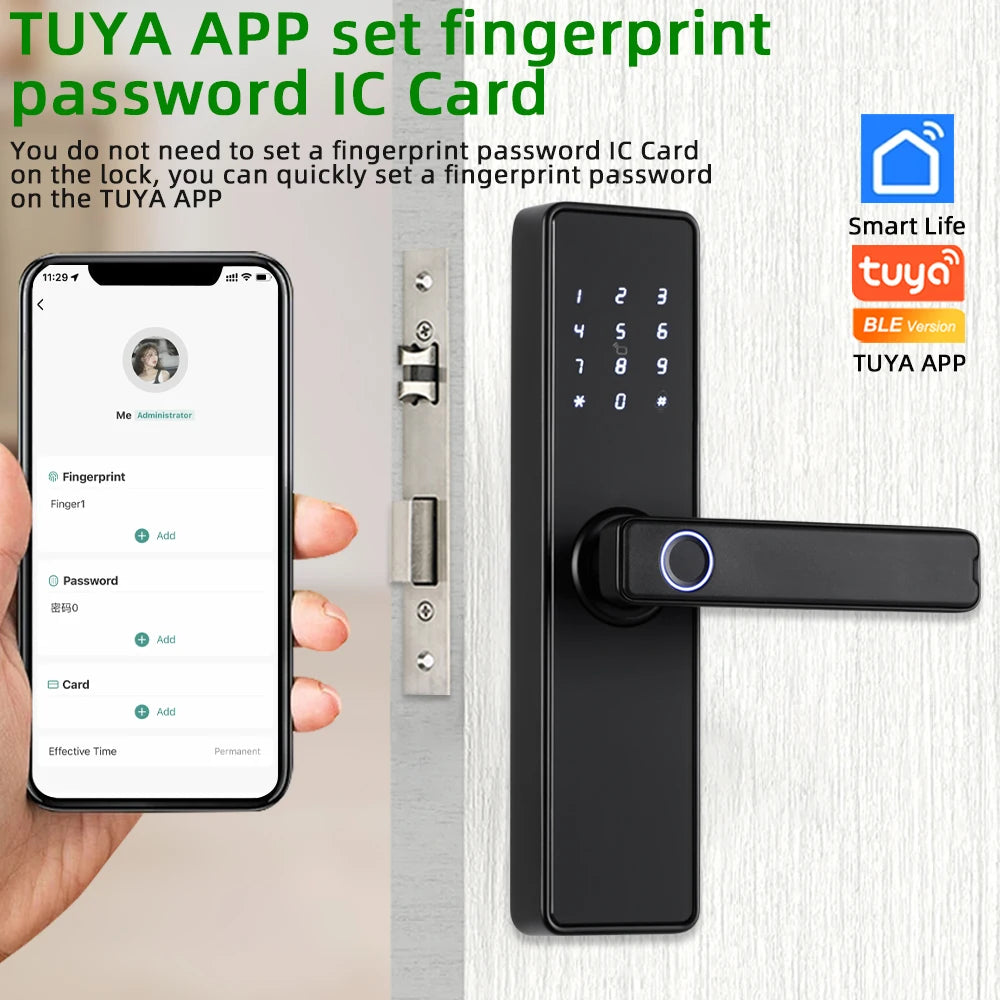

• Add or delete user fingerprints, passwords, and cards directly on the Tuya APP

Tuya APP Temporary Password Remotely Unlock

• Bluetooth connection; Easy to connect and save power

• Add B4 USB Bluetooth gateway (Buy Extra) can connect to WiFi

•

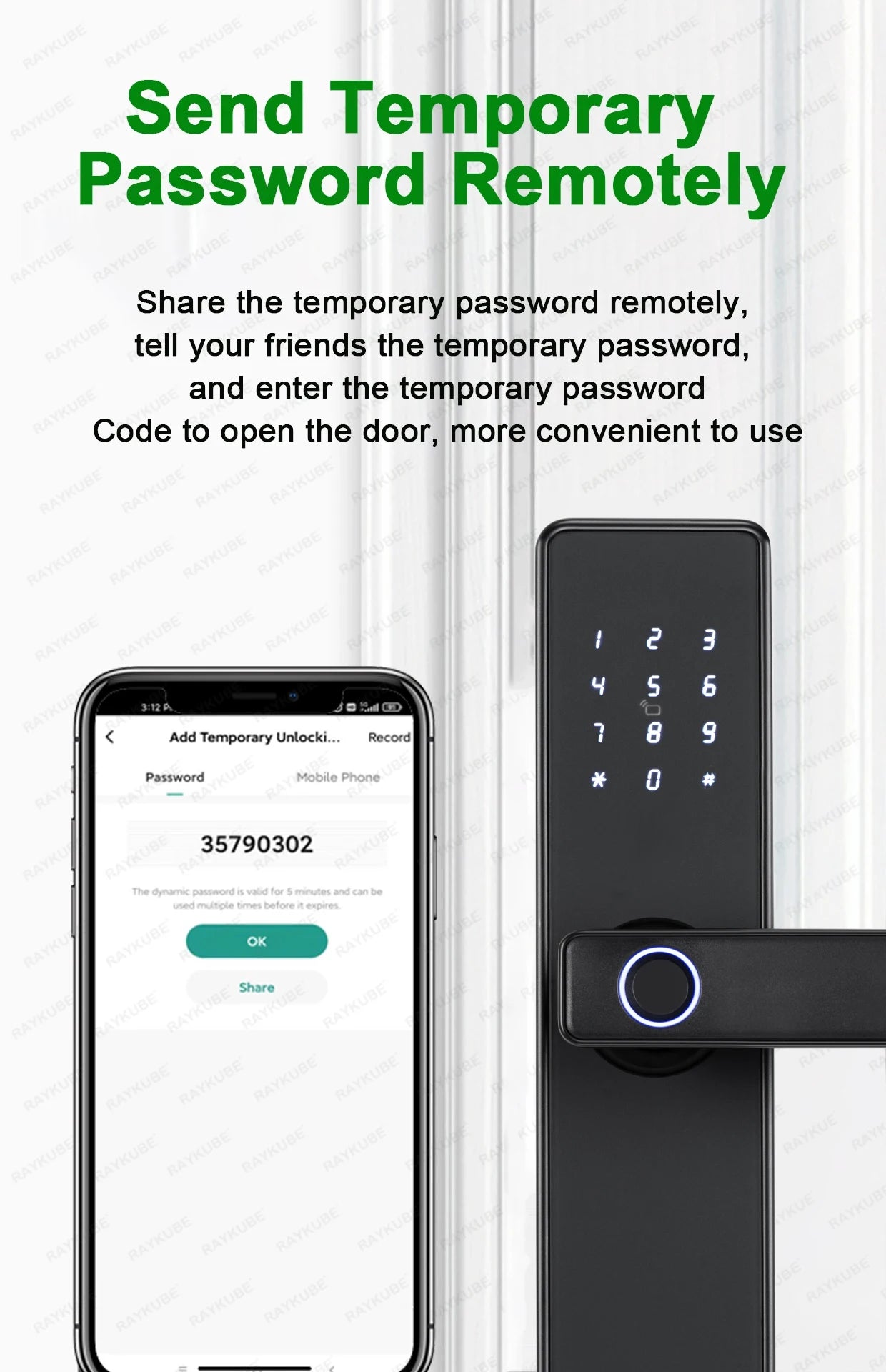

Send Temporary Password Remotely

Share the temporary password remotely,tell your friends the temporary password and enter the temporary password Code to open the door, more convenient to use

When not at home, you can use the Tuya app to generate a temporary password to unlock

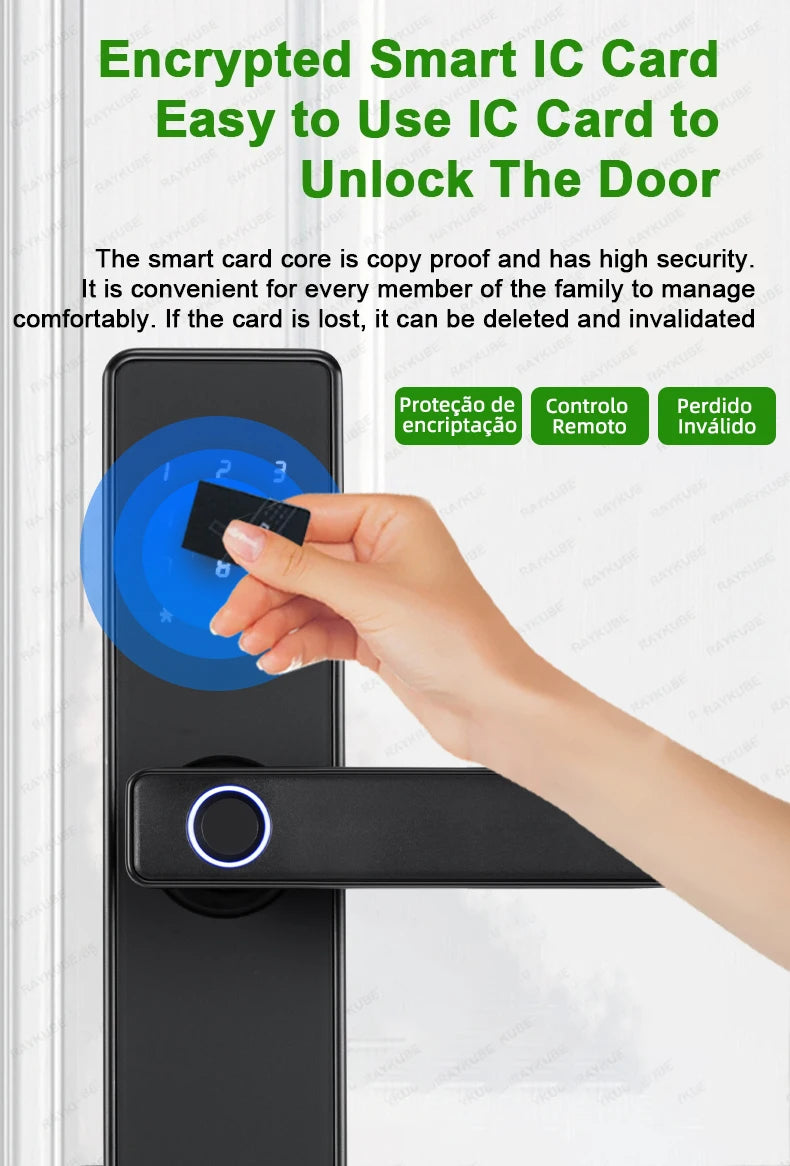

Fingerprint UnlockEncrypted Smart IC Card ，Easy to Use IC Card to Unlock The Door

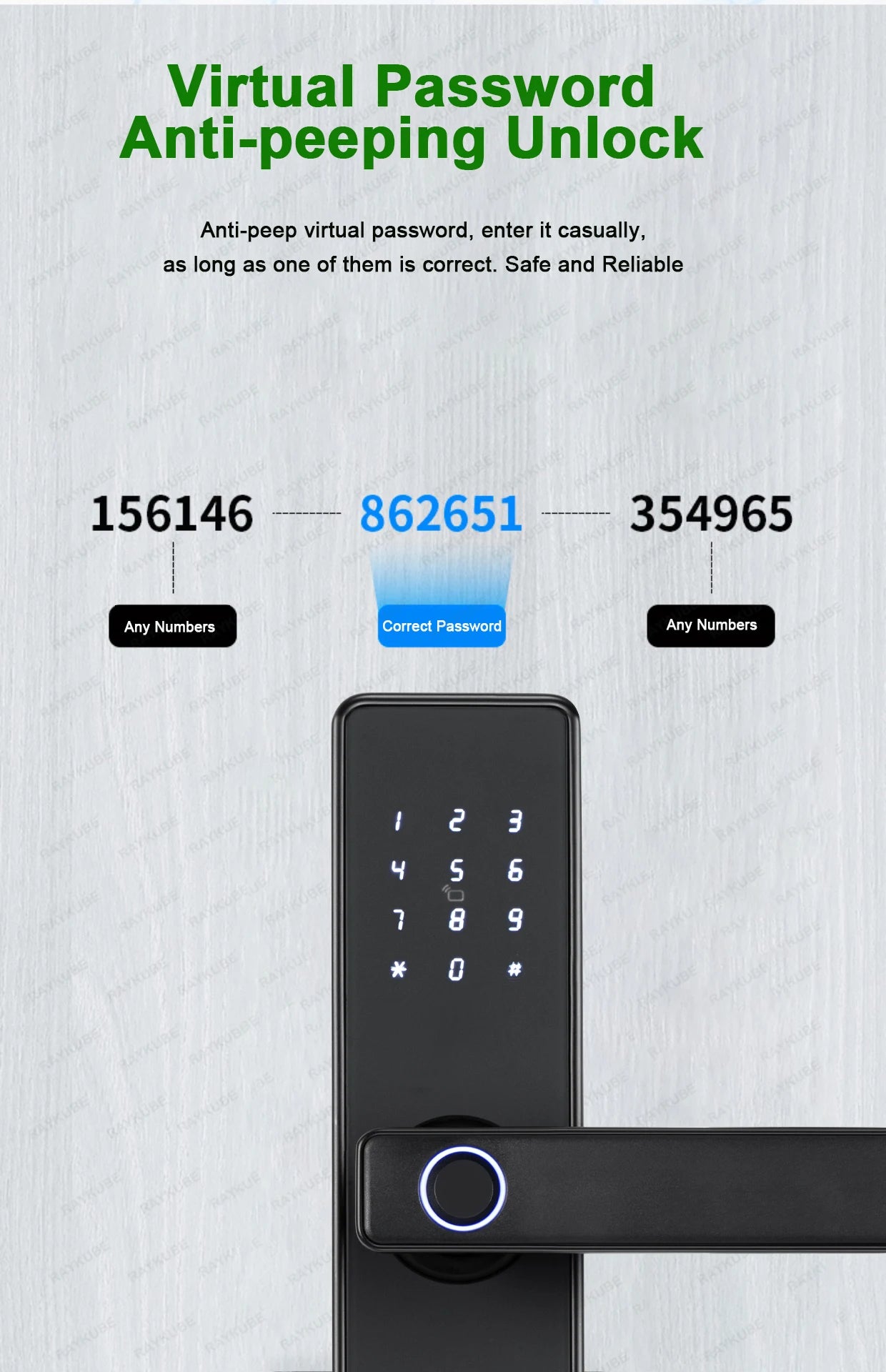

Virtual Password，Anti-peeping Unlock

Anti-peep virtual password, enter it casually, as long as one of them is correct. Safe and Reliable

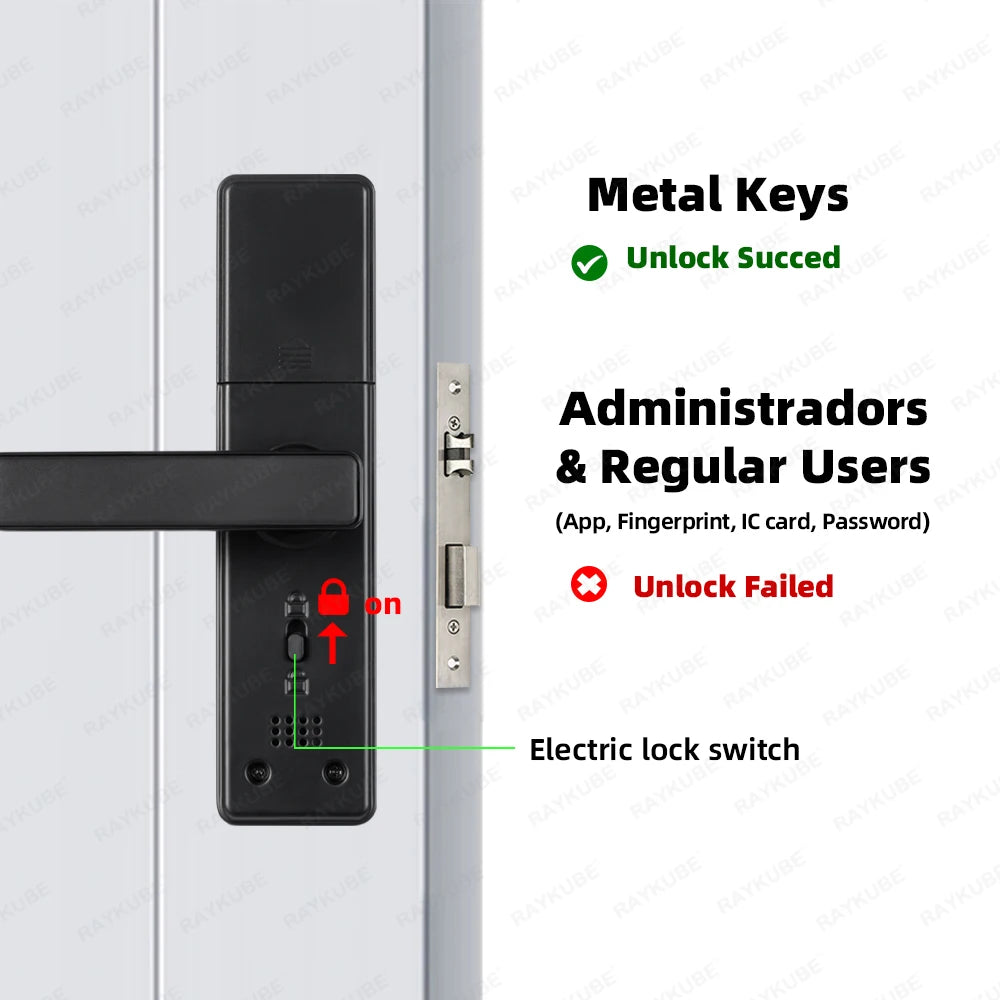

Indoor panel has electronic locking function

After the electronic lock switch is turned on, only the metal key can open the door, and any other unlocking method is unavailable

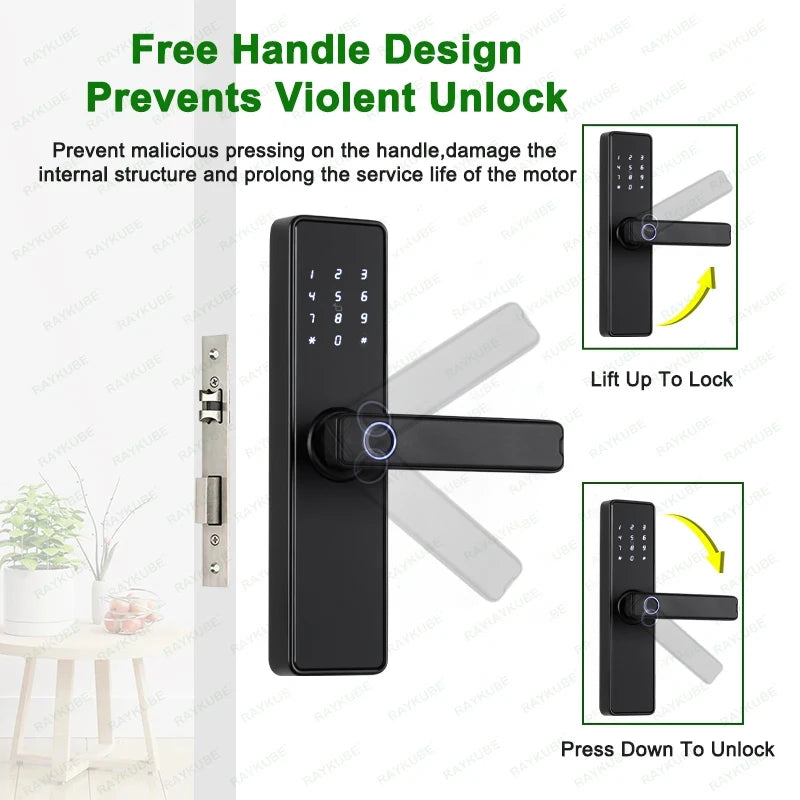

Free Handle Design ，Prevents Violent Unlock

Prevent malicious pressing on the handle,damage the internal structure and prolong the service life of the motor

No Fear Of Small Black Box，To Prevent Electromagnetic Attack

It has the opening ability of anti magnetic and electric field technology to prevent Tesla coil from unlocking and effectively improve the safety of locks

Multiple Anti Test ，Opening Alarm ， Continuous Input Error， Automatic Locking

Multiple anti trial opening alarm, continuous wrong operation of password/fingerprint/ card, and the system will lock automatically

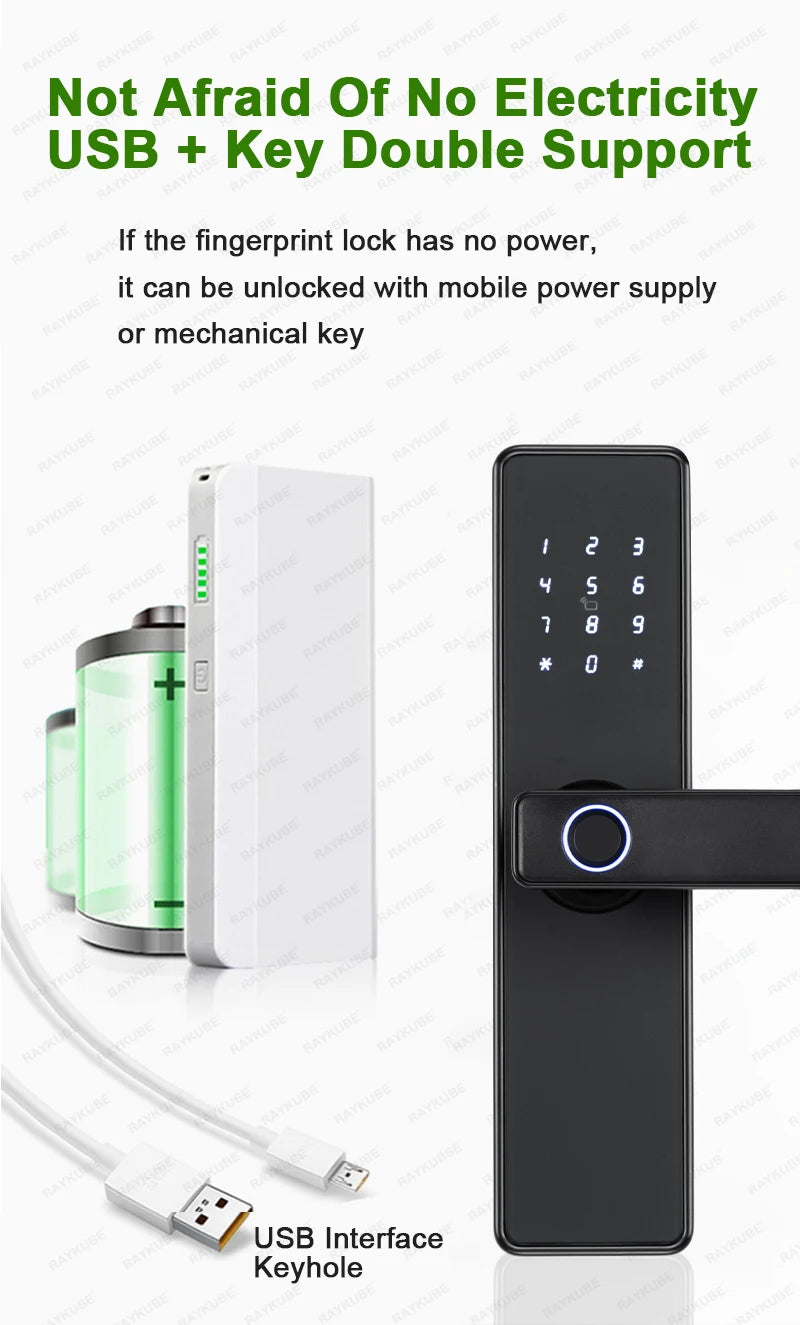

Not Afraid Of No Electricity；Type-c+ Key Double Support

If the fingerprint lock has no power, it can be unlocked with mobile power supply or mechanical key

Use 4pcs AAA 1.5V Battery, Please use the not rechargeable Alkalin battery. (battery not include in the package)

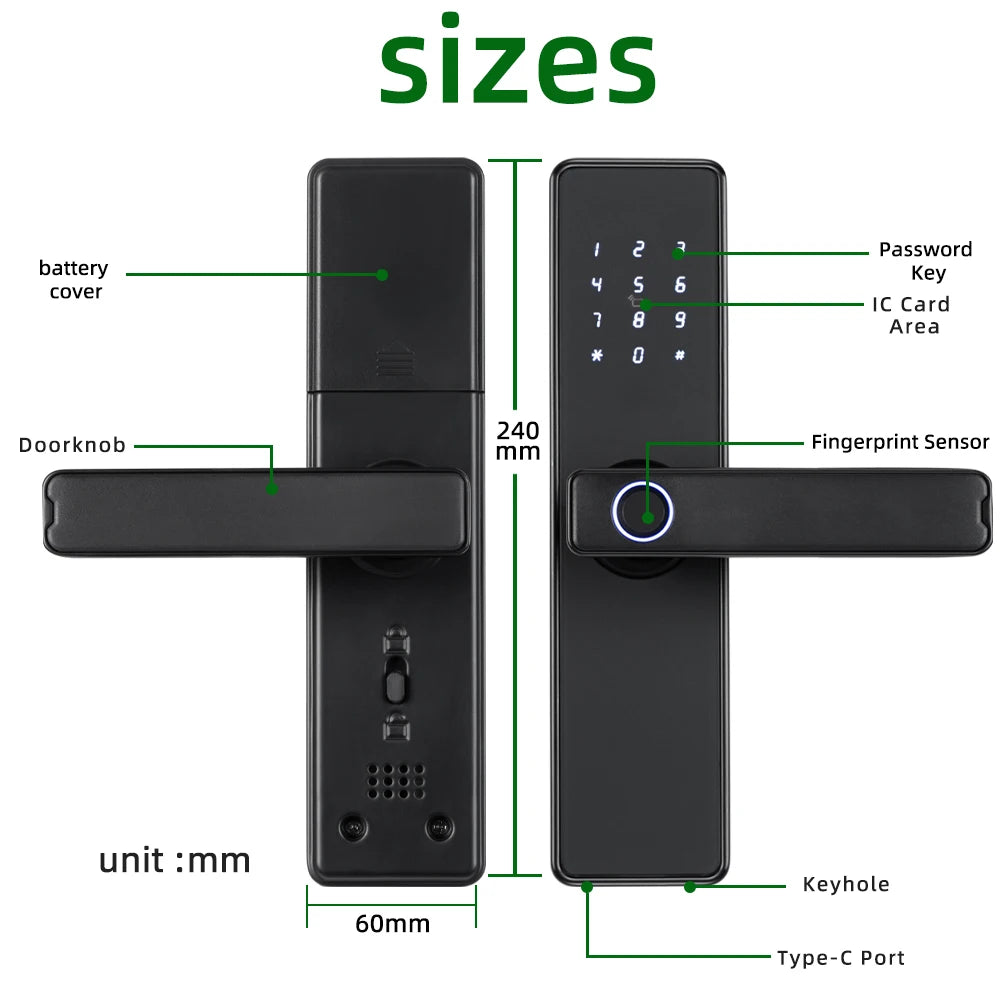

Specifications:

• Model: K20
• System: Tuya Bluetooth 4.0
• Material: Aluminium Alloy

• Unlock modes: Tuya APP / Fingerprint / Password / Smart card / Key

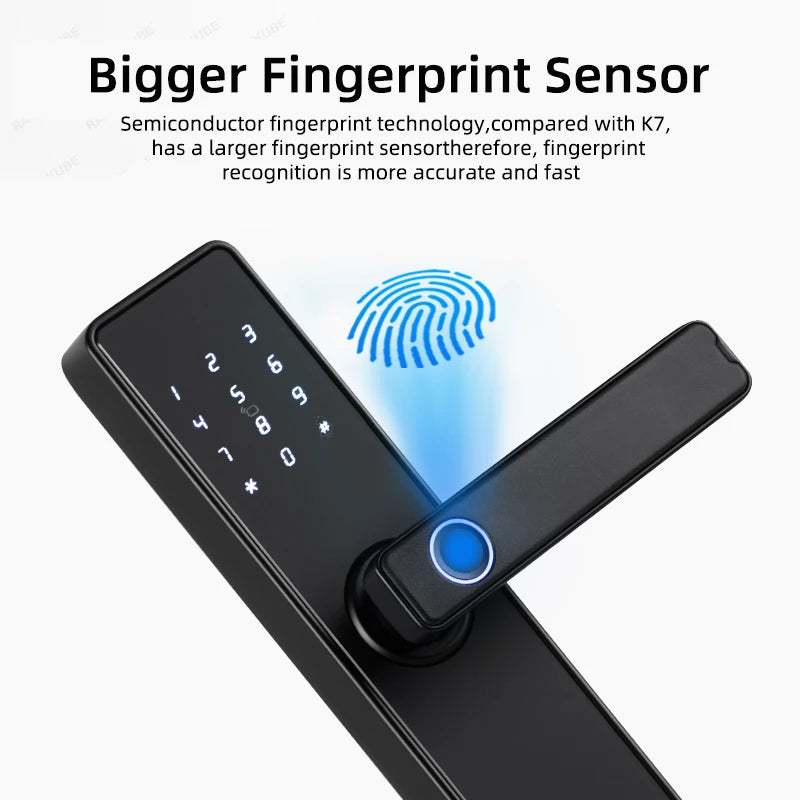

• Fingerprint read: FPC Sensor (Semiconductor Sensor)

• Color: Black

• User: Total 100
• Fingerprint: 100 pcs
• Card:  100 pcs

  password: 100 pcs
• Chip Type: Dual Core Driver

• Touch screen: IML Material

• Working power: 4 x AAA 1.5V batteries (not include)

• Operating temperature: -20 to 55 Centigrade
• Password function: support virtual password

• Suit for the door thickness about 26-50 mm

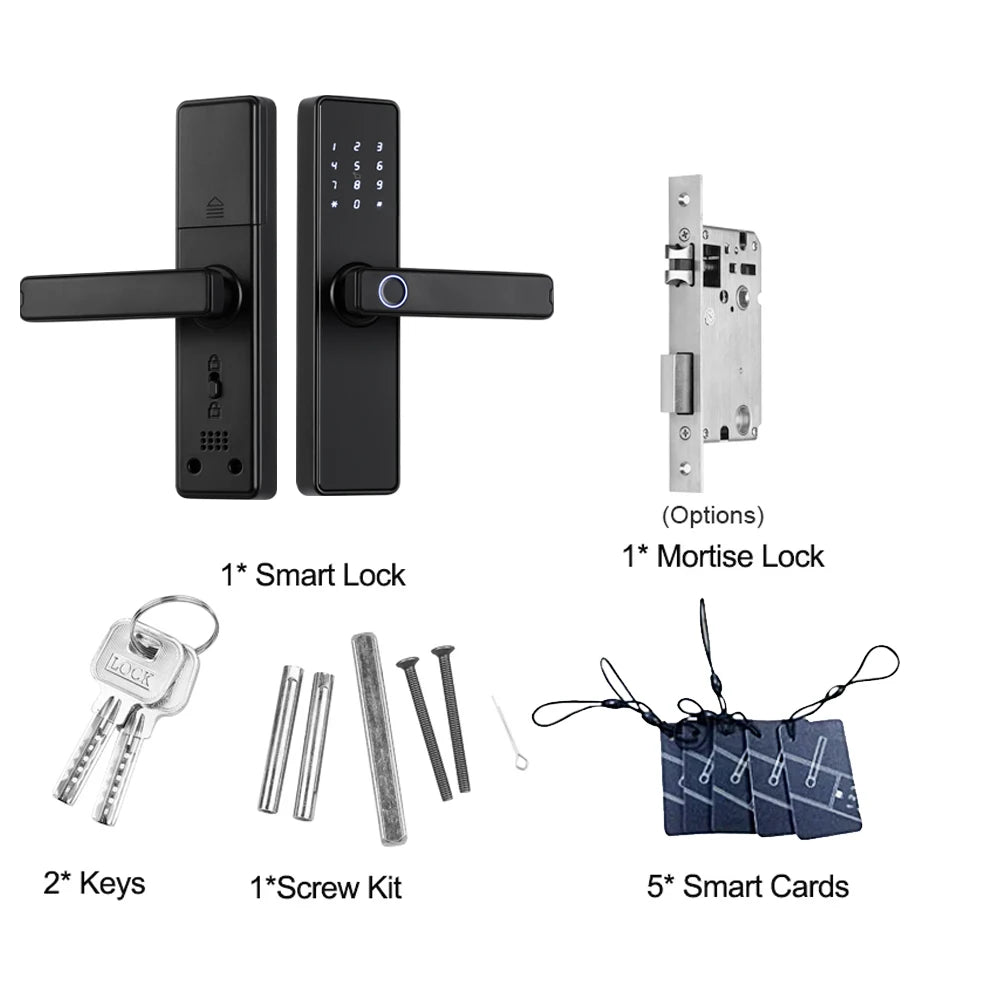

Item Include

• Front panel x 1

• Rear panel x 1

• Mortise lock x 1(options)

• Smart card x 5

• Mechanical Key x 2

• Screw Kit x 1
