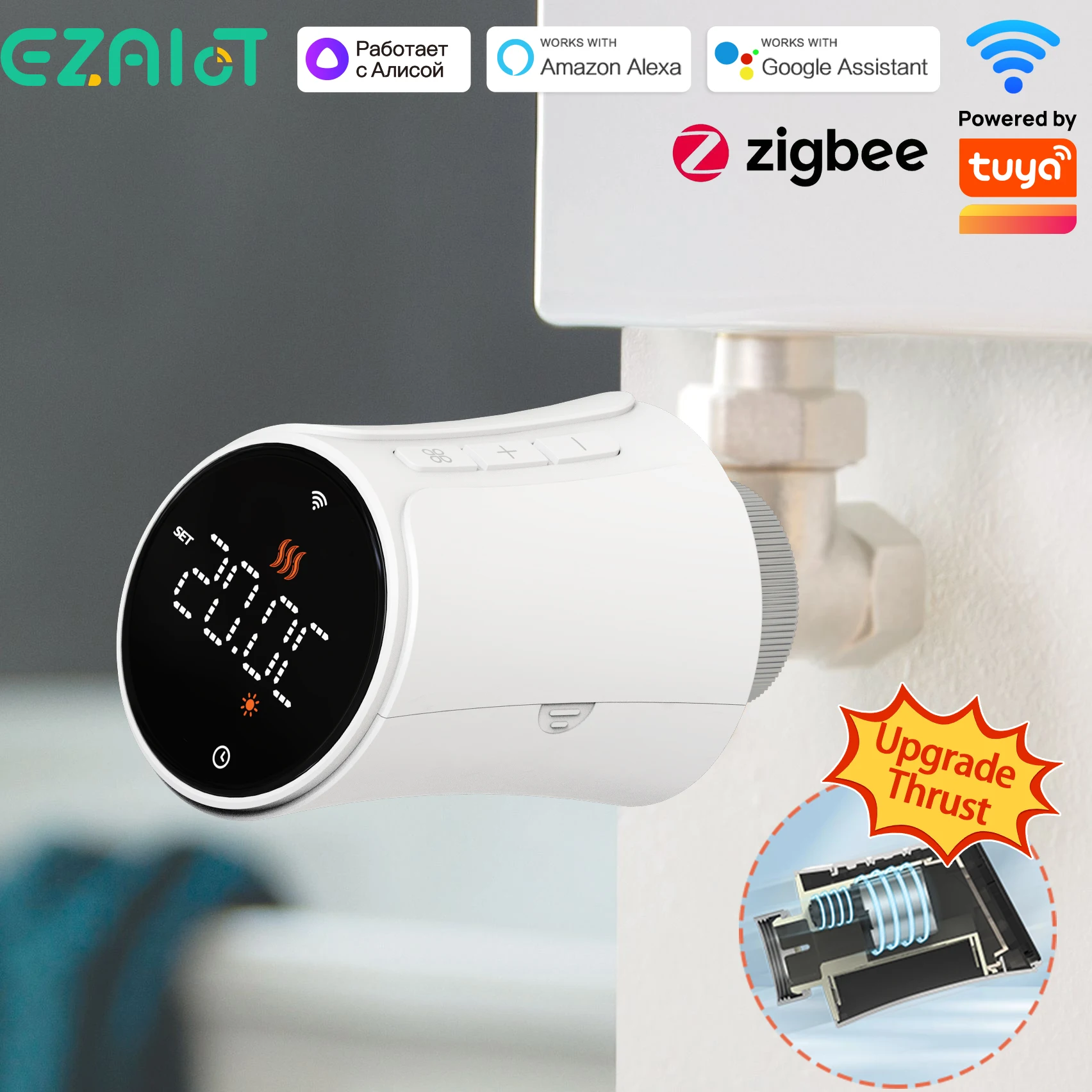

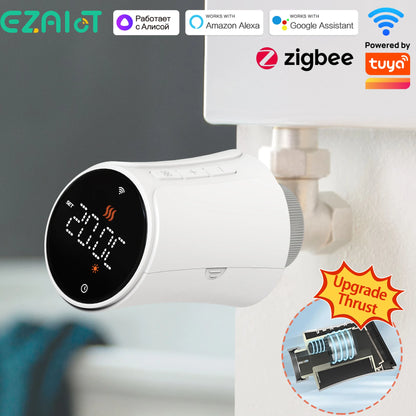

EZAIOT Tuya ZigBee Smart TRV Thermostatic Valve Thermostat Radiator Actuator Temperature Controller Voice Alexa Google Home Alic
EZAIOT Tuya ZigBee Smart TRV Thermostatic Valve Thermostat Radiator Actuator Temperature Controller Voice Alexa Google Home Alic
SPECIFICATIONS
Accessories: Each TRV set has 6 adapters
Brand Name: EZAIOT
Certification: CE,RoHS,weee
Choice: yes
Communication protocol: Tuya zigbee 3.0
Dimension (W x H x D): 59.4mm x 99.3mm x 59.4mm
Display accuracy: 0.1°C
Hign-concerned Chemical: None
Linear travel: 6mm
Model Number: Zigbee Radiator Thermostatic Valve
Origin: Mainland China
Power supply: 3*1.5V AA alkaline batteries (not included)
Protection class: IP20
Screen brightness: high, medium, low
Standby current: 6μA Min
Surface temperature: 90°C max (heater surface)
Switching deviation: 0.5°C
Temperature calibration: -10~10℃
Thread size: M30*1.5mm
Wattage: 10dBm max
Porduct Hightlight

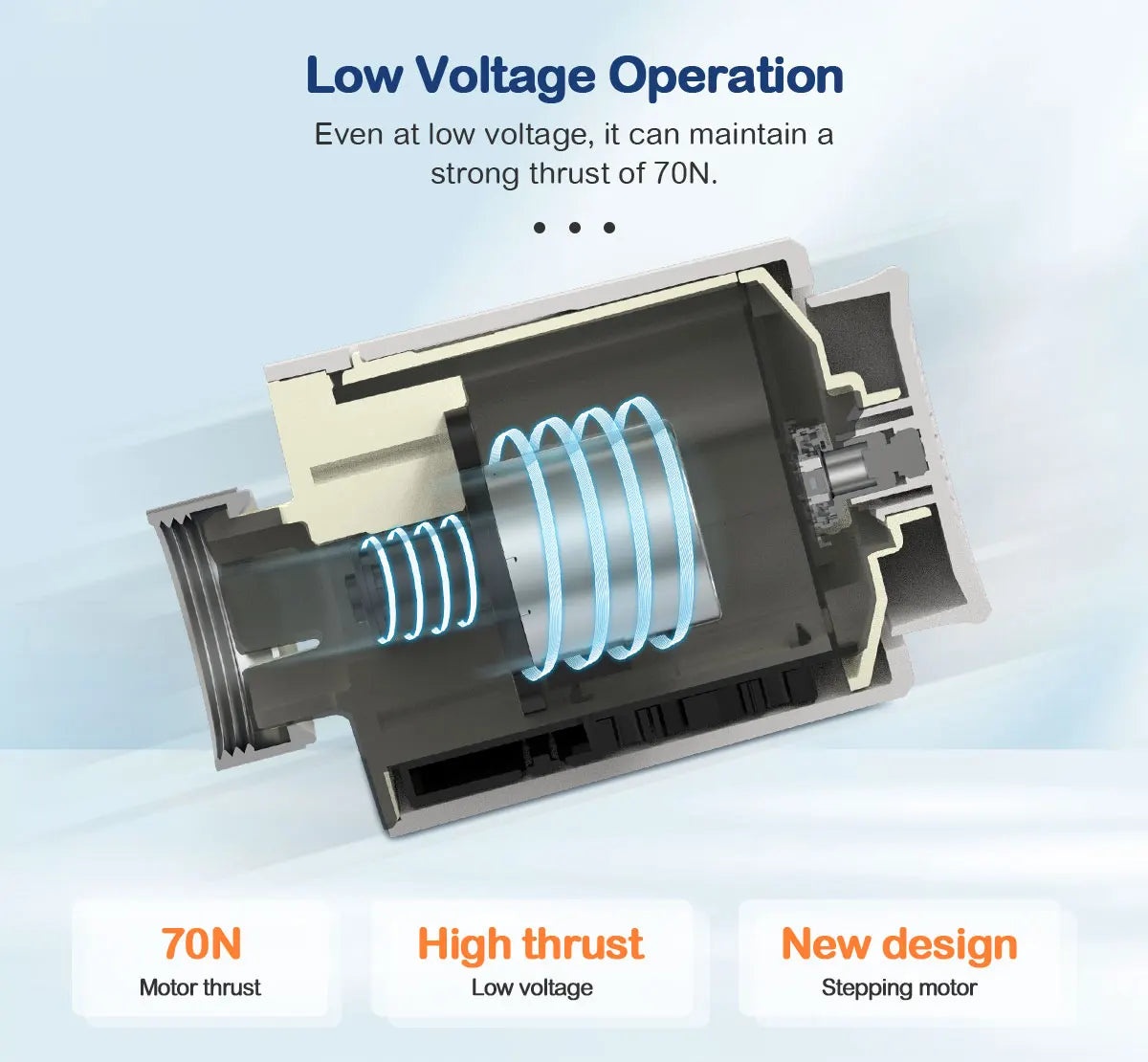

[Low voltage and high efficiency] -Equipped with a new motor, it can still run stably when the battery is low, and temperature regulation and valve control are not affected

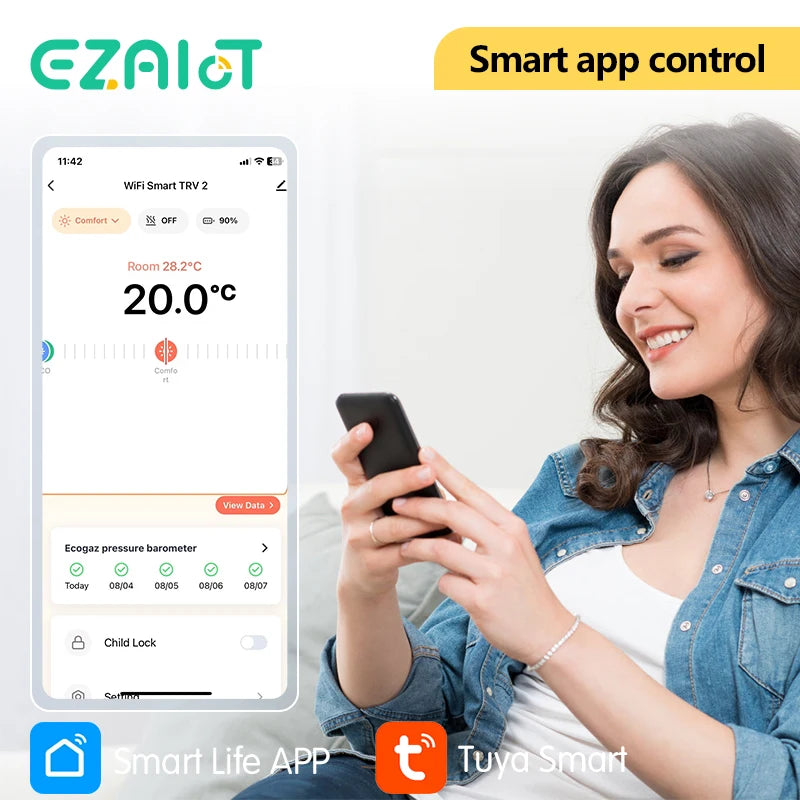

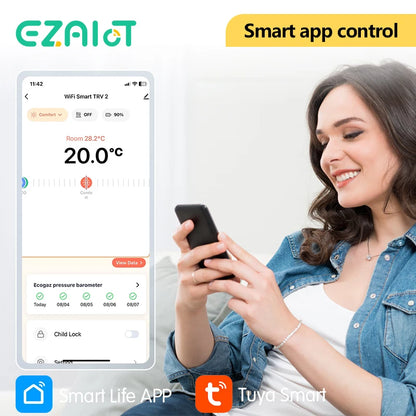

[ APP Remote Control ] -Download smart life /Tuya smart APP on your phone&Tablet to control the radiator thermostat valve anywhere/anytime.

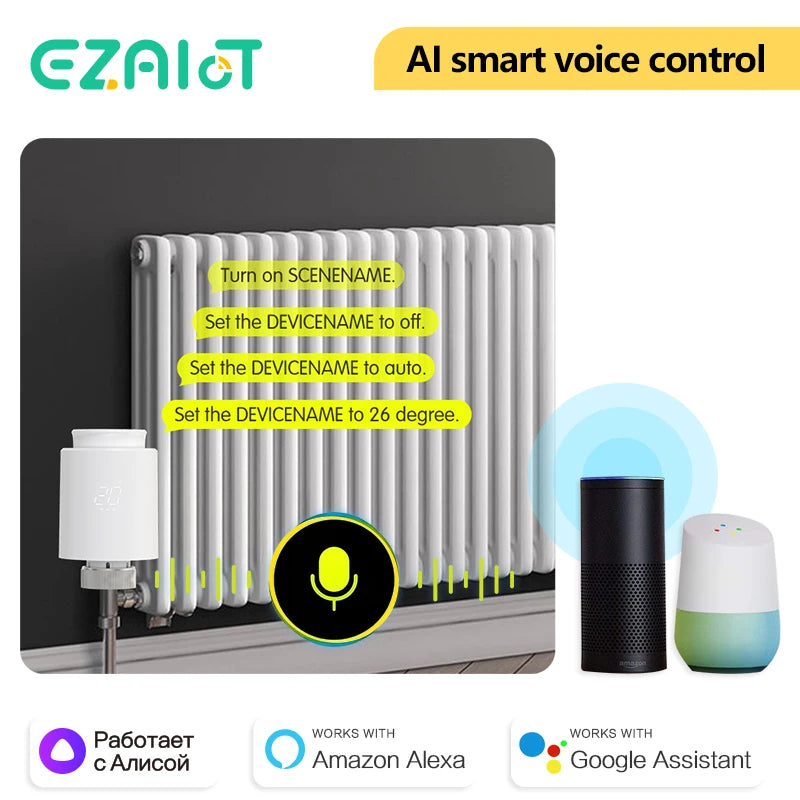

[ Hand Free Voice Control ] -Compatible with amazon alexa echo ,google home ect ,a simply command to voice control the TRV.

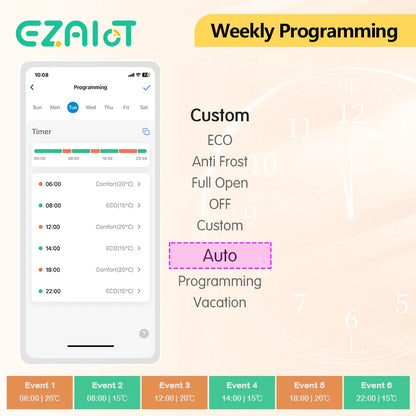

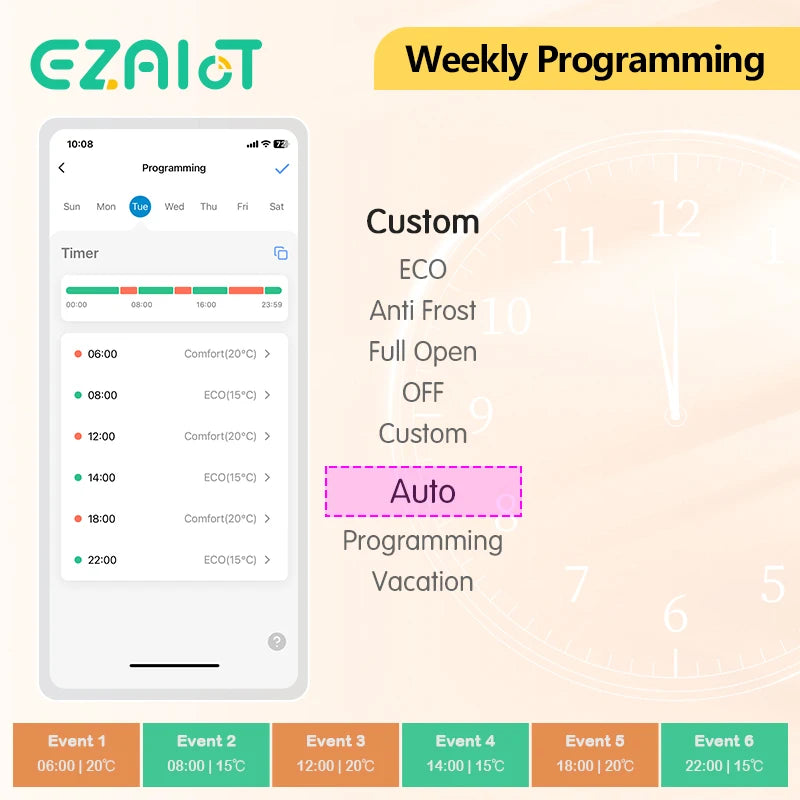

[ Programmable Weekly Schedule&Time Period ] -7day programmable weekly schedule ,4 time period/day can be setting on app.

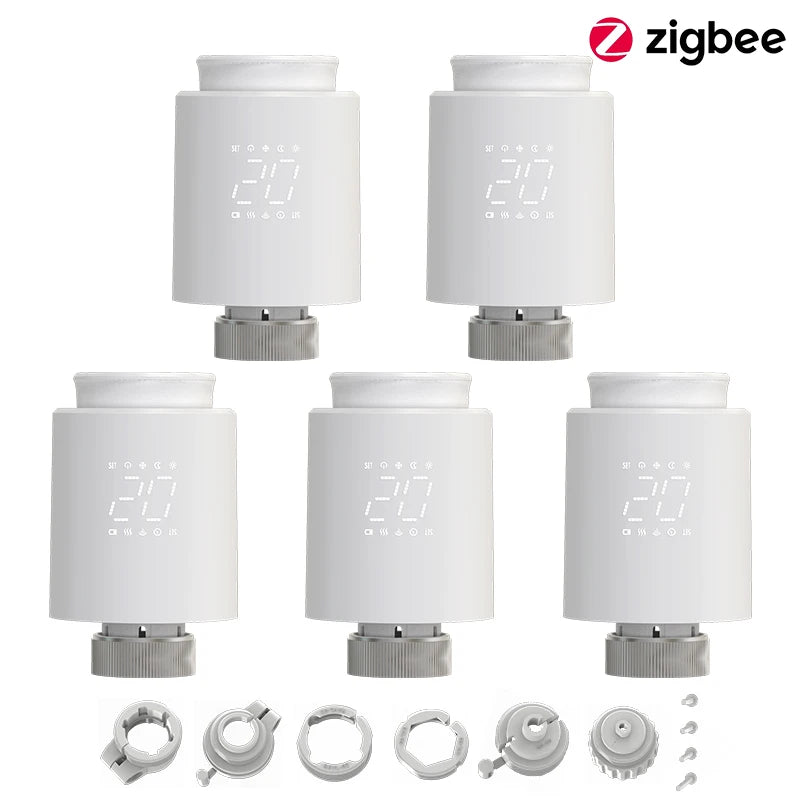

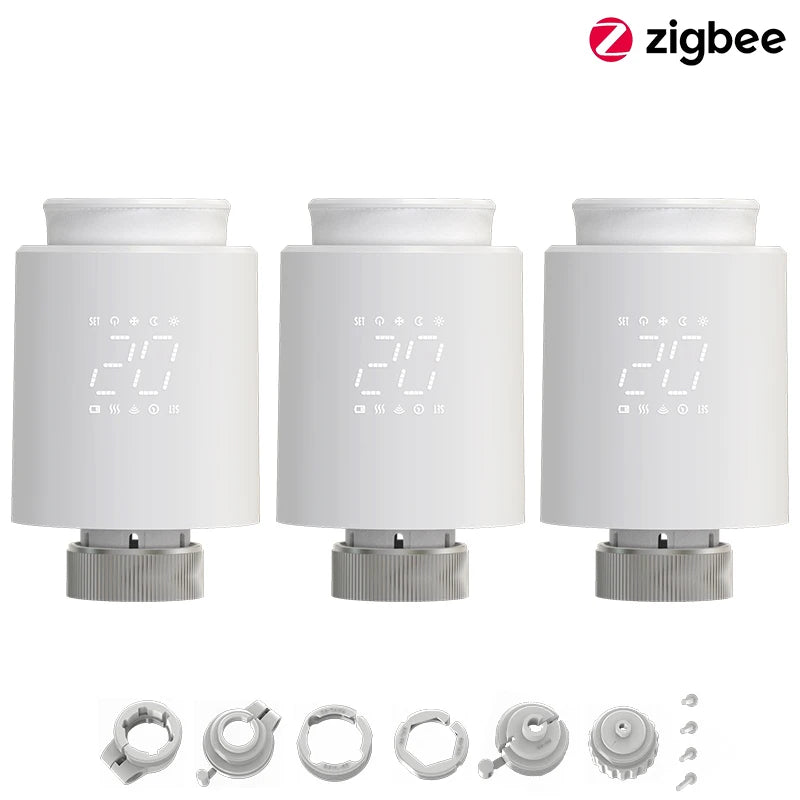

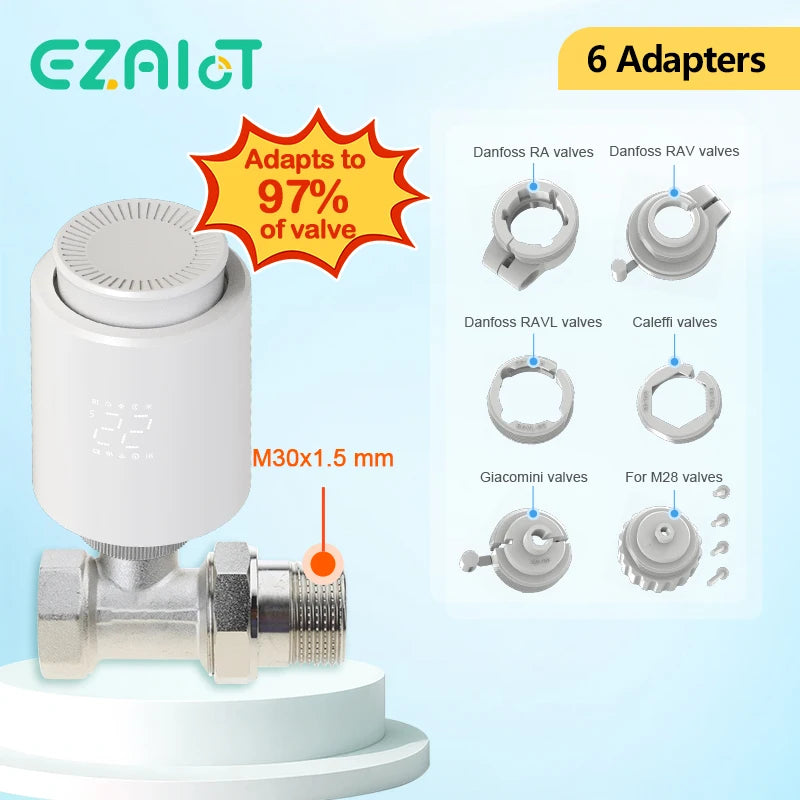

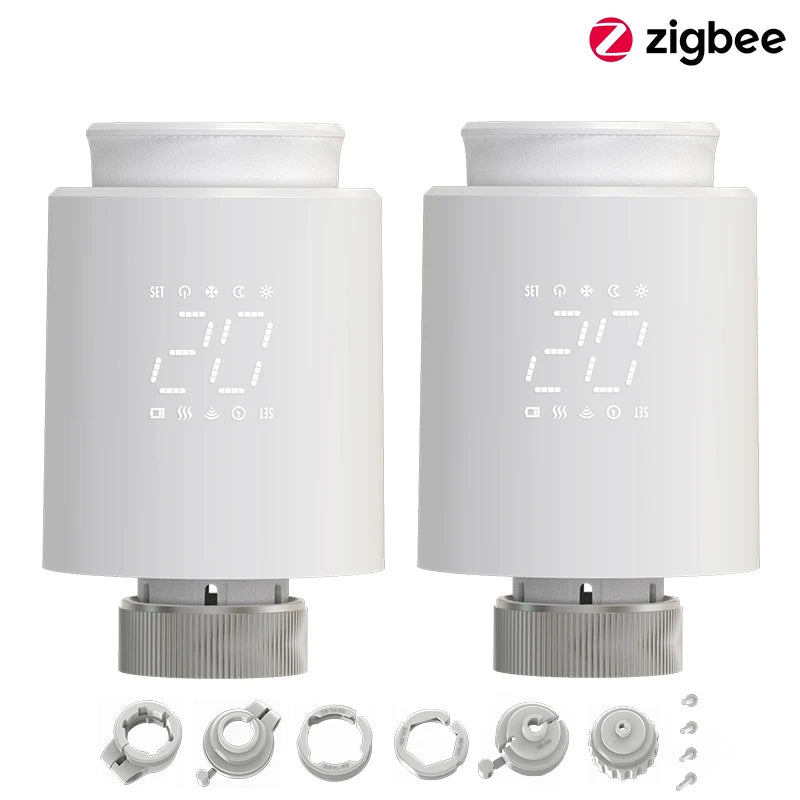

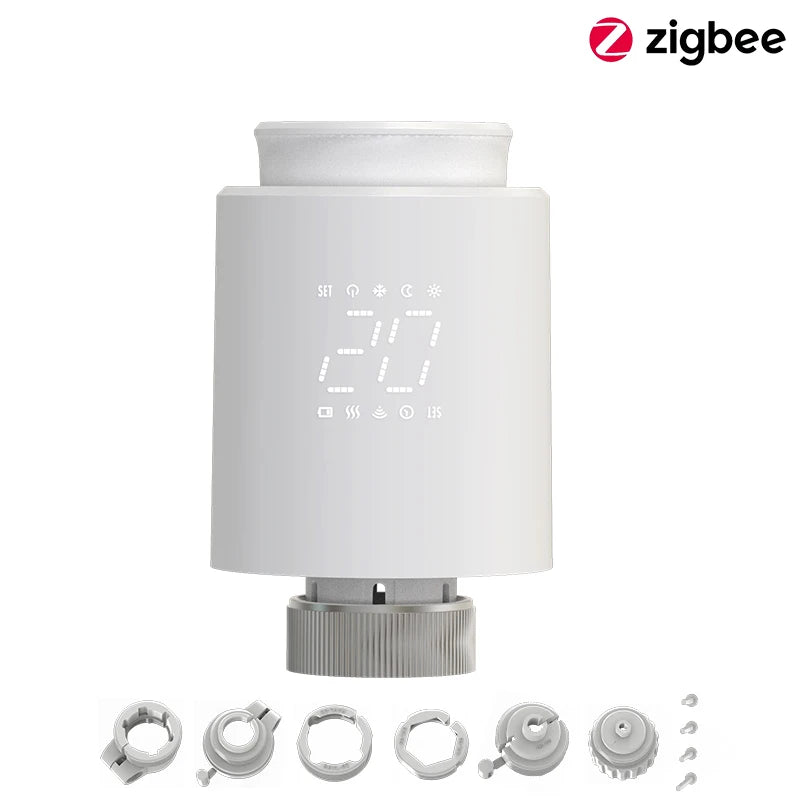

[ Super compatibility ] -Comes with 6 different types of valve adapters, suitable for 97% of the radiator valve interfaces on the market.
[ Temperature Calibration ] -When there is a difference between the floor and air temperature, you can set the calibration value through the App to ensure that the final temperature reaches your ideal value
[ Family Share Function ] -You can share the TRV to your family with the limited right,create a smart home together with your family member.
[ Linkage Function ] -It can linkage with other smart appliance in your home to create smart theme like leave home mode,back home mode,dinner mode,sleeping mode ect.
[ Child Lock Function ]-Child Lock Function avoid kid`s operation on it. Make sure your home in smart and safe status.
[ Group-Control Function ] -TRV can be set in group with valve in different room, realize group control function in special scene.

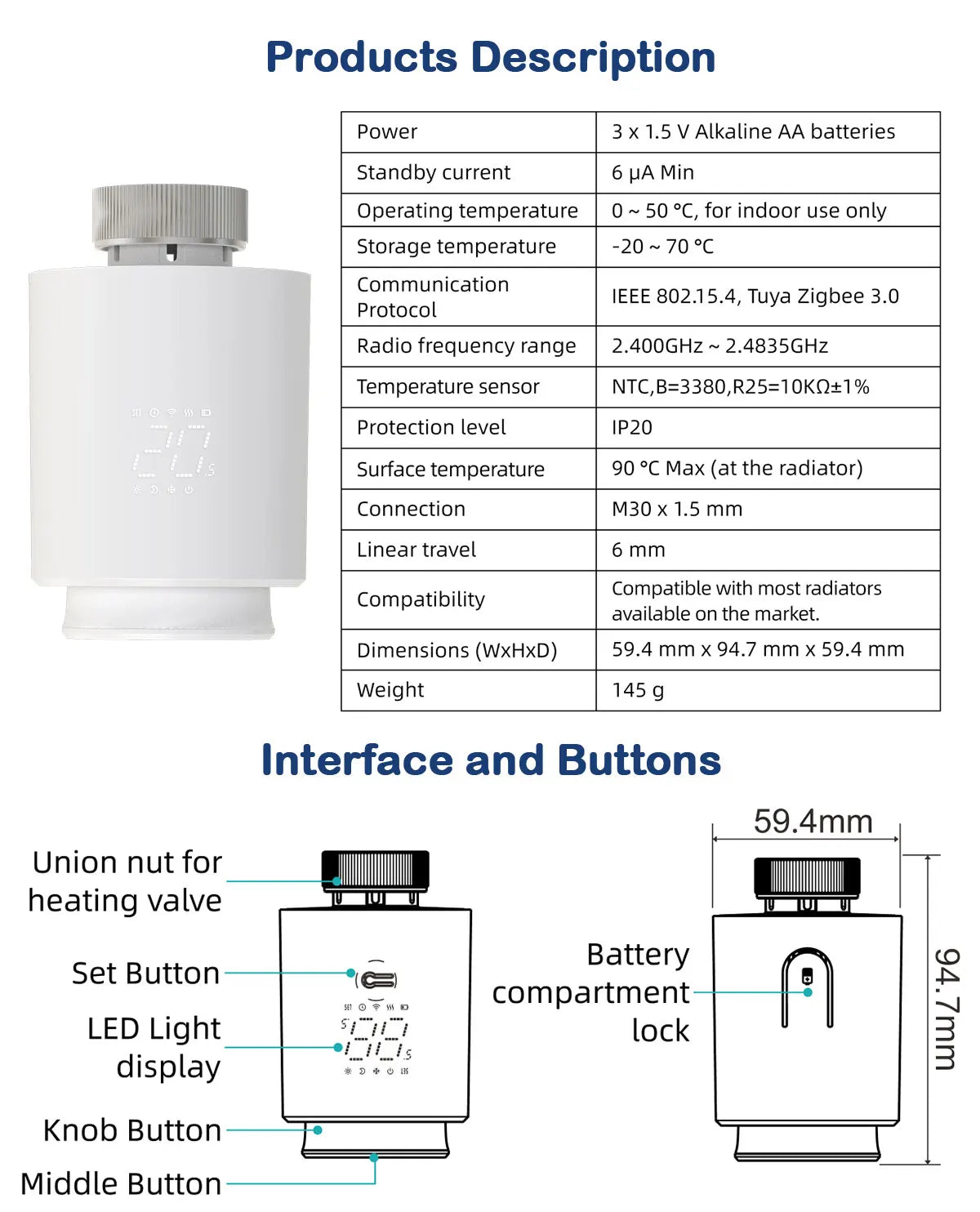

Technical Specifications
Communication protocol: Tuya zigbee 3.0
Power supply: 3*1.5V AA alkaline batteries (not included)
Standby current : 6μA Min
Protection class:IP20
Display accuracy:0.1°C
Switching deviation:0.5°C
Temperature calibration:-10~10℃
Default temperature adjustment range:5~35°C
Storage temperature: -20~70℃
Surface temperature: 90°C max (heater surface)
Thread size: M30*1.5mm
Linear travel: 6mm
Dimension (W x H x D): 59.4mm x 99.3mm x 59.4mm
Screen brightness: high, medium, low
Package list
1*Radiator thermostatic valve
1*Instructions
6*Adapter
Q&A

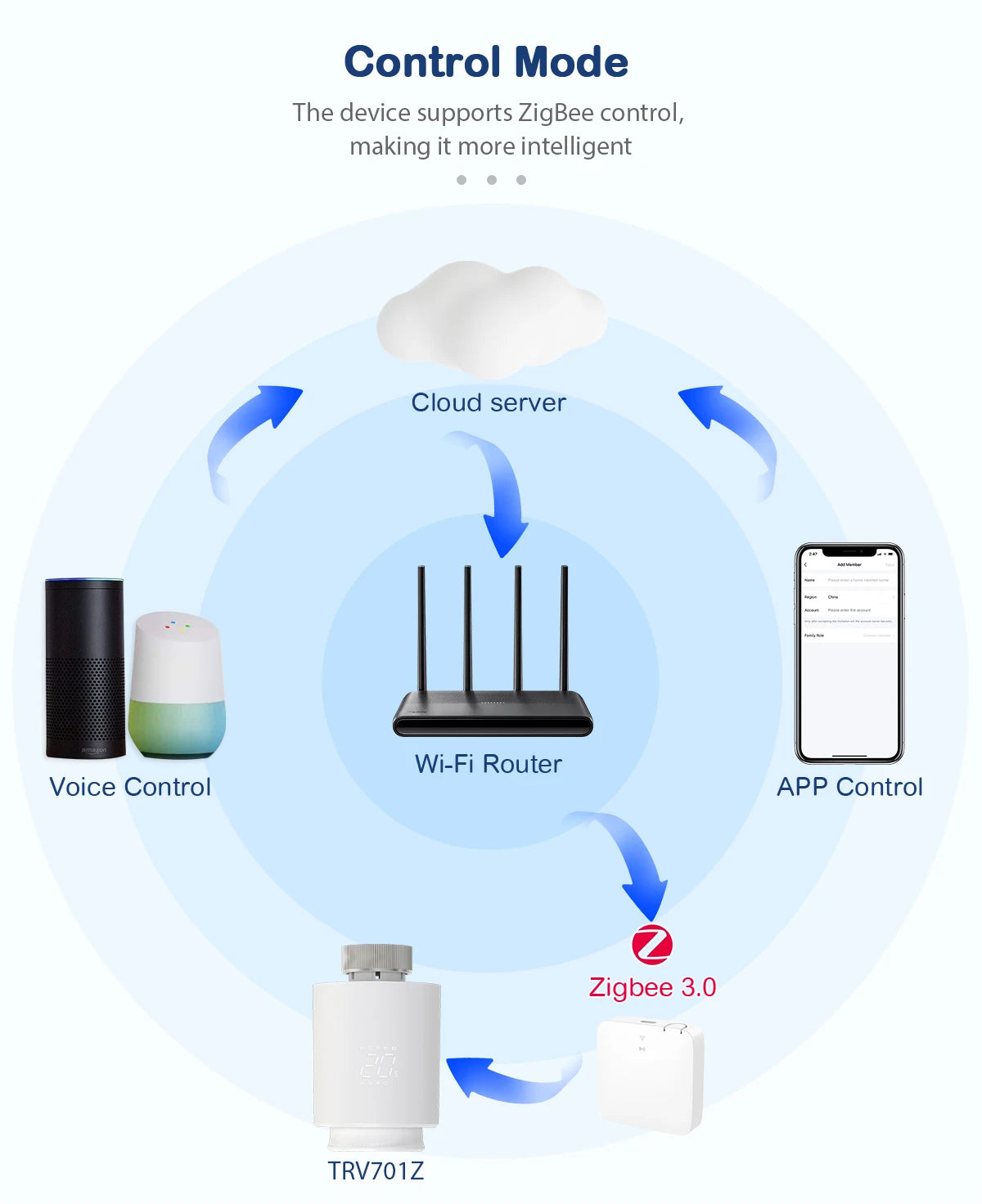

Q:Is it necessary to have a hub gateway to work?
A: No, it also supports direct manual control
Q:Does it need a Hub to connect to the phone?
A: Yes
Q:Does it support all Hub gateways to work together?
A: Only supports Tuya Zigbee Hub
Q:What batteries are needed? How many batteries?
A: Three alkaline batteries are required
Q:Is it directly installed?
A: Yes, it comes with a copper sleeve and is directly installed
Q:The valve sizes are different, is it compatible?

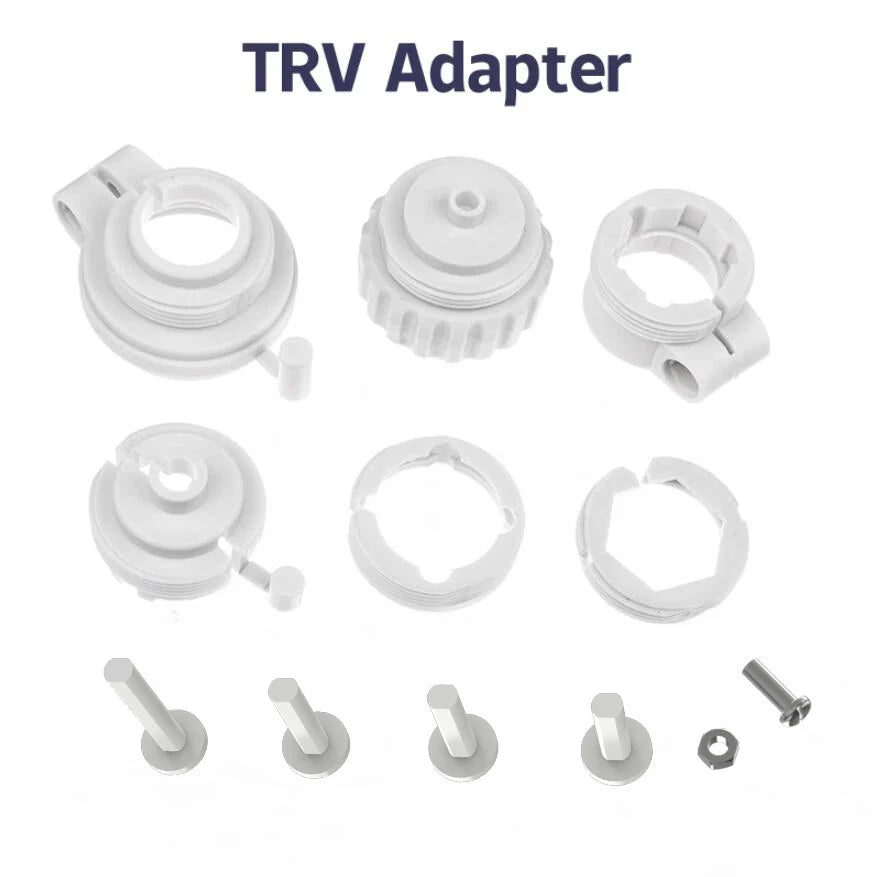

A: Yes, we will ship it with an adapter for Danfoss RA / RAV / RAVL valves / Caleffi valves / Giacomini valves / M28 valves
Q:The radiator at home is installed in different directions. Can the TRV screen direction be switched?
A: Yes, it supports switching in two directions
Q:Is there a window opening detection function?
A: Yes
Q:Is it certified?
A: CE and RoHS certified by TUV
