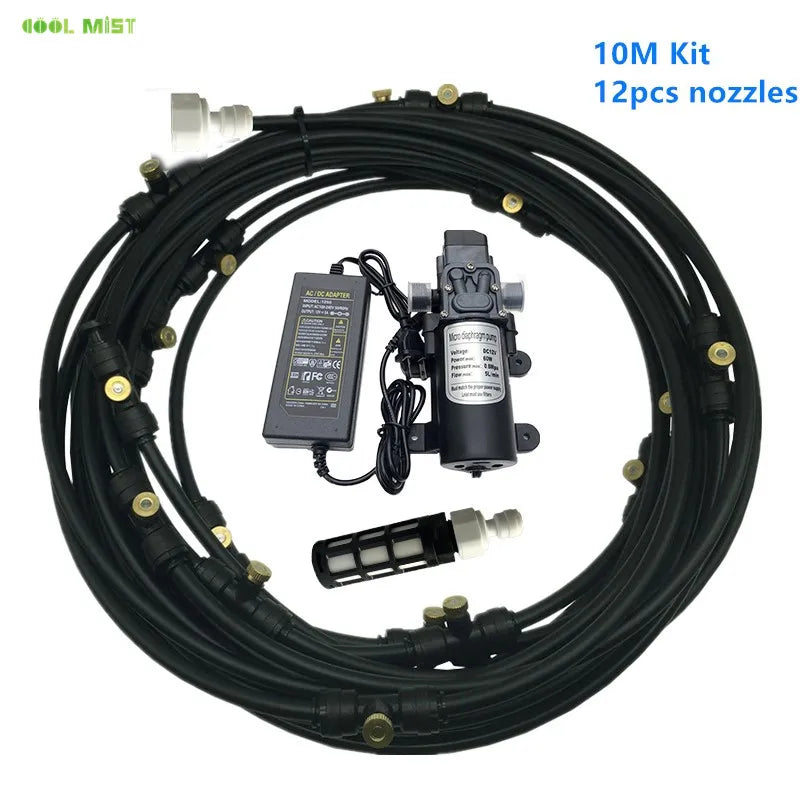

A29 Outdoor Misting Cooling System 12V Water Pump Kit Fog Nozzle For Greenhouse Garden Patio 8M -18M Timer Smart Irrigation Kits
A29 Outdoor Misting Cooling System 12V Water Pump Kit Fog Nozzle For Greenhouse Garden Patio 8M -18M Timer Smart Irrigation Kits
SPECIFICATIONS
Application: Cooling and Humidification
Brand Name: NoEnName_Null
Function: Humidity, Stop dust, Cooling, Landscaping
Hign-concerned Chemical: None
Installation: Easy
Material: Plastic
Model Number: MP
Nozzle Material: Brass
Nozzle Thread: 10/24UNC
Nozzle flowing: 0.03-0.25L/Min
Origin: Mainland China
Plastic Type: PE

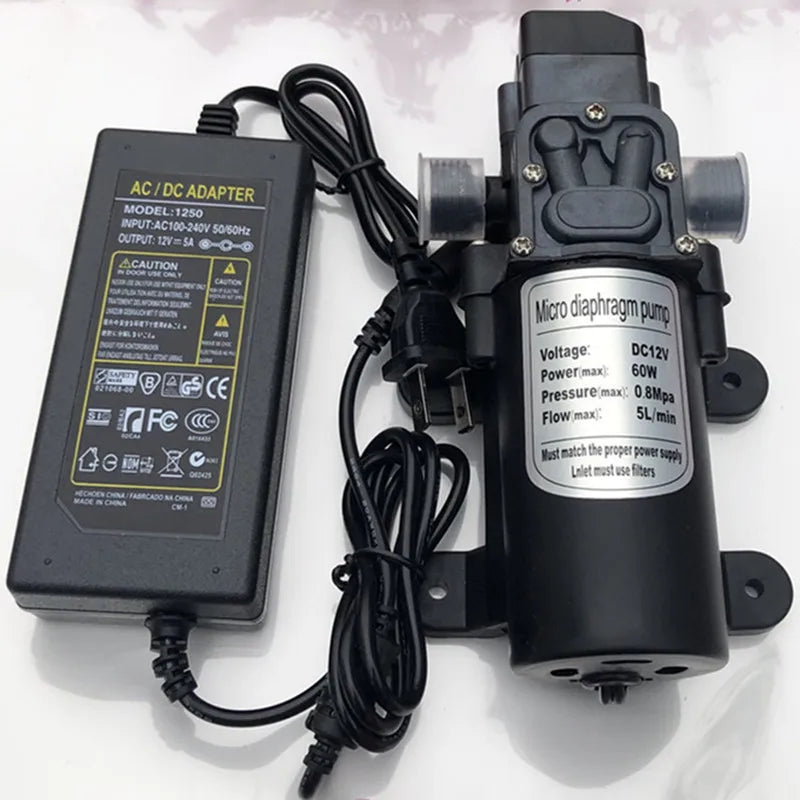

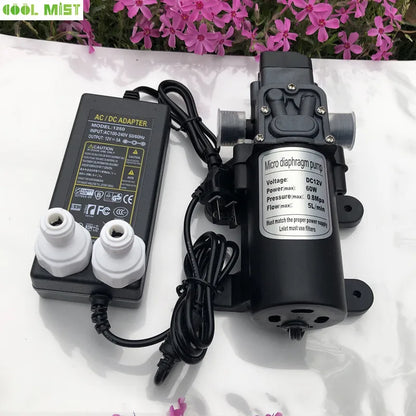

Power: 12V 60W

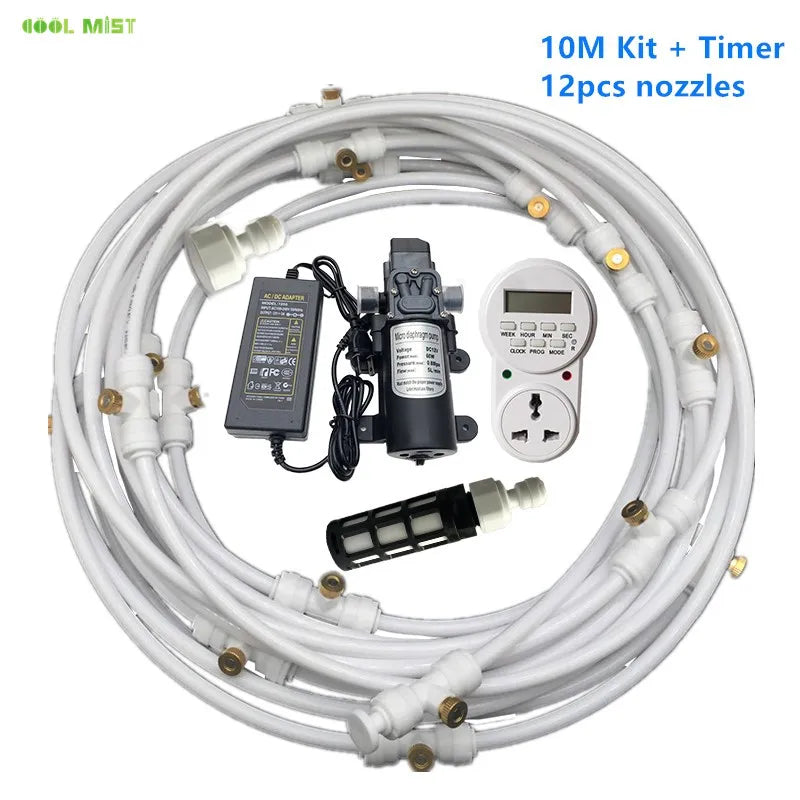

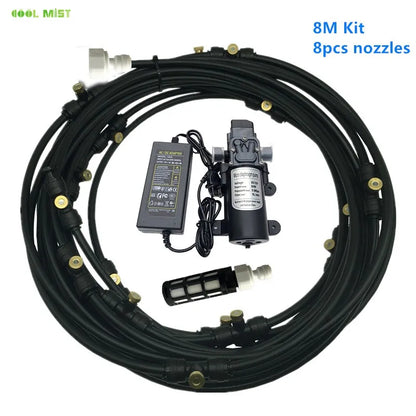

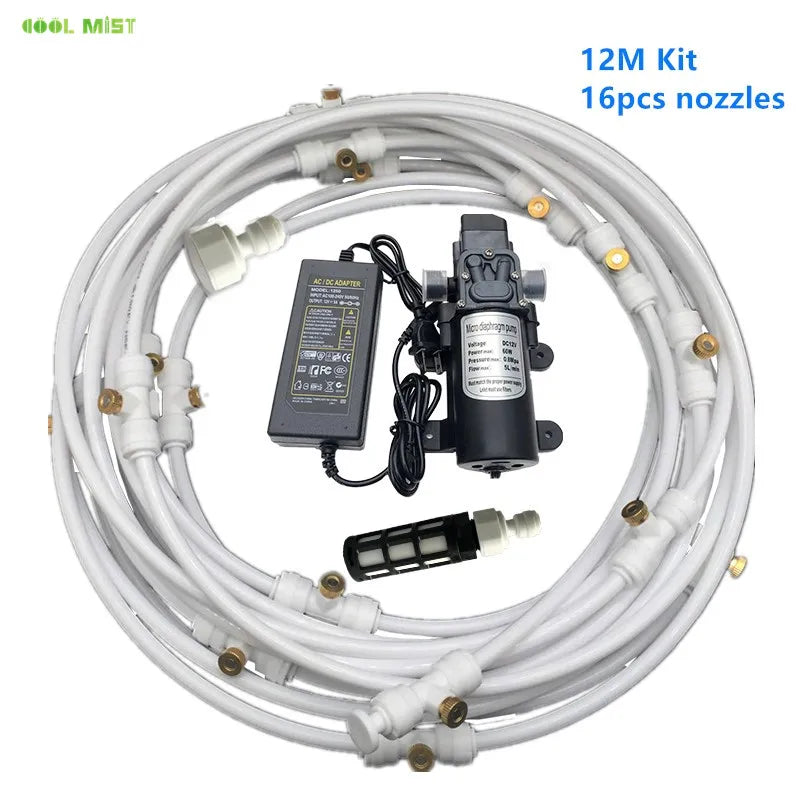

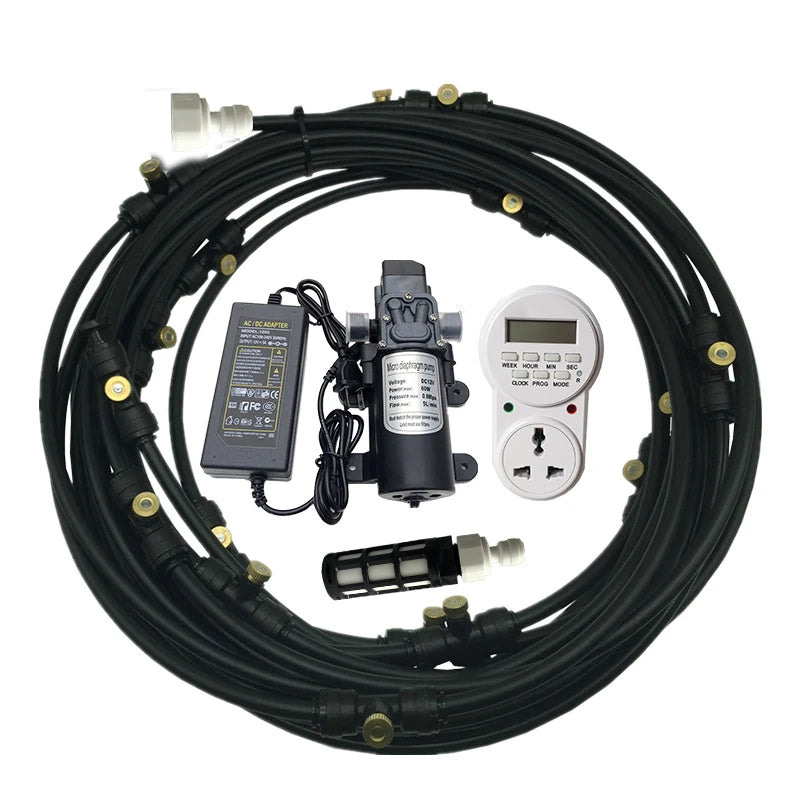

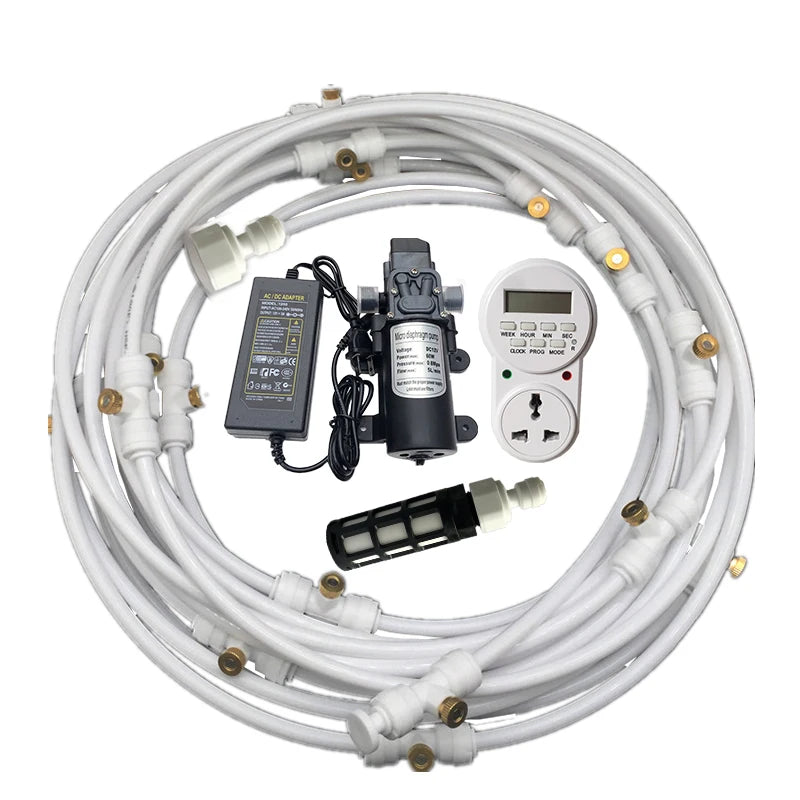

Product Name: 12V water pump misting kit
Productivity: 10000 Pcs/Month
Pump Liter: 5L/min
Sprayer Type: Pump
Type: Sprayers
Working Pressure: 0.8Mpa
Can be used for garden humidification and watering;
Automated irrigation to free your hands；
PE material, high safety factor, more confidence in use;

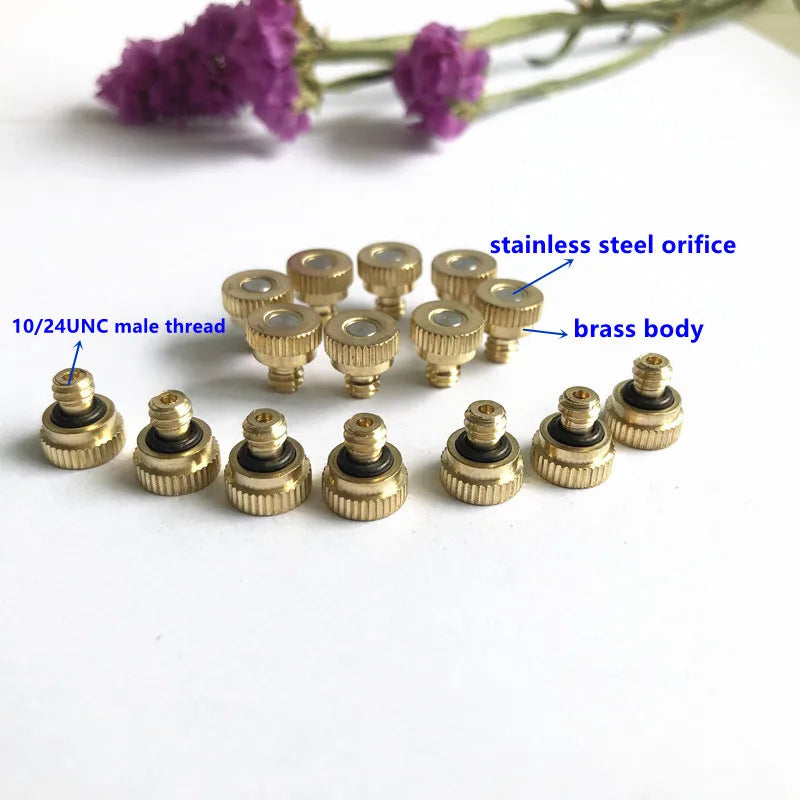

Nozzle Material: Brass body with stainless steel orifice inside.
Nozzle Thread: 3/16'' ( 10/24UNC)

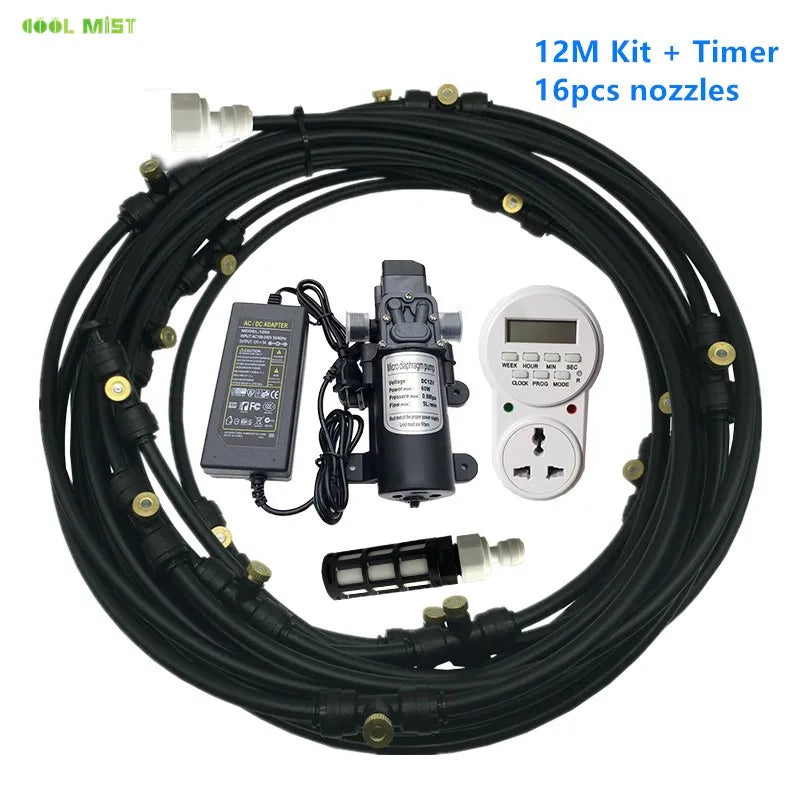

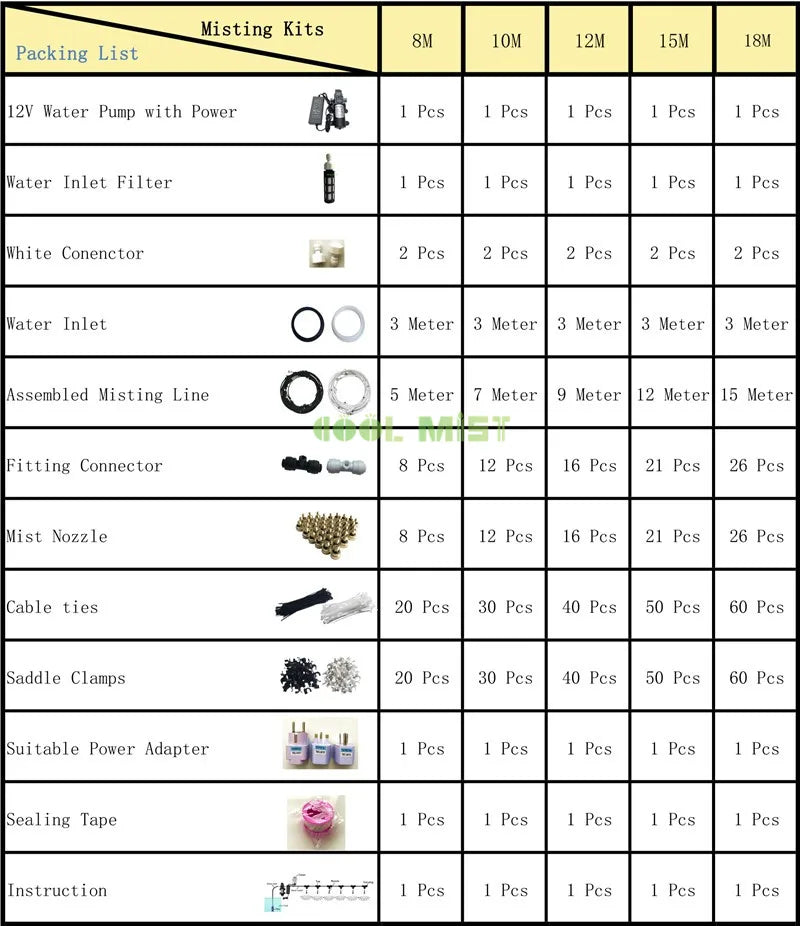

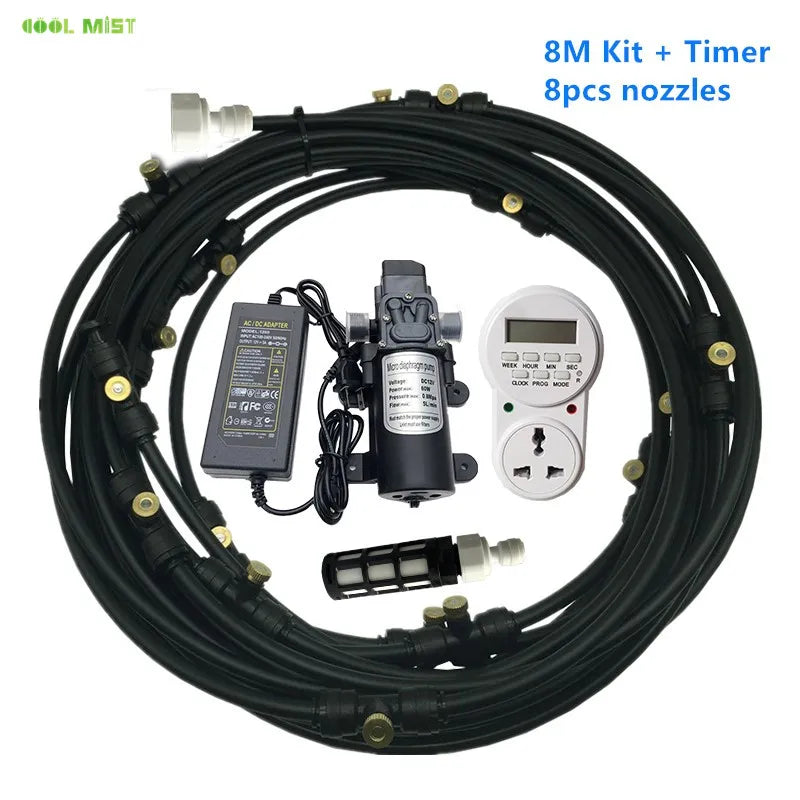

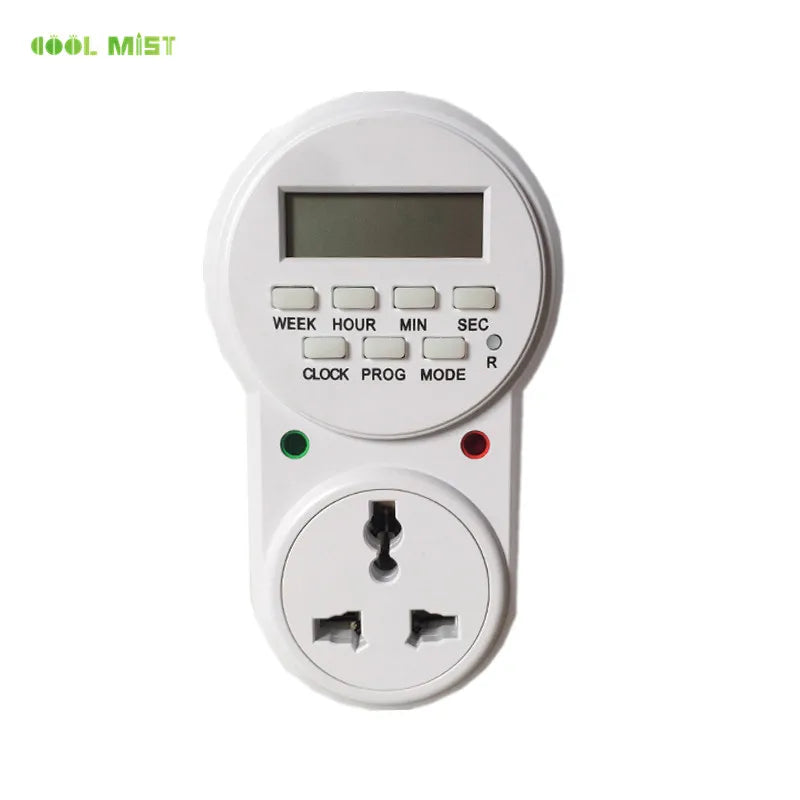

Timer:

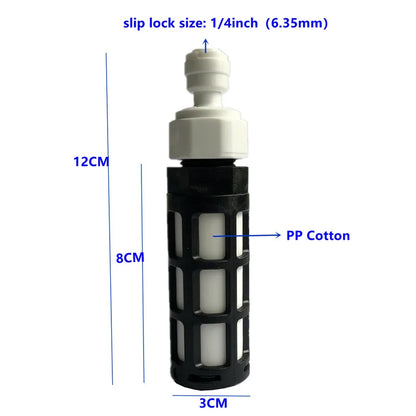

Inlet filter head:

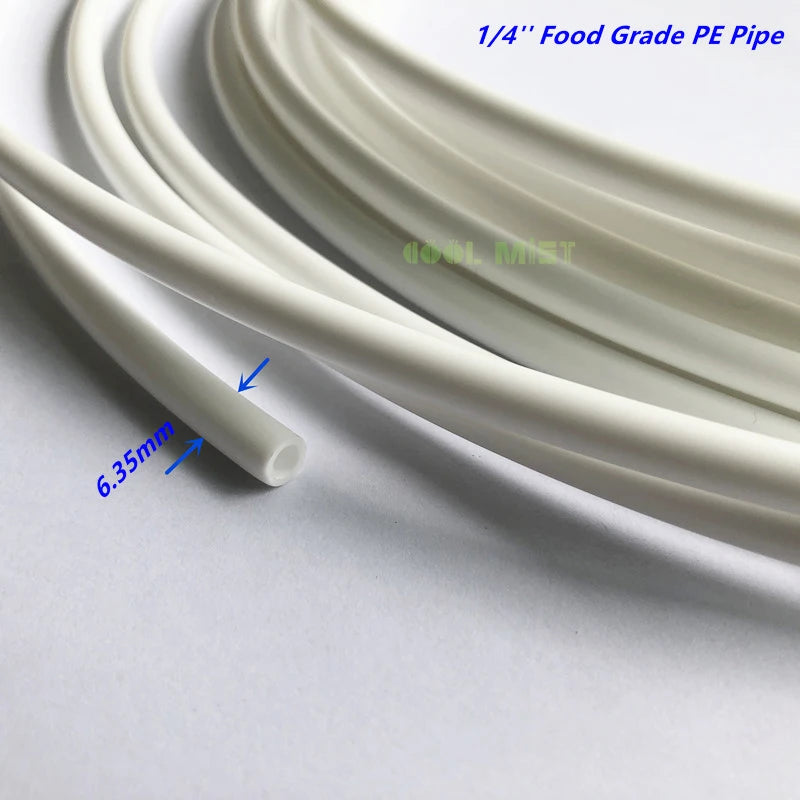

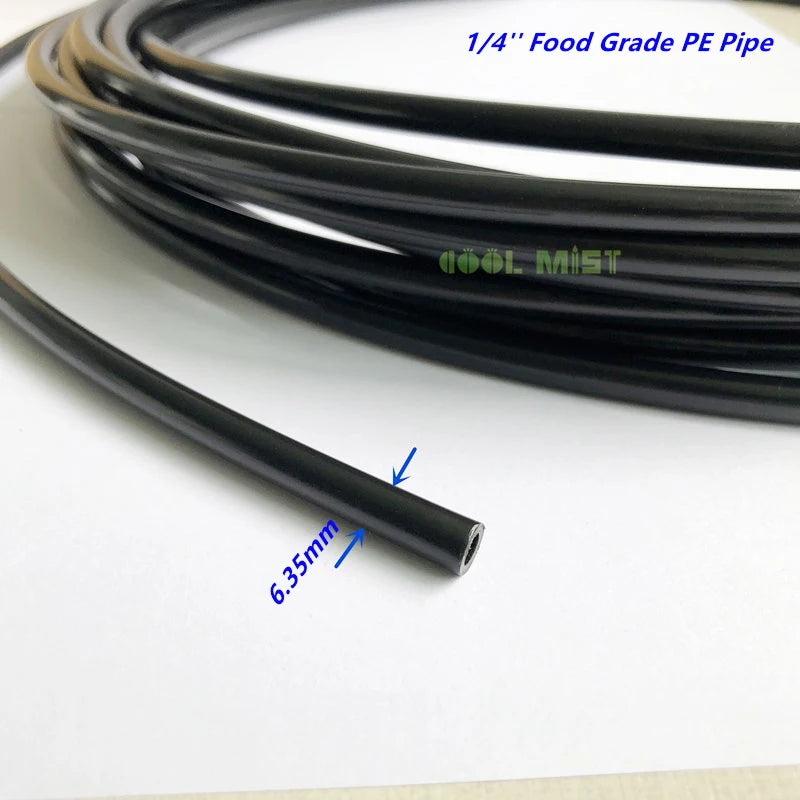

Hose:

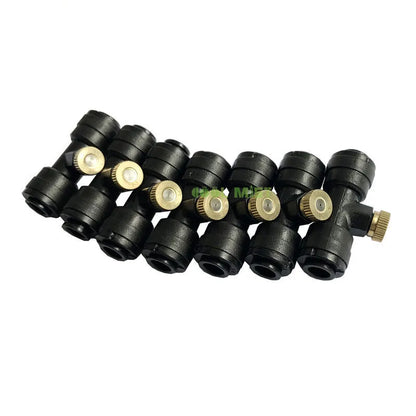

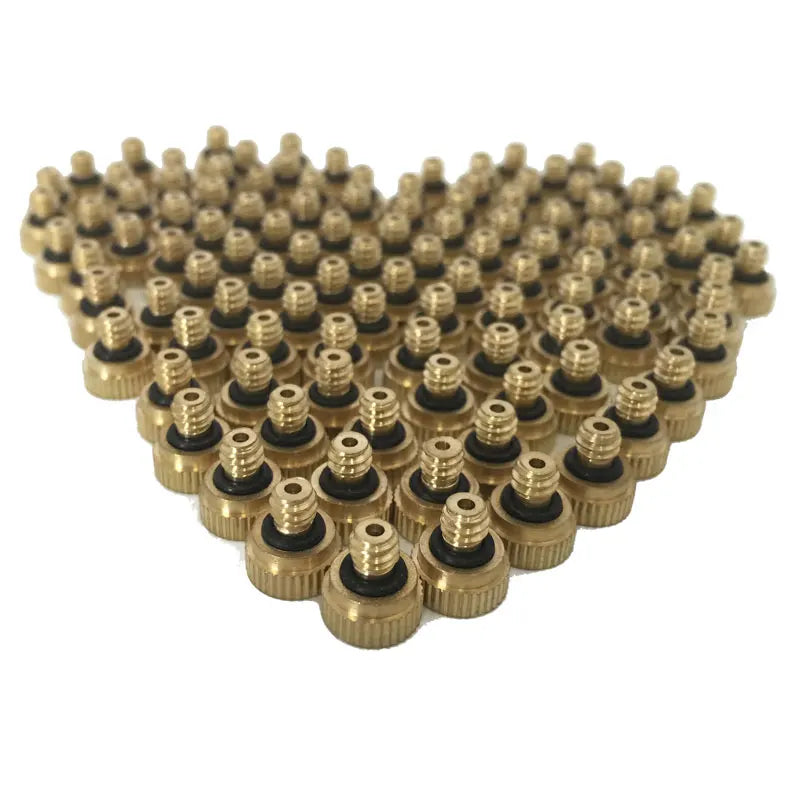

Nozzle:

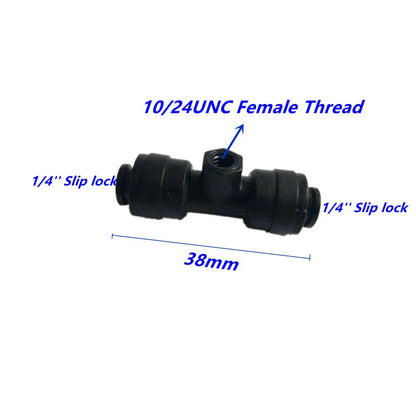

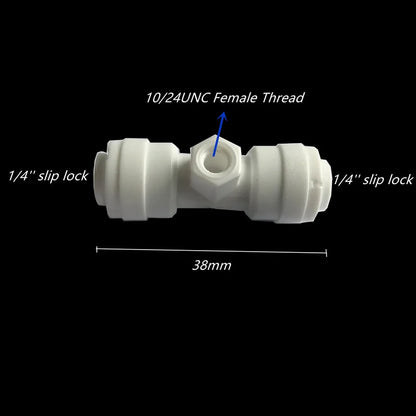

Fitting:

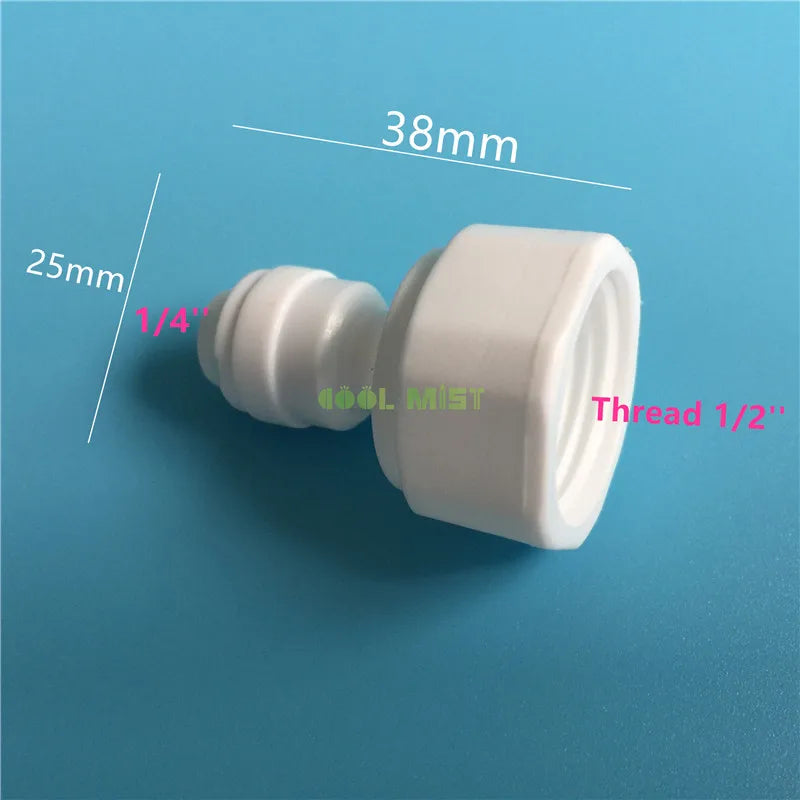

Connector:

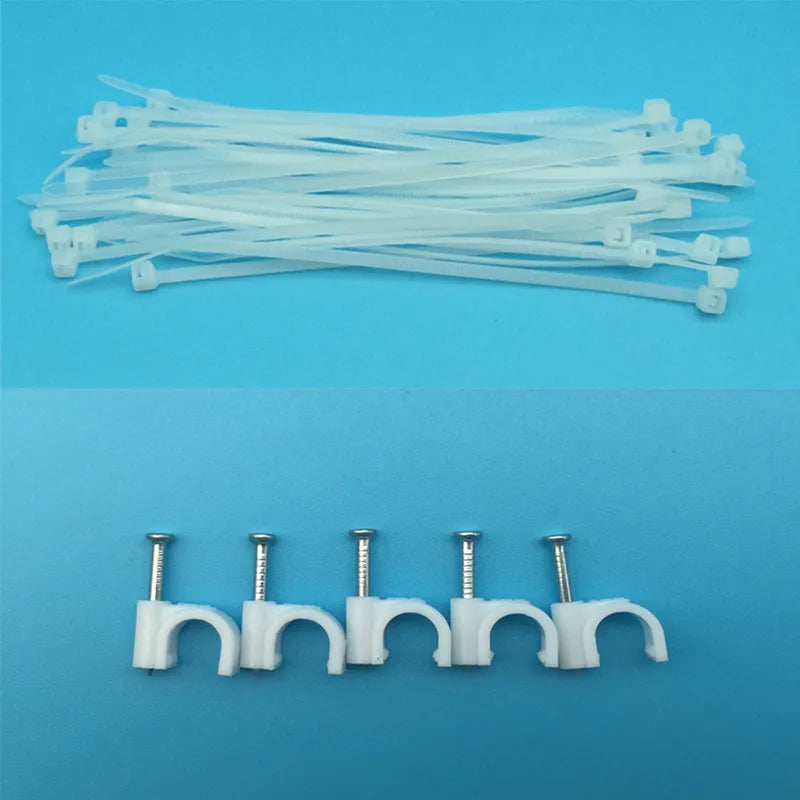

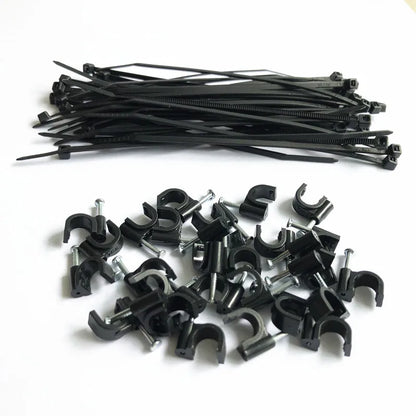

120mm length Cable ties and 7mm Clamps:

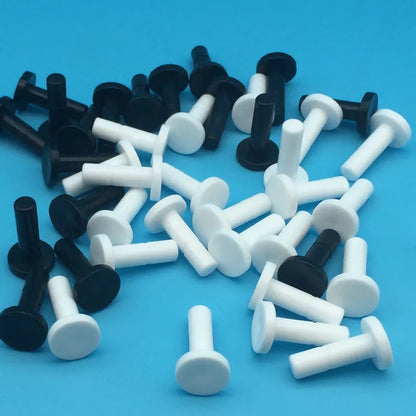

End plug:
Design Features

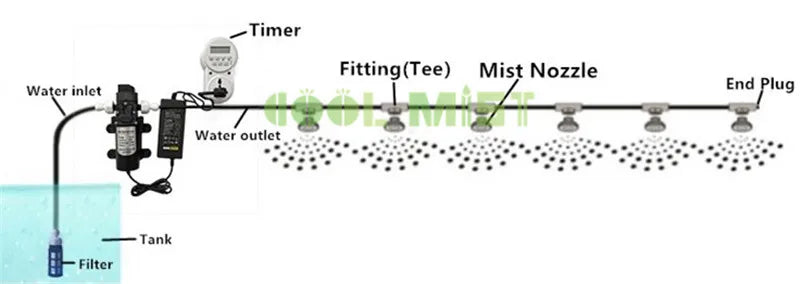

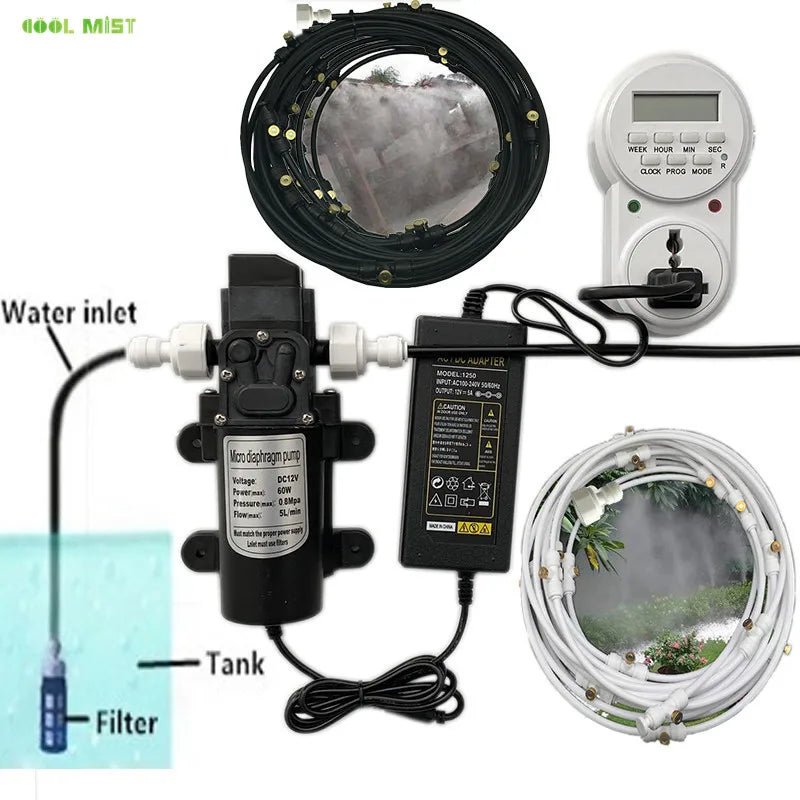

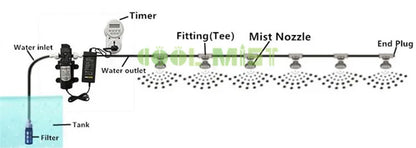

Installation Steps:

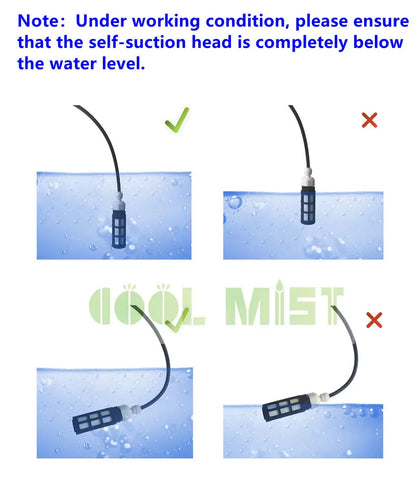

1. Keep the 3M water inlet totally immersed into the tank.

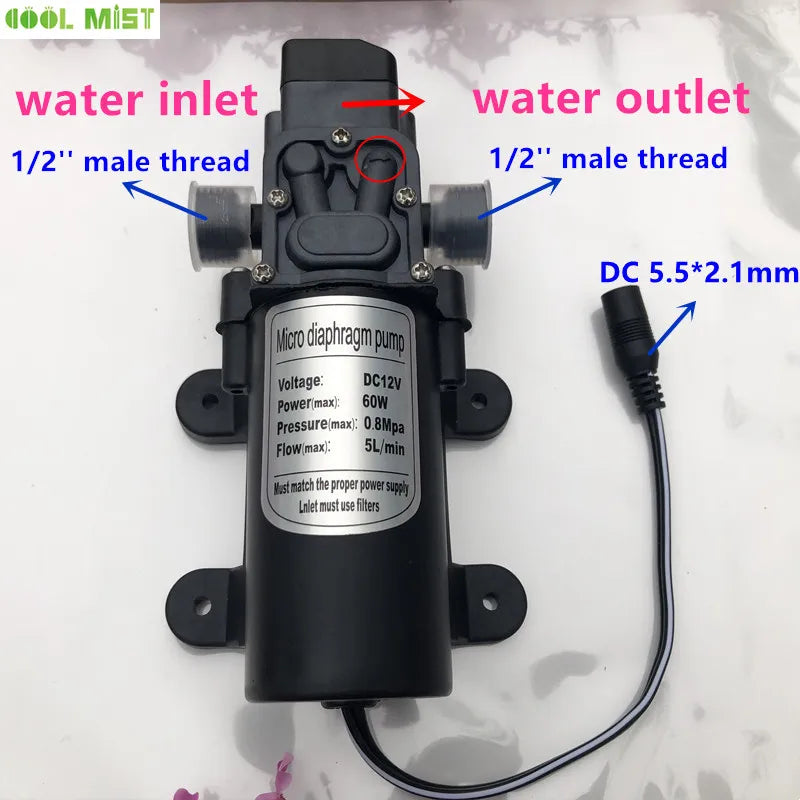

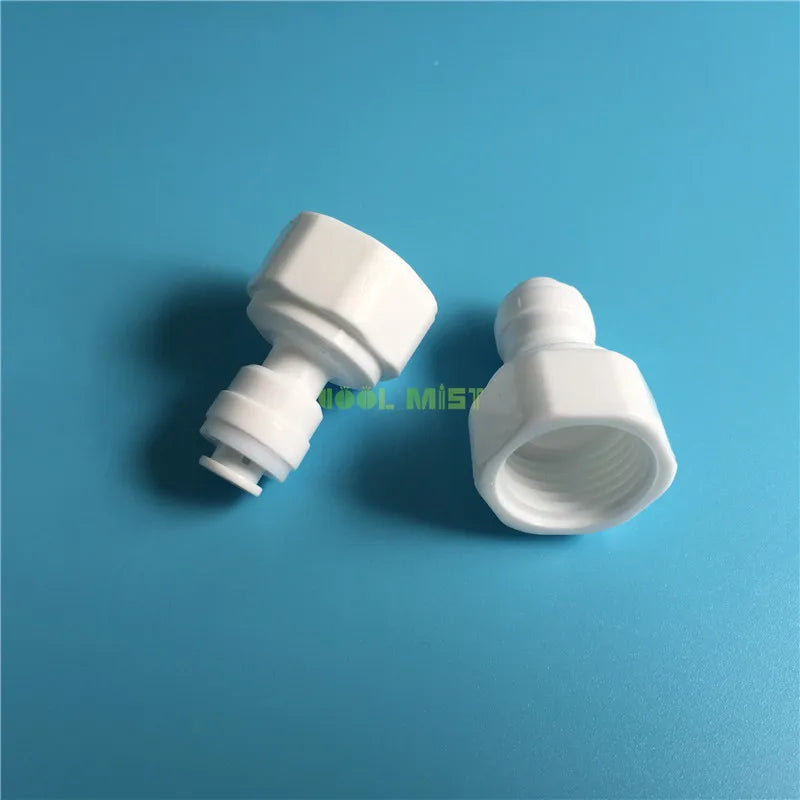

2. Connect hose and pump with 1/2'' white connectors, note the arrow direction of inlet and outlet on the pump.
3. Connect the power supply to wash the system for 1 minute to purge the system and remove any impurities.

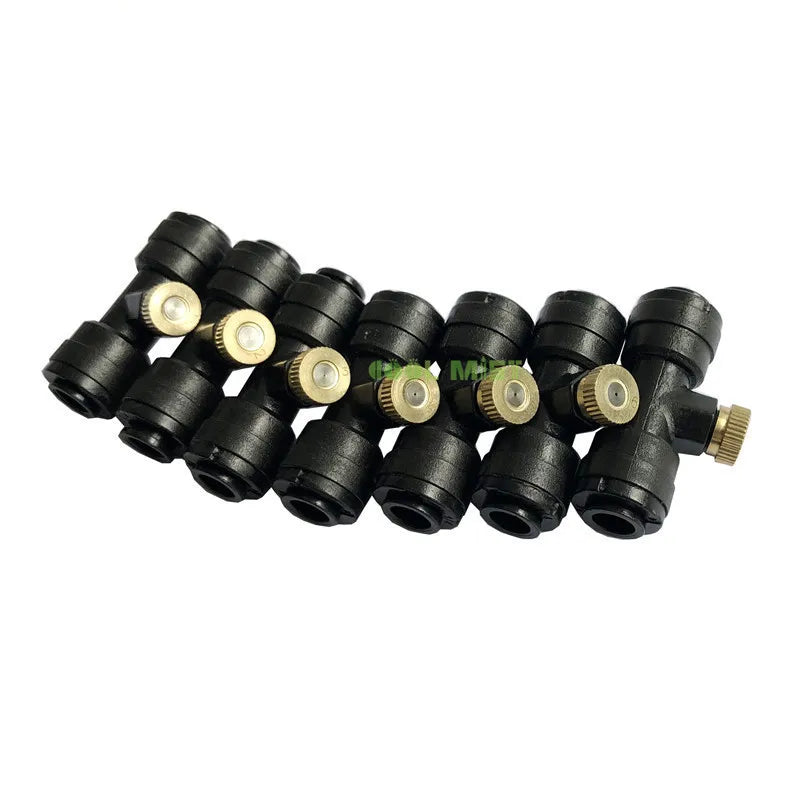

4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.
5. Turn on the power to wash the system for 2 minutes to insure that the system is fully purged.
6. Turn off the power and install the last nozzle into the fitting with the end plug.
7. Fix the misting line by the cable ties saddle clamps provided.
8. Turn on power then jets will work, enjoy the cooling misting system.
9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.
We are professional Misting System Product Production & Sales Company, more than 10 years misting irrigation manufacturer. We produce all kinds of irrigation sprinkler system, mist cooling system, drip irrigation system, watering kits, and other garden accessories.

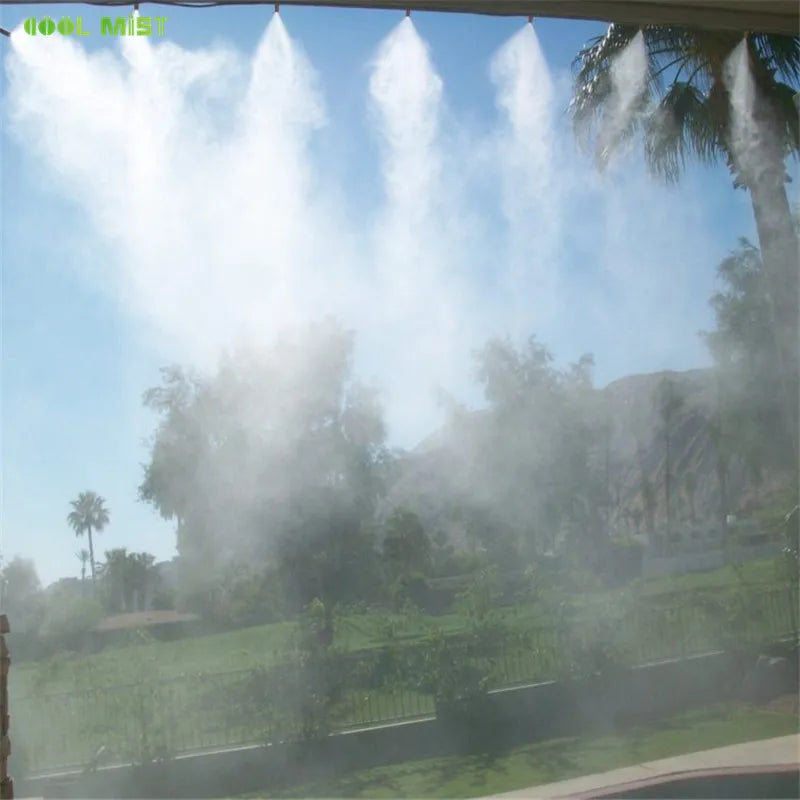

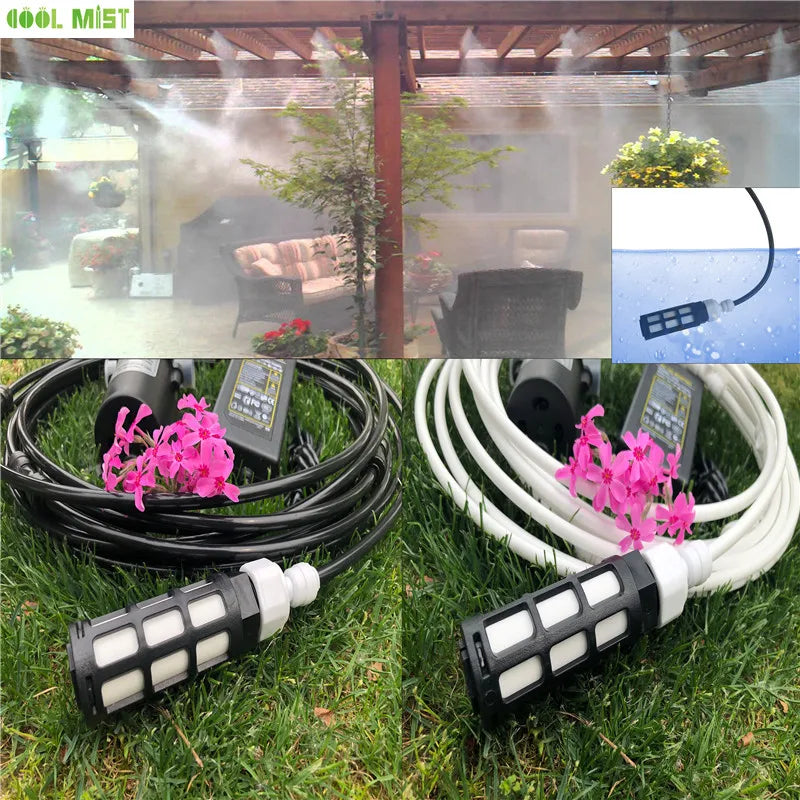

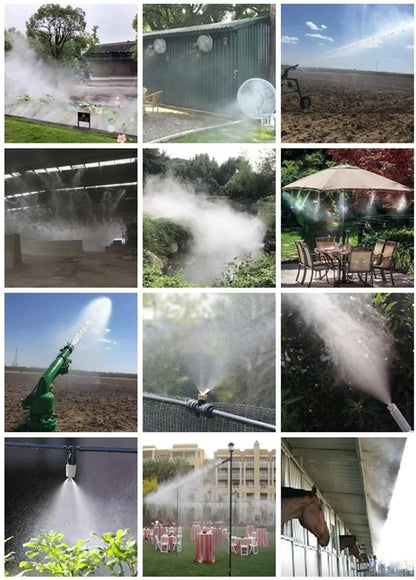

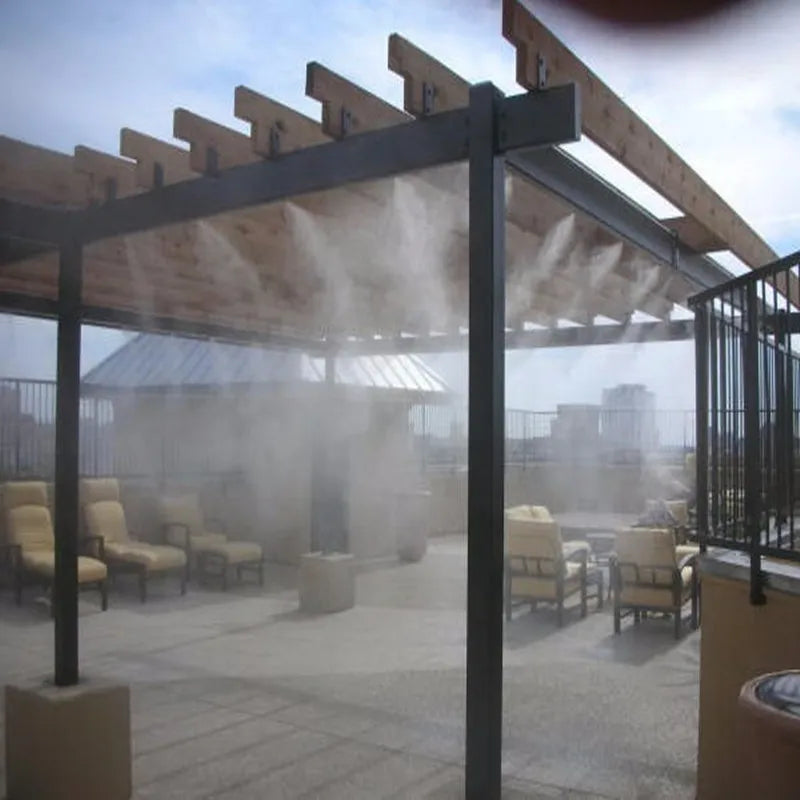

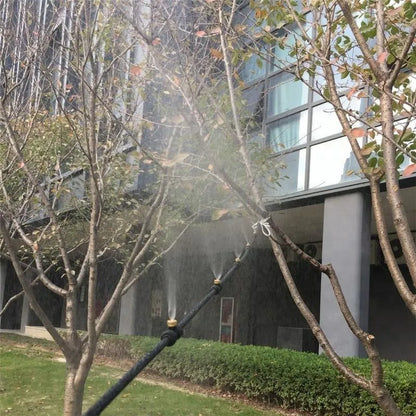

Water Mist Systems can be used in small residential backyards as well as large commercial venues. It means environmental control of temperature, dedusting, Landscaping and humidity is easily achievable.
