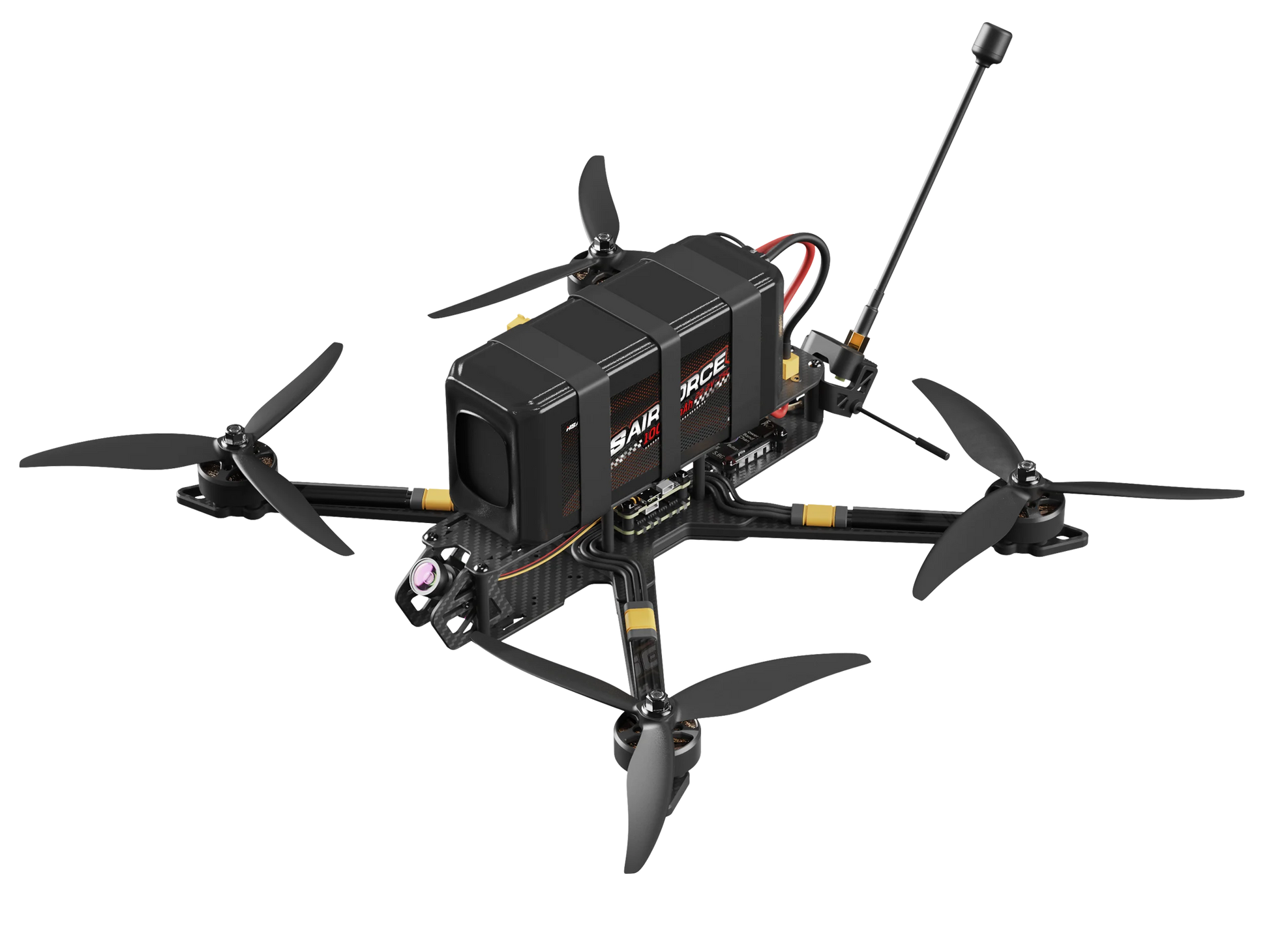

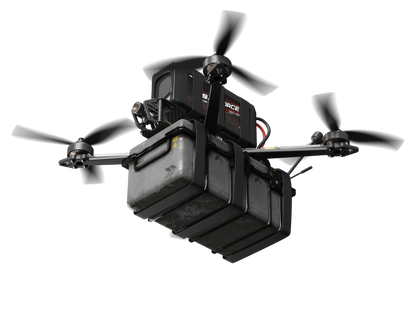

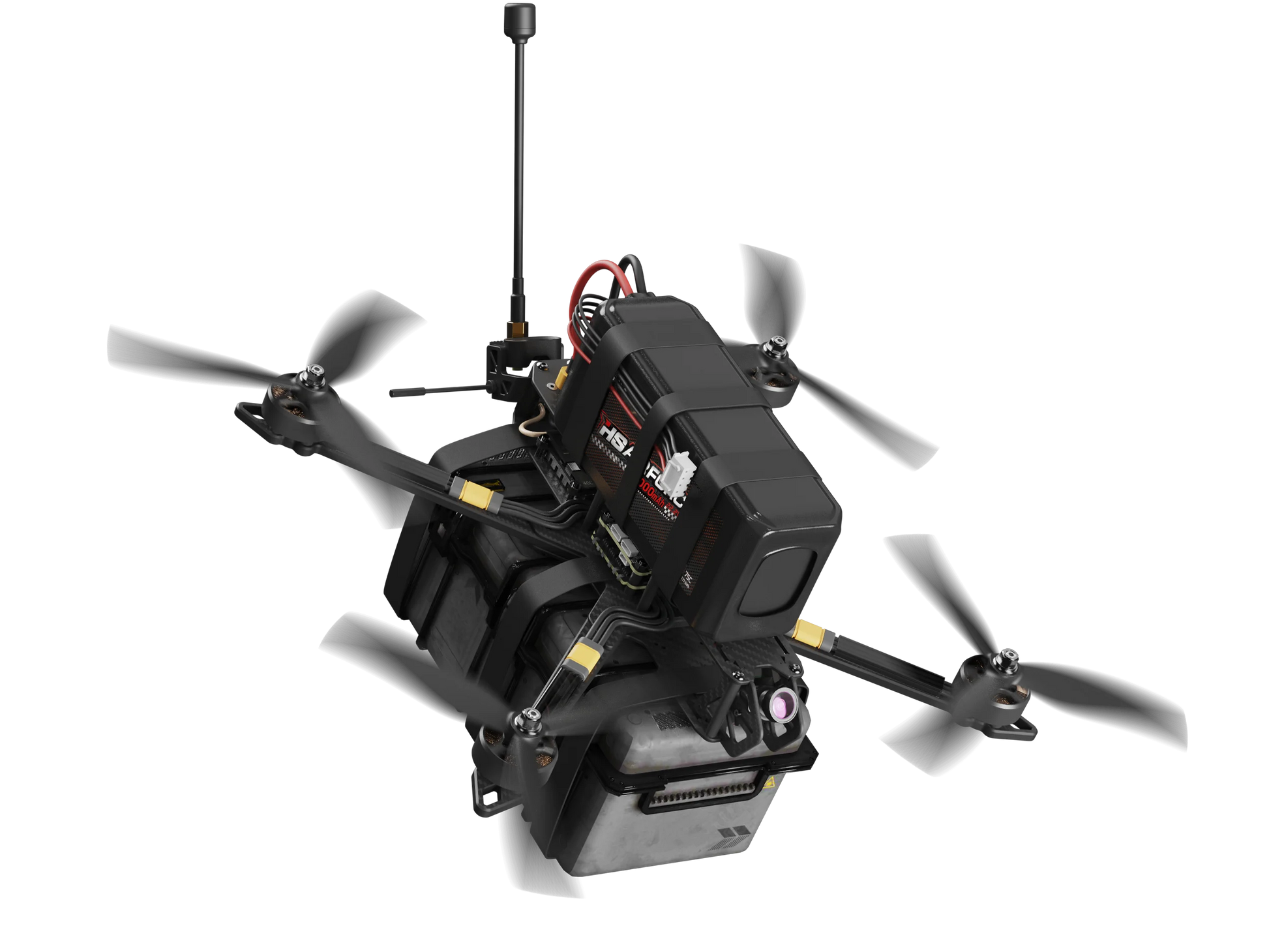

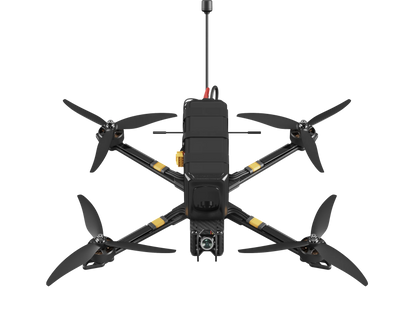

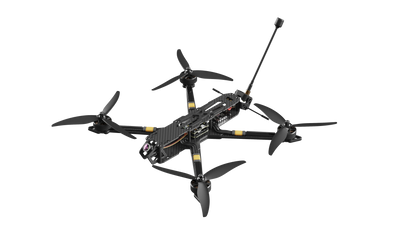

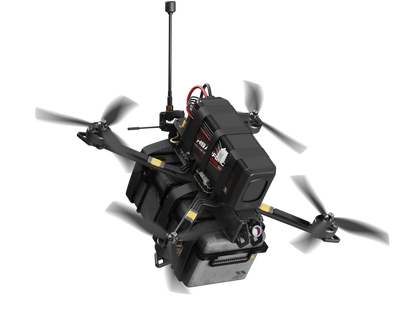

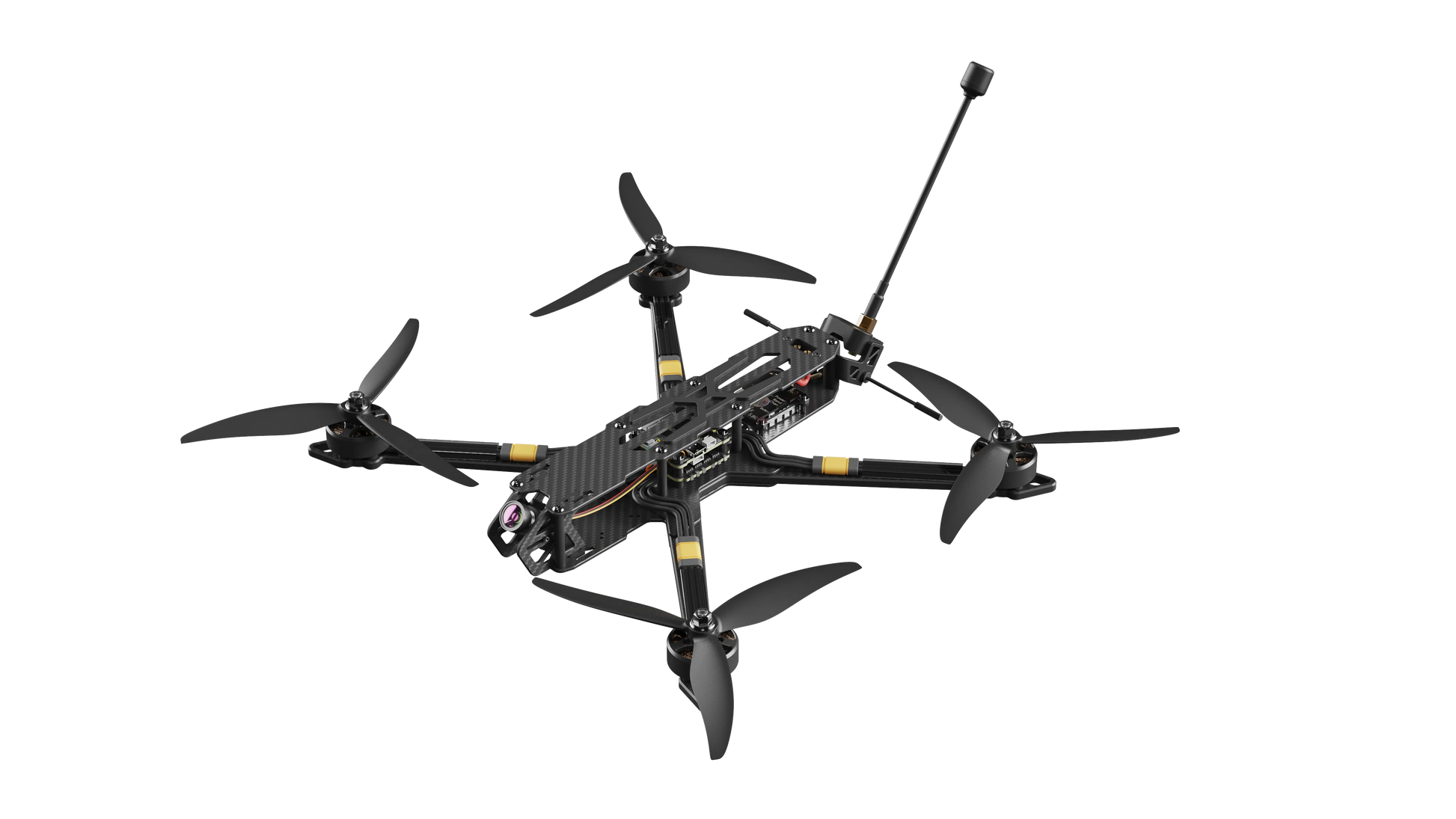

7 Inch Drone profesional Quadcopter Aerial Original FPV Racing HS-X07M drones 4k with HD Camera GPS RC Helicopter FPV Drone
7 Inch Drone profesional Quadcopter Aerial Original FPV Racing HS-X07M drones 4k with HD Camera GPS RC Helicopter FPV Drone
SPECIFICATIONS
Aerial Photography: Yes
Aircraf Operating Frequency: 2.4GHz
Brand Name: Droneer
Camera Features: 1080p HD Video Recording
Camera Integration: Camera Included
Camera Mount Type: other
Category: Camera Drone
Connectivity: Remote Control
Dimensions (Length * Width * Height): 228*289*36mm
Display Control: No
Drone Weight: 826.5g
ESC: 60A 4IN1
Empty Weight (Battery Not Included): 560g
Equipped with Aerosol Spraing System/Spread Tank Volume: No
Flight Controller: F405
Flight Time: 12min
GPS: No
Hign-concerned Chemical: None
Input Voltage: 3S-6S LiPo battery
Integrated propeller guard: Not Include
Max Payload: 2.5kg
Max Remote Control Distance: 10km+
Max Takeoff Altitude: 5000m
Max Takeoff Weight: <1kg
Max Tilt Angle: 360°
Max Wind Speed Resistance: < 10 KM/H
Model Number: HS-X07M
Motor: 2807-1350kv
Motor Type: Brushless Motor
Obstacle avoidance types: No support
Operating Temperature[°C]: -10℃ to 40℃
Origin: Mainland China
Rated Payload: 2kg
Recommended Battery: 6S 8000mAh 75C LiHV
Remote Distance: 10km+
Sensor Size: 1/1.28 Inches,1/1.0 inches
Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）
Wheelbase: 325mm
7 Inch Drone profesional Quadcopter Aerial Original FPV Racing HS-X07M drones 4k with HD Camera GPS RC Helicopter FPV Drone
FPV Specifications
Flight Controller |
F405 |
ESC |
60A 4IN1 |
Motor |
2807-1350kv |
Propeller |
7040-3 |
Input Voltage |
3S-6S LiPo battery |
Recommended Battery |
6S 8000mAh 75C LiHV |

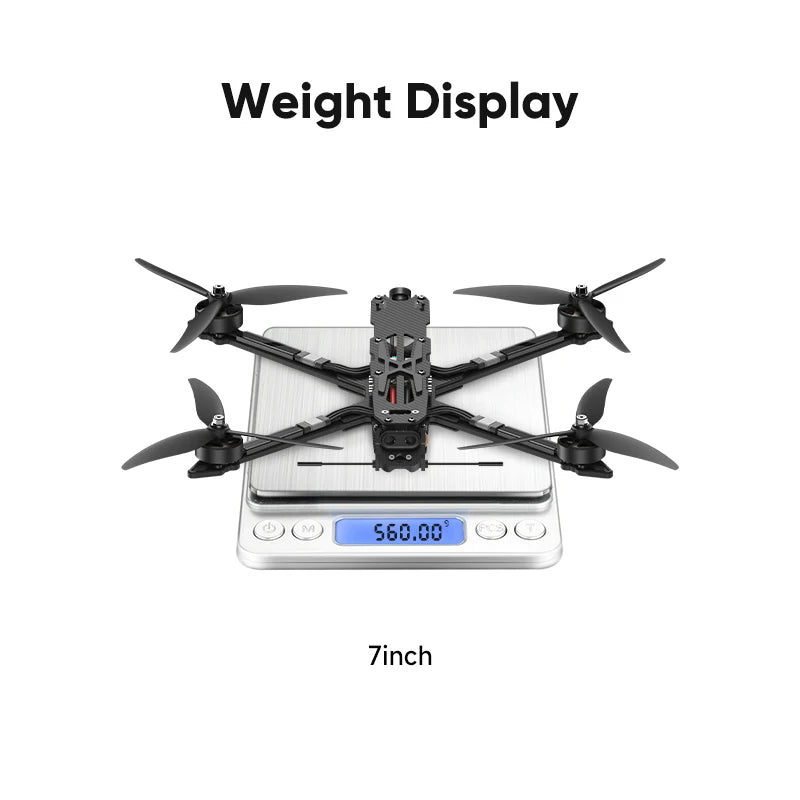

Empty Weight (Battery Not Included) |
560g |

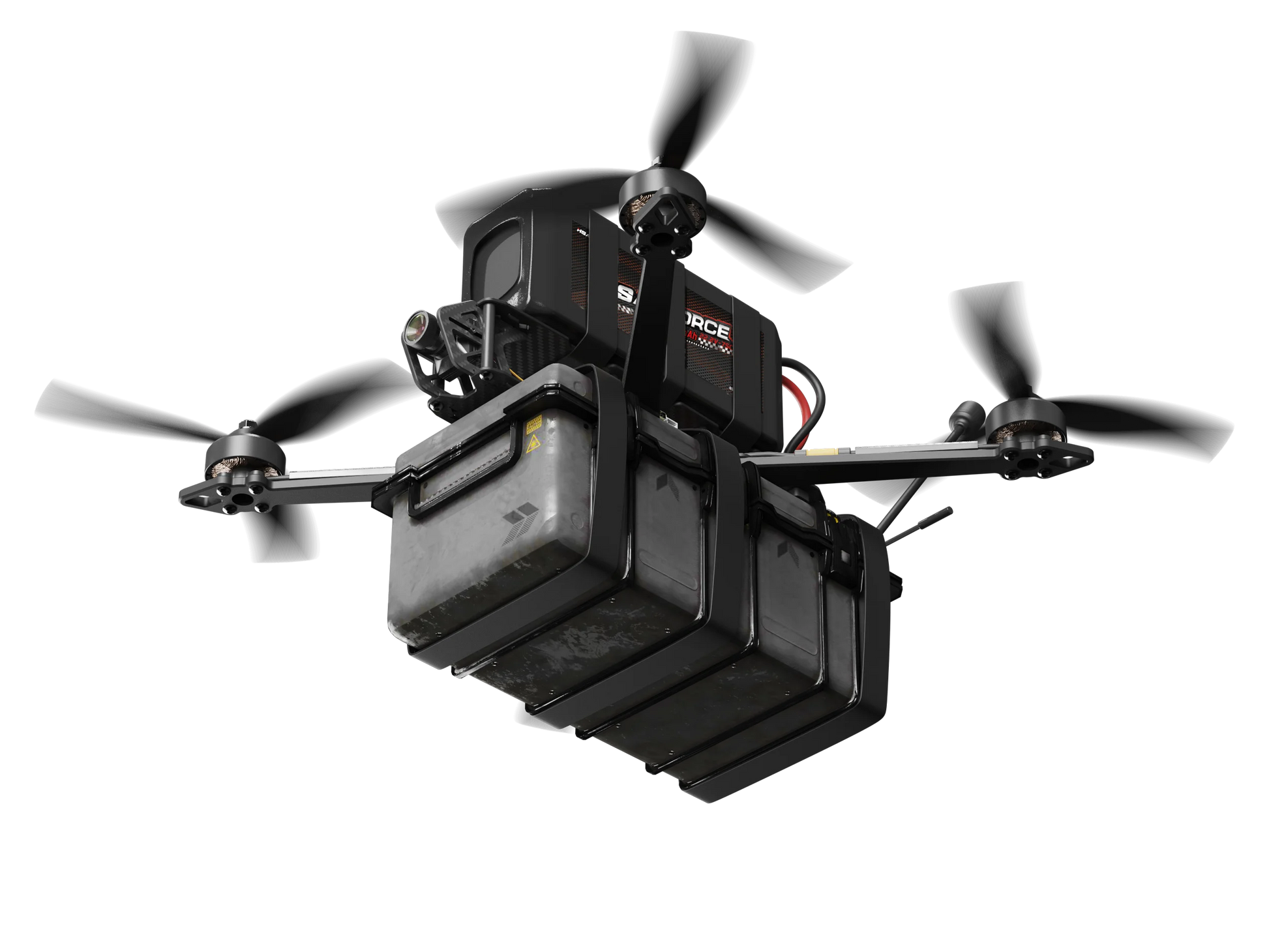

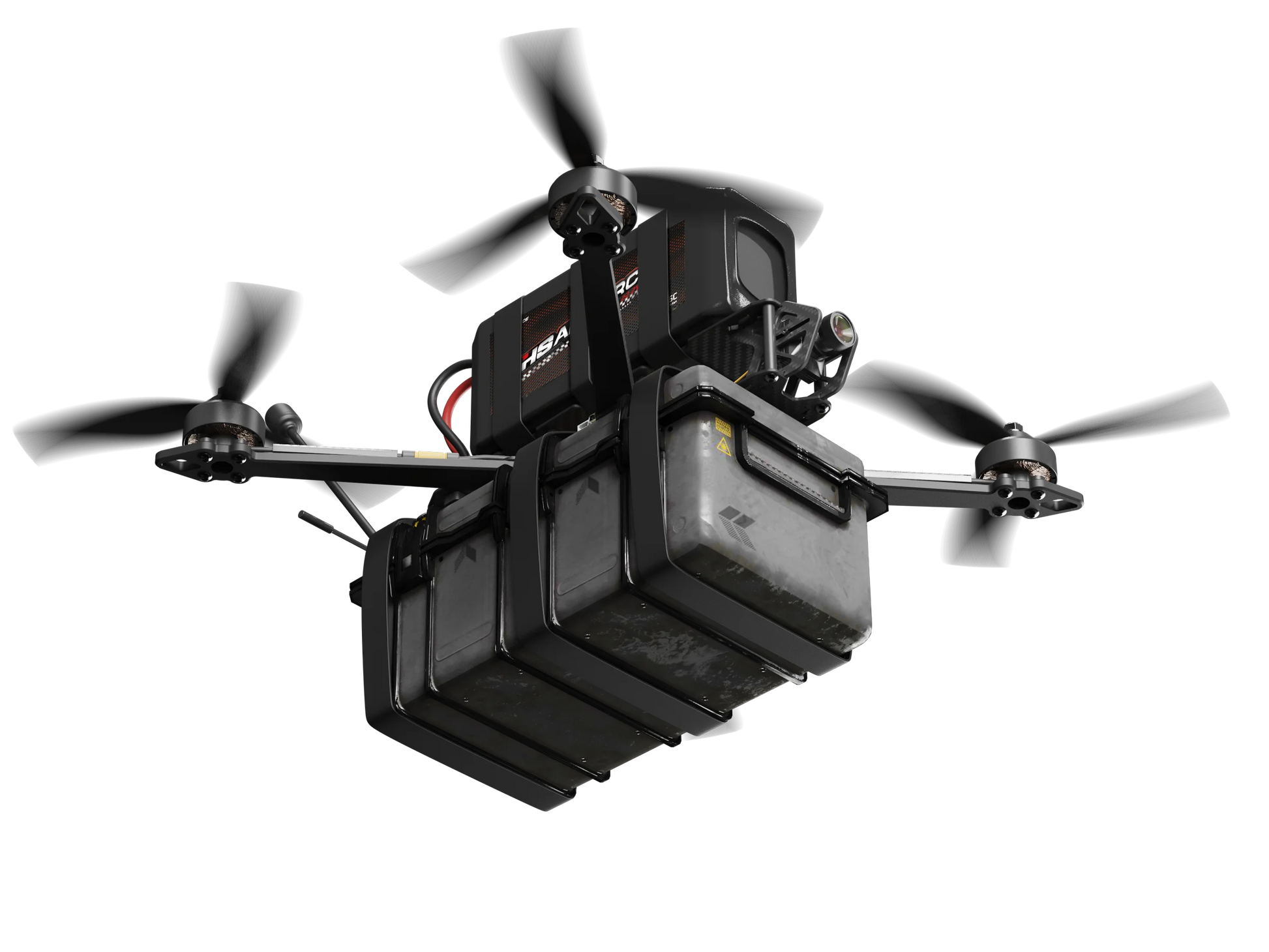

Rated Payload |
2kg |
Max Payload |
2.5kg |
MTOW/Max Takeoff Weight |
4kg |
Max Remote Control Distance |
10km+ |
Operating Voltage |
6S liPo/6S LiHv |
Rated Load Hovering Time |
11min |
Full Load Hovering Time |
8min |
Max Tilt Angle |
360° |
Max Horizontal Flight Speed |
150km/h |
Max Takeoff Altitude |
5000m |
Max Ascend Speed |
12m/s |
Max Descend Speed |
20m/s |
Max Wind Resistance Level |
6 |
Default Max Angular Speed |
Pitch Axis:670 °/s; |
Receiver Frequency Band |
ELRS 915Mhz (other bands can be customized) |
VTX Transmitte Power(default 3W) |
25mW/1.6W/2W/2.5W/3W |
VTX Transmitte Frequency Band |
5.8Ghz (other bands can be customized) |
VTX Transmitte Antenna SWR |
＜1.5 |
VTX Transmitte Antenna Gain |
3dB |

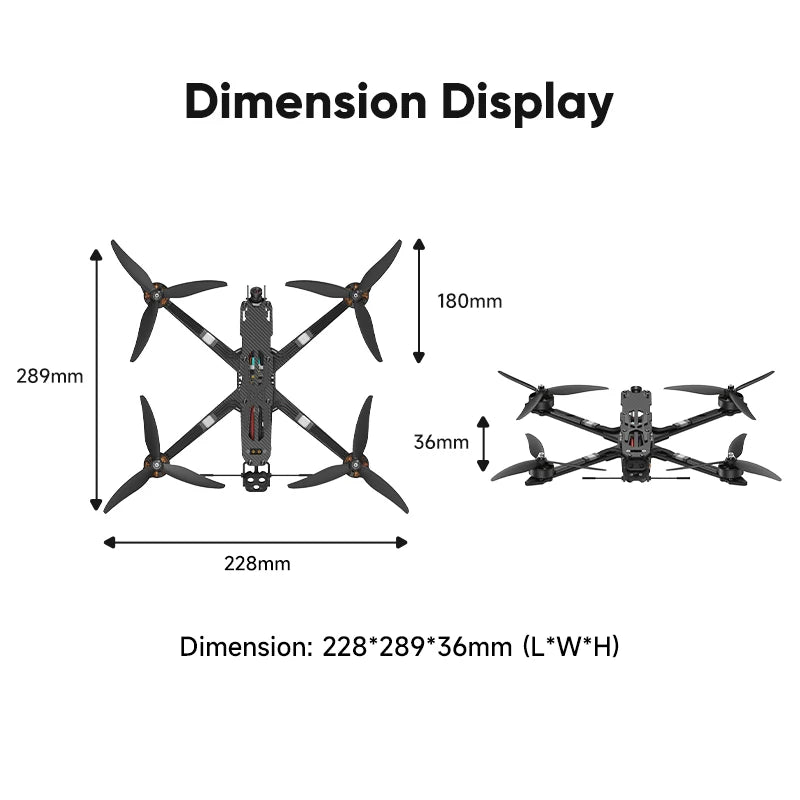

Dimensions (Length * Width * Height) |
228*289*36mm |
Wheelbase |
325mm |

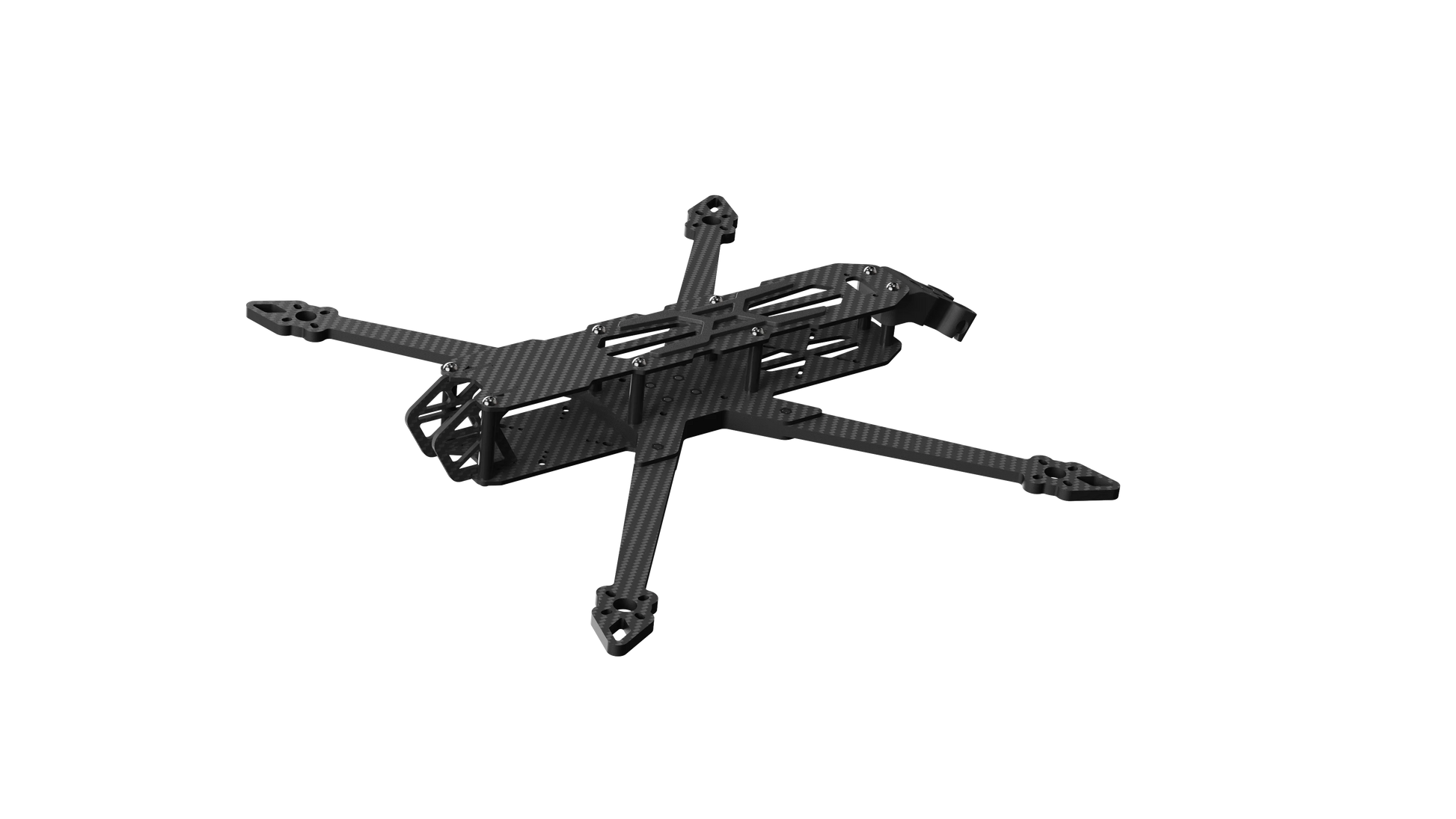

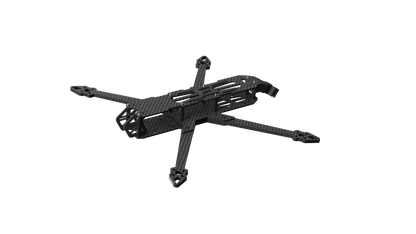

Frame Material |
T300 Carbon fiber |
Operating Temperature |
-10℃ to 40℃ |
GPS Positioning System
(Default does not come with this function, can be optional)
Hovering Accuracy (GPS mode) |
Vertical: ±0.5m |
|
|
Return-to-Home Accuracy (GPS mode) |
±1m |
|
Motor Specifications
| |||||||||||||||||||||||||||||||
|
Propeller Specifications
| |||||||||||||||||||
|
FC Specifications | |
Processor/Flight Controller |
STM32F405 |
Gyroscope |
ICM42688-P |
Barometer |
Bosch BMP280 |
OSD |
AT7456E |
Black Box |
16MB |
Dual-Camera Switch |
YES |
DJI Dedicated Interface |
YES |
USB Port |
Type-C |
Voltage Input |
3S-8S LiPo battery |
BEC |
5V/3A ; 9V/2A |
Number of Uart |
5 |
ESC Output |
8 set |
I2C Protocol |
YES |
Mounting Hole Pitch |
30.5*30.5 φ4mm |
Firmware |
Betaflight |
|
ESC Specifications | |
ESC Main Controller |
EFM8BB21F16G |
MOSFET |
High-performance MOSFET |
Voltage Input |
3S-6S LiPo battery |
Continuous Current |
60A*4 |
Peak Current |
65A(10S) |
ESC Telemetry |
YES |
Current Scaling |
270 |
ESC Protocol |
DShot 150/300/600 |
Firmware |
AM32_AT32DEV_F421_1.99 |
Mounting Hole Pitch |
30.5*30.5mm |
|
Receiver Specifications | |
Operating Frequency |
915Mhz |
Receiver Protocols |
ELRS |
Max Receiver Refresh Rate |
200HZ |
Minimum Receiver Refresh Rate |
25HZ |
Return Power |
50mW |
Voltage Input |
DC 4.5-5V |
Receiver Dimensions |
12*12*2mm |
Weight |
0.6g (receiver only） |
Receiver Antenna Type |
“T”Shape |
|
Camera Specifications | |
Sensor |
1/2.7'' Inch Blacklight Sensor |
Horizontal Resolution |
1500TVL |
Video Format |
PAL/NTSC (optional) |
Image Ratio |
16:9 |
Wide Dynamic Range |
Super WDR |
Low Illumination |
0.00001Lux |
Lens |
2.1mm |
Electronic Shutter |
PAL: 1/50-100.000SEC. NTSC:1/60-100,000 |
Video Output |
CVBS |
FOV |
135° |
Day/Night |
Color /AR Black Light/Auto |
Size |
19mm*19mm |
Wide Voltage Input |
DC 5V-20V |
Operating Temperature |
-20℃~70℃ |
Weight |
6g |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
