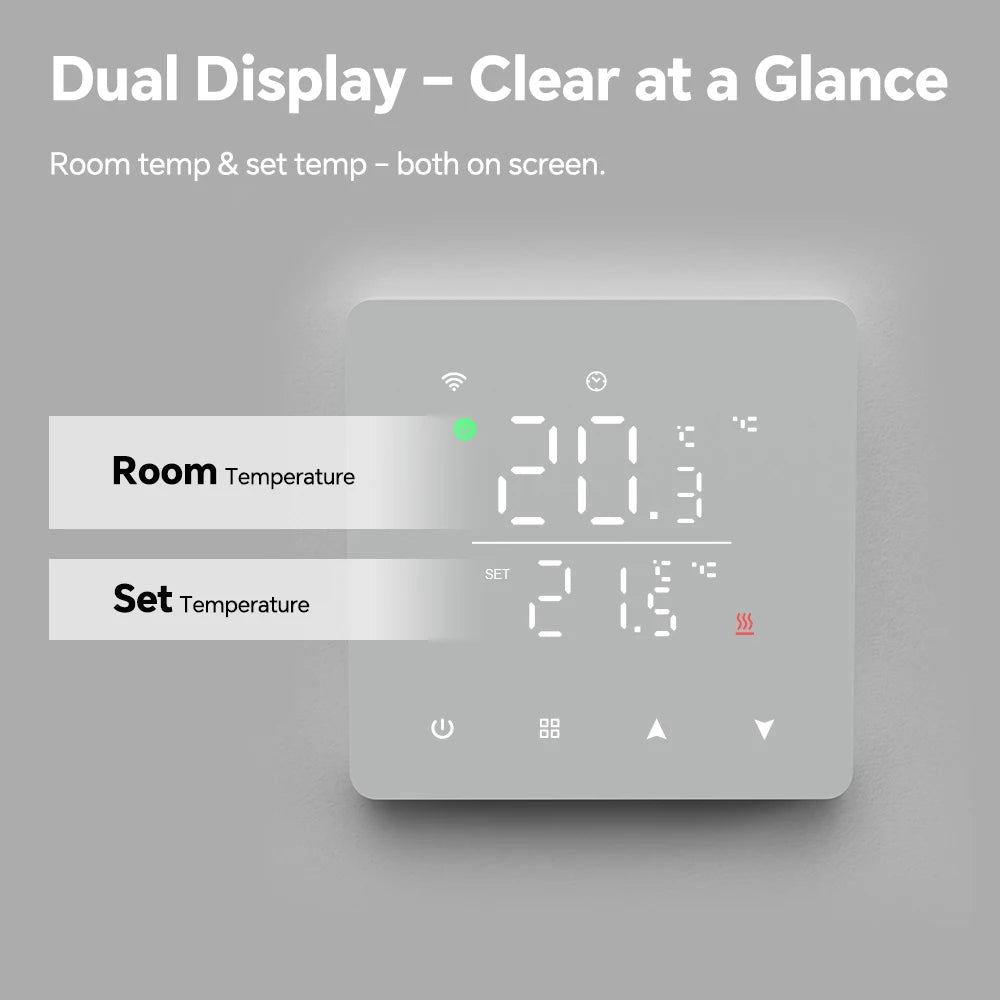

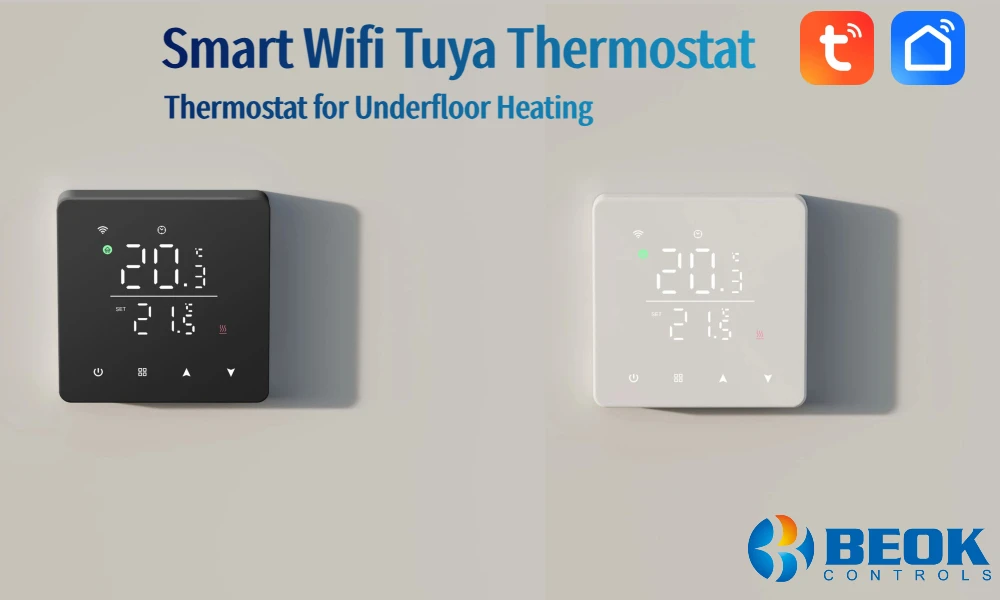

The digital heating liquid crystal temperature controller adopts the most advanced microcomputer control chip in the world, and detects the temperature through a high-precision sensor inside the thermostat. And in real time, compared with the temperature set by the user, the load (electric heating device or valve) is automatically turned on and off to achieve the purpose of maintaining the indoor constant temperature.

Features:

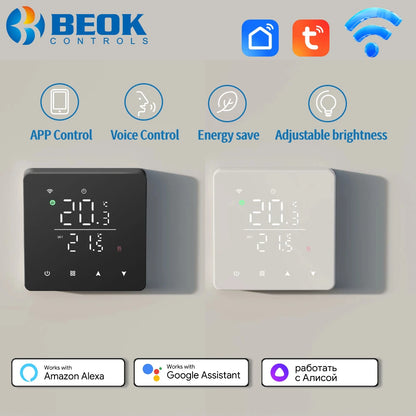

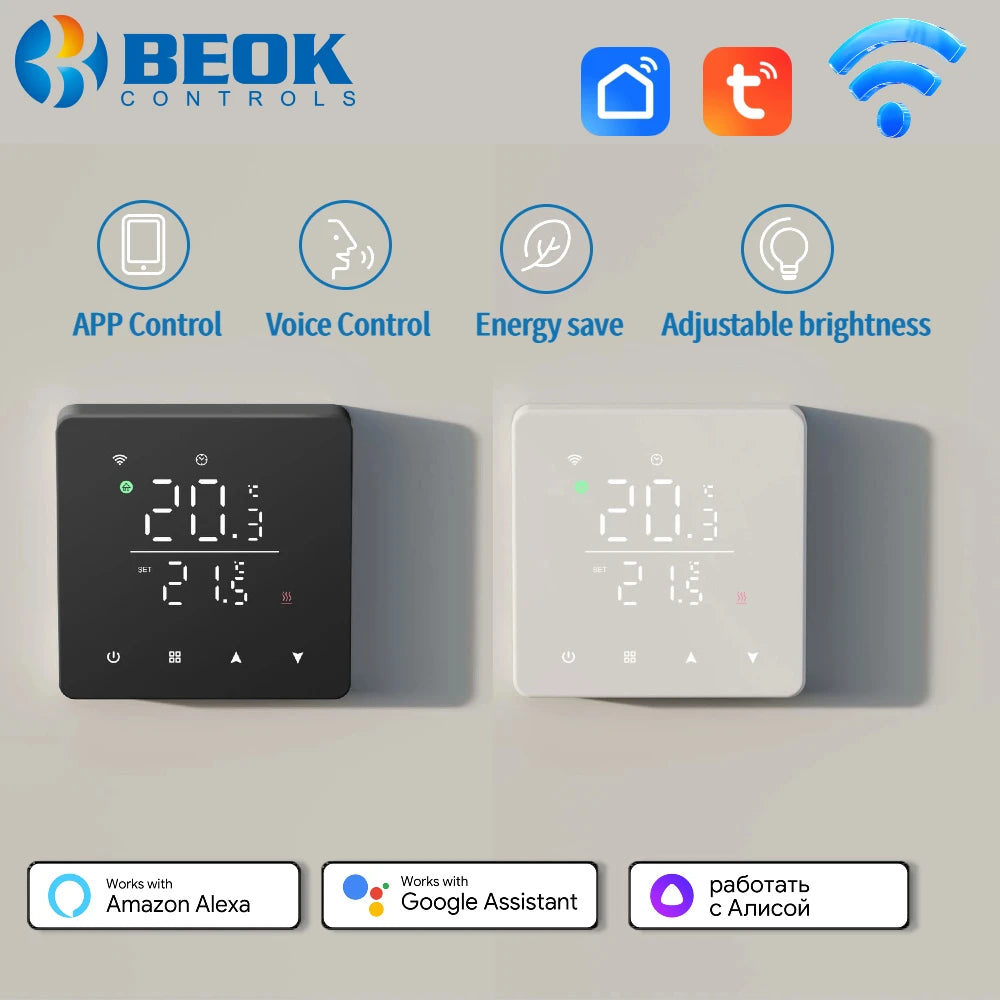

【Wifi Thermostat】The thermostat can be connected to Tuya and smart life apps, allowing for remote control anytime, anywhere.
【Voice Control】Work with Google Home,Alexa,Alice.

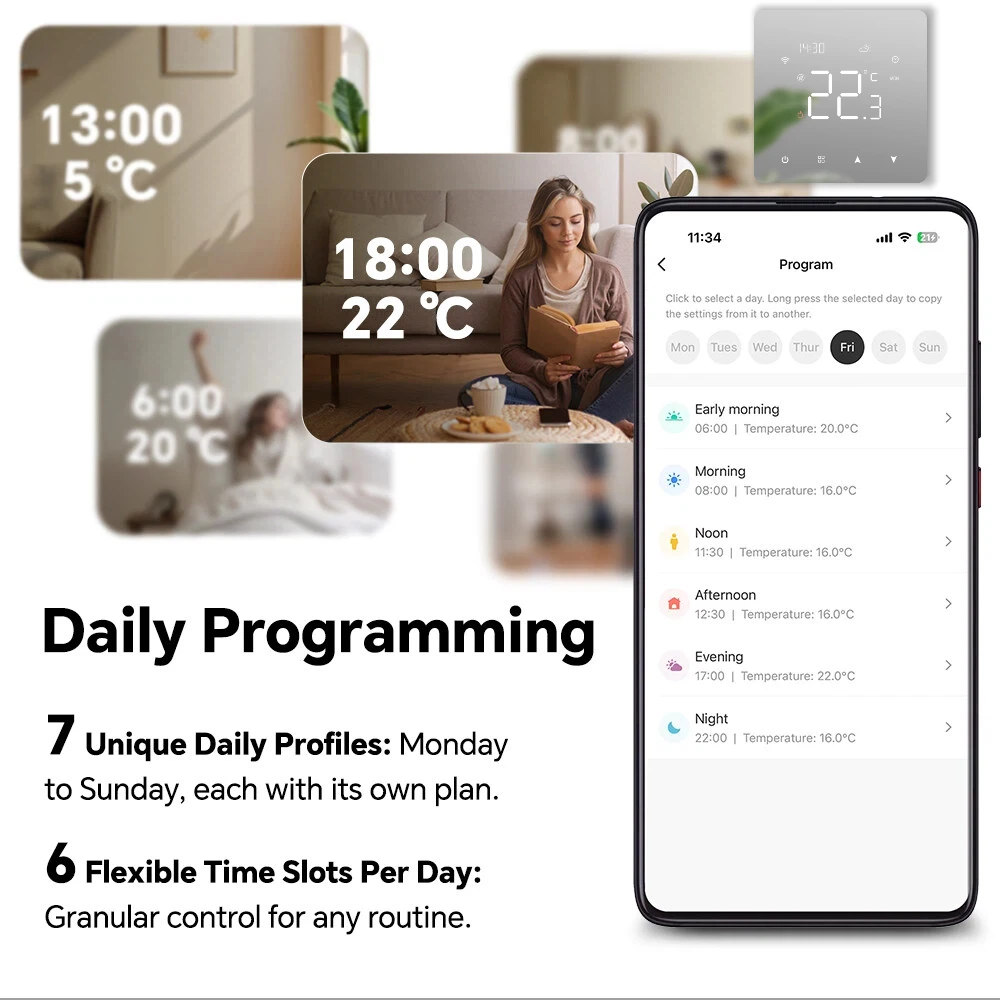

【Programmable】It can be programmed daily and allows for more flexible time periods to be set.
【Window opening function】Room temperature drops by 6°C within 4 minutes, heating stops.Deactivation: Room temperature rises by 3°C / 48 minutes elapsed / manual activation(three methods). Once window detection mode is enabled, meeting any one of thesethree conditions triggers exit from window detection mode.
【Temperature hysteresis：0.5℃】
【Anti freezing function】
【child lock】
【Power off memory】

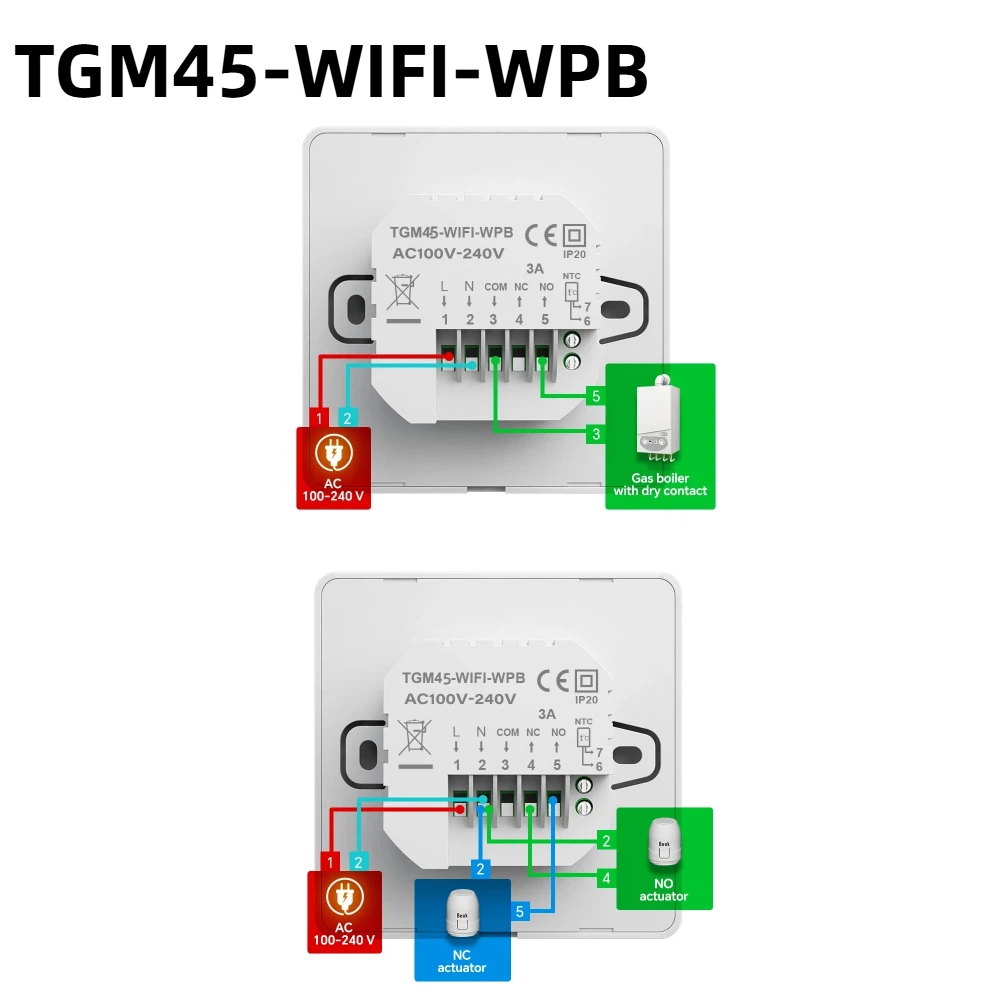

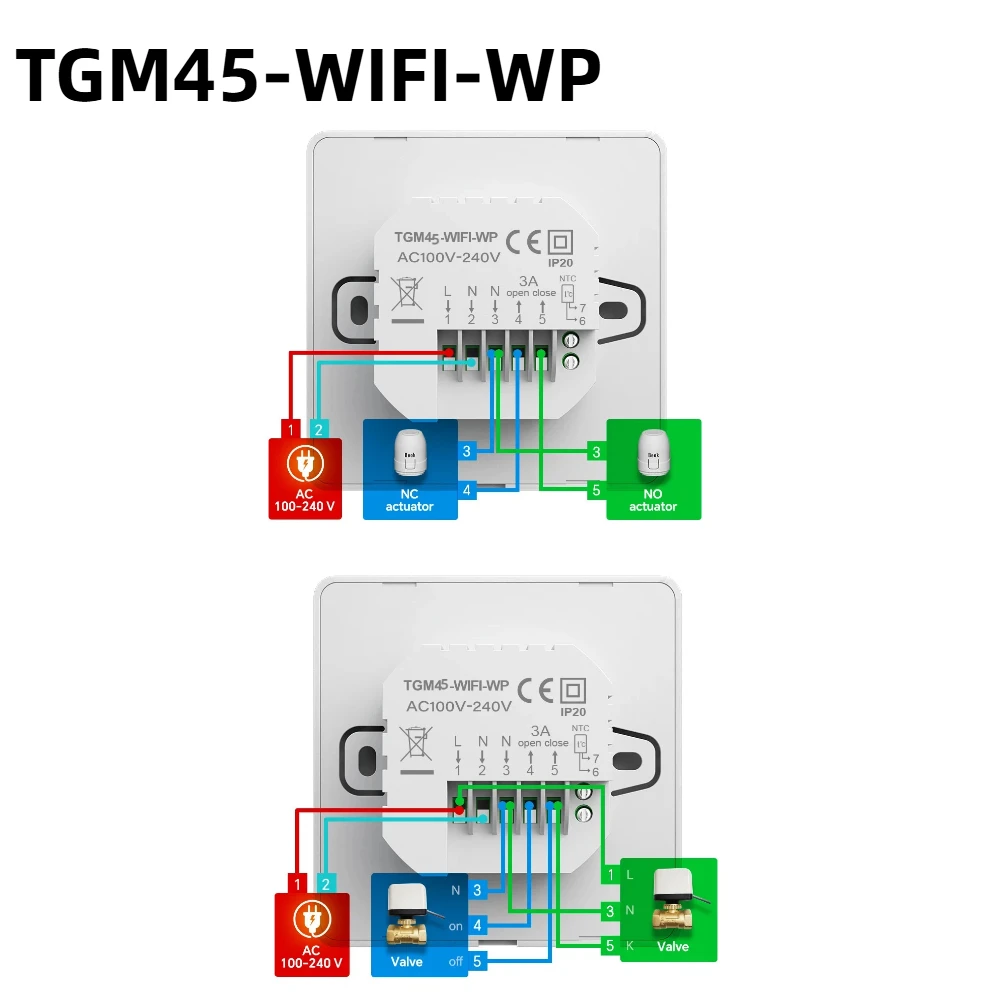

Wiring diagram：

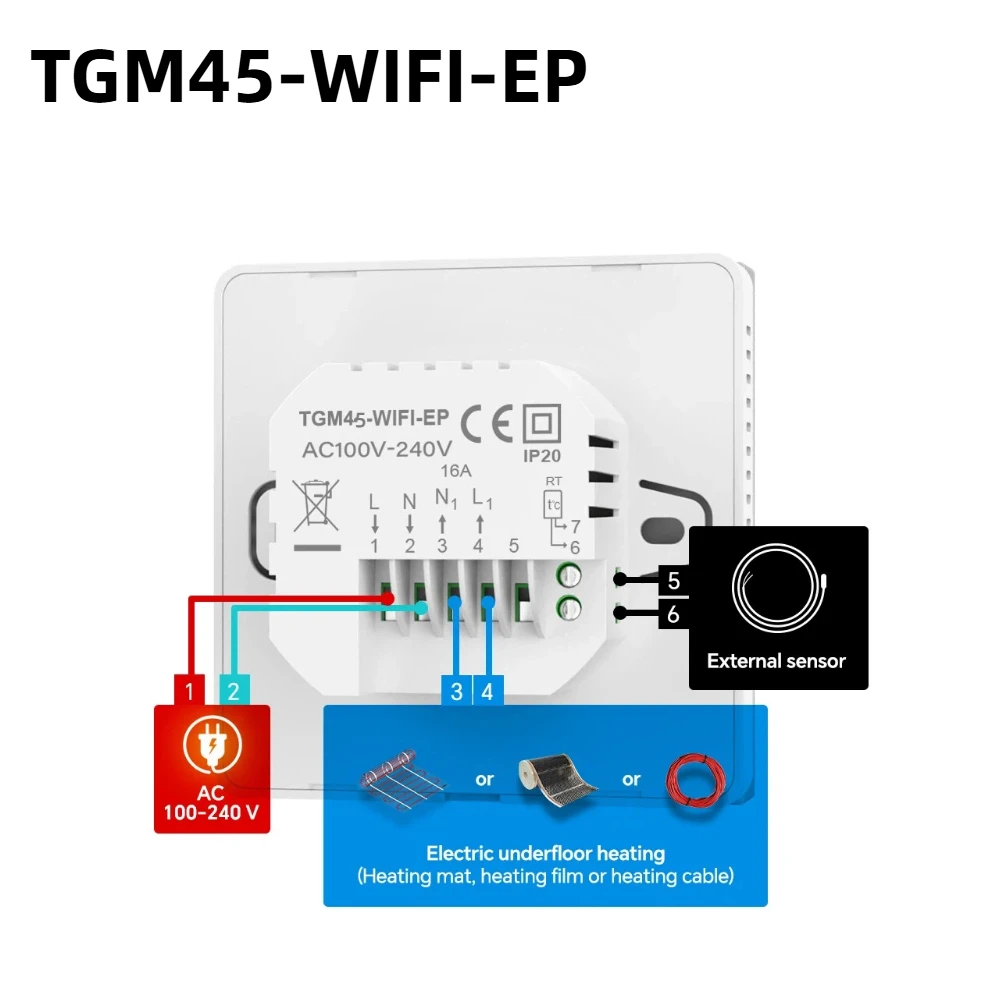

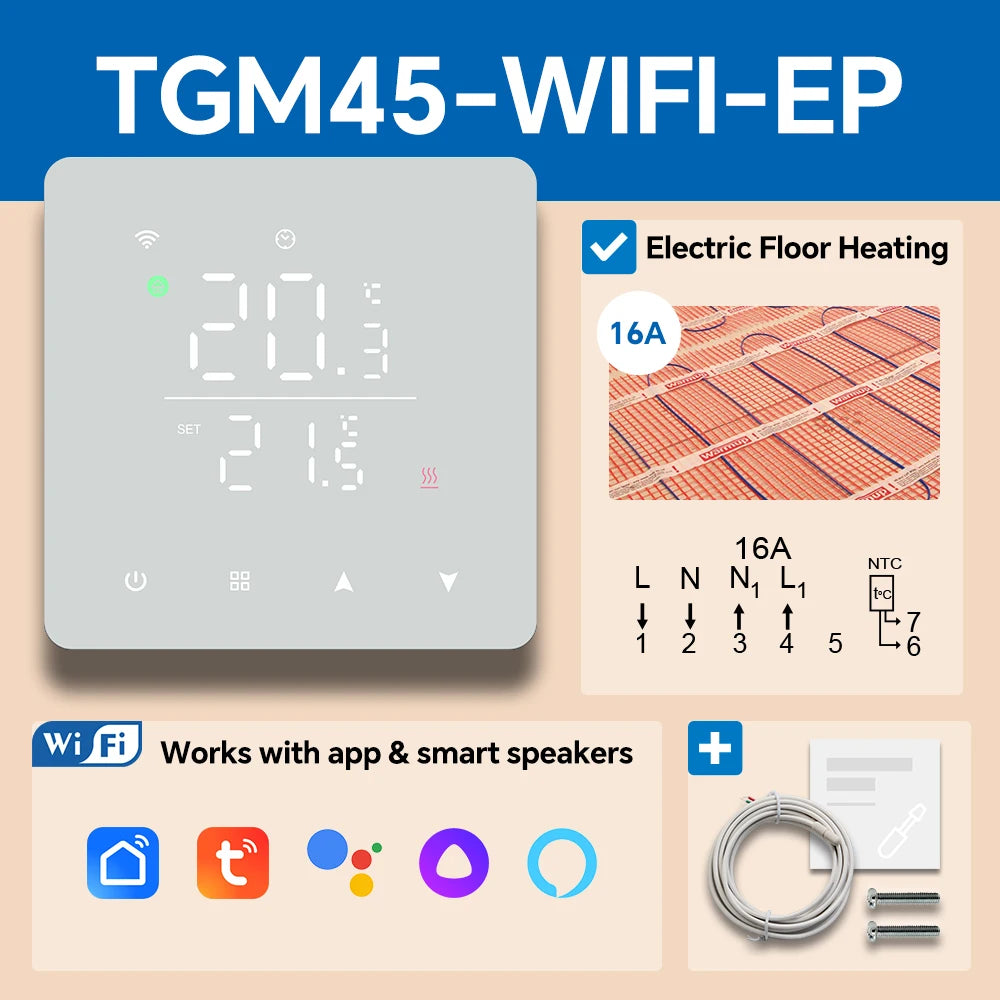

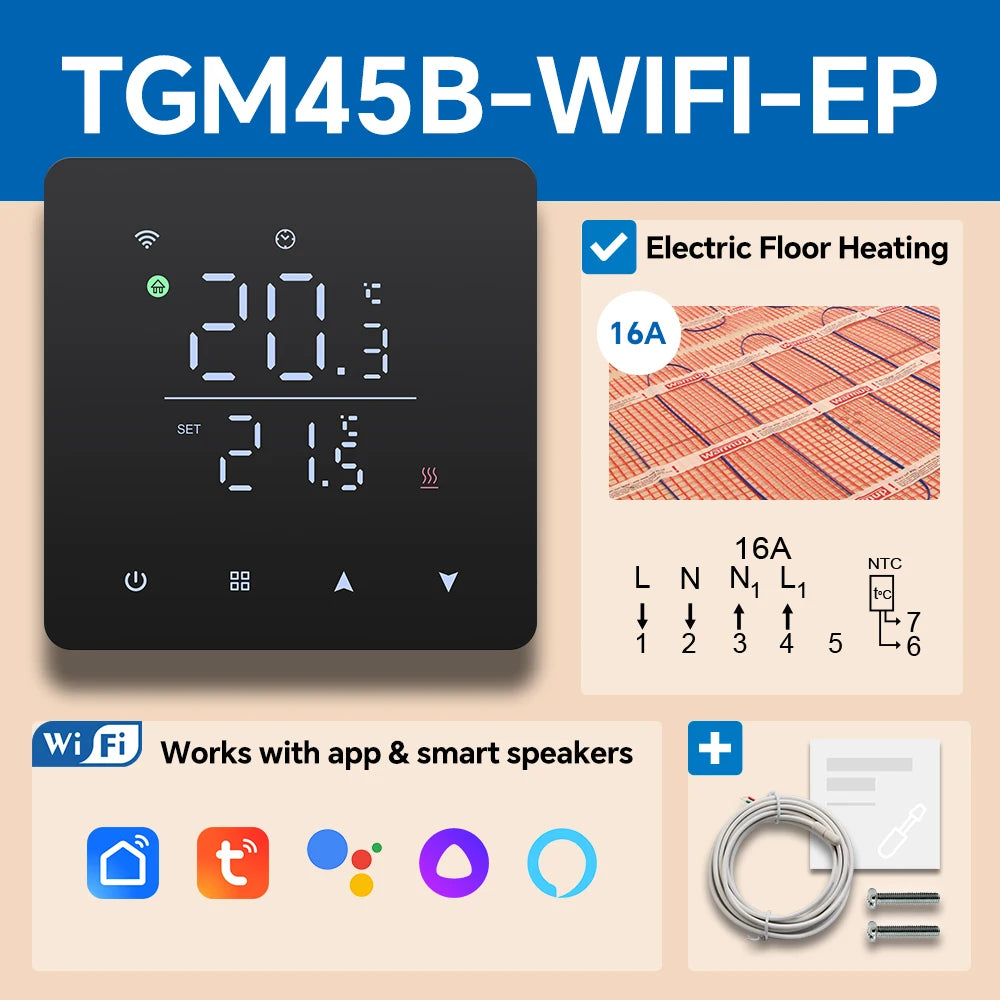

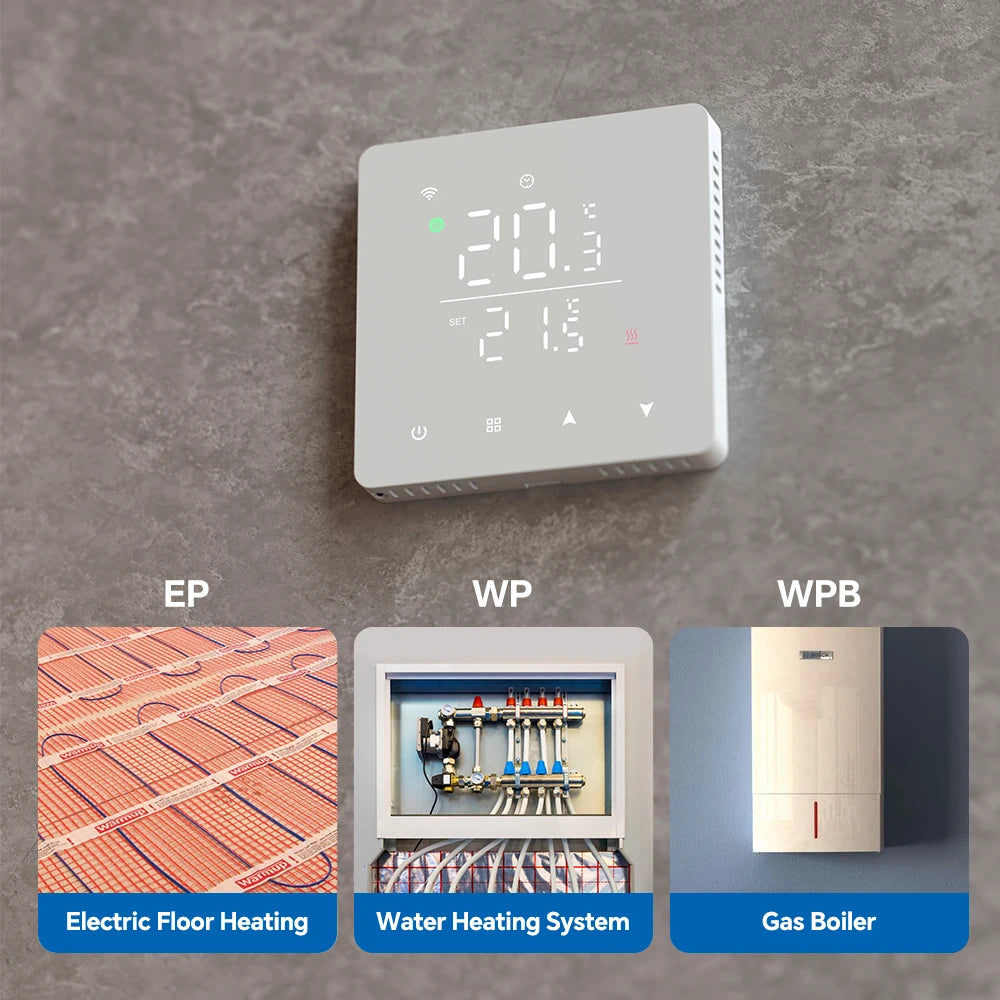

EP(for Electric Floor Heating) is used control Heating Cable/Heating Mat/Heating Film etc. electric floor/underfloor heating system.

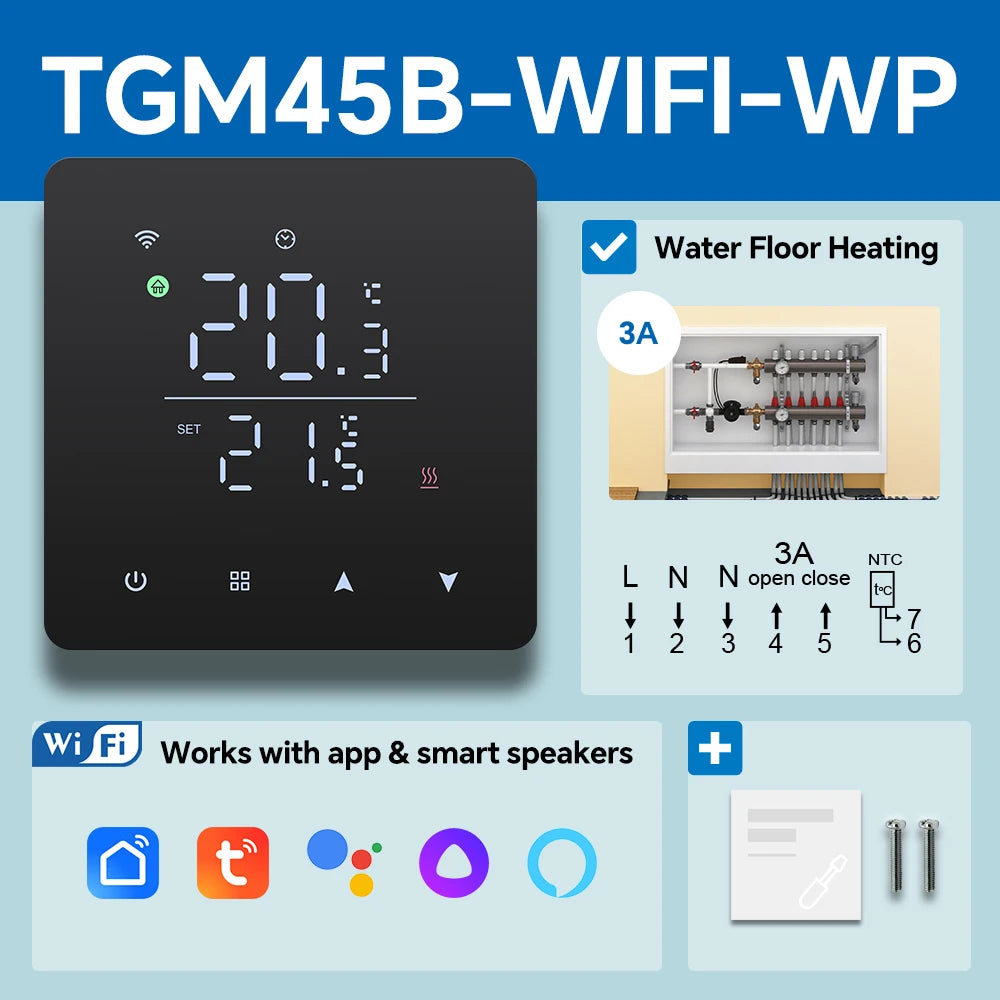

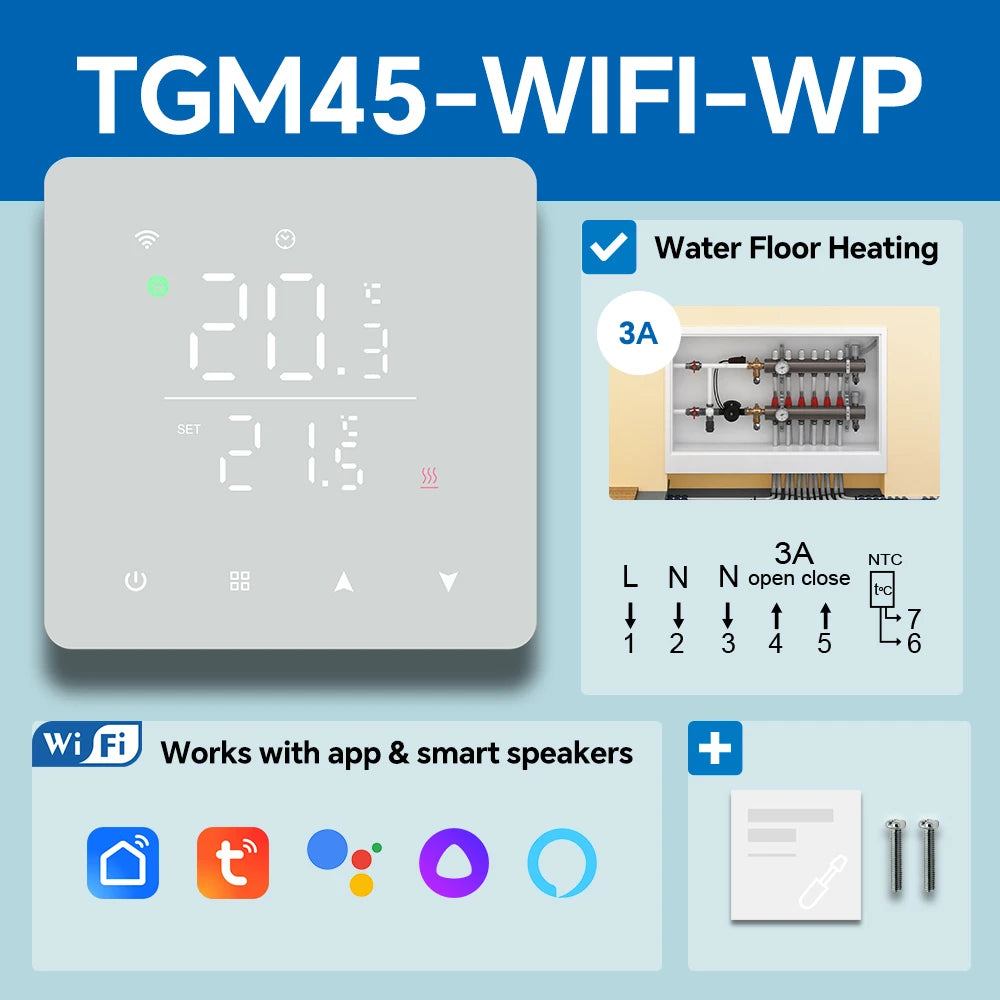

WP(for Water Floor Heating) is used control Valves/Normally Closed Actuators/Normally Opened Actuators etc. water floor/underfloor heating system.

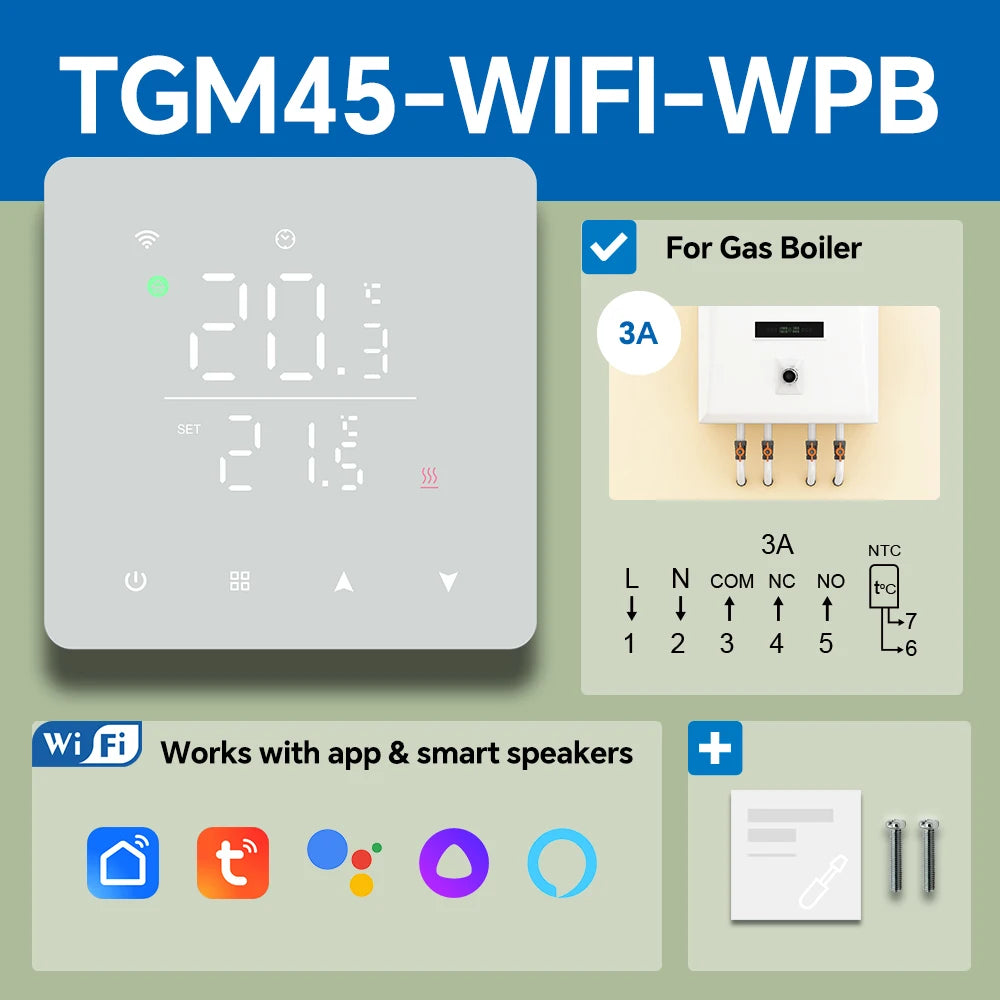

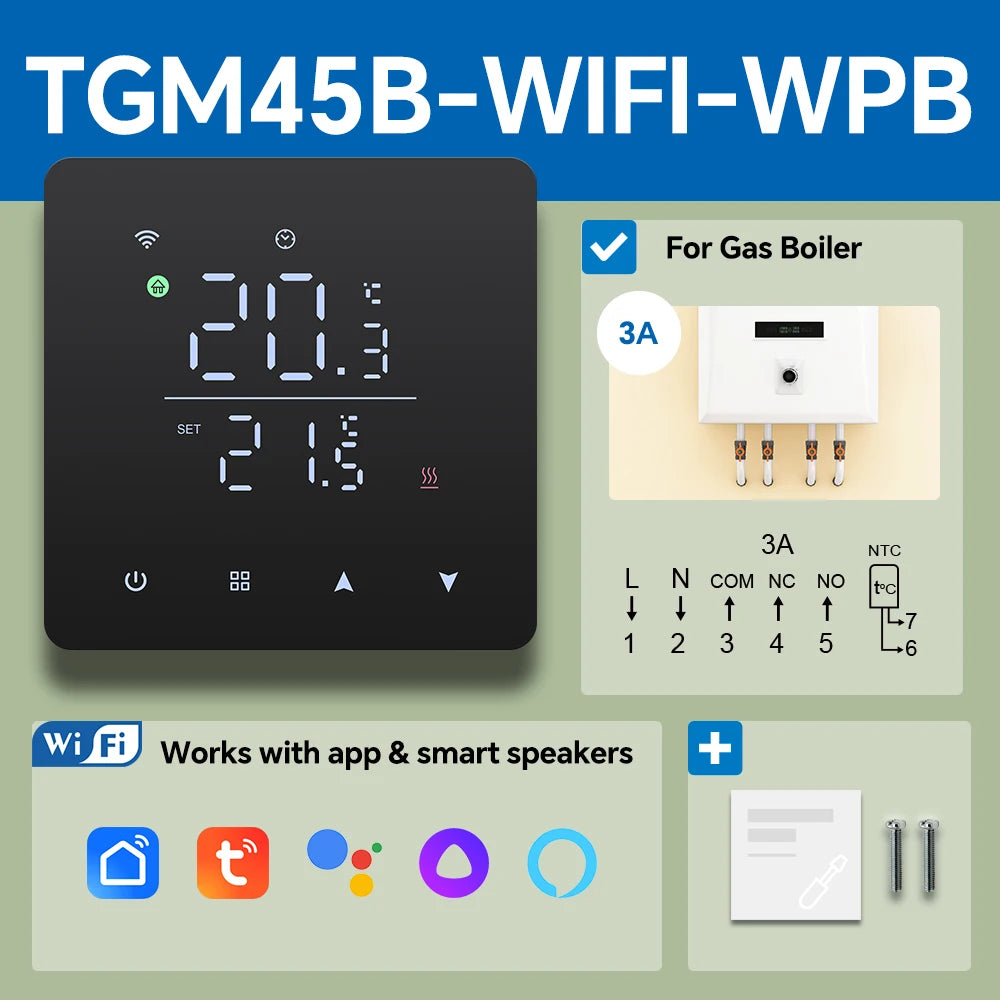

WPB(for Boiler) is used control gas boiler/electric boiler and other equipment which are connected via "Dry Connect".

Specifications:

Voltage:200-240V 50-60Hz
Current:16A for electric heating
3A for Water floor heating and Gas Boiler
Set temperature range:5-95℃
Sensor:NTC

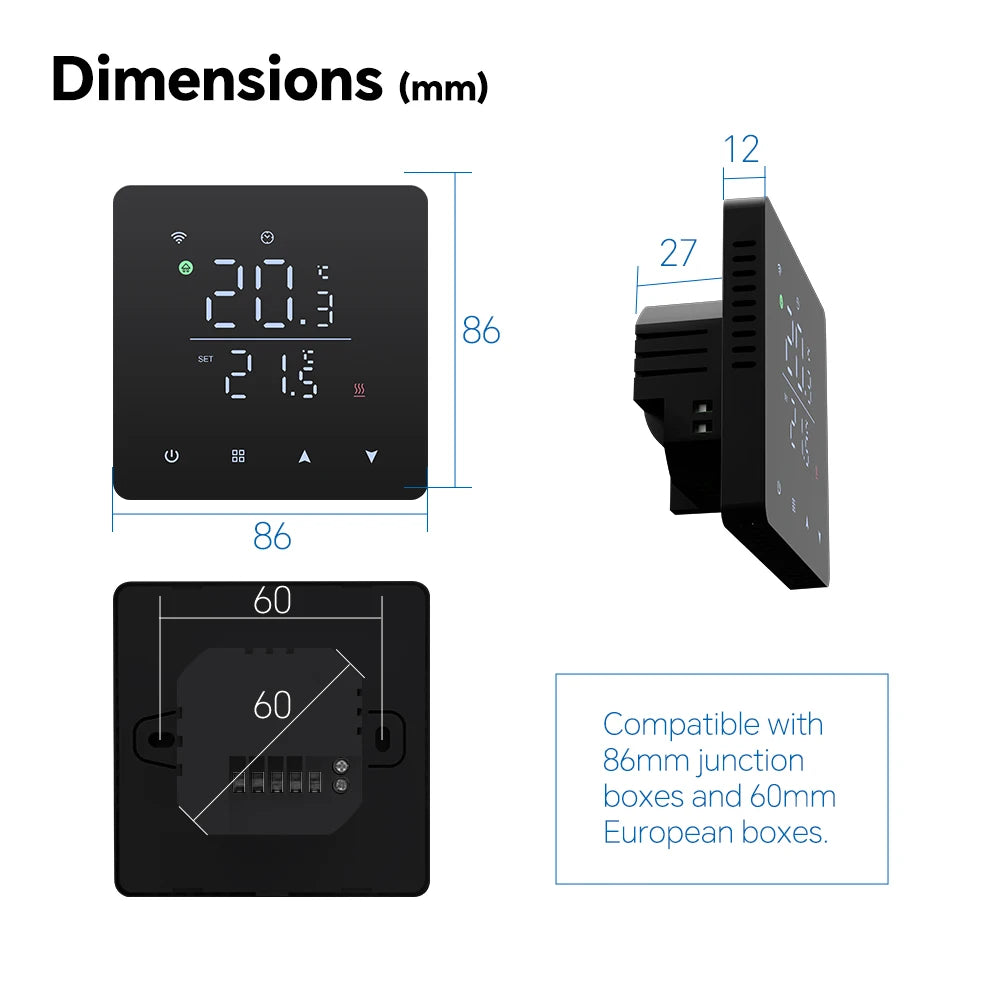

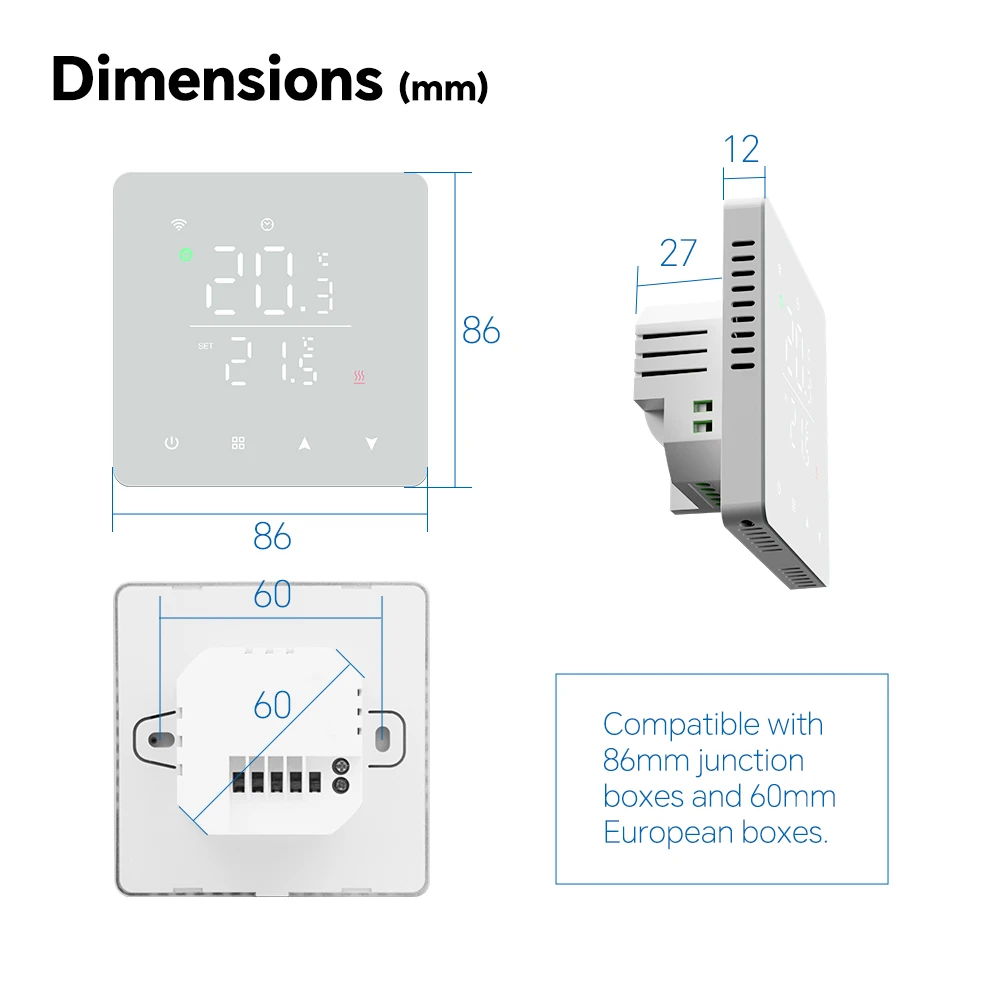

Size:86x86x12mm

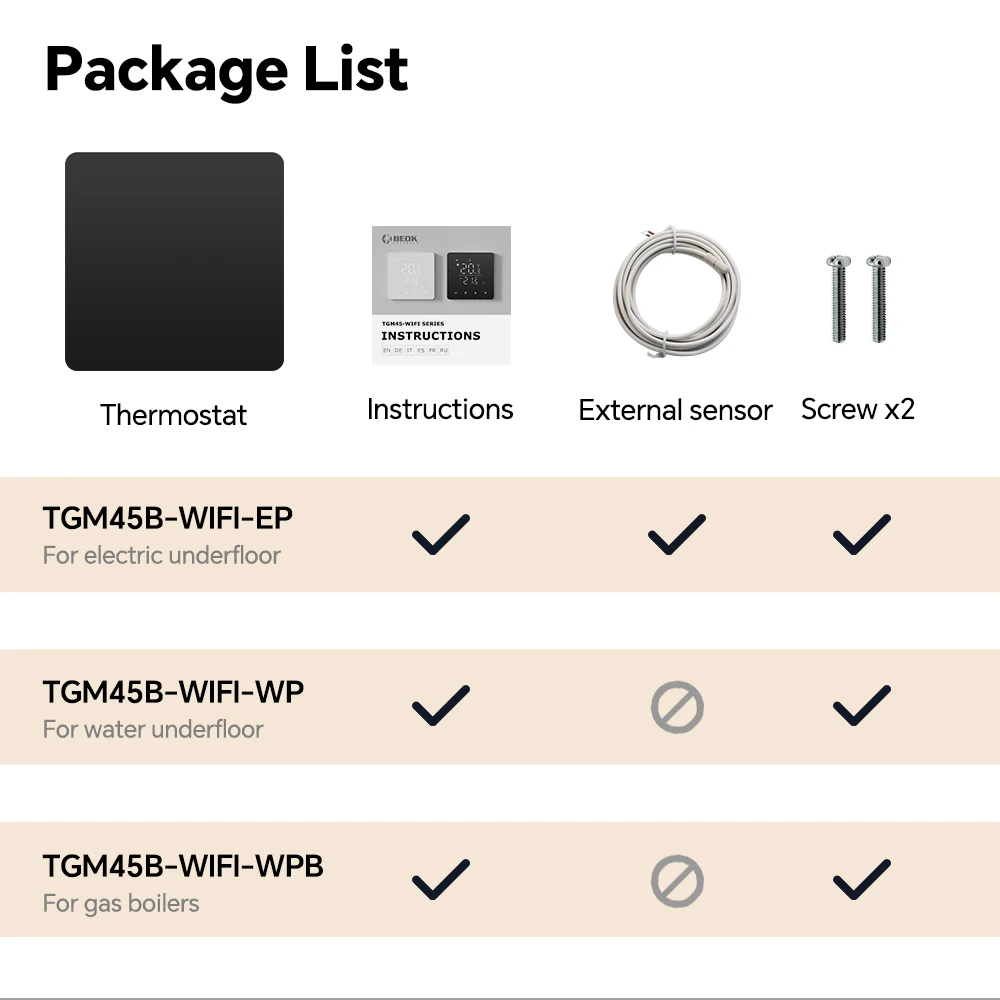

Package List:

Thermostat * 1
Instruction *1
Screw * 2
Floor Sensor *1(Only EP models include)
